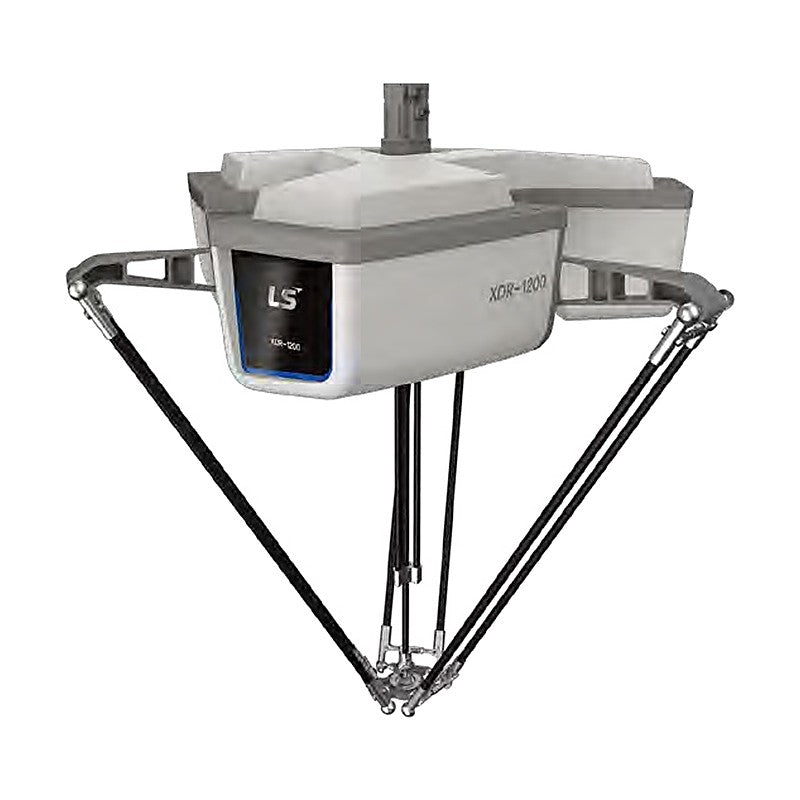

Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| XDR-600 | Working diameter: 600 mm | Working height: 250 mm | Payload: 1 kg | Cycle time: Up to 190 cpm (0.3 s) | ||
| XDR-800 | Working diameter: 800 mm | Working height: 250 mm | Payload: 1 (3) kg | Cycle time: Up to 190 cpm (0.32 s) | ||
| XDR-1200 | Working diameter: 1200 mm | Working height: 300 mm | Payload: 3 (5) kg | Cycle time: Up to 170 cpm (0.35 s) | ||
| XDR-1600 | Working diameter: 1600 mm | Working height: 450 mm | Payload: 3 (10) kg | Cycle time: Up to 150 cpm (0.4 s) | ||
| XDR-1200H | Working diameter: 1200 mm | Working height: 300 mm | Payload: 10 (15) kg | Cycle time: Up to 170 cpm (0.35 s) | ||
| XDR-1600H | Working diameter: 1600 mm | Working height: 450 mm | Payload: 10 (15) kg | Cycle time: Up to 150 cpm (0.4 s) |
Need a different model, or a part not listed here? Send us your parts list →
