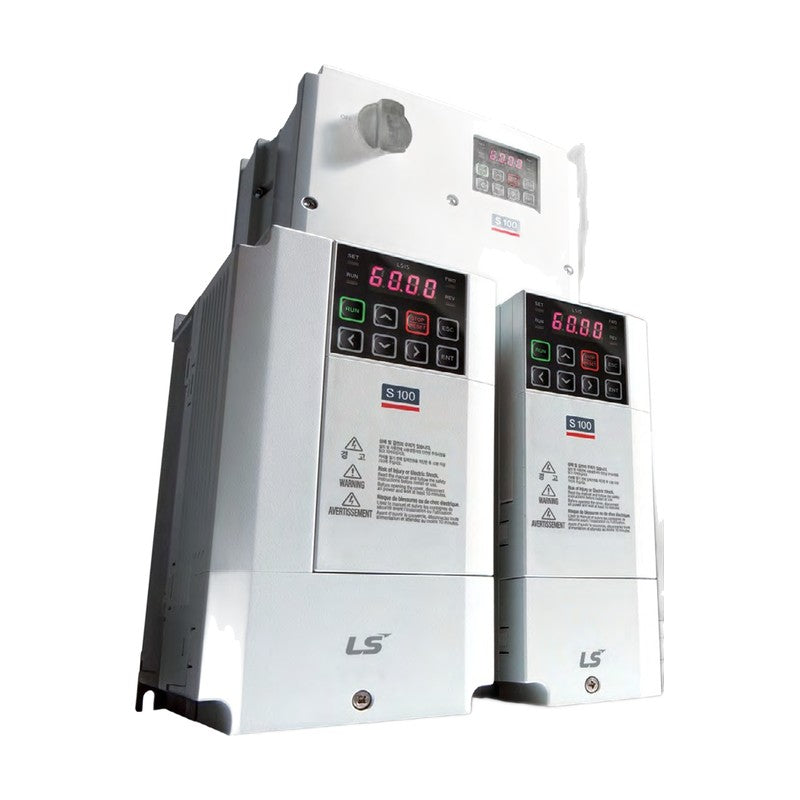

LS Electric S100 Standard AC Drive (IP20, 0.4-75 kW, 200V/400V)

The LS Electric S100 is a compact high-performance standard AC drive with enhanced sensorless vector control, built-in STO, dual rating and optional built-in EMC filter, offered in standard I/O and multiple I/O versions.

Key features

Enhanced sensorless vector control with 200% starting torque at 0.5 Hz
Dual rating: heavy duty 150% 1 min / normal duty 120% 1 min
Built-in Safe Torque Off input (EN 61508 SIL2)
Built-in EMC filter versions (C2 for 1-ph 200V, C3 for 3-ph 400V); DC reactor built in at 30-75 kW
Side-by-side mounting, up to 60% smaller volume than iG5A
Fieldbus options: Profibus-DP, EtherNet/IP, Modbus TCP, CANopen, EtherCAT, PROFINET

Specifications

Series	S100
Control	V/F, slip compensation, sensorless vector
Output frequency	0-400 Hz (IM sensorless 0-120 Hz)
Input frequency	50/60 Hz +/-5%
Input voltage tolerance	-15% to +10%
Enclosure	IP20, UL Open (UL Type 1 with conduit kit)
Built-in communication	RS-485 (Modbus RTU / LS INV 485), multi-keypad function
Ambient temperature	-10 to 50 C (HD), -10 to 40 C (ND)
Code format	LSLV<kW>S100-<V><keypad>O<EMC><DCR><I/O>
Source	LS Electric S100 catalog (KR 2023.06), p. 12-16

LSLV0004S100-1EONNS		Voltage: 1-ph 200-240V \| Motor HD/ND: 0.4 / 0.75 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0004S100-1EOFNS		Voltage: 1-ph 200-240V \| Motor HD/ND: 0.4 / 0.75 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0008S100-1EONNS		Voltage: 1-ph 200-240V \| Motor HD/ND: 0.75 / 1.5 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0008S100-1EOFNS		Voltage: 1-ph 200-240V \| Motor HD/ND: 0.75 / 1.5 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0015S100-1EONNS		Voltage: 1-ph 200-240V \| Motor HD/ND: 1.5 / 2.2 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0015S100-1EOFNS		Voltage: 1-ph 200-240V \| Motor HD/ND: 1.5 / 2.2 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0022S100-1EONNS		Voltage: 1-ph 200-240V \| Motor HD/ND: 2.2 / 3.7 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0022S100-1EOFNS		Voltage: 1-ph 200-240V \| Motor HD/ND: 2.2 / 3.7 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0004S100-2EONNS		Voltage: 3-ph 200-240V \| Motor HD/ND: 0.4 / 0.75 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0008S100-2EONNS		Voltage: 3-ph 200-240V \| Motor HD/ND: 0.75 / 1.5 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0015S100-2EONNS		Voltage: 3-ph 200-240V \| Motor HD/ND: 1.5 / 2.2 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0022S100-2EONNS		Voltage: 3-ph 200-240V \| Motor HD/ND: 2.2 / 3.7 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0037S100-2EONNS		Voltage: 3-ph 200-240V \| Motor HD/ND: 3.7 / 4 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0040S100-2EONNS		Voltage: 3-ph 200-240V \| Motor HD/ND: 4 / 5.5 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0055S100-2EONNS		Voltage: 3-ph 200-240V \| Motor HD/ND: 5.5 / 7.5 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0075S100-2EONNS		Voltage: 3-ph 200-240V \| Motor HD/ND: 7.5 / 11 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0110S100-2EONNS		Voltage: 3-ph 200-240V \| Motor HD/ND: 11 / 15 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0150S100-2EONNS		Voltage: 3-ph 200-240V \| Motor HD/ND: 15 / 18.5 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0004S100-4EONNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 0.4 / 0.75 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0004S100-4EOFNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 0.4 / 0.75 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0008S100-4EONNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 0.75 / 1.5 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0008S100-4EOFNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 0.75 / 1.5 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0015S100-4EONNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 1.5 / 2.2 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0015S100-4EOFNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 1.5 / 2.2 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0022S100-4EONNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 2.2 / 3.7 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0022S100-4EOFNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 2.2 / 3.7 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0037S100-4EONNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 3.7 / 4 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0037S100-4EOFNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 3.7 / 4 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0040S100-4EONNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 4 / 5.5 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Standard (5 DI)
LSLV0040S100-4EOFNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 4 / 5.5 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0055S100-4EOFNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 5.5 / 7.5 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0075S100-4EOFNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 7.5 / 11 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0110S100-4EOFNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 11 / 15 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0150S100-4EOFNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 15 / 18.5 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0185S100-4EOFNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 18.5 / 22 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0220S100-4EOFNS		Voltage: 3-ph 380-480V \| Motor HD/ND: 22 / 30 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Standard (5 DI)
LSLV0300S100-4CONDS		Voltage: 3-ph 380-480V \| Motor HD/ND: 30 / 37 kW \| Keypad: LCD \| EMC/DC reactor: DCR only \| I/O: Standard (5 DI)
LSLV0300S100-4COFDS		Voltage: 3-ph 380-480V \| Motor HD/ND: 30 / 37 kW \| Keypad: LCD \| EMC/DC reactor: EMC + DCR \| I/O: Standard (5 DI)
LSLV0370S100-4CONDS		Voltage: 3-ph 380-480V \| Motor HD/ND: 37 / 45 kW \| Keypad: LCD \| EMC/DC reactor: DCR only \| I/O: Standard (5 DI)
LSLV0370S100-4COFDS		Voltage: 3-ph 380-480V \| Motor HD/ND: 37 / 45 kW \| Keypad: LCD \| EMC/DC reactor: EMC + DCR \| I/O: Standard (5 DI)
LSLV0450S100-4CONDS		Voltage: 3-ph 380-480V \| Motor HD/ND: 45 / 55 kW \| Keypad: LCD \| EMC/DC reactor: DCR only \| I/O: Standard (5 DI)
LSLV0450S100-4COFDS		Voltage: 3-ph 380-480V \| Motor HD/ND: 45 / 55 kW \| Keypad: LCD \| EMC/DC reactor: EMC + DCR \| I/O: Standard (5 DI)
LSLV0550S100-4CONDS		Voltage: 3-ph 380-480V \| Motor HD/ND: 55 / 75 kW \| Keypad: LCD \| EMC/DC reactor: DCR only \| I/O: Standard (5 DI)
LSLV0750S100-4CONDS		Voltage: 3-ph 380-480V \| Motor HD/ND: 75 / 90 kW \| Keypad: LCD \| EMC/DC reactor: DCR only \| I/O: Standard (5 DI)
LSLV0004S100-1EONNM		Voltage: 1-ph 200-240V \| Motor HD/ND: 0.4 / 0.75 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0004S100-1EOFNM		Voltage: 1-ph 200-240V \| Motor HD/ND: 0.4 / 0.75 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
LSLV0008S100-1EONNM		Voltage: 1-ph 200-240V \| Motor HD/ND: 0.75 / 1.5 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0008S100-1EOFNM		Voltage: 1-ph 200-240V \| Motor HD/ND: 0.75 / 1.5 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
LSLV0015S100-1EONNM		Voltage: 1-ph 200-240V \| Motor HD/ND: 1.5 / 2.2 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0015S100-1EOFNM		Voltage: 1-ph 200-240V \| Motor HD/ND: 1.5 / 2.2 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
LSLV0022S100-1EONNM		Voltage: 1-ph 200-240V \| Motor HD/ND: 2.2 / 3.7 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0022S100-1EOFNM		Voltage: 1-ph 200-240V \| Motor HD/ND: 2.2 / 3.7 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
LSLV0004S100-2EONNM		Voltage: 3-ph 200-240V \| Motor HD/ND: 0.4 / 0.75 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0008S100-2EONNM		Voltage: 3-ph 200-240V \| Motor HD/ND: 0.75 / 1.5 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0015S100-2EONNM		Voltage: 3-ph 200-240V \| Motor HD/ND: 1.5 / 2.2 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0022S100-2EONNM		Voltage: 3-ph 200-240V \| Motor HD/ND: 2.2 / 3.7 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0037S100-2EONNM		Voltage: 3-ph 200-240V \| Motor HD/ND: 3.7 / 4 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0040S100-2EONNM		Voltage: 3-ph 200-240V \| Motor HD/ND: 4 / 5.5 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0055S100-2EONNM		Voltage: 3-ph 200-240V \| Motor HD/ND: 5.5 / 7.5 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0075S100-2EONNM		Voltage: 3-ph 200-240V \| Motor HD/ND: 7.5 / 11 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0110S100-2EONNM		Voltage: 3-ph 200-240V \| Motor HD/ND: 11 / 15 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0150S100-2EONNM		Voltage: 3-ph 200-240V \| Motor HD/ND: 15 / 18.5 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0004S100-4EONNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 0.4 / 0.75 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0004S100-4EOFNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 0.4 / 0.75 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
LSLV0008S100-4EONNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 0.75 / 1.5 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0008S100-4EOFNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 0.75 / 1.5 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
LSLV0015S100-4EONNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 1.5 / 2.2 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0015S100-4EOFNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 1.5 / 2.2 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
LSLV0022S100-4EONNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 2.2 / 3.7 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0022S100-4EOFNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 2.2 / 3.7 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
LSLV0037S100-4EONNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 3.7 / 4 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0037S100-4EOFNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 3.7 / 4 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
LSLV0040S100-4EONNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 4 / 5.5 kW \| Keypad: LED \| EMC/DC reactor: None \| I/O: Multiple (7 DI)
LSLV0040S100-4EOFNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 4 / 5.5 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
LSLV0055S100-4EOFNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 5.5 / 7.5 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
LSLV0075S100-4EOFNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 7.5 / 11 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
LSLV0110S100-4EOFNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 11 / 15 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
LSLV0150S100-4EOFNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 15 / 18.5 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
LSLV0185S100-4EOFNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 18.5 / 22 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
LSLV0220S100-4EOFNM		Voltage: 3-ph 380-480V \| Motor HD/ND: 22 / 30 kW \| Keypad: LED \| EMC/DC reactor: EMC filter \| I/O: Multiple (7 DI)
