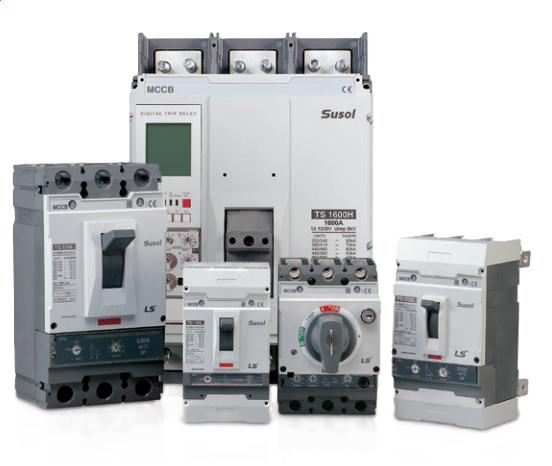

LS Electric TS400H-ETS Susol MCCB (High, 85kA @ 415V, ETS 160~400A)

LS Electric TS400H-ETS Susol MCCB (High, 85kA @ 415V, ETS 160~400A)

LS ELECTRIC Susol MCCB TS400H-ETS family.

Specifications

Frame 400AF
Breaking capacity Icu 85kA @ 415V AC
Trip unit ETS400 (Electronic)
Trip features Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment
Standard IEC 60947-2
TS400H-ETS400-160A-2P Susol MCCB TS400H-ETS — 160A ETS400, 2-pole | Frame: 400AF | Rated current (In): 160A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 2-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-160A-3P Susol MCCB TS400H-ETS — 160A ETS400, 3-pole | Frame: 400AF | Rated current (In): 160A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 3-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-160A-4PL Susol MCCB TS400H-ETS — 160A ETS400, 4-pole (L) | Frame: 400AF | Rated current (In): 160A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-160A-4PR Susol MCCB TS400H-ETS — 160A ETS400, 4-pole (R) | Frame: 400AF | Rated current (In): 160A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-250A-2P Susol MCCB TS400H-ETS — 250A ETS400, 2-pole | Frame: 400AF | Rated current (In): 250A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 2-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-250A-3P Susol MCCB TS400H-ETS — 250A ETS400, 3-pole | Frame: 400AF | Rated current (In): 250A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 3-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-250A-4PL Susol MCCB TS400H-ETS — 250A ETS400, 4-pole (L) | Frame: 400AF | Rated current (In): 250A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-250A-4PR Susol MCCB TS400H-ETS — 250A ETS400, 4-pole (R) | Frame: 400AF | Rated current (In): 250A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-400A-2P Susol MCCB TS400H-ETS — 400A ETS400, 2-pole | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 2-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-400A-3P Susol MCCB TS400H-ETS — 400A ETS400, 3-pole | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 3-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-400A-4PL Susol MCCB TS400H-ETS — 400A ETS400, 4-pole (L) | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-400A-4PR Susol MCCB TS400H-ETS — 400A ETS400, 4-pole (R) | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
Molded Case Circuit BreakersLS Electric
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric TS400H-ETS Susol MCCB (High, 85kA @ 415V, ETS 160~400A)

Brand LS Electric·Molded Case Circuit Breakers

Available part numbers (12)

TS400H-ETS400-160A-2P, TS400H-ETS400-160A-3P, TS400H-ETS400-160A-4PL, TS400H-ETS400-160A-4PR, TS400H-ETS400-250A-2P, TS400H-ETS400-250A-3P, TS400H-ETS400-250A-4PL, TS400H-ETS400-250A-4PR, TS400H-ETS400-400A-2P, TS400H-ETS400-400A-3P + 2 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TS400H-ETS400-160A-2PSusol MCCB TS400H-ETS — 160A ETS400, 2-pole | Frame: 400AF | Rated current (In): 160A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 2-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-160A-3PSusol MCCB TS400H-ETS — 160A ETS400, 3-pole | Frame: 400AF | Rated current (In): 160A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 3-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-160A-4PLSusol MCCB TS400H-ETS — 160A ETS400, 4-pole (L) | Frame: 400AF | Rated current (In): 160A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-160A-4PRSusol MCCB TS400H-ETS — 160A ETS400, 4-pole (R) | Frame: 400AF | Rated current (In): 160A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-250A-2PSusol MCCB TS400H-ETS — 250A ETS400, 2-pole | Frame: 400AF | Rated current (In): 250A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 2-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-250A-3PSusol MCCB TS400H-ETS — 250A ETS400, 3-pole | Frame: 400AF | Rated current (In): 250A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 3-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-250A-4PLSusol MCCB TS400H-ETS — 250A ETS400, 4-pole (L) | Frame: 400AF | Rated current (In): 250A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-250A-4PRSusol MCCB TS400H-ETS — 250A ETS400, 4-pole (R) | Frame: 400AF | Rated current (In): 250A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-400A-2PSusol MCCB TS400H-ETS — 400A ETS400, 2-pole | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 2-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-400A-3PSusol MCCB TS400H-ETS — 400A ETS400, 3-pole | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 3-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-400A-4PLSusol MCCB TS400H-ETS — 400A ETS400, 4-pole (L) | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400H-ETS400-400A-4PRSusol MCCB TS400H-ETS — 400A ETS400, 4-pole (R) | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETS400 (Electronic) | Trip features: Adjustable In, LSI protection (Long-time, Short-time, Instantaneous), 13-step adjustment | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
