• LS Electric TS400L-FTU Susol MCCB (Limited (Current limiting), 150kA @ 415V, FTU 300~400A)
1 1

LS Electric TS400L-FTU Susol MCCB (Limited (Current limiting), 150kA @ 415V, FTU 300~400A)

LS Electric TS400L-FTU Susol MCCB (Limited (Current limiting), 150kA @ 415V, FTU 300~400A)

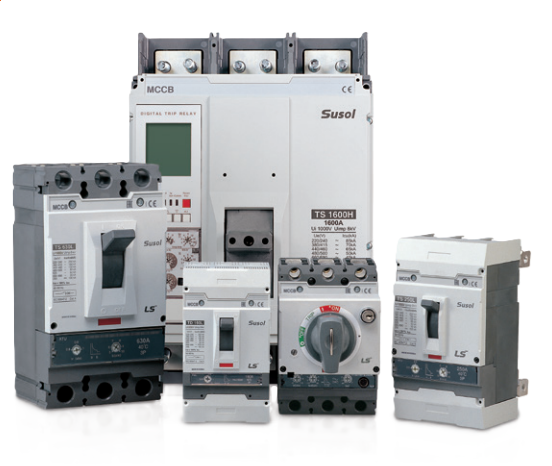

LS ELECTRIC Susol MCCB TS400L-FTU family.

Specifications

Frame 400AF
Breaking capacity Icu 150kA @ 415V AC
Trip unit FTU400 (Thermal-Magnetic)
Trip features Fixed rated current and instantaneous trip (10×In)
Standard IEC 60947-2
TS400L-FTU400-300A-2P Susol MCCB TS400L-FTU — 300A FTU400, 2-pole | Frame: 400AF | Rated current (In): 300A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 2-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400L-FTU400-300A-3P Susol MCCB TS400L-FTU — 300A FTU400, 3-pole | Frame: 400AF | Rated current (In): 300A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 3-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400L-FTU400-300A-4PL Susol MCCB TS400L-FTU — 300A FTU400, 4-pole (L) | Frame: 400AF | Rated current (In): 300A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400L-FTU400-300A-4PR Susol MCCB TS400L-FTU — 300A FTU400, 4-pole (R) | Frame: 400AF | Rated current (In): 300A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400L-FTU400-400A-2P Susol MCCB TS400L-FTU — 400A FTU400, 2-pole | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 2-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400L-FTU400-400A-3P Susol MCCB TS400L-FTU — 400A FTU400, 3-pole | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 3-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400L-FTU400-400A-4PL Susol MCCB TS400L-FTU — 400A FTU400, 4-pole (L) | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400L-FTU400-400A-4PR Susol MCCB TS400L-FTU — 400A FTU400, 4-pole (R) | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
Molded Case Circuit BreakersLS Electric
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric TS400L-FTU Susol MCCB (Limited (Current limiting), 150kA @ 415V, FTU 300~400A)

Brand LS Electric·Molded Case Circuit Breakers

Available part numbers (8)

TS400L-FTU400-300A-2P, TS400L-FTU400-300A-3P, TS400L-FTU400-300A-4PL, TS400L-FTU400-300A-4PR, TS400L-FTU400-400A-2P, TS400L-FTU400-400A-3P, TS400L-FTU400-400A-4PL, TS400L-FTU400-400A-4PR

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TS400L-FTU400-300A-2PSusol MCCB TS400L-FTU — 300A FTU400, 2-pole | Frame: 400AF | Rated current (In): 300A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 2-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400L-FTU400-300A-3PSusol MCCB TS400L-FTU — 300A FTU400, 3-pole | Frame: 400AF | Rated current (In): 300A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 3-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400L-FTU400-300A-4PLSusol MCCB TS400L-FTU — 300A FTU400, 4-pole (L) | Frame: 400AF | Rated current (In): 300A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400L-FTU400-300A-4PRSusol MCCB TS400L-FTU — 300A FTU400, 4-pole (R) | Frame: 400AF | Rated current (In): 300A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400L-FTU400-400A-2PSusol MCCB TS400L-FTU — 400A FTU400, 2-pole | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 2-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400L-FTU400-400A-3PSusol MCCB TS400L-FTU — 400A FTU400, 3-pole | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 3-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400L-FTU400-400A-4PLSusol MCCB TS400L-FTU — 400A FTU400, 4-pole (L) | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS400L-FTU400-400A-4PRSusol MCCB TS400L-FTU — 400A FTU400, 4-pole (R) | Frame: 400AF | Rated current (In): 400A | Breaking capacity Icu: 150kA @ 415V AC | Trip unit: FTU400 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
