LS Electric TS630N-FTU Susol MCCB (Normal (Standard), 65kA @ 415V, FTU 500~630A)

LS Electric TS630N-FTU Susol MCCB (Normal (Standard), 65kA @ 415V, FTU 500~630A)

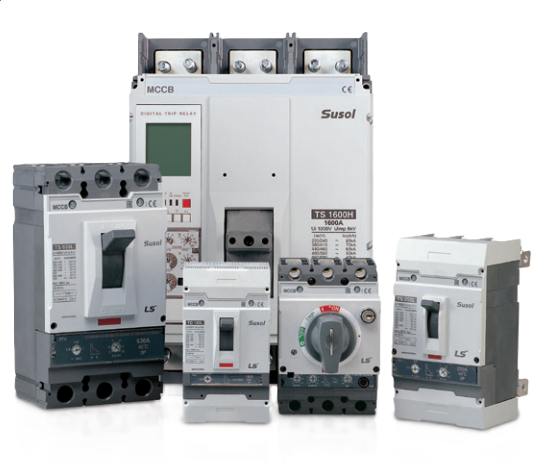

LS ELECTRIC Susol MCCB TS630N-FTU family.

Specifications

Frame 630AF
Breaking capacity Icu 65kA @ 415V AC
Trip unit FTU630 (Thermal-Magnetic)
Trip features Fixed rated current and instantaneous trip (10×In)
Standard IEC 60947-2
TS630N-FTU630-500A-2P Susol MCCB TS630N-FTU — 500A FTU630, 2-pole | Frame: 630AF | Rated current (In): 500A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 2-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS630N-FTU630-500A-3P Susol MCCB TS630N-FTU — 500A FTU630, 3-pole | Frame: 630AF | Rated current (In): 500A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 3-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS630N-FTU630-500A-4PL Susol MCCB TS630N-FTU — 500A FTU630, 4-pole (L) | Frame: 630AF | Rated current (In): 500A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS630N-FTU630-500A-4PR Susol MCCB TS630N-FTU — 500A FTU630, 4-pole (R) | Frame: 630AF | Rated current (In): 500A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS630N-FTU630-630A-2P Susol MCCB TS630N-FTU — 630A FTU630, 2-pole | Frame: 630AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 2-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS630N-FTU630-630A-3P Susol MCCB TS630N-FTU — 630A FTU630, 3-pole | Frame: 630AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 3-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS630N-FTU630-630A-4PL Susol MCCB TS630N-FTU — 630A FTU630, 4-pole (L) | Frame: 630AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS630N-FTU630-630A-4PR Susol MCCB TS630N-FTU — 630A FTU630, 4-pole (R) | Frame: 630AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
Molded Case Circuit BreakersLS Electric
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric TS630N-FTU Susol MCCB (Normal (Standard), 65kA @ 415V, FTU 500~630A)

Brand LS Electric·Molded Case Circuit Breakers

Available part numbers (8)

TS630N-FTU630-500A-2P, TS630N-FTU630-500A-3P, TS630N-FTU630-500A-4PL, TS630N-FTU630-500A-4PR, TS630N-FTU630-630A-2P, TS630N-FTU630-630A-3P, TS630N-FTU630-630A-4PL, TS630N-FTU630-630A-4PR

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TS630N-FTU630-500A-2PSusol MCCB TS630N-FTU — 500A FTU630, 2-pole | Frame: 630AF | Rated current (In): 500A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 2-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS630N-FTU630-500A-3PSusol MCCB TS630N-FTU — 500A FTU630, 3-pole | Frame: 630AF | Rated current (In): 500A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 3-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS630N-FTU630-500A-4PLSusol MCCB TS630N-FTU — 500A FTU630, 4-pole (L) | Frame: 630AF | Rated current (In): 500A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS630N-FTU630-500A-4PRSusol MCCB TS630N-FTU — 500A FTU630, 4-pole (R) | Frame: 630AF | Rated current (In): 500A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS630N-FTU630-630A-2PSusol MCCB TS630N-FTU — 630A FTU630, 2-pole | Frame: 630AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 2-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS630N-FTU630-630A-3PSusol MCCB TS630N-FTU — 630A FTU630, 3-pole | Frame: 630AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 3-pole | Dimensions (W×H×D): 140×260×110 mm | Weight: 6.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS630N-FTU630-630A-4PLSusol MCCB TS630N-FTU — 630A FTU630, 4-pole (L) | Frame: 630AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS630N-FTU630-630A-4PRSusol MCCB TS630N-FTU — 630A FTU630, 4-pole (R) | Frame: 630AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: FTU630 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 186.5×260×110 mm | Weight: 8.5 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
