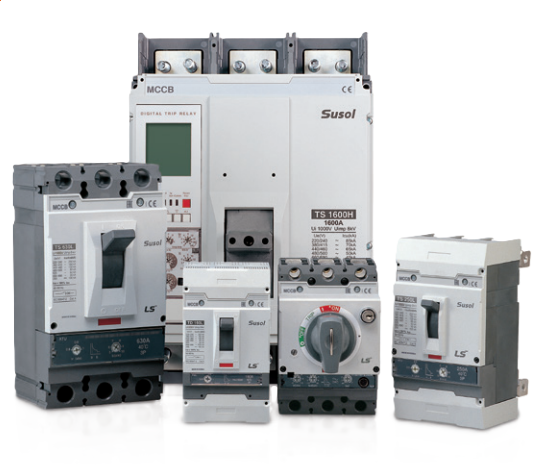

• LS Electric TS800N-ETM Susol MCCB (Normal (Standard), 65kA @ 415V, ETM 630~800A)
1 1

LS Electric TS800N-ETM Susol MCCB (Normal (Standard), 65kA @ 415V, ETM 630~800A)

LS Electric TS800N-ETM Susol MCCB (Normal (Standard), 65kA @ 415V, ETM 630~800A)

LS ELECTRIC Susol MCCB TS800N-ETM family.

Specifications

Frame 800AF
Breaking capacity Icu 65kA @ 415V AC
Trip unit ETM800 (Electronic)
Trip features Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C)
Standard IEC 60947-2
TS800N-ETM800-630A-2P Susol MCCB TS800N-ETM — 630A ETM800, 2-pole | Frame: 800AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 2-pole | Dimensions (W×H×D): 210×320×135 mm | Weight: 13.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS800N-ETM800-630A-3P Susol MCCB TS800N-ETM — 630A ETM800, 3-pole | Frame: 800AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 3-pole | Dimensions (W×H×D): 210×320×135 mm | Weight: 13.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS800N-ETM800-630A-4PL Susol MCCB TS800N-ETM — 630A ETM800, 4-pole (L) | Frame: 800AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 280×320×135 mm | Weight: 17.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS800N-ETM800-630A-4PR Susol MCCB TS800N-ETM — 630A ETM800, 4-pole (R) | Frame: 800AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 280×320×135 mm | Weight: 17.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS800N-ETM800-800A-2P Susol MCCB TS800N-ETM — 800A ETM800, 2-pole | Frame: 800AF | Rated current (In): 800A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 2-pole | Dimensions (W×H×D): 210×320×135 mm | Weight: 13.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS800N-ETM800-800A-3P Susol MCCB TS800N-ETM — 800A ETM800, 3-pole | Frame: 800AF | Rated current (In): 800A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 3-pole | Dimensions (W×H×D): 210×320×135 mm | Weight: 13.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS800N-ETM800-800A-4PL Susol MCCB TS800N-ETM — 800A ETM800, 4-pole (L) | Frame: 800AF | Rated current (In): 800A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 280×320×135 mm | Weight: 17.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS800N-ETM800-800A-4PR Susol MCCB TS800N-ETM — 800A ETM800, 4-pole (R) | Frame: 800AF | Rated current (In): 800A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 280×320×135 mm | Weight: 17.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
Molded Case Circuit BreakersLS Electric
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric TS800N-ETM Susol MCCB (Normal (Standard), 65kA @ 415V, ETM 630~800A)

Brand LS Electric·Molded Case Circuit Breakers

Available part numbers (8)

TS800N-ETM800-630A-2P, TS800N-ETM800-630A-3P, TS800N-ETM800-630A-4PL, TS800N-ETM800-630A-4PR, TS800N-ETM800-800A-2P, TS800N-ETM800-800A-3P, TS800N-ETM800-800A-4PL, TS800N-ETM800-800A-4PR

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TS800N-ETM800-630A-2PSusol MCCB TS800N-ETM — 630A ETM800, 2-pole | Frame: 800AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 2-pole | Dimensions (W×H×D): 210×320×135 mm | Weight: 13.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS800N-ETM800-630A-3PSusol MCCB TS800N-ETM — 630A ETM800, 3-pole | Frame: 800AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 3-pole | Dimensions (W×H×D): 210×320×135 mm | Weight: 13.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS800N-ETM800-630A-4PLSusol MCCB TS800N-ETM — 630A ETM800, 4-pole (L) | Frame: 800AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 280×320×135 mm | Weight: 17.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS800N-ETM800-630A-4PRSusol MCCB TS800N-ETM — 630A ETM800, 4-pole (R) | Frame: 800AF | Rated current (In): 630A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 280×320×135 mm | Weight: 17.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS800N-ETM800-800A-2PSusol MCCB TS800N-ETM — 800A ETM800, 2-pole | Frame: 800AF | Rated current (In): 800A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 2-pole | Dimensions (W×H×D): 210×320×135 mm | Weight: 13.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS800N-ETM800-800A-3PSusol MCCB TS800N-ETM — 800A ETM800, 3-pole | Frame: 800AF | Rated current (In): 800A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 3-pole | Dimensions (W×H×D): 210×320×135 mm | Weight: 13.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS800N-ETM800-800A-4PLSusol MCCB TS800N-ETM — 800A ETM800, 4-pole (L) | Frame: 800AF | Rated current (In): 800A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 4-pole — N-pole left (N-L1-L2-L3) | Dimensions (W×H×D): 280×320×135 mm | Weight: 17.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV
TS800N-ETM800-800A-4PRSusol MCCB TS800N-ETM — 800A ETM800, 4-pole (R) | Frame: 800AF | Rated current (In): 800A | Breaking capacity Icu: 65kA @ 415V AC | Trip unit: ETM800 (Electronic) | Trip features: Adjustable In, LSIG protection (Long/Short/Instantaneous/Ground fault), 30-step, communication option (Z/A/E/C) | Pole: 4-pole — N-pole right (L1-L2-L3-N) | Dimensions (W×H×D): 280×320×135 mm | Weight: 17.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV

Need a different model, or a part not listed here? Send us your parts list →
