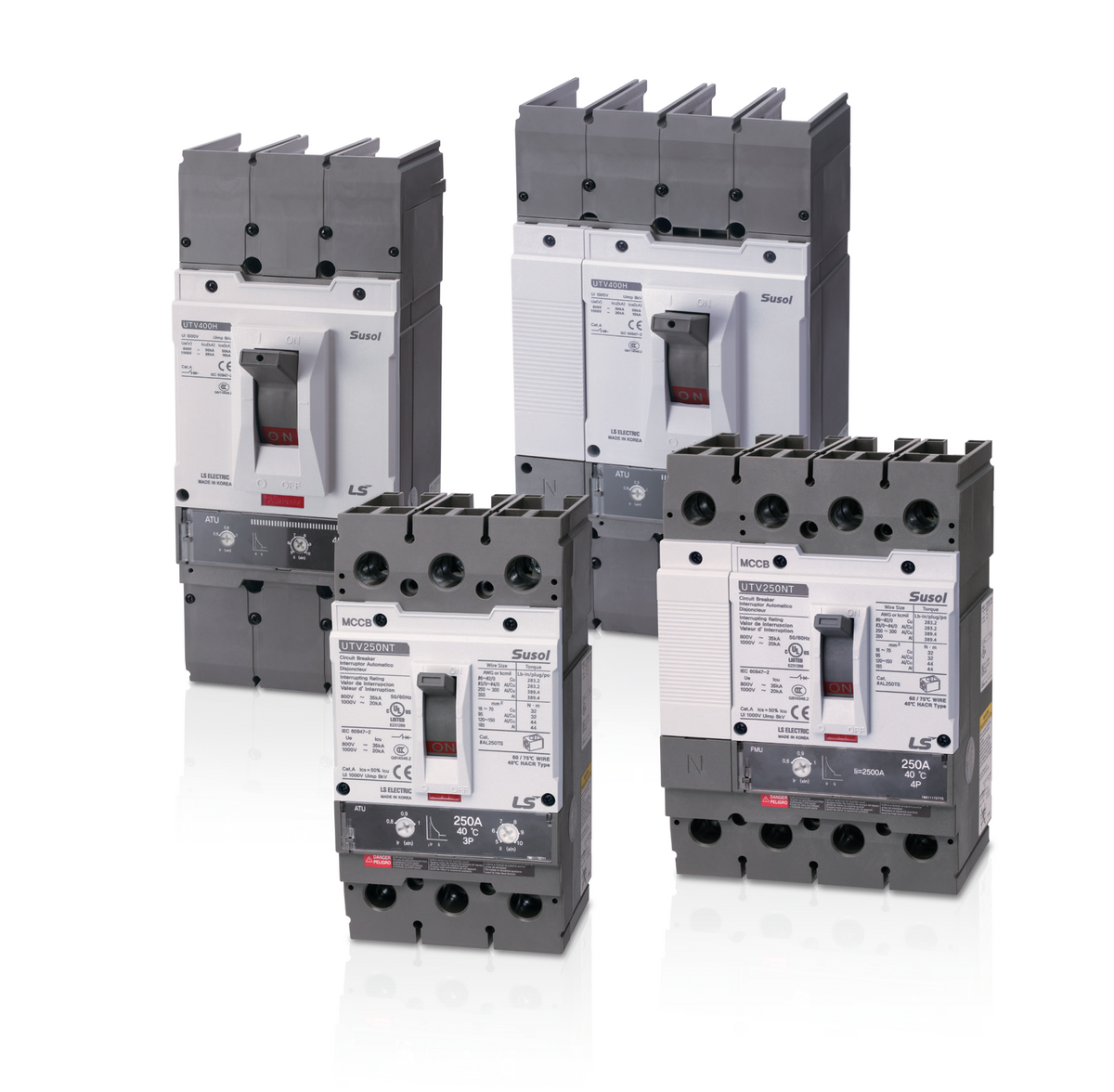

LS Electric UTV400-E-ATU-IEC Susol Beyond X MCCB (Economic, 25kA @ 800V, ATU 320~400A, IEC60947-2)

LS Electric UTV400-E-ATU-IEC Susol Beyond X MCCB (Economic, 25kA @ 800V, ATU 320~400A, IEC60947-2)

LS ELECTRIC Susol Beyond X MCCB UTV400-E-ATU-IEC family.

Key features

  • For renewable energy and high altitude applications

Specifications

Frame 400AF
Rated voltage 800/1000 Vac
Breaking capacity Icu 25kA @ 800V AC, 15kA @ 1000V AC
Breaker type E (Economic, 80% rating; ET/NT 100% rating versions also available)
Trip unit ATU (Thermal-Magnetic)
Trip features Adjustable thermal (Ir=0.8~1×In), adjustable magnetic (Ii=5~10×In)
Standard IEC 60947-2
Application Renewable energy (Solar PV, Wind), High altitude
UTV400-E-ATU-320A-3P Susol Beyond X UTV400-E-ATU-IEC — 320A ATU, 3-pole | Frame: 400AF | Rated voltage: 800/1000 Vac | Rated current (In): 320A @ 40°C | Breaking capacity Icu: 25kA @ 800V AC, 15kA @ 1000V AC | Breaker type: E (Economic, 80% rating; ET/NT 100% rating versions also available) | Trip unit: ATU (Thermal-Magnetic) | Trip features: Adjustable thermal (Ir=0.8~1×In), adjustable magnetic (Ii=5~10×In) | Pole: 3-pole | Dimensions (W×H×D): 140×290×110 mm | Weight: 7.2 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | Application: Renewable energy (Solar PV, Wind), High altitude
UTV400-E-ATU-320A-4P Susol Beyond X UTV400-E-ATU-IEC — 320A ATU, 4-pole | Frame: 400AF | Rated voltage: 800/1000 Vac | Rated current (In): 320A @ 40°C | Breaking capacity Icu: 25kA @ 800V AC, 15kA @ 1000V AC | Breaker type: E (Economic, 80% rating; ET/NT 100% rating versions also available) | Trip unit: ATU (Thermal-Magnetic) | Trip features: Adjustable thermal (Ir=0.8~1×In), adjustable magnetic (Ii=5~10×In) | Pole: 4-pole | Dimensions (W×H×D): 186.5×290×110 mm | Weight: 8.7 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | Application: Renewable energy (Solar PV, Wind), High altitude
UTV400-E-ATU-400A-3P Susol Beyond X UTV400-E-ATU-IEC — 400A ATU, 3-pole | Frame: 400AF | Rated voltage: 800/1000 Vac | Rated current (In): 400A @ 40°C | Breaking capacity Icu: 25kA @ 800V AC, 15kA @ 1000V AC | Breaker type: E (Economic, 80% rating; ET/NT 100% rating versions also available) | Trip unit: ATU (Thermal-Magnetic) | Trip features: Adjustable thermal (Ir=0.8~1×In), adjustable magnetic (Ii=5~10×In) | Pole: 3-pole | Dimensions (W×H×D): 140×290×110 mm | Weight: 7.2 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | Application: Renewable energy (Solar PV, Wind), High altitude
UTV400-E-ATU-400A-4P Susol Beyond X UTV400-E-ATU-IEC — 400A ATU, 4-pole | Frame: 400AF | Rated voltage: 800/1000 Vac | Rated current (In): 400A @ 40°C | Breaking capacity Icu: 25kA @ 800V AC, 15kA @ 1000V AC | Breaker type: E (Economic, 80% rating; ET/NT 100% rating versions also available) | Trip unit: ATU (Thermal-Magnetic) | Trip features: Adjustable thermal (Ir=0.8~1×In), adjustable magnetic (Ii=5~10×In) | Pole: 4-pole | Dimensions (W×H×D): 186.5×290×110 mm | Weight: 8.7 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | Application: Renewable energy (Solar PV, Wind), High altitude
Molded Case Circuit BreakersLS Electric
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric UTV400-E-ATU-IEC Susol Beyond X MCCB (Economic, 25kA @ 800V, ATU 320~400A, IEC60947-2)

Brand LS Electric·Molded Case Circuit Breakers

Available part numbers (4)

UTV400-E-ATU-320A-3P, UTV400-E-ATU-320A-4P, UTV400-E-ATU-400A-3P, UTV400-E-ATU-400A-4P

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UTV400-E-ATU-320A-3PSusol Beyond X UTV400-E-ATU-IEC — 320A ATU, 3-pole | Frame: 400AF | Rated voltage: 800/1000 Vac | Rated current (In): 320A @ 40°C | Breaking capacity Icu: 25kA @ 800V AC, 15kA @ 1000V AC | Breaker type: E (Economic, 80% rating; ET/NT 100% rating versions also available) | Trip unit: ATU (Thermal-Magnetic) | Trip features: Adjustable thermal (Ir=0.8~1×In), adjustable magnetic (Ii=5~10×In) | Pole: 3-pole | Dimensions (W×H×D): 140×290×110 mm | Weight: 7.2 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | Application: Renewable energy (Solar PV, Wind), High altitude
UTV400-E-ATU-320A-4PSusol Beyond X UTV400-E-ATU-IEC — 320A ATU, 4-pole | Frame: 400AF | Rated voltage: 800/1000 Vac | Rated current (In): 320A @ 40°C | Breaking capacity Icu: 25kA @ 800V AC, 15kA @ 1000V AC | Breaker type: E (Economic, 80% rating; ET/NT 100% rating versions also available) | Trip unit: ATU (Thermal-Magnetic) | Trip features: Adjustable thermal (Ir=0.8~1×In), adjustable magnetic (Ii=5~10×In) | Pole: 4-pole | Dimensions (W×H×D): 186.5×290×110 mm | Weight: 8.7 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | Application: Renewable energy (Solar PV, Wind), High altitude
UTV400-E-ATU-400A-3PSusol Beyond X UTV400-E-ATU-IEC — 400A ATU, 3-pole | Frame: 400AF | Rated voltage: 800/1000 Vac | Rated current (In): 400A @ 40°C | Breaking capacity Icu: 25kA @ 800V AC, 15kA @ 1000V AC | Breaker type: E (Economic, 80% rating; ET/NT 100% rating versions also available) | Trip unit: ATU (Thermal-Magnetic) | Trip features: Adjustable thermal (Ir=0.8~1×In), adjustable magnetic (Ii=5~10×In) | Pole: 3-pole | Dimensions (W×H×D): 140×290×110 mm | Weight: 7.2 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | Application: Renewable energy (Solar PV, Wind), High altitude
UTV400-E-ATU-400A-4PSusol Beyond X UTV400-E-ATU-IEC — 400A ATU, 4-pole | Frame: 400AF | Rated voltage: 800/1000 Vac | Rated current (In): 400A @ 40°C | Breaking capacity Icu: 25kA @ 800V AC, 15kA @ 1000V AC | Breaker type: E (Economic, 80% rating; ET/NT 100% rating versions also available) | Trip unit: ATU (Thermal-Magnetic) | Trip features: Adjustable thermal (Ir=0.8~1×In), adjustable magnetic (Ii=5~10×In) | Pole: 4-pole | Dimensions (W×H×D): 186.5×290×110 mm | Weight: 8.7 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | Application: Renewable energy (Solar PV, Wind), High altitude
