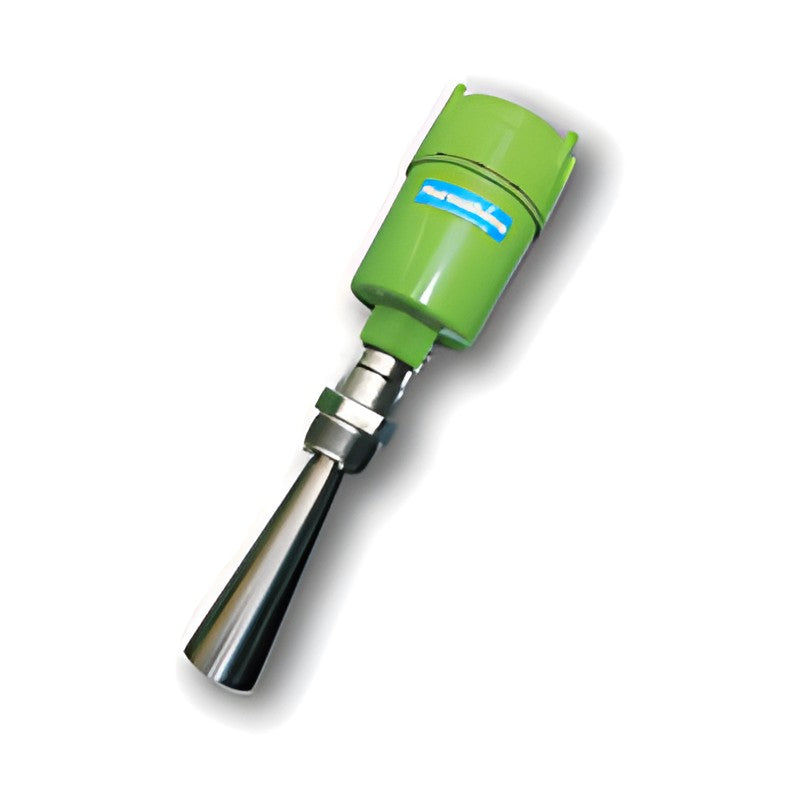

Matsushima MWLM-PR26 Radar Level Transmitters (26 GHz, Liquid/Powder)

Matsushima MWLM-PR26 Radar Level Transmitters (26 GHz, Liquid/Powder)

The MWLM-PR26 series are 26 GHz pulse radar level transmitters for continuous, non-contact level measurement of liquids, powders and solids in silos, tanks and open channels. Cone and horn antennas cover measuring distances from 10 m to 70 m.

Key features

  • Pulse radar time-of-flight measurement at approx. 26 GHz
  • 2-wire DC 20-32 V loop, 4-20 mA output with HART communication
  • Cone (liquid) and horn (liquid/powder) antennas, max range 10 m to 70 m
  • Explosion-proof models (Ex ia IIB T4, TIIS) used with safety barrier KFD2-STC4-Ex1
  • Local setup via GRAPHIC COM 3 LCD unit or PC software over HART
  • IP66 housing, IP67 antenna; ADC housing

Specifications

Power supply DC 20-32 V (Ex type via safety barrier)
Power consumption Approx. 704 mW (Ex: approx. 540 mW)
Output DC 4-20 mA x1, HART communication
Transmitting frequency Approx. 26 GHz
Resolution 1 mm
Accuracy +/-30 mm within 2 m; +/-20 mm or +/-0.04% over 2 m
Ambient temperature -40 to +80 C (with LCD -20 to +60 C)
Antenna temperature -40 to +150 C (Ex: -40 to +100 C)
Protection IP66 housing / IP67 antenna
Lead outlet 1 x G1/2, cable dia. 8-12 mm
Source Matsushima MWLM-PR26 Radar Level Transmitter catalogue CMWPR-206E, p. 5-6; MWLM-26 Radar Level Transmitter for Liquid CPLS-102E, p. 4
MWLM-PR26C1G Application: Liquid | Antenna: Cone (PTFE) | Mounting: G2 thread | Max range: 10 m | Allowable pressure: 500 kPa | Version: Standard
MWLM-PR26H1G Application: Liquid | Antenna: Horn (SUS304) | Mounting: G1 thread | Max range: 20 m | Allowable pressure: 1 MPa | Version: Standard
MWLM-PR26H2G Application: Liquid | Antenna: Horn (SUS316L) | Mounting: G1 1/2 thread | Max range: 20 m | Allowable pressure: 1 MPa | Version: Standard
MWLM-PR26H2F Application: Liquid | Antenna: Horn (SUS316L) | Mounting: JIS 5K 50A flange | Max range: 20 m | Allowable pressure: 490 kPa | Version: Standard
MWLM-PR26H3G Application: Powder | Antenna: Horn (SUS316L) | Mounting: G1 1/2 thread | Max range: 35 m | Allowable pressure: 1 MPa | Version: Standard
MWLM-PR26H3F Application: Powder | Antenna: Horn (SUS316L) | Mounting: JIS 5K 65A flange | Max range: 35 m | Allowable pressure: 490 kPa | Version: Standard
MWLM-PR26H3S Application: Powder | Antenna: Horn (SUS316L) | Mounting: Swivel flange (JIS 10K 100A eq.) | Max range: 35 m | Allowable pressure: 500 kPa | Version: Standard
MWLM-PR26H7G Application: Powder | Antenna: Horn (SUS316L) | Mounting: G1 1/2 thread | Max range: 70 m | Allowable pressure: 1 MPa | Version: Standard
MWLM-PR26H7F Application: Powder | Antenna: Horn (SUS316L) | Mounting: Swivel flange (JIS 10K 100A eq.) | Max range: 70 m | Allowable pressure: 250 kPa | Version: Standard
MWLM-PR26H7S Application: Powder | Antenna: Horn (SUS316L) | Mounting: Swivel flange (JIS 10K 100A eq.) | Max range: 70 m | Allowable pressure: 500 kPa | Version: Standard
MWLM-PR26H2GEx Application: Liquid | Antenna: Horn (SUS316L) | Mounting: G1 1/2 thread | Max range: 20 m | Allowable pressure: 1 MPa | Version: Explosion-proof Ex ia IIB T4
MWLM-PR26H2FEx Application: Liquid | Antenna: Horn (SUS316L) | Mounting: JIS 5K 50A flange | Max range: 20 m | Allowable pressure: 490 kPa | Version: Explosion-proof Ex ia IIB T4
MWLM-PR26H3GEx Application: Powder | Antenna: Horn (SUS316L) | Mounting: G1 1/2 thread | Max range: 35 m | Allowable pressure: 1 MPa | Version: Explosion-proof Ex ia IIB T4
MWLM-PR26H3FEx Application: Powder | Antenna: Horn (SUS316L) | Mounting: JIS 5K 65A flange | Max range: 35 m | Allowable pressure: 490 kPa | Version: Explosion-proof Ex ia IIB T4
MWLM-PR26H3SEx Application: Powder | Antenna: Horn (SUS316L) | Mounting: Swivel flange (JIS 10K 100A eq.) | Max range: 35 m | Allowable pressure: 500 kPa | Version: Explosion-proof Ex ia IIB T4
MWLM-PR26H7GEx Application: Powder | Antenna: Horn (SUS316L) | Mounting: G1 1/2 thread | Max range: 70 m | Allowable pressure: 1 MPa | Version: Explosion-proof Ex ia IIB T4
MWLM-PR26H7FEx Application: Powder | Antenna: Horn (SUS316L) | Mounting: Swivel flange (JIS 10K 100A eq.) | Max range: 70 m | Allowable pressure: 250 kPa | Version: Explosion-proof Ex ia IIB T4
MWLM-PR26H7SEx Application: Powder | Antenna: Horn (SUS316L) | Mounting: Swivel flange (JIS 10K 100A eq.) | Max range: 70 m | Allowable pressure: 500 kPa | Version: Explosion-proof Ex ia IIB T4
