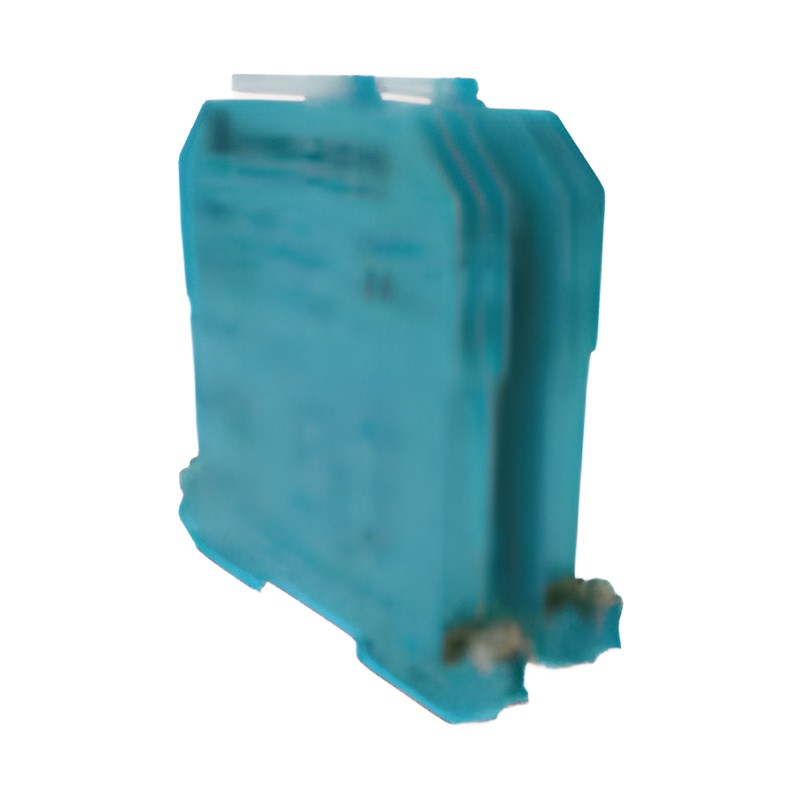

Matsushima Z961/Z964 Zener Barriers for PFM Ex Dust Monitors

Zener barriers forming the intrinsically safe system between the PFM-M01PEX explosion-proof dust sensor and the PFM-KCU transducer. Two barriers are used for a single detector.

Key features

Explosion-proof enclosure (Ex ia) IIB
Two barriers form the intrinsic-safety system for one detector
DIN rail mounting (35 mm)
Separate A-class grounding of barrier earth required

Specifications

Explosion protection	(Ex ia) IIB
Protection class	IP20
Ratings	Uo 17.4 V, Io 190.3 mA, Po 430 mW
Um	250 VAC 50/60 Hz, 250 VDC
Ambient temperature	-20 to +60 C
Ambient humidity	5-95% RH
Mass	150 g
Source	Matsushima PFM Triboelectric Dust Monitor catalogue CPFMM-108E, p. 5-6

Z961		Item: Zener barrier \| Use: PFM Ex system \| Mounting: DIN rail
Z964		Item: Zener barrier \| Use: PFM Ex system \| Mounting: DIN rail

Powder Flow MeasurementMatsushima

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Matsushima Z961/Z964 Zener Barriers for PFM Ex Dust Monitors

Brand Matsushima·Powder Flow Measurement

Available part numbers (2)

Z961, Z964
