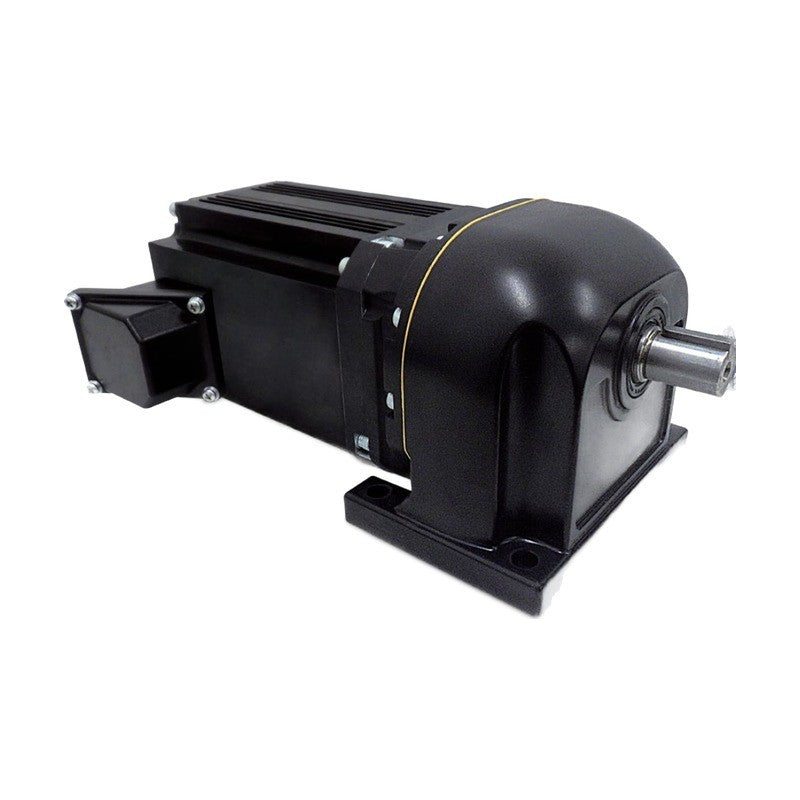

Mitsubishi Electric EM-AH Global PM Geared Motor (Foot, 0.4-2.2kW)

Mitsubishi Electric EM-AH Global PM Geared Motor (Foot, 0.4-2.2kW)

Mitsubishi Electric EM-A series global PM motor with parallel-shaft reducer (EM-AH), foot (leg) mount, 0.4-2.2 kW, 100-600 r/min output, 200V and 400V class.

Key features

  • IE5-class PM motor with integrated parallel-shaft reducer, ratios 1/5 to 1/30
  • Encoderless speed control: fluctuation +/-0.05%, range 1:1000 (1:10 with FR-D800)
  • Encoderless positioning (200 pulses/rev at motor) with FR-A800 / FR-E800 point-table function
  • Runs on general-purpose FR-A800, FR-E800 and FR-D800 inverters
  • Options in model name: brake (B), terminal-block connection (T)

Specifications

Series EM-A with reducer
Gear type Parallel shaft
Mounting Foot (leg) mount
Motor speed 3000 r/min rated, 4000 max.
Max. torque 200%
Protection IP44, totally enclosed self-cooled
Lubrication Grease
Brake DC24V spring-applied holding brake
Drive units FR-E820/E840, FR-D820/D840, FR-A820
Source Mitsubishi Electric EM-A with reducer leaflet GM-72, p. 2-4
EM-AH 0.4kW 600r/min 200V Model: EM-AH | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.4kW 300r/min 200V Model: EM-AH | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.4kW 200r/min 200V Model: EM-AH | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.4kW 150r/min 200V Model: EM-AH | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.4kW 120r/min 200V Model: EM-AH | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.4kW 100r/min 200V Model: EM-AH | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.75kW 600r/min 200V Model: EM-AH | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.75kW 300r/min 200V Model: EM-AH | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.75kW 200r/min 200V Model: EM-AH | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.75kW 150r/min 200V Model: EM-AH | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.75kW 120r/min 200V Model: EM-AH | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.75kW 100r/min 200V Model: EM-AH | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 1.5kW 600r/min 200V Model: EM-AH | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 1.5kW 300r/min 200V Model: EM-AH | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 1.5kW 200r/min 200V Model: EM-AH | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 1.5kW 150r/min 200V Model: EM-AH | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 1.5kW 120r/min 200V Model: EM-AH | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 1.5kW 100r/min 200V Model: EM-AH | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 2.2kW 600r/min 200V Model: EM-AH | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 2.2kW 300r/min 200V Model: EM-AH | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 2.2kW 200r/min 200V Model: EM-AH | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 2.2kW 150r/min 200V Model: EM-AH | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 2.2kW 120r/min 200V Model: EM-AH | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 2.2kW 100r/min 200V Model: EM-AH | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.4kW 600r/min 400V Model: EM-AH | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.4kW 300r/min 400V Model: EM-AH | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.4kW 200r/min 400V Model: EM-AH | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.4kW 150r/min 400V Model: EM-AH | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.4kW 120r/min 400V Model: EM-AH | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.4kW 100r/min 400V Model: EM-AH | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.75kW 600r/min 400V Model: EM-AH | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.75kW 300r/min 400V Model: EM-AH | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.75kW 200r/min 400V Model: EM-AH | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.75kW 150r/min 400V Model: EM-AH | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.75kW 120r/min 400V Model: EM-AH | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.75kW 100r/min 400V Model: EM-AH | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 1.5kW 600r/min 400V Model: EM-AH | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 1.5kW 300r/min 400V Model: EM-AH | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 1.5kW 200r/min 400V Model: EM-AH | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 1.5kW 150r/min 400V Model: EM-AH | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 1.5kW 120r/min 400V Model: EM-AH | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 1.5kW 100r/min 400V Model: EM-AH | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 2.2kW 600r/min 400V Model: EM-AH | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 2.2kW 300r/min 400V Model: EM-AH | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 2.2kW 200r/min 400V Model: EM-AH | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 2.2kW 150r/min 400V Model: EM-AH | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 2.2kW 120r/min 400V Model: EM-AH | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 2.2kW 100r/min 400V Model: EM-AH | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AHT 0.4kW 600r/min 200V Model: EM-AHT | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.4kW 300r/min 200V Model: EM-AHT | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.4kW 200r/min 200V Model: EM-AHT | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.4kW 150r/min 200V Model: EM-AHT | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.4kW 120r/min 200V Model: EM-AHT | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.4kW 100r/min 200V Model: EM-AHT | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.75kW 600r/min 200V Model: EM-AHT | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.75kW 300r/min 200V Model: EM-AHT | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.75kW 200r/min 200V Model: EM-AHT | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.75kW 150r/min 200V Model: EM-AHT | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.75kW 120r/min 200V Model: EM-AHT | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.75kW 100r/min 200V Model: EM-AHT | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 1.5kW 600r/min 200V Model: EM-AHT | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 1.5kW 300r/min 200V Model: EM-AHT | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 1.5kW 200r/min 200V Model: EM-AHT | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 1.5kW 150r/min 200V Model: EM-AHT | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 1.5kW 120r/min 200V Model: EM-AHT | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 1.5kW 100r/min 200V Model: EM-AHT | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 2.2kW 600r/min 200V Model: EM-AHT | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 2.2kW 300r/min 200V Model: EM-AHT | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 2.2kW 200r/min 200V Model: EM-AHT | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 2.2kW 150r/min 200V Model: EM-AHT | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 2.2kW 120r/min 200V Model: EM-AHT | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 2.2kW 100r/min 200V Model: EM-AHT | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.4kW 600r/min 400V Model: EM-AHT | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.4kW 300r/min 400V Model: EM-AHT | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.4kW 200r/min 400V Model: EM-AHT | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.4kW 150r/min 400V Model: EM-AHT | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.4kW 120r/min 400V Model: EM-AHT | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.4kW 100r/min 400V Model: EM-AHT | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.75kW 600r/min 400V Model: EM-AHT | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.75kW 300r/min 400V Model: EM-AHT | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.75kW 200r/min 400V Model: EM-AHT | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.75kW 150r/min 400V Model: EM-AHT | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.75kW 120r/min 400V Model: EM-AHT | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.75kW 100r/min 400V Model: EM-AHT | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 1.5kW 600r/min 400V Model: EM-AHT | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 1.5kW 300r/min 400V Model: EM-AHT | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 1.5kW 200r/min 400V Model: EM-AHT | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 1.5kW 150r/min 400V Model: EM-AHT | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 1.5kW 120r/min 400V Model: EM-AHT | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 1.5kW 100r/min 400V Model: EM-AHT | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 2.2kW 600r/min 400V Model: EM-AHT | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 2.2kW 300r/min 400V Model: EM-AHT | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 2.2kW 200r/min 400V Model: EM-AHT | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 2.2kW 150r/min 400V Model: EM-AHT | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 2.2kW 120r/min 400V Model: EM-AHT | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 2.2kW 100r/min 400V Model: EM-AHT | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHB 0.4kW 600r/min 200V Model: EM-AHB | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.4kW 300r/min 200V Model: EM-AHB | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.4kW 200r/min 200V Model: EM-AHB | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.4kW 150r/min 200V Model: EM-AHB | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.4kW 120r/min 200V Model: EM-AHB | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.4kW 100r/min 200V Model: EM-AHB | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.75kW 600r/min 200V Model: EM-AHB | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.75kW 300r/min 200V Model: EM-AHB | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.75kW 200r/min 200V Model: EM-AHB | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.75kW 150r/min 200V Model: EM-AHB | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.75kW 120r/min 200V Model: EM-AHB | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.75kW 100r/min 200V Model: EM-AHB | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 1.5kW 600r/min 200V Model: EM-AHB | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 1.5kW 300r/min 200V Model: EM-AHB | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 1.5kW 200r/min 200V Model: EM-AHB | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 1.5kW 150r/min 200V Model: EM-AHB | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 1.5kW 120r/min 200V Model: EM-AHB | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 1.5kW 100r/min 200V Model: EM-AHB | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 2.2kW 600r/min 200V Model: EM-AHB | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 2.2kW 300r/min 200V Model: EM-AHB | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 2.2kW 200r/min 200V Model: EM-AHB | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 2.2kW 150r/min 200V Model: EM-AHB | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 2.2kW 120r/min 200V Model: EM-AHB | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 2.2kW 100r/min 200V Model: EM-AHB | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.4kW 600r/min 400V Model: EM-AHB | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.4kW 300r/min 400V Model: EM-AHB | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.4kW 200r/min 400V Model: EM-AHB | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.4kW 150r/min 400V Model: EM-AHB | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.4kW 120r/min 400V Model: EM-AHB | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.4kW 100r/min 400V Model: EM-AHB | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.75kW 600r/min 400V Model: EM-AHB | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.75kW 300r/min 400V Model: EM-AHB | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.75kW 200r/min 400V Model: EM-AHB | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.75kW 150r/min 400V Model: EM-AHB | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.75kW 120r/min 400V Model: EM-AHB | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.75kW 100r/min 400V Model: EM-AHB | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 1.5kW 600r/min 400V Model: EM-AHB | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 1.5kW 300r/min 400V Model: EM-AHB | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 1.5kW 200r/min 400V Model: EM-AHB | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 1.5kW 150r/min 400V Model: EM-AHB | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 1.5kW 120r/min 400V Model: EM-AHB | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 1.5kW 100r/min 400V Model: EM-AHB | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 2.2kW 600r/min 400V Model: EM-AHB | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 2.2kW 300r/min 400V Model: EM-AHB | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 2.2kW 200r/min 400V Model: EM-AHB | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 2.2kW 150r/min 400V Model: EM-AHB | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 2.2kW 120r/min 400V Model: EM-AHB | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 2.2kW 100r/min 400V Model: EM-AHB | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHBT 0.4kW 600r/min 200V Model: EM-AHBT | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.4kW 300r/min 200V Model: EM-AHBT | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.4kW 200r/min 200V Model: EM-AHBT | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.4kW 150r/min 200V Model: EM-AHBT | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.4kW 120r/min 200V Model: EM-AHBT | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.4kW 100r/min 200V Model: EM-AHBT | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.75kW 600r/min 200V Model: EM-AHBT | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.75kW 300r/min 200V Model: EM-AHBT | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.75kW 200r/min 200V Model: EM-AHBT | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.75kW 150r/min 200V Model: EM-AHBT | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.75kW 120r/min 200V Model: EM-AHBT | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.75kW 100r/min 200V Model: EM-AHBT | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 1.5kW 600r/min 200V Model: EM-AHBT | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 1.5kW 300r/min 200V Model: EM-AHBT | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 1.5kW 200r/min 200V Model: EM-AHBT | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 1.5kW 150r/min 200V Model: EM-AHBT | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 1.5kW 120r/min 200V Model: EM-AHBT | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 1.5kW 100r/min 200V Model: EM-AHBT | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 2.2kW 600r/min 200V Model: EM-AHBT | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 2.2kW 300r/min 200V Model: EM-AHBT | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 2.2kW 200r/min 200V Model: EM-AHBT | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 2.2kW 150r/min 200V Model: EM-AHBT | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 2.2kW 120r/min 200V Model: EM-AHBT | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 2.2kW 100r/min 200V Model: EM-AHBT | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.4kW 600r/min 400V Model: EM-AHBT | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.4kW 300r/min 400V Model: EM-AHBT | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.4kW 200r/min 400V Model: EM-AHBT | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.4kW 150r/min 400V Model: EM-AHBT | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.4kW 120r/min 400V Model: EM-AHBT | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.4kW 100r/min 400V Model: EM-AHBT | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.75kW 600r/min 400V Model: EM-AHBT | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.75kW 300r/min 400V Model: EM-AHBT | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.75kW 200r/min 400V Model: EM-AHBT | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.75kW 150r/min 400V Model: EM-AHBT | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.75kW 120r/min 400V Model: EM-AHBT | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.75kW 100r/min 400V Model: EM-AHBT | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 1.5kW 600r/min 400V Model: EM-AHBT | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 1.5kW 300r/min 400V Model: EM-AHBT | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 1.5kW 200r/min 400V Model: EM-AHBT | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 1.5kW 150r/min 400V Model: EM-AHBT | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 1.5kW 120r/min 400V Model: EM-AHBT | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 1.5kW 100r/min 400V Model: EM-AHBT | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 2.2kW 600r/min 400V Model: EM-AHBT | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 2.2kW 300r/min 400V Model: EM-AHBT | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 2.2kW 200r/min 400V Model: EM-AHBT | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 2.2kW 150r/min 400V Model: EM-AHBT | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 2.2kW 120r/min 400V Model: EM-AHBT | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 2.2kW 100r/min 400V Model: EM-AHBT | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
Sensorless Servo Geared MotorsMitsubishi Electric
192 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric EM-AH Global PM Geared Motor (Foot, 0.4-2.2kW)

Brand Mitsubishi Electric·Sensorless Servo Geared Motors

Available part numbers (192)

EM-AH 0.4kW 600r/min 200V, EM-AH 0.4kW 300r/min 200V, EM-AH 0.4kW 200r/min 200V, EM-AH 0.4kW 150r/min 200V, EM-AH 0.4kW 120r/min 200V, EM-AH 0.4kW 100r/min 200V, EM-AH 0.75kW 600r/min 200V, EM-AH 0.75kW 300r/min 200V, EM-AH 0.75kW 200r/min 200V, EM-AH 0.75kW 150r/min 200V + 182 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EM-AH 0.4kW 600r/min 200VModel: EM-AH | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.4kW 300r/min 200VModel: EM-AH | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.4kW 200r/min 200VModel: EM-AH | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.4kW 150r/min 200VModel: EM-AH | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.4kW 120r/min 200VModel: EM-AH | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.4kW 100r/min 200VModel: EM-AH | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.75kW 600r/min 200VModel: EM-AH | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.75kW 300r/min 200VModel: EM-AH | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.75kW 200r/min 200VModel: EM-AH | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.75kW 150r/min 200VModel: EM-AH | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.75kW 120r/min 200VModel: EM-AH | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.75kW 100r/min 200VModel: EM-AH | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 1.5kW 600r/min 200VModel: EM-AH | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 1.5kW 300r/min 200VModel: EM-AH | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 1.5kW 200r/min 200VModel: EM-AH | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 1.5kW 150r/min 200VModel: EM-AH | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 1.5kW 120r/min 200VModel: EM-AH | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 1.5kW 100r/min 200VModel: EM-AH | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 2.2kW 600r/min 200VModel: EM-AH | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 2.2kW 300r/min 200VModel: EM-AH | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 2.2kW 200r/min 200VModel: EM-AH | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 2.2kW 150r/min 200VModel: EM-AH | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 2.2kW 120r/min 200VModel: EM-AH | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 2.2kW 100r/min 200VModel: EM-AH | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Lug type | Voltage: 200V class
EM-AH 0.4kW 600r/min 400VModel: EM-AH | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.4kW 300r/min 400VModel: EM-AH | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.4kW 200r/min 400VModel: EM-AH | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.4kW 150r/min 400VModel: EM-AH | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.4kW 120r/min 400VModel: EM-AH | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.4kW 100r/min 400VModel: EM-AH | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.75kW 600r/min 400VModel: EM-AH | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.75kW 300r/min 400VModel: EM-AH | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.75kW 200r/min 400VModel: EM-AH | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.75kW 150r/min 400VModel: EM-AH | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.75kW 120r/min 400VModel: EM-AH | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 0.75kW 100r/min 400VModel: EM-AH | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 1.5kW 600r/min 400VModel: EM-AH | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 1.5kW 300r/min 400VModel: EM-AH | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 1.5kW 200r/min 400VModel: EM-AH | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 1.5kW 150r/min 400VModel: EM-AH | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 1.5kW 120r/min 400VModel: EM-AH | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 1.5kW 100r/min 400VModel: EM-AH | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 2.2kW 600r/min 400VModel: EM-AH | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 2.2kW 300r/min 400VModel: EM-AH | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 2.2kW 200r/min 400VModel: EM-AH | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 2.2kW 150r/min 400VModel: EM-AH | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 2.2kW 120r/min 400VModel: EM-AH | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AH 2.2kW 100r/min 400VModel: EM-AH | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Lug type | Voltage: 400V class
EM-AHT 0.4kW 600r/min 200VModel: EM-AHT | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.4kW 300r/min 200VModel: EM-AHT | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.4kW 200r/min 200VModel: EM-AHT | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.4kW 150r/min 200VModel: EM-AHT | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.4kW 120r/min 200VModel: EM-AHT | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.4kW 100r/min 200VModel: EM-AHT | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.75kW 600r/min 200VModel: EM-AHT | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.75kW 300r/min 200VModel: EM-AHT | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.75kW 200r/min 200VModel: EM-AHT | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.75kW 150r/min 200VModel: EM-AHT | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.75kW 120r/min 200VModel: EM-AHT | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.75kW 100r/min 200VModel: EM-AHT | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 1.5kW 600r/min 200VModel: EM-AHT | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 1.5kW 300r/min 200VModel: EM-AHT | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 1.5kW 200r/min 200VModel: EM-AHT | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 1.5kW 150r/min 200VModel: EM-AHT | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 1.5kW 120r/min 200VModel: EM-AHT | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 1.5kW 100r/min 200VModel: EM-AHT | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 2.2kW 600r/min 200VModel: EM-AHT | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 2.2kW 300r/min 200VModel: EM-AHT | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 2.2kW 200r/min 200VModel: EM-AHT | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 2.2kW 150r/min 200VModel: EM-AHT | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 2.2kW 120r/min 200VModel: EM-AHT | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 2.2kW 100r/min 200VModel: EM-AHT | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Terminal block | Voltage: 200V class
EM-AHT 0.4kW 600r/min 400VModel: EM-AHT | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.4kW 300r/min 400VModel: EM-AHT | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.4kW 200r/min 400VModel: EM-AHT | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.4kW 150r/min 400VModel: EM-AHT | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.4kW 120r/min 400VModel: EM-AHT | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.4kW 100r/min 400VModel: EM-AHT | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.75kW 600r/min 400VModel: EM-AHT | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.75kW 300r/min 400VModel: EM-AHT | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.75kW 200r/min 400VModel: EM-AHT | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.75kW 150r/min 400VModel: EM-AHT | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.75kW 120r/min 400VModel: EM-AHT | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 0.75kW 100r/min 400VModel: EM-AHT | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 1.5kW 600r/min 400VModel: EM-AHT | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 1.5kW 300r/min 400VModel: EM-AHT | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 1.5kW 200r/min 400VModel: EM-AHT | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 1.5kW 150r/min 400VModel: EM-AHT | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 1.5kW 120r/min 400VModel: EM-AHT | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 1.5kW 100r/min 400VModel: EM-AHT | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 2.2kW 600r/min 400VModel: EM-AHT | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 2.2kW 300r/min 400VModel: EM-AHT | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 2.2kW 200r/min 400VModel: EM-AHT | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 2.2kW 150r/min 400VModel: EM-AHT | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 2.2kW 120r/min 400VModel: EM-AHT | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHT 2.2kW 100r/min 400VModel: EM-AHT | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: None | Connection: Terminal block | Voltage: 400V class
EM-AHB 0.4kW 600r/min 200VModel: EM-AHB | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.4kW 300r/min 200VModel: EM-AHB | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.4kW 200r/min 200VModel: EM-AHB | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.4kW 150r/min 200VModel: EM-AHB | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.4kW 120r/min 200VModel: EM-AHB | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.4kW 100r/min 200VModel: EM-AHB | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.75kW 600r/min 200VModel: EM-AHB | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.75kW 300r/min 200VModel: EM-AHB | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.75kW 200r/min 200VModel: EM-AHB | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.75kW 150r/min 200VModel: EM-AHB | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.75kW 120r/min 200VModel: EM-AHB | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.75kW 100r/min 200VModel: EM-AHB | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 1.5kW 600r/min 200VModel: EM-AHB | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 1.5kW 300r/min 200VModel: EM-AHB | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 1.5kW 200r/min 200VModel: EM-AHB | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 1.5kW 150r/min 200VModel: EM-AHB | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 1.5kW 120r/min 200VModel: EM-AHB | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 1.5kW 100r/min 200VModel: EM-AHB | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 2.2kW 600r/min 200VModel: EM-AHB | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 2.2kW 300r/min 200VModel: EM-AHB | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 2.2kW 200r/min 200VModel: EM-AHB | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 2.2kW 150r/min 200VModel: EM-AHB | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 2.2kW 120r/min 200VModel: EM-AHB | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 2.2kW 100r/min 200VModel: EM-AHB | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Lug type | Voltage: 200V class
EM-AHB 0.4kW 600r/min 400VModel: EM-AHB | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.4kW 300r/min 400VModel: EM-AHB | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.4kW 200r/min 400VModel: EM-AHB | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.4kW 150r/min 400VModel: EM-AHB | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.4kW 120r/min 400VModel: EM-AHB | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.4kW 100r/min 400VModel: EM-AHB | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.75kW 600r/min 400VModel: EM-AHB | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.75kW 300r/min 400VModel: EM-AHB | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.75kW 200r/min 400VModel: EM-AHB | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.75kW 150r/min 400VModel: EM-AHB | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.75kW 120r/min 400VModel: EM-AHB | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 0.75kW 100r/min 400VModel: EM-AHB | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 1.5kW 600r/min 400VModel: EM-AHB | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 1.5kW 300r/min 400VModel: EM-AHB | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 1.5kW 200r/min 400VModel: EM-AHB | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 1.5kW 150r/min 400VModel: EM-AHB | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 1.5kW 120r/min 400VModel: EM-AHB | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 1.5kW 100r/min 400VModel: EM-AHB | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 2.2kW 600r/min 400VModel: EM-AHB | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 2.2kW 300r/min 400VModel: EM-AHB | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 2.2kW 200r/min 400VModel: EM-AHB | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 2.2kW 150r/min 400VModel: EM-AHB | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 2.2kW 120r/min 400VModel: EM-AHB | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHB 2.2kW 100r/min 400VModel: EM-AHB | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Lug type | Voltage: 400V class
EM-AHBT 0.4kW 600r/min 200VModel: EM-AHBT | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.4kW 300r/min 200VModel: EM-AHBT | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.4kW 200r/min 200VModel: EM-AHBT | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.4kW 150r/min 200VModel: EM-AHBT | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.4kW 120r/min 200VModel: EM-AHBT | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.4kW 100r/min 200VModel: EM-AHBT | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.75kW 600r/min 200VModel: EM-AHBT | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.75kW 300r/min 200VModel: EM-AHBT | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.75kW 200r/min 200VModel: EM-AHBT | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.75kW 150r/min 200VModel: EM-AHBT | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.75kW 120r/min 200VModel: EM-AHBT | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.75kW 100r/min 200VModel: EM-AHBT | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 1.5kW 600r/min 200VModel: EM-AHBT | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 1.5kW 300r/min 200VModel: EM-AHBT | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 1.5kW 200r/min 200VModel: EM-AHBT | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 1.5kW 150r/min 200VModel: EM-AHBT | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 1.5kW 120r/min 200VModel: EM-AHBT | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 1.5kW 100r/min 200VModel: EM-AHBT | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 2.2kW 600r/min 200VModel: EM-AHBT | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 2.2kW 300r/min 200VModel: EM-AHBT | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 2.2kW 200r/min 200VModel: EM-AHBT | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 2.2kW 150r/min 200VModel: EM-AHBT | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 2.2kW 120r/min 200VModel: EM-AHBT | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 2.2kW 100r/min 200VModel: EM-AHBT | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Terminal block | Voltage: 200V class
EM-AHBT 0.4kW 600r/min 400VModel: EM-AHBT | Output: 0.4kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.4kW 300r/min 400VModel: EM-AHBT | Output: 0.4kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.4kW 200r/min 400VModel: EM-AHBT | Output: 0.4kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.4kW 150r/min 400VModel: EM-AHBT | Output: 0.4kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.4kW 120r/min 400VModel: EM-AHBT | Output: 0.4kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.4kW 100r/min 400VModel: EM-AHBT | Output: 0.4kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.75kW 600r/min 400VModel: EM-AHBT | Output: 0.75kW | Ratio: 1/5 (actual 1/5.04) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.75kW 300r/min 400VModel: EM-AHBT | Output: 0.75kW | Ratio: 1/10 (actual 1/9.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.75kW 200r/min 400VModel: EM-AHBT | Output: 0.75kW | Ratio: 1/15 (actual 1/14.44) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.75kW 150r/min 400VModel: EM-AHBT | Output: 0.75kW | Ratio: 1/20 (actual 1/19.60) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.75kW 120r/min 400VModel: EM-AHBT | Output: 0.75kW | Ratio: 1/25 (actual 1/25.73) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 0.75kW 100r/min 400VModel: EM-AHBT | Output: 0.75kW | Ratio: 1/30 (actual 1/28.51) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 1.5kW 600r/min 400VModel: EM-AHBT | Output: 1.5kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 1.5kW 300r/min 400VModel: EM-AHBT | Output: 1.5kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 1.5kW 200r/min 400VModel: EM-AHBT | Output: 1.5kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 1.5kW 150r/min 400VModel: EM-AHBT | Output: 1.5kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 1.5kW 120r/min 400VModel: EM-AHBT | Output: 1.5kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 1.5kW 100r/min 400VModel: EM-AHBT | Output: 1.5kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 2.2kW 600r/min 400VModel: EM-AHBT | Output: 2.2kW | Ratio: 1/5 (actual 1/4.98) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 2.2kW 300r/min 400VModel: EM-AHBT | Output: 2.2kW | Ratio: 1/10 (actual 1/9.57) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 2.2kW 200r/min 400VModel: EM-AHBT | Output: 2.2kW | Ratio: 1/15 (actual 1/14.49) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 2.2kW 150r/min 400VModel: EM-AHBT | Output: 2.2kW | Ratio: 1/20 (actual 1/20.31) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 2.2kW 120r/min 400VModel: EM-AHBT | Output: 2.2kW | Ratio: 1/25 (actual 1/24.80) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class
EM-AHBT 2.2kW 100r/min 400VModel: EM-AHBT | Output: 2.2kW | Ratio: 1/30 (actual 1/27.72) | Brake: DC24V holding | Connection: Terminal block | Voltage: 400V class

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
