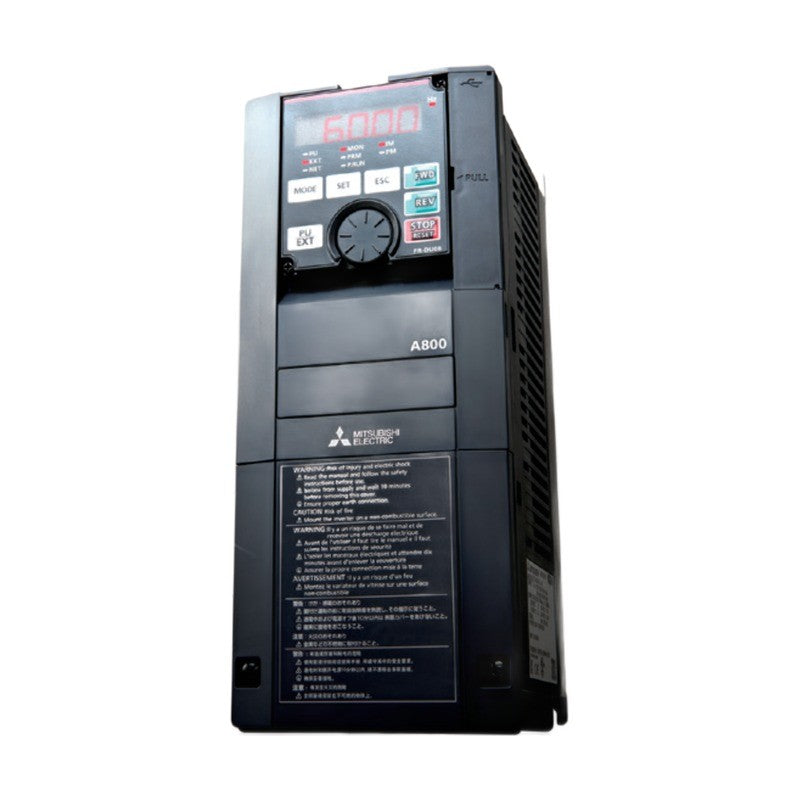

Mitsubishi Electric FR-A820-F Safety Communication VFD (0.4-90kW)

Mitsubishi Electric FR-A820-F Safety Communication VFD (0.4-90kW)

The FR-A820-F is the safety communication model of the FREQROL-A800 series (200 V class, 0.4-90 kW ND) for CC-Link IE TSN safety communication.

Key features

  • Safety communication function enabled by installing the FR-A8NCG-S plug-in option
  • Type -F1: FM type, RS-485 communication, safety function F
  • Real sensorless vector, vector (with FR-A8AP/FR-A8APR/FR-A8APS/FR-A8APA/FR-A8AL) and PM sensorless vector control
  • Multiple rating selectable: SLD 110%, LD 120%, ND 150% (initial), HD 200% 60 s
  • FR-A842-F requires the FR-CC2 converter unit; 75K or higher FR-A820/A840 require a DC reactor

Specifications

Series FREQROL-A800
Input voltage Three-phase 200-240 V 50/60 Hz
Structure Safety communication model
Control method V/F, Adv. flux, Real sensorless, Vector, PM
Output frequency 0.2-590 Hz
Overload (ND) 150% 60 s, 200% 3 s
Safety option FR-A8NCG-S (CC-Link IE TSN safety)
Source Mitsubishi Electric FR-A800 catalogue L(NA)06075ENG-J, p. 22
FR-A820-0.4K-F1 Capacity: 0.4K | ND motor: 0.4 kW | ND current: 3 A | Alt. model: FR-A820-00046-F1
FR-A820-0.75K-F1 Capacity: 0.75K | ND motor: 0.75 kW | ND current: 5 A | Alt. model: FR-A820-00077-F1
FR-A820-1.5K-F1 Capacity: 1.5K | ND motor: 1.5 kW | ND current: 8 A | Alt. model: FR-A820-00105-F1
FR-A820-2.2K-F1 Capacity: 2.2K | ND motor: 2.2 kW | ND current: 11 A | Alt. model: FR-A820-00167-F1
FR-A820-3.7K-F1 Capacity: 3.7K | ND motor: 3.7 kW | ND current: 17.5 A | Alt. model: FR-A820-00250-F1
FR-A820-5.5K-F1 Capacity: 5.5K | ND motor: 5.5 kW | ND current: 24 A | Alt. model: FR-A820-00340-F1
FR-A820-7.5K-F1 Capacity: 7.5K | ND motor: 7.5 kW | ND current: 33 A | Alt. model: FR-A820-00490-F1
FR-A820-11K-F1 Capacity: 11K | ND motor: 11 kW | ND current: 46 A | Alt. model: FR-A820-00630-F1
FR-A820-15K-F1 Capacity: 15K | ND motor: 15 kW | ND current: 61 A | Alt. model: FR-A820-00770-F1
FR-A820-18.5K-F1 Capacity: 18.5K | ND motor: 18.5 kW | ND current: 76 A | Alt. model: FR-A820-00930-F1
FR-A820-22K-F1 Capacity: 22K | ND motor: 22 kW | ND current: 90 A | Alt. model: FR-A820-01250-F1
FR-A820-30K-F1 Capacity: 30K | ND motor: 30 kW | ND current: 115 A | Alt. model: FR-A820-01540-F1
FR-A820-37K-F1 Capacity: 37K | ND motor: 37 kW | ND current: 145 A | Alt. model: FR-A820-01870-F1
FR-A820-45K-F1 Capacity: 45K | ND motor: 45 kW | ND current: 175 A | Alt. model: FR-A820-02330-F1
FR-A820-55K-F1 Capacity: 55K | ND motor: 55 kW | ND current: 215 A | Alt. model: FR-A820-03160-F1
FR-A820-75K-F1 Capacity: 75K | ND motor: 75 kW | ND current: 288 A | Alt. model: FR-A820-03800-F1
FR-A820-90K-F1 Capacity: 90K | ND motor: 90 kW | ND current: 346 A | Alt. model: FR-A820-04750-F1
Inverters (VFD)Mitsubishi Electric
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-A820-F Safety Communication VFD (0.4-90kW)

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (17)

FR-A820-0.4K-F1, FR-A820-0.75K-F1, FR-A820-1.5K-F1, FR-A820-2.2K-F1, FR-A820-3.7K-F1, FR-A820-5.5K-F1, FR-A820-7.5K-F1, FR-A820-11K-F1, FR-A820-15K-F1, FR-A820-18.5K-F1 + 7 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-A820-0.4K-F1Capacity: 0.4K | ND motor: 0.4 kW | ND current: 3 A | Alt. model: FR-A820-00046-F1
FR-A820-0.75K-F1Capacity: 0.75K | ND motor: 0.75 kW | ND current: 5 A | Alt. model: FR-A820-00077-F1
FR-A820-1.5K-F1Capacity: 1.5K | ND motor: 1.5 kW | ND current: 8 A | Alt. model: FR-A820-00105-F1
FR-A820-2.2K-F1Capacity: 2.2K | ND motor: 2.2 kW | ND current: 11 A | Alt. model: FR-A820-00167-F1
FR-A820-3.7K-F1Capacity: 3.7K | ND motor: 3.7 kW | ND current: 17.5 A | Alt. model: FR-A820-00250-F1
FR-A820-5.5K-F1Capacity: 5.5K | ND motor: 5.5 kW | ND current: 24 A | Alt. model: FR-A820-00340-F1
FR-A820-7.5K-F1Capacity: 7.5K | ND motor: 7.5 kW | ND current: 33 A | Alt. model: FR-A820-00490-F1
FR-A820-11K-F1Capacity: 11K | ND motor: 11 kW | ND current: 46 A | Alt. model: FR-A820-00630-F1
FR-A820-15K-F1Capacity: 15K | ND motor: 15 kW | ND current: 61 A | Alt. model: FR-A820-00770-F1
FR-A820-18.5K-F1Capacity: 18.5K | ND motor: 18.5 kW | ND current: 76 A | Alt. model: FR-A820-00930-F1
FR-A820-22K-F1Capacity: 22K | ND motor: 22 kW | ND current: 90 A | Alt. model: FR-A820-01250-F1
FR-A820-30K-F1Capacity: 30K | ND motor: 30 kW | ND current: 115 A | Alt. model: FR-A820-01540-F1
FR-A820-37K-F1Capacity: 37K | ND motor: 37 kW | ND current: 145 A | Alt. model: FR-A820-01870-F1
FR-A820-45K-F1Capacity: 45K | ND motor: 45 kW | ND current: 175 A | Alt. model: FR-A820-02330-F1
FR-A820-55K-F1Capacity: 55K | ND motor: 55 kW | ND current: 215 A | Alt. model: FR-A820-03160-F1
FR-A820-75K-F1Capacity: 75K | ND motor: 75 kW | ND current: 288 A | Alt. model: FR-A820-03800-F1
FR-A820-90K-F1Capacity: 90K | ND motor: 90 kW | ND current: 346 A | Alt. model: FR-A820-04750-F1
