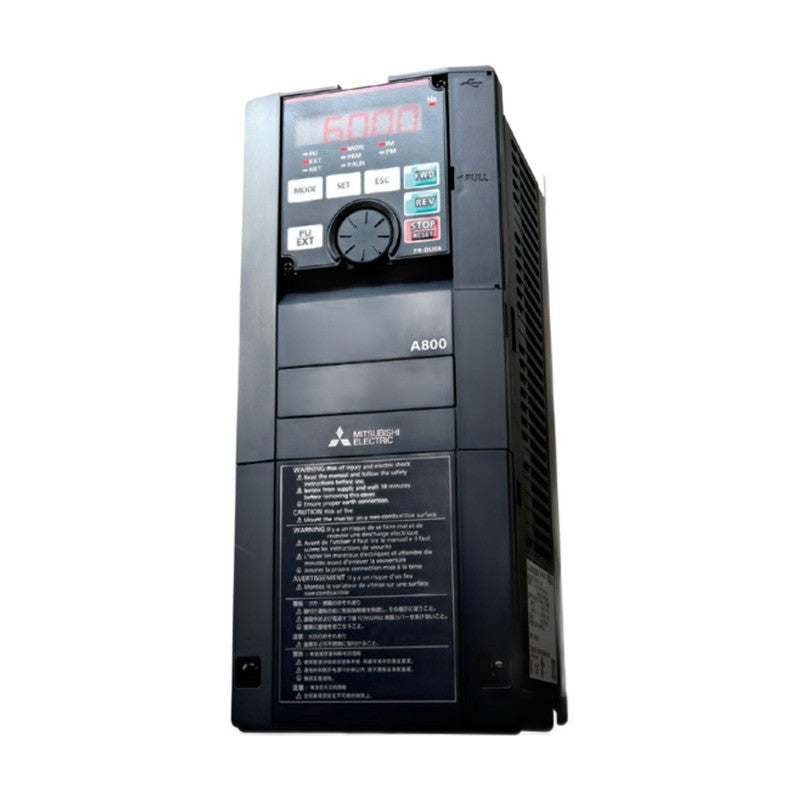

Mitsubishi Electric FR-A840-F Safety Communication VFD (0.4-280kW)

Mitsubishi Electric FR-A840-F Safety Communication VFD (0.4-280kW)

The FR-A840-F is the safety communication model of the FREQROL-A800 series (400 V class, 0.4-280 kW ND) for CC-Link IE TSN safety communication.

Key features

  • Safety communication function enabled by installing the FR-A8NCG-S plug-in option
  • Type -F1: FM type, RS-485 communication, safety function F
  • Real sensorless vector, vector (with FR-A8AP/FR-A8APR/FR-A8APS/FR-A8APA/FR-A8AL) and PM sensorless vector control
  • Multiple rating selectable: SLD 110%, LD 120%, ND 150% (initial), HD 200% 60 s
  • FR-A842-F requires the FR-CC2 converter unit; 75K or higher FR-A820/A840 require a DC reactor

Specifications

Series FREQROL-A800
Input voltage Three-phase 380-500 V 50/60 Hz
Structure Safety communication model
Control method V/F, Adv. flux, Real sensorless, Vector, PM
Output frequency 0.2-590 Hz
Overload (ND) 150% 60 s, 200% 3 s
Safety option FR-A8NCG-S (CC-Link IE TSN safety)
Source Mitsubishi Electric FR-A800 catalogue L(NA)06075ENG-J, p. 22
FR-A840-0.4K-F1 Capacity: 0.4K | ND motor: 0.4 kW | ND current: 1.5 A | Alt. model: FR-A840-00023-F1
FR-A840-0.75K-F1 Capacity: 0.75K | ND motor: 0.75 kW | ND current: 2.5 A | Alt. model: FR-A840-00038-F1
FR-A840-1.5K-F1 Capacity: 1.5K | ND motor: 1.5 kW | ND current: 4 A | Alt. model: FR-A840-00052-F1
FR-A840-2.2K-F1 Capacity: 2.2K | ND motor: 2.2 kW | ND current: 6 A | Alt. model: FR-A840-00083-F1
FR-A840-3.7K-F1 Capacity: 3.7K | ND motor: 3.7 kW | ND current: 9 A | Alt. model: FR-A840-00126-F1
FR-A840-5.5K-F1 Capacity: 5.5K | ND motor: 5.5 kW | ND current: 12 A | Alt. model: FR-A840-00170-F1
FR-A840-7.5K-F1 Capacity: 7.5K | ND motor: 7.5 kW | ND current: 17 A | Alt. model: FR-A840-00250-F1
FR-A840-11K-F1 Capacity: 11K | ND motor: 11 kW | ND current: 23 A | Alt. model: FR-A840-00310-F1
FR-A840-15K-F1 Capacity: 15K | ND motor: 15 kW | ND current: 31 A | Alt. model: FR-A840-00380-F1
FR-A840-18.5K-F1 Capacity: 18.5K | ND motor: 18.5 kW | ND current: 38 A | Alt. model: FR-A840-00470-F1
FR-A840-22K-F1 Capacity: 22K | ND motor: 22 kW | ND current: 44 A | Alt. model: FR-A840-00620-F1
FR-A840-30K-F1 Capacity: 30K | ND motor: 30 kW | ND current: 57 A | Alt. model: FR-A840-00770-F1
FR-A840-37K-F1 Capacity: 37K | ND motor: 37 kW | ND current: 71 A | Alt. model: FR-A840-00930-F1
FR-A840-45K-F1 Capacity: 45K | ND motor: 45 kW | ND current: 86 A | Alt. model: FR-A840-01160-F1
FR-A840-55K-F1 Capacity: 55K | ND motor: 55 kW | ND current: 110 A | Alt. model: FR-A840-01800-F1
FR-A840-75K-F1 Capacity: 75K | ND motor: 75 kW | ND current: 144 A | Alt. model: FR-A840-02160-F1
FR-A840-90K-F1 Capacity: 90K | ND motor: 90 kW | ND current: 180 A | Alt. model: FR-A840-02600-F1
FR-A840-110K-F1 Capacity: 110K | ND motor: 110 kW | ND current: 216 A | Alt. model: FR-A840-03250-F1
FR-A840-132K-F1 Capacity: 132K | ND motor: 132 kW | ND current: 260 A | Alt. model: FR-A840-03610-F1
FR-A840-160K-F1 Capacity: 160K | ND motor: 160 kW | ND current: 325 A | Alt. model: FR-A840-04320-F1
FR-A840-185K-F1 Capacity: 185K | ND motor: 185 kW | ND current: 361 A | Alt. model: FR-A840-04810-F1
FR-A840-220K-F1 Capacity: 220K | ND motor: 220 kW | ND current: 432 A | Alt. model: FR-A840-05470-F1
FR-A840-250K-F1 Capacity: 250K | ND motor: 250 kW | ND current: 481 A | Alt. model: FR-A840-06100-F1
FR-A840-280K-F1 Capacity: 280K | ND motor: 280 kW | ND current: 547 A | Alt. model: FR-A840-06830-F1
Inverters (VFD)Mitsubishi Electric
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-A840-F Safety Communication VFD (0.4-280kW)

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (24)

FR-A840-0.4K-F1, FR-A840-0.75K-F1, FR-A840-1.5K-F1, FR-A840-2.2K-F1, FR-A840-3.7K-F1, FR-A840-5.5K-F1, FR-A840-7.5K-F1, FR-A840-11K-F1, FR-A840-15K-F1, FR-A840-18.5K-F1 + 14 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-A840-0.4K-F1Capacity: 0.4K | ND motor: 0.4 kW | ND current: 1.5 A | Alt. model: FR-A840-00023-F1
FR-A840-0.75K-F1Capacity: 0.75K | ND motor: 0.75 kW | ND current: 2.5 A | Alt. model: FR-A840-00038-F1
FR-A840-1.5K-F1Capacity: 1.5K | ND motor: 1.5 kW | ND current: 4 A | Alt. model: FR-A840-00052-F1
FR-A840-2.2K-F1Capacity: 2.2K | ND motor: 2.2 kW | ND current: 6 A | Alt. model: FR-A840-00083-F1
FR-A840-3.7K-F1Capacity: 3.7K | ND motor: 3.7 kW | ND current: 9 A | Alt. model: FR-A840-00126-F1
FR-A840-5.5K-F1Capacity: 5.5K | ND motor: 5.5 kW | ND current: 12 A | Alt. model: FR-A840-00170-F1
FR-A840-7.5K-F1Capacity: 7.5K | ND motor: 7.5 kW | ND current: 17 A | Alt. model: FR-A840-00250-F1
FR-A840-11K-F1Capacity: 11K | ND motor: 11 kW | ND current: 23 A | Alt. model: FR-A840-00310-F1
FR-A840-15K-F1Capacity: 15K | ND motor: 15 kW | ND current: 31 A | Alt. model: FR-A840-00380-F1
FR-A840-18.5K-F1Capacity: 18.5K | ND motor: 18.5 kW | ND current: 38 A | Alt. model: FR-A840-00470-F1
FR-A840-22K-F1Capacity: 22K | ND motor: 22 kW | ND current: 44 A | Alt. model: FR-A840-00620-F1
FR-A840-30K-F1Capacity: 30K | ND motor: 30 kW | ND current: 57 A | Alt. model: FR-A840-00770-F1
FR-A840-37K-F1Capacity: 37K | ND motor: 37 kW | ND current: 71 A | Alt. model: FR-A840-00930-F1
FR-A840-45K-F1Capacity: 45K | ND motor: 45 kW | ND current: 86 A | Alt. model: FR-A840-01160-F1
FR-A840-55K-F1Capacity: 55K | ND motor: 55 kW | ND current: 110 A | Alt. model: FR-A840-01800-F1
FR-A840-75K-F1Capacity: 75K | ND motor: 75 kW | ND current: 144 A | Alt. model: FR-A840-02160-F1
FR-A840-90K-F1Capacity: 90K | ND motor: 90 kW | ND current: 180 A | Alt. model: FR-A840-02600-F1
FR-A840-110K-F1Capacity: 110K | ND motor: 110 kW | ND current: 216 A | Alt. model: FR-A840-03250-F1
FR-A840-132K-F1Capacity: 132K | ND motor: 132 kW | ND current: 260 A | Alt. model: FR-A840-03610-F1
FR-A840-160K-F1Capacity: 160K | ND motor: 160 kW | ND current: 325 A | Alt. model: FR-A840-04320-F1
FR-A840-185K-F1Capacity: 185K | ND motor: 185 kW | ND current: 361 A | Alt. model: FR-A840-04810-F1
FR-A840-220K-F1Capacity: 220K | ND motor: 220 kW | ND current: 432 A | Alt. model: FR-A840-05470-F1
FR-A840-250K-F1Capacity: 250K | ND motor: 250 kW | ND current: 481 A | Alt. model: FR-A840-06100-F1
FR-A840-280K-F1Capacity: 280K | ND motor: 280 kW | ND current: 547 A | Alt. model: FR-A840-06830-F1
