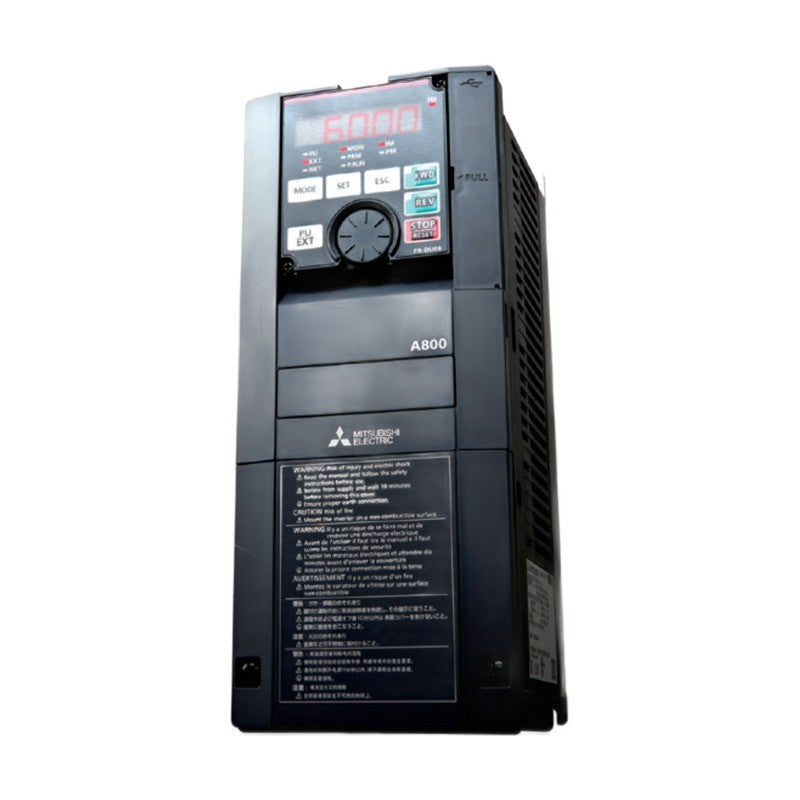

Mitsubishi Electric FR-A840M 400V Slim Inverter (160-200kW ND)

The FR-A840M is the slim FREQROL-A800 400 V class inverter for 160 kW and 200 kW (ND) that reduces enclosure width.

Key features

Slim structure: narrower enclosure layout than the standard FR-A840 of the same capacity
Built-in brake transistor model selectable (coating symbol 60B/06B) and built-in C2 EMC filter option
Circuit board coating (-60 or -06) is standard; Ethernet types (E1/E2) have a built-in FR-A8ETH board
Real sensorless vector, vector (with FR-A8AP/FR-A8APR/FR-A8APS/FR-A8APA/FR-A8AL) and PM sensorless vector control
Type suffix -1/-E1 = terminal FM (pulse train) model, -2/-E2 = terminal CA (analog current) model; circuit board coating (-60/-06) is an ordering option

Specifications

Series	FREQROL-A800
Input voltage	Three-phase 380-500 V 50/60 Hz
Structure	Slim model
Control method	V/F, Adv. flux, Real sensorless, Vector, PM
Output frequency	0.2-590 Hz
Overload (ND)	150% 60 s, 200% 3 s
Protection rating	IP20 (IP55 internal/external air)
Cooling	Forced air
Source	Mitsubishi Electric FR-A800 catalogue L(NA)06075ENG-J, p. 22, 42

FR-A840M-160K-1		Capacity: 160K \| ND motor: 160 kW \| ND current: 293 A \| Type: FM, RS-485 \| Alt. model: FR-A840M-03630-1
FR-A840M-160K-2		Capacity: 160K \| ND motor: 160 kW \| ND current: 293 A \| Type: CA, RS-485 \| Alt. model: FR-A840M-03630-2
FR-A840M-160K-E1		Capacity: 160K \| ND motor: 160 kW \| ND current: 293 A \| Type: FM, Ethernet \| Alt. model: FR-A840M-03630-E1
FR-A840M-160K-E2		Capacity: 160K \| ND motor: 160 kW \| ND current: 293 A \| Type: CA, Ethernet \| Alt. model: FR-A840M-03630-E2
FR-A840M-200K-1		Capacity: 200K \| ND motor: 200 kW \| ND current: 363 A \| Type: FM, RS-485 \| Alt. model: FR-A840M-04540-1
FR-A840M-200K-2		Capacity: 200K \| ND motor: 200 kW \| ND current: 363 A \| Type: CA, RS-485 \| Alt. model: FR-A840M-04540-2
FR-A840M-200K-E1		Capacity: 200K \| ND motor: 200 kW \| ND current: 363 A \| Type: FM, Ethernet \| Alt. model: FR-A840M-04540-E1
FR-A840M-200K-E2		Capacity: 200K \| ND motor: 200 kW \| ND current: 363 A \| Type: CA, Ethernet \| Alt. model: FR-A840M-04540-E2

Inverters (VFD)Mitsubishi Electric

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-A840M 400V Slim Inverter (160-200kW ND)

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (8)

FR-A840M-160K-1, FR-A840M-160K-2, FR-A840M-160K-E1, FR-A840M-160K-E2, FR-A840M-200K-1, FR-A840M-200K-2, FR-A840M-200K-E1, FR-A840M-200K-E2

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	FR-A840M-160K-1	Capacity: 160K \| ND motor: 160 kW \| ND current: 293 A \| Type: FM, RS-485 \| Alt. model: FR-A840M-03630-1
	FR-A840M-160K-2	Capacity: 160K \| ND motor: 160 kW \| ND current: 293 A \| Type: CA, RS-485 \| Alt. model: FR-A840M-03630-2
	FR-A840M-160K-E1	Capacity: 160K \| ND motor: 160 kW \| ND current: 293 A \| Type: FM, Ethernet \| Alt. model: FR-A840M-03630-E1
	FR-A840M-160K-E2	Capacity: 160K \| ND motor: 160 kW \| ND current: 293 A \| Type: CA, Ethernet \| Alt. model: FR-A840M-03630-E2
	FR-A840M-200K-1	Capacity: 200K \| ND motor: 200 kW \| ND current: 363 A \| Type: FM, RS-485 \| Alt. model: FR-A840M-04540-1
	FR-A840M-200K-2	Capacity: 200K \| ND motor: 200 kW \| ND current: 363 A \| Type: CA, RS-485 \| Alt. model: FR-A840M-04540-2
	FR-A840M-200K-E1	Capacity: 200K \| ND motor: 200 kW \| ND current: 363 A \| Type: FM, Ethernet \| Alt. model: FR-A840M-04540-E1
	FR-A840M-200K-E2	Capacity: 200K \| ND motor: 200 kW \| ND current: 363 A \| Type: CA, Ethernet \| Alt. model: FR-A840M-04540-E2
