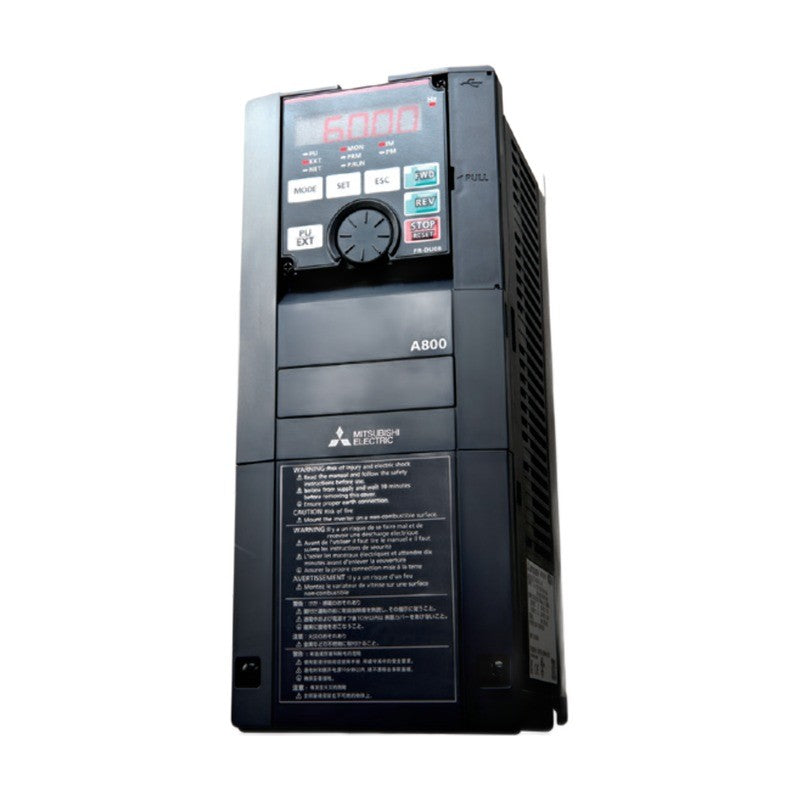

Mitsubishi Electric FR-A842-F Safety Communication VFD (315-500kW)

Mitsubishi Electric FR-A842-F Safety Communication VFD (315-500kW)

The FR-A842-F is the safety communication model of the FREQROL-A800 series (400 V class, 315-500 kW ND) for CC-Link IE TSN safety communication.

Key features

  • Safety communication function enabled by installing the FR-A8NCG-S plug-in option
  • Type -F1: FM type, RS-485 communication, safety function F
  • Real sensorless vector, vector (with FR-A8AP/FR-A8APR/FR-A8APS/FR-A8APA/FR-A8AL) and PM sensorless vector control
  • Multiple rating selectable: SLD 110%, LD 120%, ND 150% (initial), HD 200% 60 s
  • Always install the FR-CC2 converter unit (not required with FR-HC2)

Specifications

Series FREQROL-A800
Input voltage DC 430-780 V (from FR-CC2)
Structure Safety communication model
Control method V/F, Adv. flux, Real sensorless, Vector, PM
Output frequency 0.2-590 Hz
Overload (ND) 150% 60 s, 200% 3 s
Safety option FR-A8NCG-S (CC-Link IE TSN safety)
Source Mitsubishi Electric FR-A800 catalogue L(NA)06075ENG-J, p. 22
FR-A842-315K-F1 Capacity: 315K | ND motor: 315 kW | ND current: 610 A | Alt. model: FR-A842-07700-F1
FR-A842-355K-F1 Capacity: 355K | ND motor: 355 kW | ND current: 683 A | Alt. model: FR-A842-08660-F1
FR-A842-400K-F1 Capacity: 400K | ND motor: 400 kW | ND current: 770 A | Alt. model: FR-A842-09620-F1
FR-A842-450K-F1 Capacity: 450K | ND motor: 450 kW | ND current: 866 A | Alt. model: FR-A842-10940-F1
FR-A842-500K-F1 Capacity: 500K | ND motor: 500 kW | ND current: 962 A | Alt. model: FR-A842-12120-F1
Inverters (VFD)Mitsubishi Electric
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-A842-F Safety Communication VFD (315-500kW)

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (5)

FR-A842-315K-F1, FR-A842-355K-F1, FR-A842-400K-F1, FR-A842-450K-F1, FR-A842-500K-F1

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-A842-315K-F1Capacity: 315K | ND motor: 315 kW | ND current: 610 A | Alt. model: FR-A842-07700-F1
FR-A842-355K-F1Capacity: 355K | ND motor: 355 kW | ND current: 683 A | Alt. model: FR-A842-08660-F1
FR-A842-400K-F1Capacity: 400K | ND motor: 400 kW | ND current: 770 A | Alt. model: FR-A842-09620-F1
FR-A842-450K-F1Capacity: 450K | ND motor: 450 kW | ND current: 866 A | Alt. model: FR-A842-10940-F1
FR-A842-500K-F1Capacity: 500K | ND motor: 500 kW | ND current: 962 A | Alt. model: FR-A842-12120-F1
