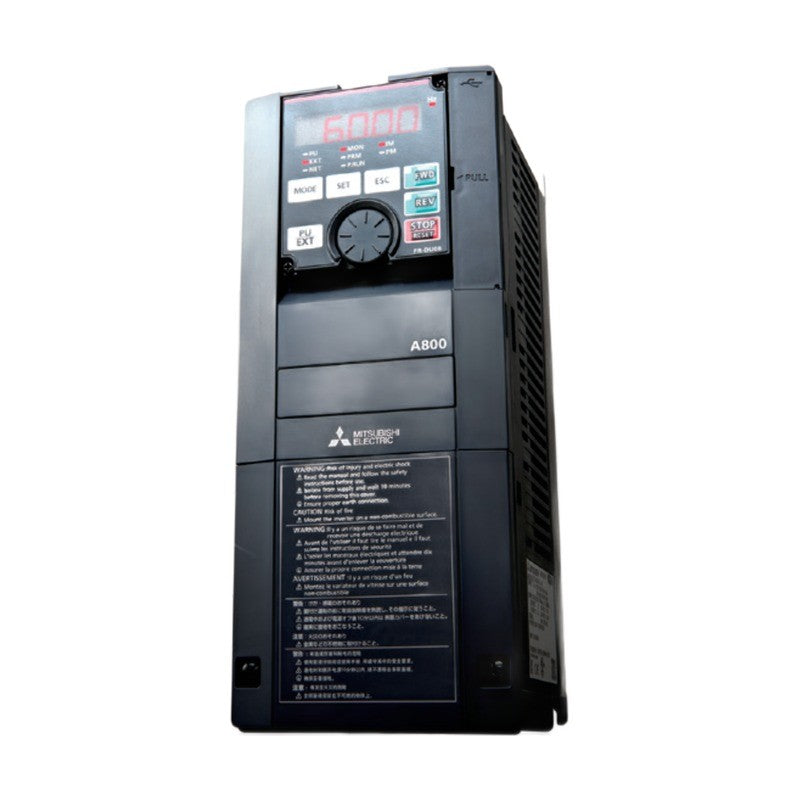

Mitsubishi Electric FR-A842M 400V Slim Separated Converter Inverter

Mitsubishi Electric FR-A842M 400V Slim Separated Converter Inverter

The FR-A842M is the slim separated-converter FREQROL-A800 inverter for 250-500 kW (ND), used with the FR-CC2M converter unit.

Key features

  • Slim separated-converter structure for 250K to 500K; combine with FR-CC2M-H[]K converter unit
  • Built-in brake transistor model available for 315K or lower; FR-BU2 option for higher capacities
  • Circuit board coating (-60 or -06) is standard; Ethernet types (E1/E2) available
  • Real sensorless vector, vector (with FR-A8AP/FR-A8APR/FR-A8APS/FR-A8APA/FR-A8AL) and PM sensorless vector control
  • Type suffix -1/-E1 = terminal FM (pulse train) model, -2/-E2 = terminal CA (analog current) model; circuit board coating (-60/-06) is an ordering option

Specifications

Series FREQROL-A800
Input voltage DC 430-780 V (from FR-CC2M)
Structure Slim model, separated converter
Control method V/F, Adv. flux, Real sensorless, Vector, PM
Output frequency 0.2-590 Hz
Overload (ND) 150% 60 s, 200% 3 s
Protective structure Open type IP20
Cooling Forced air
Source Mitsubishi Electric FR-A800 catalogue L(NA)06075ENG-J, p. 22, 43
FR-A842M-250K-1 Capacity: 250K | ND motor: 250 kW | ND current: 454 A | Type: FM, RS-485 | Alt. model: FR-A842M-05080-1
FR-A842M-250K-2 Capacity: 250K | ND motor: 250 kW | ND current: 454 A | Type: CA, RS-485 | Alt. model: FR-A842M-05080-2
FR-A842M-250K-E1 Capacity: 250K | ND motor: 250 kW | ND current: 454 A | Type: FM, Ethernet | Alt. model: FR-A842M-05080-E1
FR-A842M-250K-E2 Capacity: 250K | ND motor: 250 kW | ND current: 454 A | Type: CA, Ethernet | Alt. model: FR-A842M-05080-E2
FR-A842M-280K-1 Capacity: 280K | ND motor: 280 kW | ND current: 508 A | Type: FM, RS-485 | Alt. model: FR-A842M-05720-1
FR-A842M-280K-2 Capacity: 280K | ND motor: 280 kW | ND current: 508 A | Type: CA, RS-485 | Alt. model: FR-A842M-05720-2
FR-A842M-280K-E1 Capacity: 280K | ND motor: 280 kW | ND current: 508 A | Type: FM, Ethernet | Alt. model: FR-A842M-05720-E1
FR-A842M-280K-E2 Capacity: 280K | ND motor: 280 kW | ND current: 508 A | Type: CA, Ethernet | Alt. model: FR-A842M-05720-E2
FR-A842M-315K-1 Capacity: 315K | ND motor: 315 kW | ND current: 572 A | Type: FM, RS-485 | Alt. model: FR-A842M-06440-1
FR-A842M-315K-2 Capacity: 315K | ND motor: 315 kW | ND current: 572 A | Type: CA, RS-485 | Alt. model: FR-A842M-06440-2
FR-A842M-315K-E1 Capacity: 315K | ND motor: 315 kW | ND current: 572 A | Type: FM, Ethernet | Alt. model: FR-A842M-06440-E1
FR-A842M-315K-E2 Capacity: 315K | ND motor: 315 kW | ND current: 572 A | Type: CA, Ethernet | Alt. model: FR-A842M-06440-E2
FR-A842M-355K-1 Capacity: 355K | ND motor: 355 kW | ND current: 644 A | Type: FM, RS-485 | Alt. model: FR-A842M-07260-1
FR-A842M-355K-2 Capacity: 355K | ND motor: 355 kW | ND current: 644 A | Type: CA, RS-485 | Alt. model: FR-A842M-07260-2
FR-A842M-355K-E1 Capacity: 355K | ND motor: 355 kW | ND current: 644 A | Type: FM, Ethernet | Alt. model: FR-A842M-07260-E1
FR-A842M-355K-E2 Capacity: 355K | ND motor: 355 kW | ND current: 644 A | Type: CA, Ethernet | Alt. model: FR-A842M-07260-E2
FR-A842M-400K-1 Capacity: 400K | ND motor: 400 kW | ND current: 726 A | Type: FM, RS-485 | Alt. model: FR-A842M-08170-1
FR-A842M-400K-2 Capacity: 400K | ND motor: 400 kW | ND current: 726 A | Type: CA, RS-485 | Alt. model: FR-A842M-08170-2
FR-A842M-400K-E1 Capacity: 400K | ND motor: 400 kW | ND current: 726 A | Type: FM, Ethernet | Alt. model: FR-A842M-08170-E1
FR-A842M-400K-E2 Capacity: 400K | ND motor: 400 kW | ND current: 726 A | Type: CA, Ethernet | Alt. model: FR-A842M-08170-E2
FR-A842M-450K-1 Capacity: 450K | ND motor: 450 kW | ND current: 817 A | Type: FM, RS-485 | Alt. model: FR-A842M-09080-1
FR-A842M-450K-2 Capacity: 450K | ND motor: 450 kW | ND current: 817 A | Type: CA, RS-485 | Alt. model: FR-A842M-09080-2
FR-A842M-450K-E1 Capacity: 450K | ND motor: 450 kW | ND current: 817 A | Type: FM, Ethernet | Alt. model: FR-A842M-09080-E1
FR-A842M-450K-E2 Capacity: 450K | ND motor: 450 kW | ND current: 817 A | Type: CA, Ethernet | Alt. model: FR-A842M-09080-E2
FR-A842M-500K-1 Capacity: 500K | ND motor: 500 kW | ND current: 908 A | Type: FM, RS-485 | Alt. model: FR-A842M-10160-1
FR-A842M-500K-2 Capacity: 500K | ND motor: 500 kW | ND current: 908 A | Type: CA, RS-485 | Alt. model: FR-A842M-10160-2
FR-A842M-500K-E1 Capacity: 500K | ND motor: 500 kW | ND current: 908 A | Type: FM, Ethernet | Alt. model: FR-A842M-10160-E1
FR-A842M-500K-E2 Capacity: 500K | ND motor: 500 kW | ND current: 908 A | Type: CA, Ethernet | Alt. model: FR-A842M-10160-E2
Inverters (VFD)Mitsubishi Electric
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-A842M 400V Slim Separated Converter Inverter

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (28)

FR-A842M-250K-1, FR-A842M-250K-2, FR-A842M-250K-E1, FR-A842M-250K-E2, FR-A842M-280K-1, FR-A842M-280K-2, FR-A842M-280K-E1, FR-A842M-280K-E2, FR-A842M-315K-1, FR-A842M-315K-2 + 18 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-A842M-250K-1Capacity: 250K | ND motor: 250 kW | ND current: 454 A | Type: FM, RS-485 | Alt. model: FR-A842M-05080-1
FR-A842M-250K-2Capacity: 250K | ND motor: 250 kW | ND current: 454 A | Type: CA, RS-485 | Alt. model: FR-A842M-05080-2
FR-A842M-250K-E1Capacity: 250K | ND motor: 250 kW | ND current: 454 A | Type: FM, Ethernet | Alt. model: FR-A842M-05080-E1
FR-A842M-250K-E2Capacity: 250K | ND motor: 250 kW | ND current: 454 A | Type: CA, Ethernet | Alt. model: FR-A842M-05080-E2
FR-A842M-280K-1Capacity: 280K | ND motor: 280 kW | ND current: 508 A | Type: FM, RS-485 | Alt. model: FR-A842M-05720-1
FR-A842M-280K-2Capacity: 280K | ND motor: 280 kW | ND current: 508 A | Type: CA, RS-485 | Alt. model: FR-A842M-05720-2
FR-A842M-280K-E1Capacity: 280K | ND motor: 280 kW | ND current: 508 A | Type: FM, Ethernet | Alt. model: FR-A842M-05720-E1
FR-A842M-280K-E2Capacity: 280K | ND motor: 280 kW | ND current: 508 A | Type: CA, Ethernet | Alt. model: FR-A842M-05720-E2
FR-A842M-315K-1Capacity: 315K | ND motor: 315 kW | ND current: 572 A | Type: FM, RS-485 | Alt. model: FR-A842M-06440-1
FR-A842M-315K-2Capacity: 315K | ND motor: 315 kW | ND current: 572 A | Type: CA, RS-485 | Alt. model: FR-A842M-06440-2
FR-A842M-315K-E1Capacity: 315K | ND motor: 315 kW | ND current: 572 A | Type: FM, Ethernet | Alt. model: FR-A842M-06440-E1
FR-A842M-315K-E2Capacity: 315K | ND motor: 315 kW | ND current: 572 A | Type: CA, Ethernet | Alt. model: FR-A842M-06440-E2
FR-A842M-355K-1Capacity: 355K | ND motor: 355 kW | ND current: 644 A | Type: FM, RS-485 | Alt. model: FR-A842M-07260-1
FR-A842M-355K-2Capacity: 355K | ND motor: 355 kW | ND current: 644 A | Type: CA, RS-485 | Alt. model: FR-A842M-07260-2
FR-A842M-355K-E1Capacity: 355K | ND motor: 355 kW | ND current: 644 A | Type: FM, Ethernet | Alt. model: FR-A842M-07260-E1
FR-A842M-355K-E2Capacity: 355K | ND motor: 355 kW | ND current: 644 A | Type: CA, Ethernet | Alt. model: FR-A842M-07260-E2
FR-A842M-400K-1Capacity: 400K | ND motor: 400 kW | ND current: 726 A | Type: FM, RS-485 | Alt. model: FR-A842M-08170-1
FR-A842M-400K-2Capacity: 400K | ND motor: 400 kW | ND current: 726 A | Type: CA, RS-485 | Alt. model: FR-A842M-08170-2
FR-A842M-400K-E1Capacity: 400K | ND motor: 400 kW | ND current: 726 A | Type: FM, Ethernet | Alt. model: FR-A842M-08170-E1
FR-A842M-400K-E2Capacity: 400K | ND motor: 400 kW | ND current: 726 A | Type: CA, Ethernet | Alt. model: FR-A842M-08170-E2
FR-A842M-450K-1Capacity: 450K | ND motor: 450 kW | ND current: 817 A | Type: FM, RS-485 | Alt. model: FR-A842M-09080-1
FR-A842M-450K-2Capacity: 450K | ND motor: 450 kW | ND current: 817 A | Type: CA, RS-485 | Alt. model: FR-A842M-09080-2
FR-A842M-450K-E1Capacity: 450K | ND motor: 450 kW | ND current: 817 A | Type: FM, Ethernet | Alt. model: FR-A842M-09080-E1
FR-A842M-450K-E2Capacity: 450K | ND motor: 450 kW | ND current: 817 A | Type: CA, Ethernet | Alt. model: FR-A842M-09080-E2
FR-A842M-500K-1Capacity: 500K | ND motor: 500 kW | ND current: 908 A | Type: FM, RS-485 | Alt. model: FR-A842M-10160-1
FR-A842M-500K-2Capacity: 500K | ND motor: 500 kW | ND current: 908 A | Type: CA, RS-485 | Alt. model: FR-A842M-10160-2
FR-A842M-500K-E1Capacity: 500K | ND motor: 500 kW | ND current: 908 A | Type: FM, Ethernet | Alt. model: FR-A842M-10160-E1
FR-A842M-500K-E2Capacity: 500K | ND motor: 500 kW | ND current: 908 A | Type: CA, Ethernet | Alt. model: FR-A842M-10160-E2
