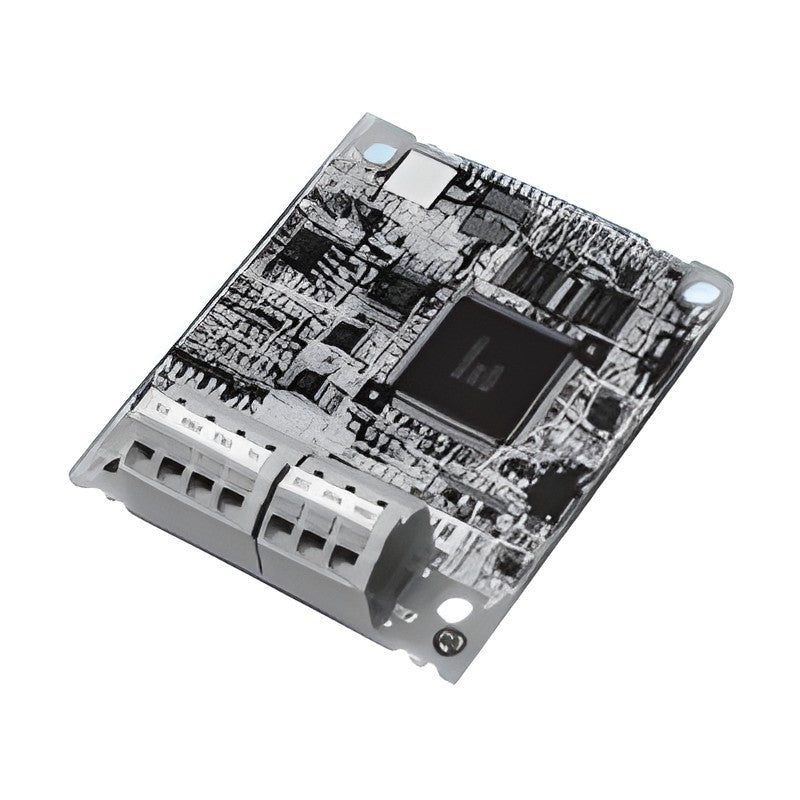

Mitsubishi Electric FR-A8AVP Changeover Components for FR-A842

Mitsubishi Electric FR-A8AVP Changeover Components for FR-A842

Dedicated peripheral components that, with the FR-A8AVP plug-in option, let an FR-A842 separated-converter inverter operate as a high power factor converter.

Key features

  • Changeover between inverter and high power factor converter by FR-A8AVP plus parameter setting
  • Converter mode: input power factor 0.99 or more (100% load), greatly suppressed harmonics
  • Kit: phase detection transformer box, filter reactor, PWM reactor, filter capacitor, inrush protection parts
  • Converter rated output 375-595 kW (315K-500K), overload 150% 60 s
  • Can be changed back to inverter operation

Specifications

Series FR-A8AVP changeover
Applicable inverter FR-A842-315K to 500K
Voltage class 400 V
Converter input Three-phase 380-500 V 50/60 Hz
Input power factor 0.99 or more
Cooling Forced air (converter)
Source Mitsubishi Electric FR-A800 catalogue L(NA)06075ENG-J, p. 142, 143, 144
FR-A8VPB-H Component: Phase detection transformer box | Use with: FR-A842-315K to 500K | Capacity required: 315-500 kW
FR-A8BL1-H315K Component: Dedicated filter reactor | Use with: FR-A842-315K | Capacity required: 315 kW
FR-A8BL1-H355K Component: Dedicated filter reactor | Use with: FR-A842-355K | Capacity required: 355 kW
FR-A8BL1-H400K Component: Dedicated filter reactor | Use with: FR-A842-400K | Capacity required: 400 kW
FR-A8BL1-H450K Component: Dedicated filter reactor | Use with: FR-A842-450K | Capacity required: 450 kW
FR-A8BL1-H500K Component: Dedicated filter reactor | Use with: FR-A842-500K | Capacity required: 500 kW
FR-A8BL2-H315K Component: Dedicated reactor for PWM control | Use with: FR-A842-315K | Capacity required: 315 kW
FR-A8BL2-H355K Component: Dedicated reactor for PWM control | Use with: FR-A842-355K | Capacity required: 355 kW
FR-A8BL2-H400K Component: Dedicated reactor for PWM control | Use with: FR-A842-400K | Capacity required: 400 kW
FR-A8BL2-H450K Component: Dedicated reactor for PWM control | Use with: FR-A842-450K | Capacity required: 450 kW
FR-A8BL2-H500K Component: Dedicated reactor for PWM control | Use with: FR-A842-500K | Capacity required: 500 kW
FR-A8BC-H400K Component: Dedicated filter capacitor | Use with: FR-A842-315K to 400K | Capacity required: 315-400 kW
FR-A8BC-H500K Component: Dedicated filter capacitor | Use with: FR-A842-450K, 500K | Capacity required: 450-500 kW
FR-A8MC-H355K Component: Inrush current protection parts | Use with: FR-A842-315K, 355K | Capacity required: 315-355 kW
FR-A8MC-H500K Component: Inrush current protection parts | Use with: FR-A842-400K to 500K | Capacity required: 400-500 kW
FR-A8BC Legacy code (series name only; order full model) | Component: see FR-A8BC-H400K / -H500K
FR-A8BL1 Legacy code (series name only; order full model) | Component: see FR-A8BL1-H315K to -H500K
FR-A8BL2 Legacy code (series name only; order full model) | Component: see FR-A8BL2-H315K to -H500K
FR-A8MC Legacy code (series name only; order full model) | Component: see FR-A8MC-H355K / -H500K
FR-A8VPB Legacy code (series name only; order full model) | Component: see FR-A8VPB-H
Inverter Options & AccessoriesMitsubishi Electric
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-A8AVP Changeover Components for FR-A842

Brand Mitsubishi Electric·Inverter Options & Accessories

Available part numbers (20)

FR-A8VPB-H, FR-A8BL1-H315K, FR-A8BL1-H355K, FR-A8BL1-H400K, FR-A8BL1-H450K, FR-A8BL1-H500K, FR-A8BL2-H315K, FR-A8BL2-H355K, FR-A8BL2-H400K, FR-A8BL2-H450K + 10 more — see full table ↓
