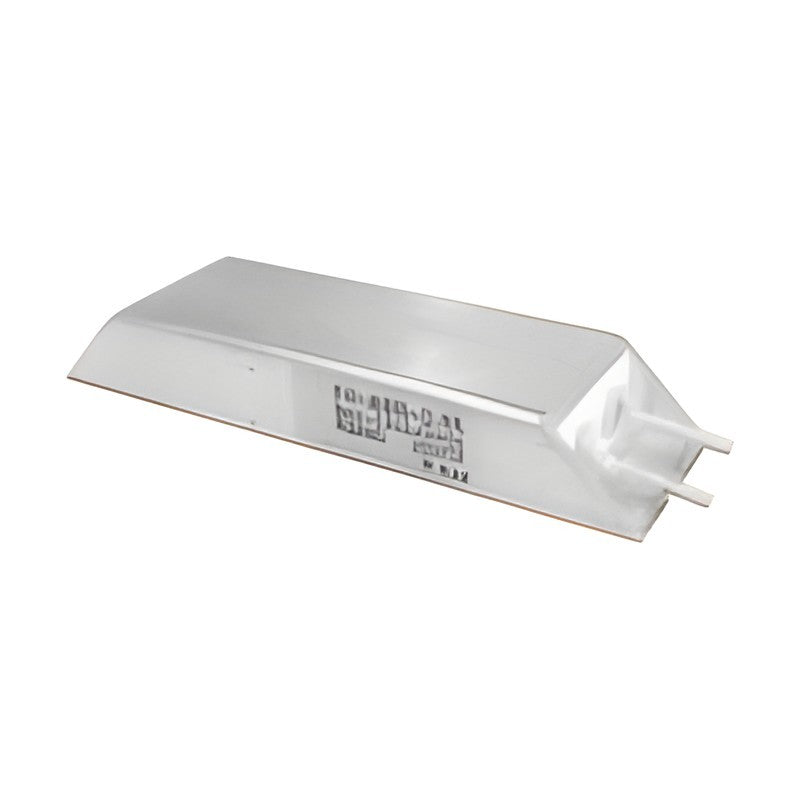

Mitsubishi Electric FR-ABR High-Duty Brake Resistor (200V/400V)

Mitsubishi Electric FR-ABR High-Duty Brake Resistor (200V/400V)

The FR-ABR high-duty brake resistor improves the regenerative braking capability of inverters with a built-in brake transistor (permissible duty 10%/6% ED).

Key features

  • Applicable to FR-A820-01250(22K) or lower and FR-A840-00620(22K) or lower (ND rating)
  • Select by applied inverter capacity; 15K/22K/H15K/H22K use two resistors per set
  • Remove the PR-PX jumper when connecting (where provided)
  • Install a thermal relay to prevent overheating; resistor surface reaches 300 deg C or more

Specifications

Series FR-ABR
Category Stand-alone option
Applicable series FR-A800 (22K or lower)
Mounting External, terminals P/+ and PR
Thermal protection External thermal relay recommended
Manufacturer Mitsubishi Electric
Source Mitsubishi Electric FR-A800 catalogue L(NA)06075ENG-J, p. 153
FR-ABR-0.4K Voltage: 200 V | Permissible duty: 10% ED | Resistance: 200 ohm | Approx. mass: 0.2 kg
FR-ABR-0.75K Voltage: 200 V | Permissible duty: 10% ED | Resistance: 100 ohm | Approx. mass: 0.4 kg
FR-ABR-2.2K Voltage: 200 V | Permissible duty: 10% ED | Resistance: 60 ohm | Approx. mass: 0.5 kg
FR-ABR-3.7K Voltage: 200 V | Permissible duty: 10% ED | Resistance: 40 ohm | Approx. mass: 0.8 kg
FR-ABR-5.5K Voltage: 200 V | Permissible duty: 10% ED | Resistance: 25 ohm | Approx. mass: 1.3 kg
FR-ABR-7.5K Voltage: 200 V | Permissible duty: 10% ED | Resistance: 20 ohm | Approx. mass: 2.2 kg
FR-ABR-11K Voltage: 200 V | Permissible duty: 6% ED | Resistance: 13 ohm | Approx. mass: 3.5 kg
FR-ABR-15K Voltage: 200 V | Permissible duty: 6% ED | Resistance: 18 (x1/2) ohm | Approx. mass: 2.4 (x2) kg
FR-ABR-22K Voltage: 200 V | Permissible duty: 6% ED | Resistance: 13 (x1/2) ohm | Approx. mass: 3.3 (x2) kg
FR-ABR-H0.4K Voltage: 400 V | Permissible duty: 10% ED | Resistance: 1200 ohm | Approx. mass: 0.2 kg
FR-ABR-H0.75K Voltage: 400 V | Permissible duty: 10% ED | Resistance: 700 ohm | Approx. mass: 0.2 kg
FR-ABR-H1.5K Voltage: 400 V | Permissible duty: 10% ED | Resistance: 350 ohm | Approx. mass: 0.4 kg
FR-ABR-H2.2K Voltage: 400 V | Permissible duty: 10% ED | Resistance: 250 ohm | Approx. mass: 0.5 kg
FR-ABR-H3.7K Voltage: 400 V | Permissible duty: 10% ED | Resistance: 150 ohm | Approx. mass: 0.8 kg
FR-ABR-H5.5K Voltage: 400 V | Permissible duty: 10% ED | Resistance: 110 ohm | Approx. mass: 1.3 kg
FR-ABR-H7.5K Voltage: 400 V | Permissible duty: 10% ED | Resistance: 75 ohm | Approx. mass: 2.2 kg
FR-ABR-H11K Voltage: 400 V | Permissible duty: 6% ED | Resistance: 52 ohm | Approx. mass: 3.2 kg
FR-ABR-H15K Voltage: 400 V | Permissible duty: 6% ED | Resistance: 18 (x2) ohm | Approx. mass: 2.4 (x2) kg
FR-ABR-H22K Voltage: 400 V | Permissible duty: 6% ED | Resistance: 52 (x1/2) ohm | Approx. mass: 3.3 (x2) kg
Inverter Options & AccessoriesMitsubishi Electric
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-ABR High-Duty Brake Resistor (200V/400V)

Brand Mitsubishi Electric·Inverter Options & Accessories

Available part numbers (19)

FR-ABR-0.4K, FR-ABR-0.75K, FR-ABR-2.2K, FR-ABR-3.7K, FR-ABR-5.5K, FR-ABR-7.5K, FR-ABR-11K, FR-ABR-15K, FR-ABR-22K, FR-ABR-H0.4K + 9 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-ABR-0.4KVoltage: 200 V | Permissible duty: 10% ED | Resistance: 200 ohm | Approx. mass: 0.2 kg
FR-ABR-0.75KVoltage: 200 V | Permissible duty: 10% ED | Resistance: 100 ohm | Approx. mass: 0.4 kg
FR-ABR-2.2KVoltage: 200 V | Permissible duty: 10% ED | Resistance: 60 ohm | Approx. mass: 0.5 kg
FR-ABR-3.7KVoltage: 200 V | Permissible duty: 10% ED | Resistance: 40 ohm | Approx. mass: 0.8 kg
FR-ABR-5.5KVoltage: 200 V | Permissible duty: 10% ED | Resistance: 25 ohm | Approx. mass: 1.3 kg
FR-ABR-7.5KVoltage: 200 V | Permissible duty: 10% ED | Resistance: 20 ohm | Approx. mass: 2.2 kg
FR-ABR-11KVoltage: 200 V | Permissible duty: 6% ED | Resistance: 13 ohm | Approx. mass: 3.5 kg
FR-ABR-15KVoltage: 200 V | Permissible duty: 6% ED | Resistance: 18 (x1/2) ohm | Approx. mass: 2.4 (x2) kg
FR-ABR-22KVoltage: 200 V | Permissible duty: 6% ED | Resistance: 13 (x1/2) ohm | Approx. mass: 3.3 (x2) kg
FR-ABR-H0.4KVoltage: 400 V | Permissible duty: 10% ED | Resistance: 1200 ohm | Approx. mass: 0.2 kg
FR-ABR-H0.75KVoltage: 400 V | Permissible duty: 10% ED | Resistance: 700 ohm | Approx. mass: 0.2 kg
FR-ABR-H1.5KVoltage: 400 V | Permissible duty: 10% ED | Resistance: 350 ohm | Approx. mass: 0.4 kg
FR-ABR-H2.2KVoltage: 400 V | Permissible duty: 10% ED | Resistance: 250 ohm | Approx. mass: 0.5 kg
FR-ABR-H3.7KVoltage: 400 V | Permissible duty: 10% ED | Resistance: 150 ohm | Approx. mass: 0.8 kg
FR-ABR-H5.5KVoltage: 400 V | Permissible duty: 10% ED | Resistance: 110 ohm | Approx. mass: 1.3 kg
FR-ABR-H7.5KVoltage: 400 V | Permissible duty: 10% ED | Resistance: 75 ohm | Approx. mass: 2.2 kg
FR-ABR-H11KVoltage: 400 V | Permissible duty: 6% ED | Resistance: 52 ohm | Approx. mass: 3.2 kg
FR-ABR-H15KVoltage: 400 V | Permissible duty: 6% ED | Resistance: 18 (x2) ohm | Approx. mass: 2.4 (x2) kg
FR-ABR-H22KVoltage: 400 V | Permissible duty: 6% ED | Resistance: 52 (x1/2) ohm | Approx. mass: 3.3 (x2) kg
