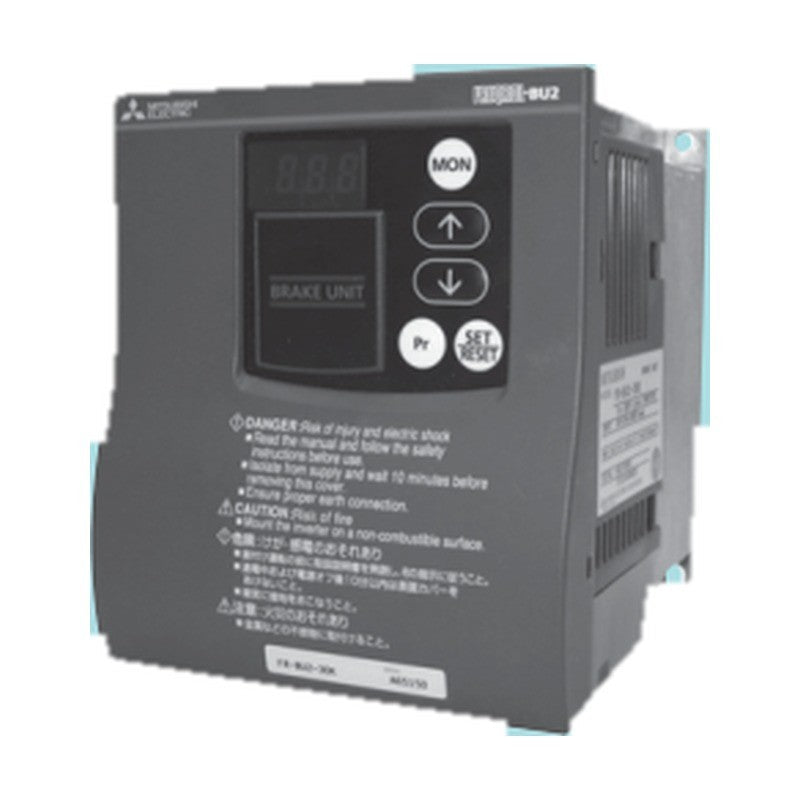

Mitsubishi Electric FR-BU2 Brake Unit & FR-BR / MT-BR5 Resistor Units

Mitsubishi Electric FR-BU2 Brake Unit & FR-BR / MT-BR5 Resistor Units

The FR-BU2 brake unit, used with FR-BR or MT-BR5 resistor units (or GRZG discharging resistors), gives greater braking capability than an external brake resistor.

Key features

  • Connectable to inverters without built-in brake transistor; up to 10 units in parallel
  • Resistor choice by required braking torque: GZG/GRZG resistors, FR-BR or MT-BR5 units
  • FR-BU2-H220K / H280K are used with three or four MT-BR5-H75K in parallel
  • FR-A840-00052(1.5K) or lower inverters cannot be used with brake units
  • Discharging resistor temperature rises to approx. 200 deg C; use heat-resistant wiring

Specifications

Series FR-BU2 / FR-BR / MT-BR5
Category Stand-alone option
Applicable series FR-A800, FR-F800
Parallel driving Max. 10 units
Selection Braking torque and %ED
Manufacturer Mitsubishi Electric
Source Mitsubishi Electric FR-A800 catalogue L(NA)06075ENG-J, p. 154, 155, 156
FR-BU2-1.5K Item: Brake unit | Voltage: 200 V | Combination: GZG 300W-50 ohm (1 unit)
FR-BU2-3.7K Item: Brake unit | Voltage: 200 V | Combination: GRZG 200-10 ohm (3 in series)
FR-BU2-7.5K Item: Brake unit | Voltage: 200 V | Combination: GRZG 300-5 ohm (4 in series)
FR-BU2-15K Item: Brake unit | Voltage: 200 V | Combination: GRZG 400-2 ohm (6) or FR-BR-15K
FR-BU2-30K Item: Brake unit | Voltage: 200 V | Combination: FR-BR-30K
FR-BU2-55K Item: Brake unit | Voltage: 200 V | Combination: FR-BR-55K or MT-BR5-55K
FR-BU2-H7.5K Item: Brake unit | Voltage: 400 V | Combination: GRZG 200-10 ohm (6, 2 sets)
FR-BU2-H15K Item: Brake unit | Voltage: 400 V | Combination: GRZG 300-5 ohm (8) or FR-BR-H15K
FR-BU2-H30K Item: Brake unit | Voltage: 400 V | Combination: GRZG 400-2 ohm (12) or FR-BR-H30K
FR-BU2-H55K Item: Brake unit | Voltage: 400 V | Combination: FR-BR-H55K
FR-BU2-H75K Item: Brake unit | Voltage: 400 V | Combination: MT-BR5-H75K
FR-BU2-H220K Item: Brake unit | Voltage: 400 V | Combination: 3 x MT-BR5-H75K
FR-BU2-H280K Item: Brake unit | Voltage: 400 V | Combination: 4 x MT-BR5-H75K
FR-BR-15K Item: Resistor unit, 8 ohm, 990 W | Voltage: 200 V | Combination: FR-BU2-15K
FR-BR-30K Item: Resistor unit, 4 ohm, 1990 W | Voltage: 200 V | Combination: FR-BU2-30K
FR-BR-55K Item: Resistor unit, 2 ohm, 3910 W | Voltage: 200 V | Combination: FR-BU2-55K
FR-BR-H15K Item: Resistor unit, 32 ohm, 990 W | Voltage: 400 V | Combination: FR-BU2-H15K
FR-BR-H30K Item: Resistor unit, 16 ohm, 1990 W | Voltage: 400 V | Combination: FR-BU2-H30K
FR-BR-H55K Item: Resistor unit, 8 ohm, 3910 W | Voltage: 400 V | Combination: FR-BU2-H55K
MT-BR5-55K Item: Resistor unit, 2 ohm, 5500 W | Voltage: 200 V | Combination: FR-BU2-55K
MT-BR5-H75K Item: Resistor unit, 6.5 ohm, 7500 W | Voltage: 400 V | Combination: FR-BU2-H75K/H220K/H280K
Inverter Options & AccessoriesMitsubishi Electric
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-BU2 Brake Unit & FR-BR / MT-BR5 Resistor Units

Brand Mitsubishi Electric·Inverter Options & Accessories

Available part numbers (21)

FR-BU2-1.5K, FR-BU2-3.7K, FR-BU2-7.5K, FR-BU2-15K, FR-BU2-30K, FR-BU2-55K, FR-BU2-H7.5K, FR-BU2-H15K, FR-BU2-H30K, FR-BU2-H55K + 11 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-BU2-1.5KItem: Brake unit | Voltage: 200 V | Combination: GZG 300W-50 ohm (1 unit)
FR-BU2-3.7KItem: Brake unit | Voltage: 200 V | Combination: GRZG 200-10 ohm (3 in series)
FR-BU2-7.5KItem: Brake unit | Voltage: 200 V | Combination: GRZG 300-5 ohm (4 in series)
FR-BU2-15KItem: Brake unit | Voltage: 200 V | Combination: GRZG 400-2 ohm (6) or FR-BR-15K
FR-BU2-30KItem: Brake unit | Voltage: 200 V | Combination: FR-BR-30K
FR-BU2-55KItem: Brake unit | Voltage: 200 V | Combination: FR-BR-55K or MT-BR5-55K
FR-BU2-H7.5KItem: Brake unit | Voltage: 400 V | Combination: GRZG 200-10 ohm (6, 2 sets)
FR-BU2-H15KItem: Brake unit | Voltage: 400 V | Combination: GRZG 300-5 ohm (8) or FR-BR-H15K
FR-BU2-H30KItem: Brake unit | Voltage: 400 V | Combination: GRZG 400-2 ohm (12) or FR-BR-H30K
FR-BU2-H55KItem: Brake unit | Voltage: 400 V | Combination: FR-BR-H55K
FR-BU2-H75KItem: Brake unit | Voltage: 400 V | Combination: MT-BR5-H75K
FR-BU2-H220KItem: Brake unit | Voltage: 400 V | Combination: 3 x MT-BR5-H75K
FR-BU2-H280KItem: Brake unit | Voltage: 400 V | Combination: 4 x MT-BR5-H75K
FR-BR-15KItem: Resistor unit, 8 ohm, 990 W | Voltage: 200 V | Combination: FR-BU2-15K
FR-BR-30KItem: Resistor unit, 4 ohm, 1990 W | Voltage: 200 V | Combination: FR-BU2-30K
FR-BR-55KItem: Resistor unit, 2 ohm, 3910 W | Voltage: 200 V | Combination: FR-BU2-55K
FR-BR-H15KItem: Resistor unit, 32 ohm, 990 W | Voltage: 400 V | Combination: FR-BU2-H15K
FR-BR-H30KItem: Resistor unit, 16 ohm, 1990 W | Voltage: 400 V | Combination: FR-BU2-H30K
FR-BR-H55KItem: Resistor unit, 8 ohm, 3910 W | Voltage: 400 V | Combination: FR-BU2-H55K
MT-BR5-55KItem: Resistor unit, 2 ohm, 5500 W | Voltage: 200 V | Combination: FR-BU2-55K
MT-BR5-H75KItem: Resistor unit, 6.5 ohm, 7500 W | Voltage: 400 V | Combination: FR-BU2-H75K/H220K/H280K
