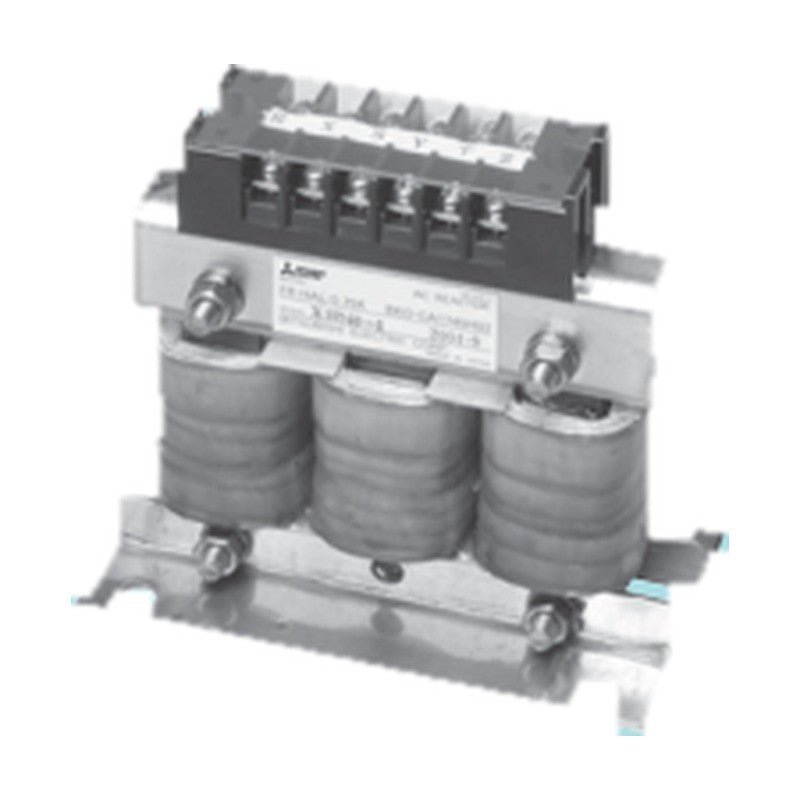

Mitsubishi Electric FR-HAL AC Reactor for Inverters (200V/400V)

Mitsubishi Electric FR-HAL AC Reactor for Inverters (200V/400V)

The FR-HAL AC reactor connects to the inverter input side to improve power factor and reduce input harmonic current.

Key features

  • Select according to the applied motor capacity (even if the inverter capacity is smaller)
  • Approx. 88% power factor improving effect (92.3% at 1 power factor for the fundamental wave)
  • 200 V class 0.4K-110K and 400 V class H0.4K-H560K
  • (H)55K or lower: horizontal or vertical installation; (H)75K or higher: horizontal installation

Specifications

Series FR-HAL
Connection Inverter input (R/L1, S/L2, T/L3)
Category Stand-alone option
Applicable series FR-A800, FR-F800
Clearance 10 cm top/bottom, 5 cm sides
Manufacturer Mitsubishi Electric
Source Mitsubishi Electric FR-A800 catalogue L(NA)06075ENG-J, p. 150; Mitsubishi Electric FR-F800 catalogue L(NA)06085ENG-E, p. 96
FR-HAL-0.4K Voltage: 200 V | Motor capacity: 0.4 kW | Dimensions WxHxD: 104x99x72 mm | Mass: 0.6 kg
FR-HAL-0.75K Voltage: 200 V | Motor capacity: 0.75 kW | Dimensions WxHxD: 104x99x74 mm | Mass: 0.8 kg
FR-HAL-1.5K Voltage: 200 V | Motor capacity: 1.5 kW | Dimensions WxHxD: 104x99x77 mm | Mass: 1.1 kg
FR-HAL-2.2K Voltage: 200 V | Motor capacity: 2.2 kW | Dimensions WxHxD: 115x115x77 mm | Mass: 1.5 kg
FR-HAL-3.7K Voltage: 200 V | Motor capacity: 3.7 kW | Dimensions WxHxD: 115x115x83 mm | Mass: 2.2 kg
FR-HAL-5.5K Voltage: 200 V | Motor capacity: 5.5 kW | Dimensions WxHxD: 115x115x83 mm | Mass: 2.3 kg
FR-HAL-7.5K Voltage: 200 V | Motor capacity: 7.5 kW | Dimensions WxHxD: 130x135x100 mm | Mass: 4.2 kg
FR-HAL-11K Voltage: 200 V | Motor capacity: 11 kW | Dimensions WxHxD: 160x164x111 mm | Mass: 5.2 kg
FR-HAL-15K Voltage: 200 V | Motor capacity: 15 kW | Dimensions WxHxD: 160x167x126 mm | Mass: 7.0 kg
FR-HAL-18.5K Voltage: 200 V | Motor capacity: 18.5 kW | Dimensions WxHxD: 160x128x175 mm | Mass: 7.1 kg
FR-HAL-22K Voltage: 200 V | Motor capacity: 22 kW | Dimensions WxHxD: 185x150x158 mm | Mass: 9.0 kg
FR-HAL-30K Voltage: 200 V | Motor capacity: 30 kW | Dimensions WxHxD: 185x150x168 mm | Mass: 9.7 kg
FR-HAL-37K Voltage: 200 V | Motor capacity: 37 kW | Dimensions WxHxD: 210x175x174 mm | Mass: 12.9 kg
FR-HAL-45K Voltage: 200 V | Motor capacity: 45 kW | Dimensions WxHxD: 210x175x191 mm | Mass: 16.4 kg
FR-HAL-55K Voltage: 200 V | Motor capacity: 55 kW | Dimensions WxHxD: 210x175x201 mm | Mass: 17.4 kg
FR-HAL-75K Voltage: 200 V | Motor capacity: 75 kW | Dimensions WxHxD: 240x210x215.5 mm | Mass: 23 kg
FR-HAL-110K Voltage: 200 V | Motor capacity: 110 kW | Dimensions WxHxD: 330x325x259 mm | Mass: 40 kg
FR-HAL-H0.4K Voltage: 400 V | Motor capacity: 0.4 kW | Dimensions WxHxD: 135x115x64 mm | Mass: 1.5 kg
FR-HAL-H0.75K Voltage: 400 V | Motor capacity: 0.75 kW | Dimensions WxHxD: 135x115x64 mm | Mass: 1.5 kg
FR-HAL-H1.5K Voltage: 400 V | Motor capacity: 1.5 kW | Dimensions WxHxD: 135x115x64 mm | Mass: 1.5 kg
FR-HAL-H2.2K Voltage: 400 V | Motor capacity: 2.2 kW | Dimensions WxHxD: 135x115x64 mm | Mass: 1.5 kg
FR-HAL-H3.7K Voltage: 400 V | Motor capacity: 3.7 kW | Dimensions WxHxD: 135x115x74 mm | Mass: 2.5 kg
FR-HAL-H5.5K Voltage: 400 V | Motor capacity: 5.5 kW | Dimensions WxHxD: 160x150x76 mm | Mass: 3.5 kg
FR-HAL-H7.5K Voltage: 400 V | Motor capacity: 7.5 kW | Dimensions WxHxD: 160x150x96 mm | Mass: 5.0 kg
FR-HAL-H11K Voltage: 400 V | Motor capacity: 11 kW | Dimensions WxHxD: 160x146x96 mm | Mass: 6.0 kg
FR-HAL-H15K Voltage: 400 V | Motor capacity: 15 kW | Dimensions WxHxD: 220x195x105 mm | Mass: 9.0 kg
FR-HAL-H18.5K Voltage: 400 V | Motor capacity: 18.5 kW | Dimensions WxHxD: 220x212x155 mm | Mass: 9.0 kg
FR-HAL-H22K Voltage: 400 V | Motor capacity: 22 kW | Dimensions WxHxD: 220x212x155 mm | Mass: 9.5 kg
FR-HAL-H30K Voltage: 400 V | Motor capacity: 30 kW | Dimensions WxHxD: 220x212x153 mm | Mass: 11 kg
FR-HAL-H37K Voltage: 400 V | Motor capacity: 37 kW | Dimensions WxHxD: 220x211x160 mm | Mass: 12.5 kg
FR-HAL-H45K Voltage: 400 V | Motor capacity: 45 kW | Dimensions WxHxD: 280x242x165 mm | Mass: 15 kg
FR-HAL-H55K Voltage: 400 V | Motor capacity: 55 kW | Dimensions WxHxD: 280x242x170 mm | Mass: 18 kg
FR-HAL-H75K Voltage: 400 V | Motor capacity: 75 kW | Dimensions WxHxD: 210x170x210.5 mm | Mass: 20 kg
FR-HAL-H110K Voltage: 400 V | Motor capacity: 110 kW | Dimensions WxHxD: 240x225x220 mm | Mass: 28 kg
FR-HAL-H185K Voltage: 400 V | Motor capacity: 185 kW | Dimensions WxHxD: 330x325x271 mm | Mass: 55 kg
FR-HAL-H280K Voltage: 400 V | Motor capacity: 280 kW | Dimensions WxHxD: 330x325x321 mm | Mass: 80 kg
FR-HAL-H355K Voltage: 400 V | Motor capacity: 355 kW | Dimensions WxHxD: 330x325x346 mm | Mass: 90 kg
FR-HAL-H560K Voltage: 400 V | Motor capacity: 560 kW | Dimensions WxHxD: 450x540x635 mm | Mass: 190 kg
