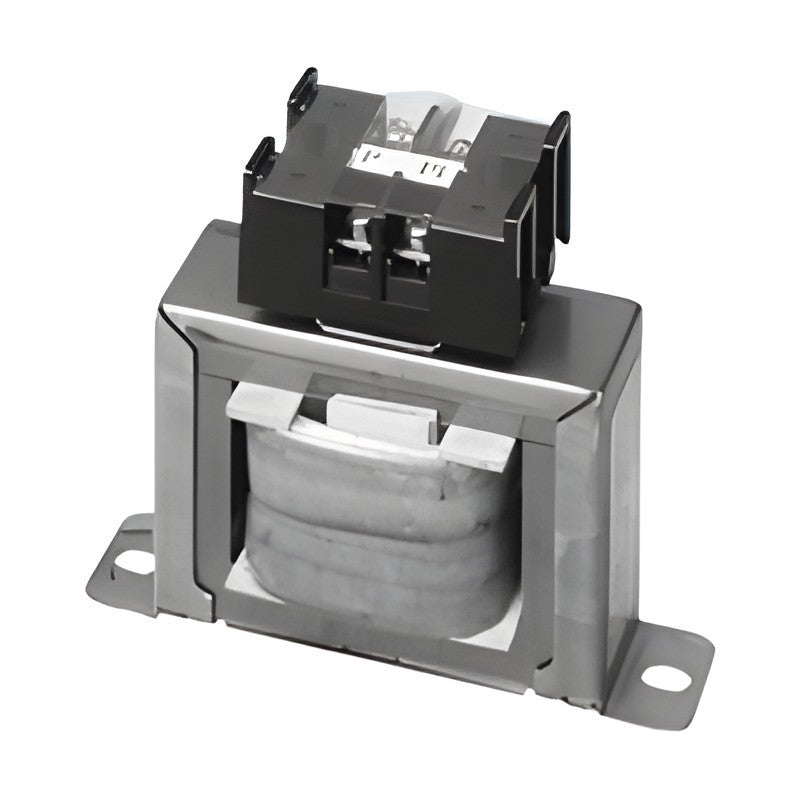

Mitsubishi Electric FR-HEL DC Reactor for Inverters (200V/400V)

Mitsubishi Electric FR-HEL DC Reactor for Inverters (200V/400V)

The FR-HEL DC reactor connects to the inverter DC circuit (P1-P) to improve power factor and reduce input harmonic current.

Key features

  • Mandatory for FR-A820-03800(75K) / FR-A840-02160(75K) or higher and for 75 kW or higher motors
  • Approx. 93% power factor improving effect (94.4% at 1 power factor for the fundamental wave)
  • 200 V class 0.4K-110K and 400 V class H0.4K-H355K; select by applied motor capacity
  • Remove jumper P1-P; connection cable 5 m or less; IP55 models have a built-in DC reactor

Specifications

Series FR-HEL
Connection Inverter DC circuit P1 and P/+
Category Stand-alone option
Applicable series FR-A800, FR-F800
Max. cable length 5 m
Manufacturer Mitsubishi Electric
Source Mitsubishi Electric FR-A800 catalogue L(NA)06075ENG-J, p. 151; Mitsubishi Electric FR-F800 catalogue L(NA)06085ENG-E, p. 96
FR-HEL-0.4K Voltage: 200 V | Motor capacity: 0.4 kW | Width W: 70 mm | Mass: 0.34 kg
FR-HEL-0.75K Voltage: 200 V | Motor capacity: 0.75 kW | Width W: 85 mm | Mass: 0.5 kg
FR-HEL-1.5K Voltage: 200 V | Motor capacity: 1.5 kW | Width W: 85 mm | Mass: 0.7 kg
FR-HEL-2.2K Voltage: 200 V | Motor capacity: 2.2 kW | Width W: 85 mm | Mass: 0.8 kg
FR-HEL-3.7K Voltage: 200 V | Motor capacity: 3.7 kW | Width W: 77 mm | Mass: 1.4 kg
FR-HEL-5.5K Voltage: 200 V | Motor capacity: 5.5 kW | Width W: 77 mm | Mass: 1.7 kg
FR-HEL-7.5K Voltage: 200 V | Motor capacity: 7.5 kW | Width W: 86 mm | Mass: 2.3 kg
FR-HEL-11K Voltage: 200 V | Motor capacity: 11 kW | Width W: 105 mm | Mass: 3.1 kg
FR-HEL-15K Voltage: 200 V | Motor capacity: 15 kW | Width W: 105 mm | Mass: 3.8 kg
FR-HEL-18.5K Voltage: 200 V | Motor capacity: 18.5 kW | Width W: 105 mm | Mass: 4.1 kg
FR-HEL-22K Voltage: 200 V | Motor capacity: 22 kW | Width W: 105 mm | Mass: 4.8 kg
FR-HEL-30K Voltage: 200 V | Motor capacity: 30 kW | Width W: 114 mm | Mass: 6.7 kg
FR-HEL-37K Voltage: 200 V | Motor capacity: 37 kW | Width W: 133 mm | Mass: 8.1 kg
FR-HEL-45K Voltage: 200 V | Motor capacity: 45 kW | Width W: 133 mm | Mass: 9.4 kg
FR-HEL-55K Voltage: 200 V | Motor capacity: 55 kW | Width W: 153 mm | Mass: 11.0 kg
FR-HEL-75K Voltage: 200 V | Motor capacity: 75 kW | Width W: 150 mm | Mass: 17 kg
FR-HEL-90K Voltage: 200 V | Motor capacity: 90 kW | Width W: 150 mm | Mass: 19 kg
FR-HEL-110K Voltage: 200 V | Motor capacity: 110 kW | Width W: 175 mm | Mass: 20 kg
FR-HEL-H0.4K Voltage: 400 V | Motor capacity: 0.4 kW | Width W: 90 mm | Mass: 0.6 kg
FR-HEL-H0.75K Voltage: 400 V | Motor capacity: 0.75 kW | Width W: 66 mm | Mass: 0.85 kg
FR-HEL-H1.5K Voltage: 400 V | Motor capacity: 1.5 kW | Width W: 66 mm | Mass: 1 kg
FR-HEL-H2.2K Voltage: 400 V | Motor capacity: 2.2 kW | Width W: 76 mm | Mass: 1.3 kg
FR-HEL-H3.7K Voltage: 400 V | Motor capacity: 3.7 kW | Width W: 86 mm | Mass: 2.3 kg
FR-HEL-H5.5K Voltage: 400 V | Motor capacity: 5.5 kW | Width W: 96 mm | Mass: 3 kg
FR-HEL-H7.5K Voltage: 400 V | Motor capacity: 7.5 kW | Width W: 96 mm | Mass: 3.5 kg
FR-HEL-H11K Voltage: 400 V | Motor capacity: 11 kW | Width W: 105 mm | Mass: 4.5 kg
FR-HEL-H15K Voltage: 400 V | Motor capacity: 15 kW | Width W: 105 mm | Mass: 5 kg
FR-HEL-H18.5K Voltage: 400 V | Motor capacity: 18.5 kW | Width W: 114 mm | Mass: 5 kg
FR-HEL-H22K Voltage: 400 V | Motor capacity: 22 kW | Width W: 133 mm | Mass: 6 kg
FR-HEL-H30K Voltage: 400 V | Motor capacity: 30 kW | Width W: 133 mm | Mass: 6.5 kg
FR-HEL-H37K Voltage: 400 V | Motor capacity: 37 kW | Width W: 133 mm | Mass: 8.5 kg
FR-HEL-H45K Voltage: 400 V | Motor capacity: 45 kW | Width W: 133 mm | Mass: 10 kg
FR-HEL-H55K Voltage: 400 V | Motor capacity: 55 kW | Width W: 152 mm | Mass: 11.5 kg
FR-HEL-H75K Voltage: 400 V | Motor capacity: 75 kW | Width W: 140 mm | Mass: 16 kg
FR-HEL-H90K Voltage: 400 V | Motor capacity: 90 kW | Width W: 150 mm | Mass: 20 kg
FR-HEL-H110K Voltage: 400 V | Motor capacity: 110 kW | Width W: 150 mm | Mass: 22 kg
FR-HEL-H132K Voltage: 400 V | Motor capacity: 132 kW | Width W: 175 mm | Mass: 26 kg
FR-HEL-H160K Voltage: 400 V | Motor capacity: 160 kW | Width W: 175 mm | Mass: 28 kg
FR-HEL-H185K Voltage: 400 V | Motor capacity: 185 kW | Width W: 175 mm | Mass: 29 kg
FR-HEL-H220K Voltage: 400 V | Motor capacity: 220 kW | Width W: 175 mm | Mass: 30 kg
FR-HEL-H250K Voltage: 400 V | Motor capacity: 250 kW | Width W: 190 mm | Mass: 35 kg
FR-HEL-H280K Voltage: 400 V | Motor capacity: 280 kW | Width W: 190 mm | Mass: 38 kg
FR-HEL-H315K Voltage: 400 V | Motor capacity: 315 kW | Width W: 210 mm | Mass: 42 kg
FR-HEL-H355K Voltage: 400 V | Motor capacity: 355 kW | Width W: 210 mm | Mass: 46 kg
