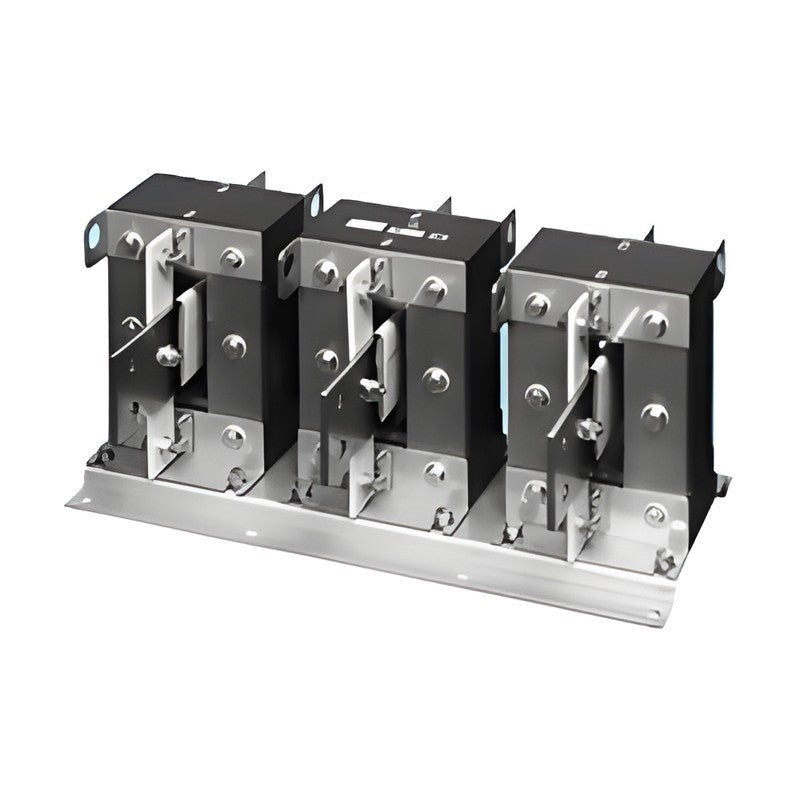

Mitsubishi Electric FR-POL-H Balance Reactor for FR-A842-P

Mitsubishi Electric FR-POL-H Balance Reactor for FR-A842-P

The FR-POL-H balance reactor is used with FR-A842-P parallel-operation inverters when the cable length from inverter to the node point is less than 10 m.

Key features

  • Connect one balance reactor to each inverter output in 2- or 3-unit parallel systems
  • Selection by FR-A842-P model and multi-rating (ND/LD)
  • Earthed by mounting securely to the enclosure; earthing cable terminal provided
  • Systems up to 1350 kW / 2626 A with three FR-A842-500K-P (LD)

Specifications

Series FR-POL-H
Voltage class 400 V
Applicable inverter FR-A842-P
Category Stand-alone option
Condition Inverter-to-node cable < 10 m
Manufacturer Mitsubishi Electric
Source Mitsubishi Electric FR-A800 catalogue L(NA)06075ENG-J, p. 152
FR-POL-H400K Use with: FR-A842-400K-P | Multi-rating: ND | Mass: 58 kg
FR-POL-H500K Use with: FR-A842-400K-P to 500K-P | Multi-rating: LD (400K-P), ND/LD | Mass: 61 kg
Inverter Options & AccessoriesMitsubishi Electric
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-POL-H Balance Reactor for FR-A842-P

Brand Mitsubishi Electric·Inverter Options & Accessories

Available part numbers (2)

FR-POL-H400K, FR-POL-H500K

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-POL-H400KUse with: FR-A842-400K-P | Multi-rating: ND | Mass: 58 kg
FR-POL-H500KUse with: FR-A842-400K-P to 500K-P | Multi-rating: LD (400K-P), ND/LD | Mass: 61 kg
