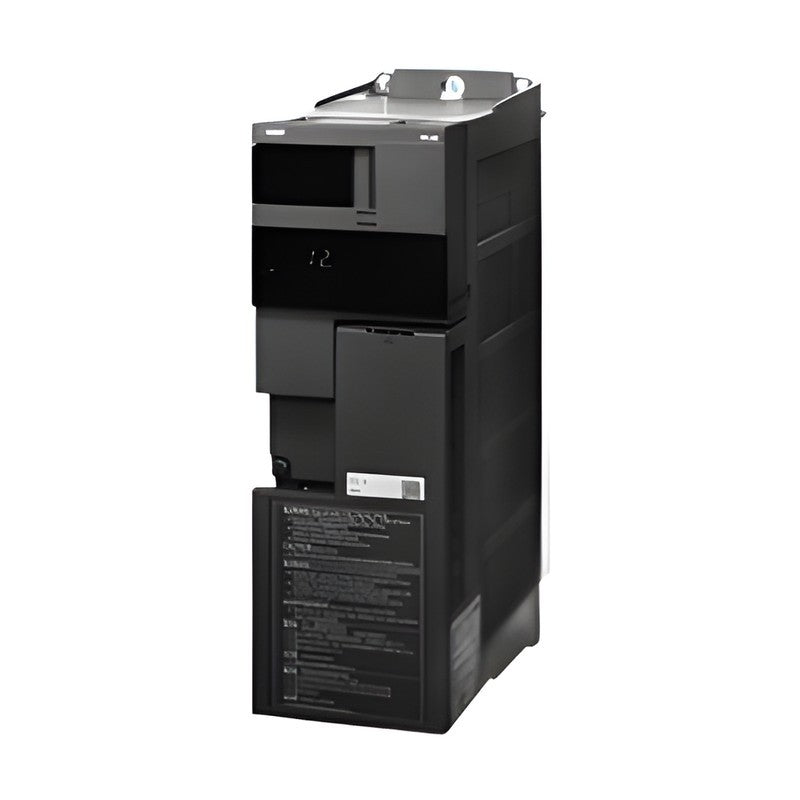

Mitsubishi Electric FR-XC Multifunction Regeneration Converter

Mitsubishi Electric FR-XC Multifunction Regeneration Converter

The FR-XC multifunction regeneration converter handles power regeneration and, in -PWM models, harmonic suppression for FR-A800/FR-F800 inverters.

Key features

  • Common bus regeneration mode and power regeneration mode 2; -PWM models add harmonic suppression mode
  • Up to 10 inverters can be connected to one converter
  • Combine with dedicated stand-alone reactor FR-XCL/FR-XCG or box-type reactor FR-XCB
  • 50 deg C / 40 deg C rating selectable (H75K and higher rated differently)
  • 200 V class 7.5-55 kW, 400 V class 7.5-220 kW

Specifications

Series FR-XC
Category Stand-alone option
Applicable series FR-A800, FR-F800
Overload rating 150% 60 s
Connectable inverters Up to 10
Cooling Forced air
Protective structure IP00 (IP20 with attachment)
Source Mitsubishi Electric FR-A800 catalogue L(NA)06075ENG-J, p. 157-164
FR-XC-7.5K Voltage: 200 V | Capacity: 7.5 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-11K Voltage: 200 V | Capacity: 11 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-15K Voltage: 200 V | Capacity: 15 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-18.5K-PWM Voltage: 200 V | Capacity: 18.5 kW (50 deg C rating) | Modes: Common bus regen + harmonic suppr.
FR-XC-22K Voltage: 200 V | Capacity: 22 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-22K-PWM Voltage: 200 V | Capacity: 22 kW (50 deg C rating) | Modes: Common bus regen + harmonic suppr.
FR-XC-30K Voltage: 200 V | Capacity: 30 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-37K Voltage: 200 V | Capacity: 37 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-37K-PWM Voltage: 200 V | Capacity: 37 kW (50 deg C rating) | Modes: Common bus regen + harmonic suppr.
FR-XC-55K Voltage: 200 V | Capacity: 55 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-55K-PWM Voltage: 200 V | Capacity: 55 kW (50 deg C rating) | Modes: Common bus regen + harmonic suppr.
FR-XC-H7.5K Voltage: 400 V | Capacity: 7.5 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-H11K Voltage: 400 V | Capacity: 11 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-H15K Voltage: 400 V | Capacity: 15 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-H18.5K-PWM Voltage: 400 V | Capacity: 18.5 kW (50 deg C rating) | Modes: Common bus regen + harmonic suppr.
FR-XC-H22K Voltage: 400 V | Capacity: 22 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-H22K-PWM Voltage: 400 V | Capacity: 22 kW (50 deg C rating) | Modes: Common bus regen + harmonic suppr.
FR-XC-H30K Voltage: 400 V | Capacity: 30 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-H37K Voltage: 400 V | Capacity: 37 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-H37K-PWM Voltage: 400 V | Capacity: 37 kW (50 deg C rating) | Modes: Common bus regen + harmonic suppr.
FR-XC-H55K Voltage: 400 V | Capacity: 55 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-H55K-PWM Voltage: 400 V | Capacity: 55 kW (50 deg C rating) | Modes: Common bus regen + harmonic suppr.
FR-XC-H75K Voltage: 400 V | Capacity: 75 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-H75K-PWM Voltage: 400 V | Capacity: 75 kW (50 deg C rating) | Modes: Common bus regen + harmonic suppr.
FR-XC-H110K Voltage: 400 V | Capacity: 110 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-H110K-PWM Voltage: 400 V | Capacity: 110 kW (50 deg C rating) | Modes: Common bus regen + harmonic suppr.
FR-XC-H160K Voltage: 400 V | Capacity: 160 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-H160K-PWM Voltage: 400 V | Capacity: 160 kW (50 deg C rating) | Modes: Common bus regen + harmonic suppr.
FR-XC-H220K Voltage: 400 V | Capacity: 220 kW (50 deg C rating) | Modes: Common bus / power regeneration
FR-XC-H220K-PWM Voltage: 400 V | Capacity: 220 kW (50 deg C rating) | Modes: Common bus regen + harmonic suppr.
