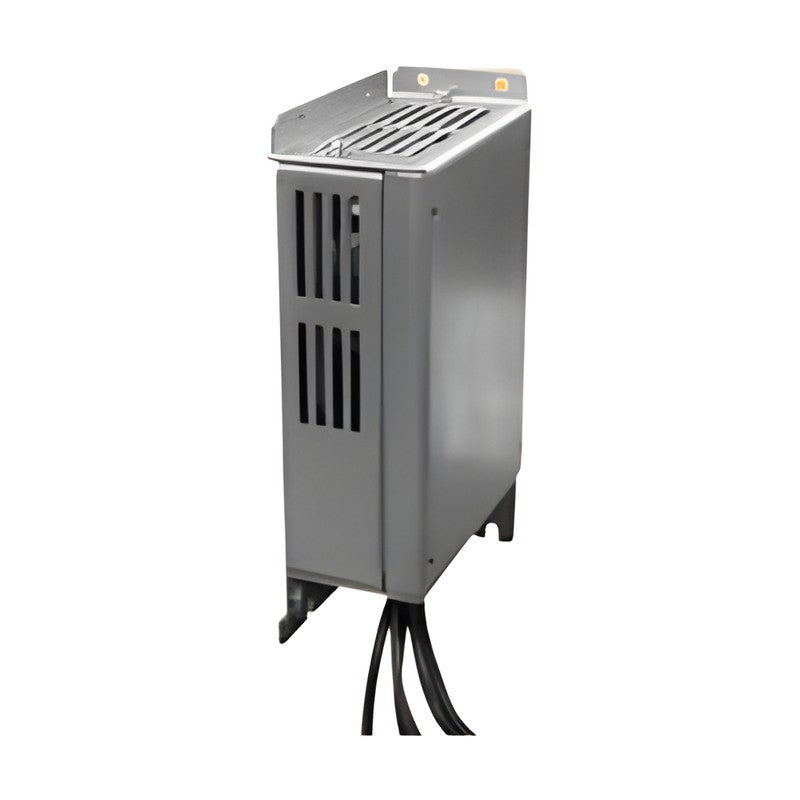

Mitsubishi Electric FR-BFP2 Filterpack (200V/400V, 0.4-15kW)

Mitsubishi Electric FR-BFP2 Filterpack (200V/400V, 0.4-15kW)

Filterpack combining a power factor improving DC reactor, common mode choke and capacitive filter for three-phase FR-D700/E700/E800 inverters.

Key features

  • Power factor improving DC reactor: 93-95% power supply power factor at 100% load
  • Common mode choke (ferrite core) and capacitive filter on the input side
  • Supports the Japanese guideline for reduction of harmonic emission
  • Side or rear mounting on the inverter (L-bracket enclosed for 5.5K and above)
  • Three-phase 200V/400V input models, 0.4K to 15K

Specifications

Brand Mitsubishi Electric
For series FR-D700, FR-E700, FR-E800 (3-phase)
Protective structure Open type (IP00)
Capacitor leakage current 200V: about 4mA; 400V: about 8mA
Source Mitsubishi Electric FR-E700 catalogue L(NA)06051ENG, p. 80; Mitsubishi Electric FR-E800 catalogue L(NA)06131ENG, p. 105
FR-BFP2-0.4K Model: FR-BFP2-0.4K | Voltage class: 200V | Inverter capacity: 0.4kW | Permissible output current: 2.5A
FR-BFP2-0.75K Model: FR-BFP2-0.75K | Voltage class: 200V | Inverter capacity: 0.75kW | Permissible output current: 4.2A
FR-BFP2-1.5K Model: FR-BFP2-1.5K | Voltage class: 200V | Inverter capacity: 1.5kW | Permissible output current: 7A
FR-BFP2-2.2K Model: FR-BFP2-2.2K | Voltage class: 200V | Inverter capacity: 2.2kW | Permissible output current: 10A
FR-BFP2-3.7K Model: FR-BFP2-3.7K | Voltage class: 200V | Inverter capacity: 3.7kW | Permissible output current: 16.5A
FR-BFP2-5.5K Model: FR-BFP2-5.5K | Voltage class: 200V | Inverter capacity: 5.5kW | Permissible output current: 23.8A
FR-BFP2-7.5K Model: FR-BFP2-7.5K | Voltage class: 200V | Inverter capacity: 7.5kW | Permissible output current: 31.8A
FR-BFP2-11K Model: FR-BFP2-11K | Voltage class: 200V | Inverter capacity: 11kW | Permissible output current: 45A
FR-BFP2-15K Model: FR-BFP2-15K | Voltage class: 200V | Inverter capacity: 15kW | Permissible output current: 58A
FR-BFP2-H0.4K Model: FR-BFP2-H0.4K | Voltage class: 400V | Inverter capacity: 0.4kW | Permissible output current: 1.2A
FR-BFP2-H0.75K Model: FR-BFP2-H0.75K | Voltage class: 400V | Inverter capacity: 0.75kW | Permissible output current: 2.2A
FR-BFP2-H1.5K Model: FR-BFP2-H1.5K | Voltage class: 400V | Inverter capacity: 1.5kW | Permissible output current: 3.7A
FR-BFP2-H2.2K Model: FR-BFP2-H2.2K | Voltage class: 400V | Inverter capacity: 2.2kW | Permissible output current: 5A
FR-BFP2-H3.7K Model: FR-BFP2-H3.7K | Voltage class: 400V | Inverter capacity: 3.7kW | Permissible output current: 8.1A
FR-BFP2-H5.5K Model: FR-BFP2-H5.5K | Voltage class: 400V | Inverter capacity: 5.5kW | Permissible output current: 12A
FR-BFP2-H7.5K Model: FR-BFP2-H7.5K | Voltage class: 400V | Inverter capacity: 7.5kW | Permissible output current: 16.3A
FR-BFP2-H11K Model: FR-BFP2-H11K | Voltage class: 400V | Inverter capacity: 11kW | Permissible output current: 23A
FR-BFP2-H15K Model: FR-BFP2-H15K | Voltage class: 400V | Inverter capacity: 15kW | Permissible output current: 29.5A
Inverter Options & AccessoriesMitsubishi Electric
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-BFP2 Filterpack (200V/400V, 0.4-15kW)

Brand Mitsubishi Electric·Inverter Options & Accessories

Available part numbers (18)

FR-BFP2-0.4K, FR-BFP2-0.75K, FR-BFP2-1.5K, FR-BFP2-2.2K, FR-BFP2-3.7K, FR-BFP2-5.5K, FR-BFP2-7.5K, FR-BFP2-11K, FR-BFP2-15K, FR-BFP2-H0.4K + 8 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-BFP2-0.4KModel: FR-BFP2-0.4K | Voltage class: 200V | Inverter capacity: 0.4kW | Permissible output current: 2.5A
FR-BFP2-0.75KModel: FR-BFP2-0.75K | Voltage class: 200V | Inverter capacity: 0.75kW | Permissible output current: 4.2A
FR-BFP2-1.5KModel: FR-BFP2-1.5K | Voltage class: 200V | Inverter capacity: 1.5kW | Permissible output current: 7A
FR-BFP2-2.2KModel: FR-BFP2-2.2K | Voltage class: 200V | Inverter capacity: 2.2kW | Permissible output current: 10A
FR-BFP2-3.7KModel: FR-BFP2-3.7K | Voltage class: 200V | Inverter capacity: 3.7kW | Permissible output current: 16.5A
FR-BFP2-5.5KModel: FR-BFP2-5.5K | Voltage class: 200V | Inverter capacity: 5.5kW | Permissible output current: 23.8A
FR-BFP2-7.5KModel: FR-BFP2-7.5K | Voltage class: 200V | Inverter capacity: 7.5kW | Permissible output current: 31.8A
FR-BFP2-11KModel: FR-BFP2-11K | Voltage class: 200V | Inverter capacity: 11kW | Permissible output current: 45A
FR-BFP2-15KModel: FR-BFP2-15K | Voltage class: 200V | Inverter capacity: 15kW | Permissible output current: 58A
FR-BFP2-H0.4KModel: FR-BFP2-H0.4K | Voltage class: 400V | Inverter capacity: 0.4kW | Permissible output current: 1.2A
FR-BFP2-H0.75KModel: FR-BFP2-H0.75K | Voltage class: 400V | Inverter capacity: 0.75kW | Permissible output current: 2.2A
FR-BFP2-H1.5KModel: FR-BFP2-H1.5K | Voltage class: 400V | Inverter capacity: 1.5kW | Permissible output current: 3.7A
FR-BFP2-H2.2KModel: FR-BFP2-H2.2K | Voltage class: 400V | Inverter capacity: 2.2kW | Permissible output current: 5A
FR-BFP2-H3.7KModel: FR-BFP2-H3.7K | Voltage class: 400V | Inverter capacity: 3.7kW | Permissible output current: 8.1A
FR-BFP2-H5.5KModel: FR-BFP2-H5.5K | Voltage class: 400V | Inverter capacity: 5.5kW | Permissible output current: 12A
FR-BFP2-H7.5KModel: FR-BFP2-H7.5K | Voltage class: 400V | Inverter capacity: 7.5kW | Permissible output current: 16.3A
FR-BFP2-H11KModel: FR-BFP2-H11K | Voltage class: 400V | Inverter capacity: 11kW | Permissible output current: 23A
FR-BFP2-H15KModel: FR-BFP2-H15K | Voltage class: 400V | Inverter capacity: 15kW | Permissible output current: 29.5A
