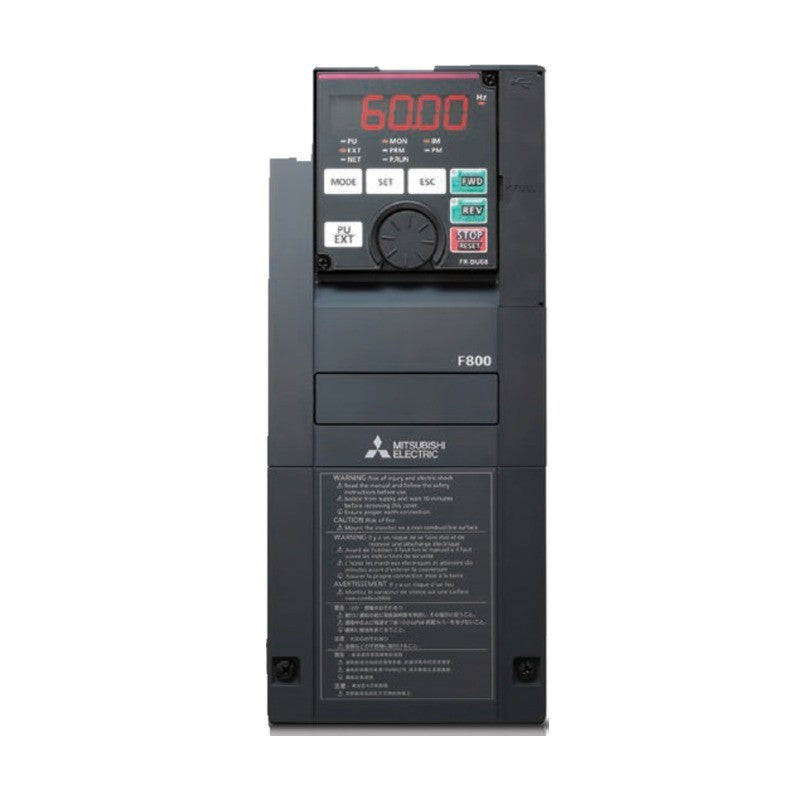

Mitsubishi Electric FR-F820-E 200V Fan/Pump VFD, Ethernet (0.75-110kW)

Mitsubishi Electric FR-F820-E 200V Fan/Pump VFD, Ethernet (0.75-110kW)

The FR-F820-E is the FREQROL-F800 fan and pump inverter with built-in Ethernet, three-phase 200 V class, 0.75-110 kW (LD rating).

Key features

  • Optimum excitation control for maximum energy saving on fans and pumps
  • Built-in Ethernet: CC-Link IE Field Network Basic, Modbus/TCP, BACnet/IP
  • PID control, cleaning function, load characteristics fault detection and PLC function
  • Multiple rating: SLD 110% 60 s / LD 120% 60 s (initial)
  • Type -1/-E1 = terminal FM model, -2/-E2 = terminal CA model; circuit board coating (-60/-06) is an ordering option

Specifications

Series FREQROL-F800
Input voltage Three-phase 200-240 V 50/60 Hz
Structure Standard model, Ethernet
Control method V/F, Optimum excitation, Adv. magnetic flux, PM
Output frequency 0.2-590 Hz
Overload (LD) 120% 60 s, 150% 3 s
Communication Ethernet (CC-Link IE Field Basic etc.)
Source Mitsubishi Electric FR-F800 catalogue L(NA)06085ENG-E, p. 7, 12-13, 21-22
FR-F820-0.75K-E1 Capacity: 0.75K | LD motor: 0.75 kW | LD current: 4.2 A | Type: FM, Ethernet | Alt. model: FR-F820-00046-E1
FR-F820-0.75K-E2 Capacity: 0.75K | LD motor: 0.75 kW | LD current: 4.2 A | Type: CA, Ethernet | Alt. model: FR-F820-00046-E2
FR-F820-1.5K-E1 Capacity: 1.5K | LD motor: 1.5 kW | LD current: 7 A | Type: FM, Ethernet | Alt. model: FR-F820-00077-E1
FR-F820-1.5K-E2 Capacity: 1.5K | LD motor: 1.5 kW | LD current: 7 A | Type: CA, Ethernet | Alt. model: FR-F820-00077-E2
FR-F820-2.2K-E1 Capacity: 2.2K | LD motor: 2.2 kW | LD current: 9.6 A | Type: FM, Ethernet | Alt. model: FR-F820-00105-E1
FR-F820-2.2K-E2 Capacity: 2.2K | LD motor: 2.2 kW | LD current: 9.6 A | Type: CA, Ethernet | Alt. model: FR-F820-00105-E2
FR-F820-3.7K-E1 Capacity: 3.7K | LD motor: 3.7 kW | LD current: 15.2 A | Type: FM, Ethernet | Alt. model: FR-F820-00167-E1
FR-F820-3.7K-E2 Capacity: 3.7K | LD motor: 3.7 kW | LD current: 15.2 A | Type: CA, Ethernet | Alt. model: FR-F820-00167-E2
FR-F820-5.5K-E1 Capacity: 5.5K | LD motor: 5.5 kW | LD current: 23 A | Type: FM, Ethernet | Alt. model: FR-F820-00250-E1
FR-F820-5.5K-E2 Capacity: 5.5K | LD motor: 5.5 kW | LD current: 23 A | Type: CA, Ethernet | Alt. model: FR-F820-00250-E2
FR-F820-7.5K-E1 Capacity: 7.5K | LD motor: 7.5 kW | LD current: 31 A | Type: FM, Ethernet | Alt. model: FR-F820-00340-E1
FR-F820-7.5K-E2 Capacity: 7.5K | LD motor: 7.5 kW | LD current: 31 A | Type: CA, Ethernet | Alt. model: FR-F820-00340-E2
FR-F820-11K-E1 Capacity: 11K | LD motor: 11 kW | LD current: 45 A | Type: FM, Ethernet | Alt. model: FR-F820-00490-E1
FR-F820-11K-E2 Capacity: 11K | LD motor: 11 kW | LD current: 45 A | Type: CA, Ethernet | Alt. model: FR-F820-00490-E2
FR-F820-15K-E1 Capacity: 15K | LD motor: 15 kW | LD current: 58 A | Type: FM, Ethernet | Alt. model: FR-F820-00630-E1
FR-F820-15K-E2 Capacity: 15K | LD motor: 15 kW | LD current: 58 A | Type: CA, Ethernet | Alt. model: FR-F820-00630-E2
FR-F820-18.5K-E1 Capacity: 18.5K | LD motor: 18.5 kW | LD current: 70.5 A | Type: FM, Ethernet | Alt. model: FR-F820-00770-E1
FR-F820-18.5K-E2 Capacity: 18.5K | LD motor: 18.5 kW | LD current: 70.5 A | Type: CA, Ethernet | Alt. model: FR-F820-00770-E2
FR-F820-22K-E1 Capacity: 22K | LD motor: 22 kW | LD current: 85 A | Type: FM, Ethernet | Alt. model: FR-F820-00930-E1
FR-F820-22K-E2 Capacity: 22K | LD motor: 22 kW | LD current: 85 A | Type: CA, Ethernet | Alt. model: FR-F820-00930-E2
FR-F820-30K-E1 Capacity: 30K | LD motor: 30 kW | LD current: 114 A | Type: FM, Ethernet | Alt. model: FR-F820-01250-E1
FR-F820-30K-E2 Capacity: 30K | LD motor: 30 kW | LD current: 114 A | Type: CA, Ethernet | Alt. model: FR-F820-01250-E2
FR-F820-37K-E1 Capacity: 37K | LD motor: 37 kW | LD current: 140 A | Type: FM, Ethernet | Alt. model: FR-F820-01540-E1
FR-F820-37K-E2 Capacity: 37K | LD motor: 37 kW | LD current: 140 A | Type: CA, Ethernet | Alt. model: FR-F820-01540-E2
FR-F820-45K-E1 Capacity: 45K | LD motor: 45 kW | LD current: 170 A | Type: FM, Ethernet | Alt. model: FR-F820-01870-E1
FR-F820-45K-E2 Capacity: 45K | LD motor: 45 kW | LD current: 170 A | Type: CA, Ethernet | Alt. model: FR-F820-01870-E2
FR-F820-55K-E1 Capacity: 55K | LD motor: 55 kW | LD current: 212 A | Type: FM, Ethernet | Alt. model: FR-F820-02330-E1
FR-F820-55K-E2 Capacity: 55K | LD motor: 55 kW | LD current: 212 A | Type: CA, Ethernet | Alt. model: FR-F820-02330-E2
FR-F820-75K-E1 Capacity: 75K | LD motor: 75 kW | LD current: 288 A | Type: FM, Ethernet | Alt. model: FR-F820-03160-E1
FR-F820-75K-E2 Capacity: 75K | LD motor: 75 kW | LD current: 288 A | Type: CA, Ethernet | Alt. model: FR-F820-03160-E2
FR-F820-90K-E1 Capacity: 90K | LD motor: 90 kW | LD current: 346 A | Type: FM, Ethernet | Alt. model: FR-F820-03800-E1
FR-F820-90K-E2 Capacity: 90K | LD motor: 90 kW | LD current: 346 A | Type: CA, Ethernet | Alt. model: FR-F820-03800-E2
FR-F820-110K-E1 Capacity: 110K | LD motor: 110 kW | LD current: 432 A | Type: FM, Ethernet | Alt. model: FR-F820-04750-E1
FR-F820-110K-E2 Capacity: 110K | LD motor: 110 kW | LD current: 432 A | Type: CA, Ethernet | Alt. model: FR-F820-04750-E2
Inverters (VFD)Mitsubishi Electric
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-F820-E 200V Fan/Pump VFD, Ethernet (0.75-110kW)

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (34)

FR-F820-0.75K-E1, FR-F820-0.75K-E2, FR-F820-1.5K-E1, FR-F820-1.5K-E2, FR-F820-2.2K-E1, FR-F820-2.2K-E2, FR-F820-3.7K-E1, FR-F820-3.7K-E2, FR-F820-5.5K-E1, FR-F820-5.5K-E2 + 24 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-F820-0.75K-E1Capacity: 0.75K | LD motor: 0.75 kW | LD current: 4.2 A | Type: FM, Ethernet | Alt. model: FR-F820-00046-E1
FR-F820-0.75K-E2Capacity: 0.75K | LD motor: 0.75 kW | LD current: 4.2 A | Type: CA, Ethernet | Alt. model: FR-F820-00046-E2
FR-F820-1.5K-E1Capacity: 1.5K | LD motor: 1.5 kW | LD current: 7 A | Type: FM, Ethernet | Alt. model: FR-F820-00077-E1
FR-F820-1.5K-E2Capacity: 1.5K | LD motor: 1.5 kW | LD current: 7 A | Type: CA, Ethernet | Alt. model: FR-F820-00077-E2
FR-F820-2.2K-E1Capacity: 2.2K | LD motor: 2.2 kW | LD current: 9.6 A | Type: FM, Ethernet | Alt. model: FR-F820-00105-E1
FR-F820-2.2K-E2Capacity: 2.2K | LD motor: 2.2 kW | LD current: 9.6 A | Type: CA, Ethernet | Alt. model: FR-F820-00105-E2
FR-F820-3.7K-E1Capacity: 3.7K | LD motor: 3.7 kW | LD current: 15.2 A | Type: FM, Ethernet | Alt. model: FR-F820-00167-E1
FR-F820-3.7K-E2Capacity: 3.7K | LD motor: 3.7 kW | LD current: 15.2 A | Type: CA, Ethernet | Alt. model: FR-F820-00167-E2
FR-F820-5.5K-E1Capacity: 5.5K | LD motor: 5.5 kW | LD current: 23 A | Type: FM, Ethernet | Alt. model: FR-F820-00250-E1
FR-F820-5.5K-E2Capacity: 5.5K | LD motor: 5.5 kW | LD current: 23 A | Type: CA, Ethernet | Alt. model: FR-F820-00250-E2
FR-F820-7.5K-E1Capacity: 7.5K | LD motor: 7.5 kW | LD current: 31 A | Type: FM, Ethernet | Alt. model: FR-F820-00340-E1
FR-F820-7.5K-E2Capacity: 7.5K | LD motor: 7.5 kW | LD current: 31 A | Type: CA, Ethernet | Alt. model: FR-F820-00340-E2
FR-F820-11K-E1Capacity: 11K | LD motor: 11 kW | LD current: 45 A | Type: FM, Ethernet | Alt. model: FR-F820-00490-E1
FR-F820-11K-E2Capacity: 11K | LD motor: 11 kW | LD current: 45 A | Type: CA, Ethernet | Alt. model: FR-F820-00490-E2
FR-F820-15K-E1Capacity: 15K | LD motor: 15 kW | LD current: 58 A | Type: FM, Ethernet | Alt. model: FR-F820-00630-E1
FR-F820-15K-E2Capacity: 15K | LD motor: 15 kW | LD current: 58 A | Type: CA, Ethernet | Alt. model: FR-F820-00630-E2
FR-F820-18.5K-E1Capacity: 18.5K | LD motor: 18.5 kW | LD current: 70.5 A | Type: FM, Ethernet | Alt. model: FR-F820-00770-E1
FR-F820-18.5K-E2Capacity: 18.5K | LD motor: 18.5 kW | LD current: 70.5 A | Type: CA, Ethernet | Alt. model: FR-F820-00770-E2
FR-F820-22K-E1Capacity: 22K | LD motor: 22 kW | LD current: 85 A | Type: FM, Ethernet | Alt. model: FR-F820-00930-E1
FR-F820-22K-E2Capacity: 22K | LD motor: 22 kW | LD current: 85 A | Type: CA, Ethernet | Alt. model: FR-F820-00930-E2
FR-F820-30K-E1Capacity: 30K | LD motor: 30 kW | LD current: 114 A | Type: FM, Ethernet | Alt. model: FR-F820-01250-E1
FR-F820-30K-E2Capacity: 30K | LD motor: 30 kW | LD current: 114 A | Type: CA, Ethernet | Alt. model: FR-F820-01250-E2
FR-F820-37K-E1Capacity: 37K | LD motor: 37 kW | LD current: 140 A | Type: FM, Ethernet | Alt. model: FR-F820-01540-E1
FR-F820-37K-E2Capacity: 37K | LD motor: 37 kW | LD current: 140 A | Type: CA, Ethernet | Alt. model: FR-F820-01540-E2
FR-F820-45K-E1Capacity: 45K | LD motor: 45 kW | LD current: 170 A | Type: FM, Ethernet | Alt. model: FR-F820-01870-E1
FR-F820-45K-E2Capacity: 45K | LD motor: 45 kW | LD current: 170 A | Type: CA, Ethernet | Alt. model: FR-F820-01870-E2
FR-F820-55K-E1Capacity: 55K | LD motor: 55 kW | LD current: 212 A | Type: FM, Ethernet | Alt. model: FR-F820-02330-E1
FR-F820-55K-E2Capacity: 55K | LD motor: 55 kW | LD current: 212 A | Type: CA, Ethernet | Alt. model: FR-F820-02330-E2
FR-F820-75K-E1Capacity: 75K | LD motor: 75 kW | LD current: 288 A | Type: FM, Ethernet | Alt. model: FR-F820-03160-E1
FR-F820-75K-E2Capacity: 75K | LD motor: 75 kW | LD current: 288 A | Type: CA, Ethernet | Alt. model: FR-F820-03160-E2
FR-F820-90K-E1Capacity: 90K | LD motor: 90 kW | LD current: 346 A | Type: FM, Ethernet | Alt. model: FR-F820-03800-E1
FR-F820-90K-E2Capacity: 90K | LD motor: 90 kW | LD current: 346 A | Type: CA, Ethernet | Alt. model: FR-F820-03800-E2
FR-F820-110K-E1Capacity: 110K | LD motor: 110 kW | LD current: 432 A | Type: FM, Ethernet | Alt. model: FR-F820-04750-E1
FR-F820-110K-E2Capacity: 110K | LD motor: 110 kW | LD current: 432 A | Type: CA, Ethernet | Alt. model: FR-F820-04750-E2
