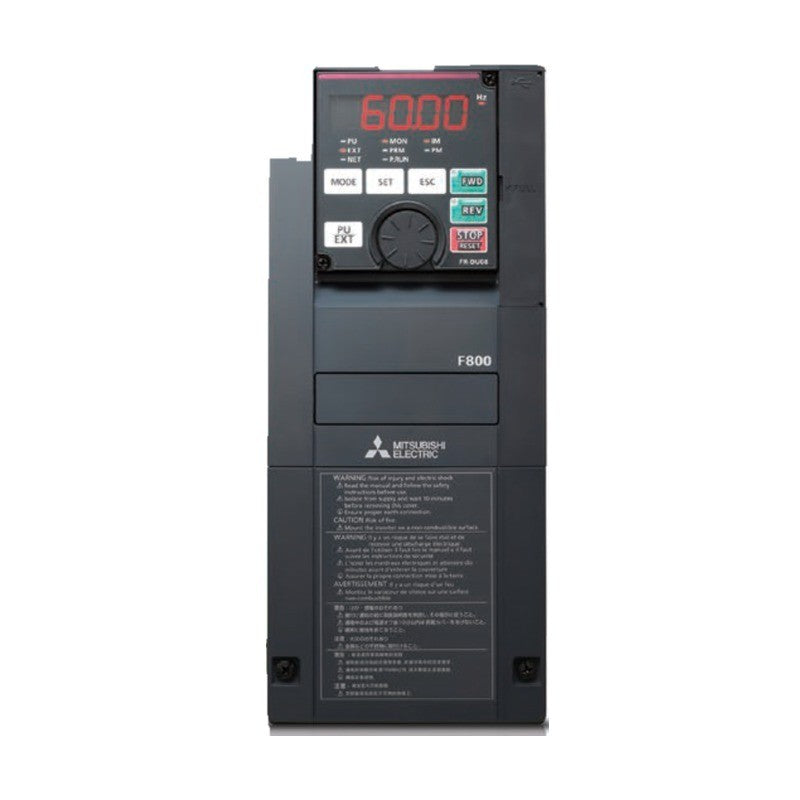

Mitsubishi Electric FR-F840-E 400V Fan/Pump VFD, Ethernet (0.75-315kW)

Mitsubishi Electric FR-F840-E 400V Fan/Pump VFD, Ethernet (0.75-315kW)

The FR-F840-E is the FREQROL-F800 fan and pump inverter with built-in Ethernet, three-phase 400 V class, 0.75-315 kW (LD rating).

Key features

  • Optimum excitation control for maximum energy saving on fans and pumps
  • Built-in Ethernet: CC-Link IE Field Network Basic, Modbus/TCP, BACnet/IP
  • PID control, cleaning function, load characteristics fault detection and PLC function
  • Multiple rating: SLD 110% 60 s / LD 120% 60 s (initial)
  • Type -1/-E1 = terminal FM model, -2/-E2 = terminal CA model; circuit board coating (-60/-06) is an ordering option

Specifications

Series FREQROL-F800
Input voltage Three-phase 380-500 V 50/60 Hz
Structure Standard model, Ethernet
Control method V/F, Optimum excitation, Adv. magnetic flux, PM
Output frequency 0.2-590 Hz
Overload (LD) 120% 60 s, 150% 3 s
Communication Ethernet (CC-Link IE Field Basic etc.)
Source Mitsubishi Electric FR-F800 catalogue L(NA)06085ENG-E, p. 7, 12-13, 21-22
FR-F840-0.75K-E1 Capacity: 0.75K | LD motor: 0.75 kW | LD current: 2.1 A | Type: FM, Ethernet | Alt. model: FR-F840-00023-E1
FR-F840-0.75K-E2 Capacity: 0.75K | LD motor: 0.75 kW | LD current: 2.1 A | Type: CA, Ethernet | Alt. model: FR-F840-00023-E2
FR-F840-1.5K-E1 Capacity: 1.5K | LD motor: 1.5 kW | LD current: 3.5 A | Type: FM, Ethernet | Alt. model: FR-F840-00038-E1
FR-F840-1.5K-E2 Capacity: 1.5K | LD motor: 1.5 kW | LD current: 3.5 A | Type: CA, Ethernet | Alt. model: FR-F840-00038-E2
FR-F840-2.2K-E1 Capacity: 2.2K | LD motor: 2.2 kW | LD current: 4.8 A | Type: FM, Ethernet | Alt. model: FR-F840-00052-E1
FR-F840-2.2K-E2 Capacity: 2.2K | LD motor: 2.2 kW | LD current: 4.8 A | Type: CA, Ethernet | Alt. model: FR-F840-00052-E2
FR-F840-3.7K-E1 Capacity: 3.7K | LD motor: 3.7 kW | LD current: 7.6 A | Type: FM, Ethernet | Alt. model: FR-F840-00083-E1
FR-F840-3.7K-E2 Capacity: 3.7K | LD motor: 3.7 kW | LD current: 7.6 A | Type: CA, Ethernet | Alt. model: FR-F840-00083-E2
FR-F840-5.5K-E1 Capacity: 5.5K | LD motor: 5.5 kW | LD current: 11.5 A | Type: FM, Ethernet | Alt. model: FR-F840-00126-E1
FR-F840-5.5K-E2 Capacity: 5.5K | LD motor: 5.5 kW | LD current: 11.5 A | Type: CA, Ethernet | Alt. model: FR-F840-00126-E2
FR-F840-7.5K-E1 Capacity: 7.5K | LD motor: 7.5 kW | LD current: 16 A | Type: FM, Ethernet | Alt. model: FR-F840-00170-E1
FR-F840-7.5K-E2 Capacity: 7.5K | LD motor: 7.5 kW | LD current: 16 A | Type: CA, Ethernet | Alt. model: FR-F840-00170-E2
FR-F840-11K-E1 Capacity: 11K | LD motor: 11 kW | LD current: 23 A | Type: FM, Ethernet | Alt. model: FR-F840-00250-E1
FR-F840-11K-E2 Capacity: 11K | LD motor: 11 kW | LD current: 23 A | Type: CA, Ethernet | Alt. model: FR-F840-00250-E2
FR-F840-15K-E1 Capacity: 15K | LD motor: 15 kW | LD current: 29 A | Type: FM, Ethernet | Alt. model: FR-F840-00310-E1
FR-F840-15K-E2 Capacity: 15K | LD motor: 15 kW | LD current: 29 A | Type: CA, Ethernet | Alt. model: FR-F840-00310-E2
FR-F840-18.5K-E1 Capacity: 18.5K | LD motor: 18.5 kW | LD current: 35 A | Type: FM, Ethernet | Alt. model: FR-F840-00380-E1
FR-F840-18.5K-E2 Capacity: 18.5K | LD motor: 18.5 kW | LD current: 35 A | Type: CA, Ethernet | Alt. model: FR-F840-00380-E2
FR-F840-22K-E1 Capacity: 22K | LD motor: 22 kW | LD current: 43 A | Type: FM, Ethernet | Alt. model: FR-F840-00470-E1
FR-F840-22K-E2 Capacity: 22K | LD motor: 22 kW | LD current: 43 A | Type: CA, Ethernet | Alt. model: FR-F840-00470-E2
FR-F840-30K-E1 Capacity: 30K | LD motor: 30 kW | LD current: 57 A | Type: FM, Ethernet | Alt. model: FR-F840-00620-E1
FR-F840-30K-E2 Capacity: 30K | LD motor: 30 kW | LD current: 57 A | Type: CA, Ethernet | Alt. model: FR-F840-00620-E2
FR-F840-37K-E1 Capacity: 37K | LD motor: 37 kW | LD current: 70 A | Type: FM, Ethernet | Alt. model: FR-F840-00770-E1
FR-F840-37K-E2 Capacity: 37K | LD motor: 37 kW | LD current: 70 A | Type: CA, Ethernet | Alt. model: FR-F840-00770-E2
FR-F840-45K-E1 Capacity: 45K | LD motor: 45 kW | LD current: 85 A | Type: FM, Ethernet | Alt. model: FR-F840-00930-E1
FR-F840-45K-E2 Capacity: 45K | LD motor: 45 kW | LD current: 85 A | Type: CA, Ethernet | Alt. model: FR-F840-00930-E2
FR-F840-55K-E1 Capacity: 55K | LD motor: 55 kW | LD current: 106 A | Type: FM, Ethernet | Alt. model: FR-F840-01160-E1
FR-F840-55K-E2 Capacity: 55K | LD motor: 55 kW | LD current: 106 A | Type: CA, Ethernet | Alt. model: FR-F840-01160-E2
FR-F840-75K-E1 Capacity: 75K | LD motor: 75 kW | LD current: 144 A | Type: FM, Ethernet | Alt. model: FR-F840-01800-E1
FR-F840-75K-E2 Capacity: 75K | LD motor: 75 kW | LD current: 144 A | Type: CA, Ethernet | Alt. model: FR-F840-01800-E2
FR-F840-90K-E1 Capacity: 90K | LD motor: 90 kW | LD current: 180 A | Type: FM, Ethernet | Alt. model: FR-F840-02160-E1
FR-F840-90K-E2 Capacity: 90K | LD motor: 90 kW | LD current: 180 A | Type: CA, Ethernet | Alt. model: FR-F840-02160-E2
FR-F840-110K-E1 Capacity: 110K | LD motor: 110 kW | LD current: 216 A | Type: FM, Ethernet | Alt. model: FR-F840-02600-E1
FR-F840-110K-E2 Capacity: 110K | LD motor: 110 kW | LD current: 216 A | Type: CA, Ethernet | Alt. model: FR-F840-02600-E2
FR-F840-132K-E1 Capacity: 132K | LD motor: 132 kW | LD current: 260 A | Type: FM, Ethernet | Alt. model: FR-F840-03250-E1
FR-F840-132K-E2 Capacity: 132K | LD motor: 132 kW | LD current: 260 A | Type: CA, Ethernet | Alt. model: FR-F840-03250-E2
FR-F840-160K-E1 Capacity: 160K | LD motor: 160 kW | LD current: 325 A | Type: FM, Ethernet | Alt. model: FR-F840-03610-E1
FR-F840-160K-E2 Capacity: 160K | LD motor: 160 kW | LD current: 325 A | Type: CA, Ethernet | Alt. model: FR-F840-03610-E2
FR-F840-185K-E1 Capacity: 185K | LD motor: 185 kW | LD current: 361 A | Type: FM, Ethernet | Alt. model: FR-F840-04320-E1
FR-F840-185K-E2 Capacity: 185K | LD motor: 185 kW | LD current: 361 A | Type: CA, Ethernet | Alt. model: FR-F840-04320-E2
FR-F840-220K-E1 Capacity: 220K | LD motor: 220 kW | LD current: 432 A | Type: FM, Ethernet | Alt. model: FR-F840-04810-E1
FR-F840-220K-E2 Capacity: 220K | LD motor: 220 kW | LD current: 432 A | Type: CA, Ethernet | Alt. model: FR-F840-04810-E2
FR-F840-250K-E1 Capacity: 250K | LD motor: 250 kW | LD current: 481 A | Type: FM, Ethernet | Alt. model: FR-F840-05470-E1
FR-F840-250K-E2 Capacity: 250K | LD motor: 250 kW | LD current: 481 A | Type: CA, Ethernet | Alt. model: FR-F840-05470-E2
FR-F840-280K-E1 Capacity: 280K | LD motor: 280 kW | LD current: 547 A | Type: FM, Ethernet | Alt. model: FR-F840-06100-E1
FR-F840-280K-E2 Capacity: 280K | LD motor: 280 kW | LD current: 547 A | Type: CA, Ethernet | Alt. model: FR-F840-06100-E2
FR-F840-315K-E1 Capacity: 315K | LD motor: 315 kW | LD current: 610 A | Type: FM, Ethernet | Alt. model: FR-F840-06830-E1
FR-F840-315K-E2 Capacity: 315K | LD motor: 315 kW | LD current: 610 A | Type: CA, Ethernet | Alt. model: FR-F840-06830-E2
