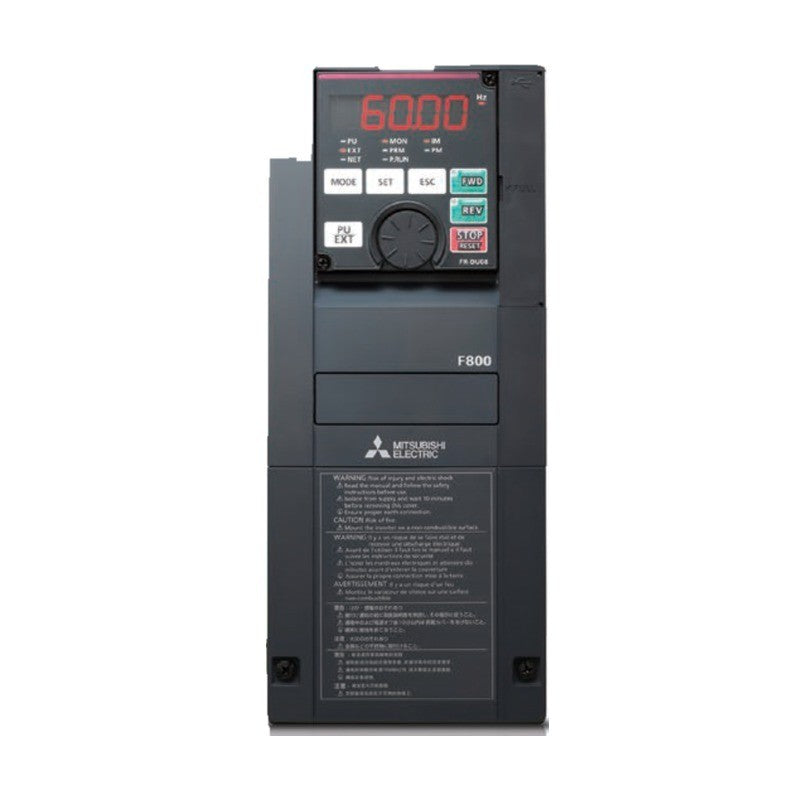

Mitsubishi Electric FR-F842-E 400V Separated-Converter VFD, Ethernet

Mitsubishi Electric FR-F842-E 400V Separated-Converter VFD, Ethernet

The FR-F842-E is the FREQROL-F800 separated-converter inverter with built-in Ethernet for 355-560 kW (LD), used with the FR-CC2 converter unit.

Key features

  • Always install the converter unit FR-CC2 (not required when FR-HC2 is used)
  • Built-in Ethernet: CC-Link IE Field Network Basic, Modbus/TCP, BACnet/IP
  • Optimum excitation control for maximum energy saving on fans and pumps
  • Multiple rating: SLD 110% 60 s / LD 120% 60 s (initial)
  • Type -1/-E1 = terminal FM model, -2/-E2 = terminal CA model; circuit board coating (-60/-06) is an ordering option

Specifications

Series FREQROL-F800
Input voltage DC 430-780 V (from FR-CC2)
Structure Separated converter type, Ethernet
Control method V/F, Optimum excitation, Adv. magnetic flux, PM
Output frequency 0.2-590 Hz
Overload (LD) 120% 60 s, 150% 3 s
Protective structure Open type (IP00)
Source Mitsubishi Electric FR-F800 catalogue L(NA)06085ENG-E, p. 12-13, 23
FR-F842-355K-E1 Capacity: 355K | LD motor: 355 kW | LD current: 683 A | Type: FM, Ethernet | Alt. model: FR-F842-07700-E1
FR-F842-355K-E2 Capacity: 355K | LD motor: 355 kW | LD current: 683 A | Type: CA, Ethernet | Alt. model: FR-F842-07700-E2
FR-F842-400K-E1 Capacity: 400K | LD motor: 400 kW | LD current: 770 A | Type: FM, Ethernet | Alt. model: FR-F842-08660-E1
FR-F842-400K-E2 Capacity: 400K | LD motor: 400 kW | LD current: 770 A | Type: CA, Ethernet | Alt. model: FR-F842-08660-E2
FR-F842-450K-E1 Capacity: 450K | LD motor: 450 kW | LD current: 866 A | Type: FM, Ethernet | Alt. model: FR-F842-09620-E1
FR-F842-450K-E2 Capacity: 450K | LD motor: 450 kW | LD current: 866 A | Type: CA, Ethernet | Alt. model: FR-F842-09620-E2
FR-F842-500K-E1 Capacity: 500K | LD motor: 500 kW | LD current: 962 A | Type: FM, Ethernet | Alt. model: FR-F842-10940-E1
FR-F842-500K-E2 Capacity: 500K | LD motor: 500 kW | LD current: 962 A | Type: CA, Ethernet | Alt. model: FR-F842-10940-E2
FR-F842-560K-E1 Capacity: 560K | LD motor: 560 kW | LD current: 1094 A | Type: FM, Ethernet | Alt. model: FR-F842-12120-E1
FR-F842-560K-E2 Capacity: 560K | LD motor: 560 kW | LD current: 1094 A | Type: CA, Ethernet | Alt. model: FR-F842-12120-E2
Inverters (VFD)Mitsubishi Electric
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-F842-E 400V Separated-Converter VFD, Ethernet

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (10)

FR-F842-355K-E1, FR-F842-355K-E2, FR-F842-400K-E1, FR-F842-400K-E2, FR-F842-450K-E1, FR-F842-450K-E2, FR-F842-500K-E1, FR-F842-500K-E2, FR-F842-560K-E1, FR-F842-560K-E2
