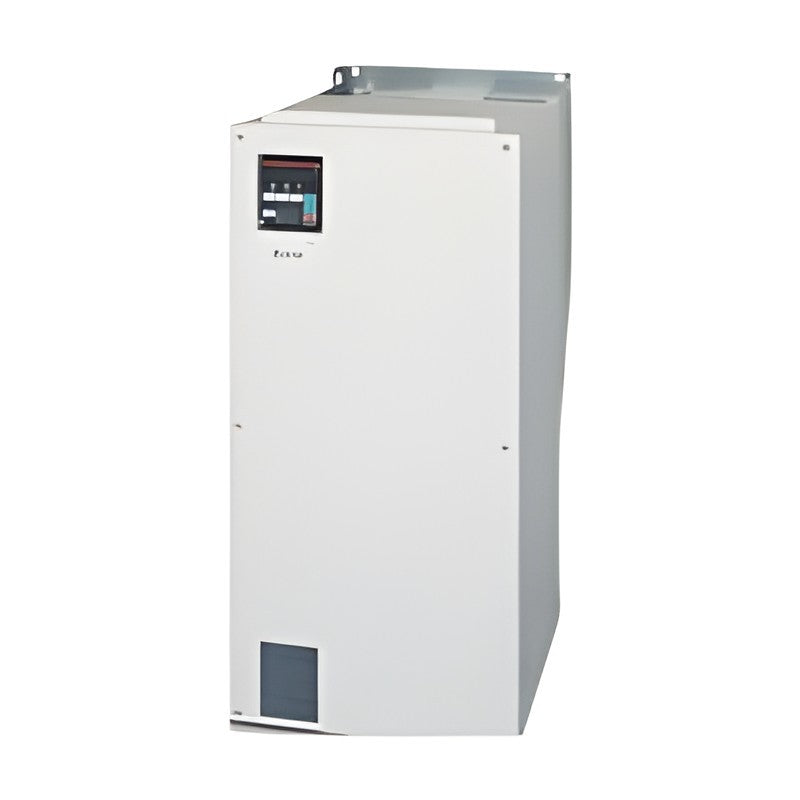

Mitsubishi Electric FR-F846-E 400V IP55 Fan & Pump VFD (0.75-160kW)

Mitsubishi Electric FR-F846-E 400V IP55 Fan & Pump VFD (0.75-160kW)

The FR-F846-E is the dust- and water-proof (IP55, UL Type 12) FREQROL-F800 fan and pump inverter for 400 V class motors from 0.75 to 160 kW (LD).

Key features

  • IP55 enclosure allows installation near pumps and fans without a control panel
  • Built-in DC reactor and built-in EMC filter (C2/C3/L2 selected at order, L2 with FR-LU08-01 panel)
  • Circuit board coating (-60 or -06) is standard on IP55 models
  • Optimum excitation control for maximum energy saving on fans and pumps
  • Type -1/-E1 = terminal FM model, -2/-E2 = terminal CA model; circuit board coating (-60/-06) is an ordering option

Specifications

Series FREQROL-F800
Input voltage Three-phase 380-500 V 50/60 Hz
Structure IP55 compatible model, Ethernet
Control method V/F, Optimum excitation, Adv. magnetic flux, PM
Output frequency 0.2-590 Hz
Overload (LD) 120% 60 s, 150% 3 s
Protective structure IP55 / UL Type 12
DC reactor Built-in
Source Mitsubishi Electric FR-F800 catalogue L(NA)06085ENG-E, p. 12, 24
FR-F846-0.75K-E1 Capacity: 0.75K | LD motor: 0.75 kW | LD current: 2.1 A | Type: FM, Ethernet | Alt. model: FR-F846-00023-E1
FR-F846-0.75K-E2 Capacity: 0.75K | LD motor: 0.75 kW | LD current: 2.1 A | Type: CA, Ethernet | Alt. model: FR-F846-00023-E2
FR-F846-1.5K-E1 Capacity: 1.5K | LD motor: 1.5 kW | LD current: 3.5 A | Type: FM, Ethernet | Alt. model: FR-F846-00038-E1
FR-F846-1.5K-E2 Capacity: 1.5K | LD motor: 1.5 kW | LD current: 3.5 A | Type: CA, Ethernet | Alt. model: FR-F846-00038-E2
FR-F846-2.2K-E1 Capacity: 2.2K | LD motor: 2.2 kW | LD current: 4.8 A | Type: FM, Ethernet | Alt. model: FR-F846-00052-E1
FR-F846-2.2K-E2 Capacity: 2.2K | LD motor: 2.2 kW | LD current: 4.8 A | Type: CA, Ethernet | Alt. model: FR-F846-00052-E2
FR-F846-3.7K-E1 Capacity: 3.7K | LD motor: 3.7 kW | LD current: 7.6 A | Type: FM, Ethernet | Alt. model: FR-F846-00083-E1
FR-F846-3.7K-E2 Capacity: 3.7K | LD motor: 3.7 kW | LD current: 7.6 A | Type: CA, Ethernet | Alt. model: FR-F846-00083-E2
FR-F846-5.5K-E1 Capacity: 5.5K | LD motor: 5.5 kW | LD current: 11.5 A | Type: FM, Ethernet | Alt. model: FR-F846-00126-E1
FR-F846-5.5K-E2 Capacity: 5.5K | LD motor: 5.5 kW | LD current: 11.5 A | Type: CA, Ethernet | Alt. model: FR-F846-00126-E2
FR-F846-7.5K-E1 Capacity: 7.5K | LD motor: 7.5 kW | LD current: 16 A | Type: FM, Ethernet | Alt. model: FR-F846-00170-E1
FR-F846-7.5K-E2 Capacity: 7.5K | LD motor: 7.5 kW | LD current: 16 A | Type: CA, Ethernet | Alt. model: FR-F846-00170-E2
FR-F846-11K-E1 Capacity: 11K | LD motor: 11 kW | LD current: 23 A | Type: FM, Ethernet | Alt. model: FR-F846-00250-E1
FR-F846-11K-E2 Capacity: 11K | LD motor: 11 kW | LD current: 23 A | Type: CA, Ethernet | Alt. model: FR-F846-00250-E2
FR-F846-15K-E1 Capacity: 15K | LD motor: 15 kW | LD current: 29 A | Type: FM, Ethernet | Alt. model: FR-F846-00310-E1
FR-F846-15K-E2 Capacity: 15K | LD motor: 15 kW | LD current: 29 A | Type: CA, Ethernet | Alt. model: FR-F846-00310-E2
FR-F846-18.5K-E1 Capacity: 18.5K | LD motor: 18.5 kW | LD current: 35 A | Type: FM, Ethernet | Alt. model: FR-F846-00380-E1
FR-F846-18.5K-E2 Capacity: 18.5K | LD motor: 18.5 kW | LD current: 35 A | Type: CA, Ethernet | Alt. model: FR-F846-00380-E2
FR-F846-22K-E1 Capacity: 22K | LD motor: 22 kW | LD current: 43 A | Type: FM, Ethernet | Alt. model: FR-F846-00470-E1
FR-F846-22K-E2 Capacity: 22K | LD motor: 22 kW | LD current: 43 A | Type: CA, Ethernet | Alt. model: FR-F846-00470-E2
FR-F846-30K-E1 Capacity: 30K | LD motor: 30 kW | LD current: 57 A | Type: FM, Ethernet | Alt. model: FR-F846-00620-E1
FR-F846-30K-E2 Capacity: 30K | LD motor: 30 kW | LD current: 57 A | Type: CA, Ethernet | Alt. model: FR-F846-00620-E2
FR-F846-37K-E1 Capacity: 37K | LD motor: 37 kW | LD current: 70 A | Type: FM, Ethernet | Alt. model: FR-F846-00770-E1
FR-F846-37K-E2 Capacity: 37K | LD motor: 37 kW | LD current: 70 A | Type: CA, Ethernet | Alt. model: FR-F846-00770-E2
FR-F846-45K-E1 Capacity: 45K | LD motor: 45 kW | LD current: 85 A | Type: FM, Ethernet | Alt. model: FR-F846-00930-E1
FR-F846-45K-E2 Capacity: 45K | LD motor: 45 kW | LD current: 85 A | Type: CA, Ethernet | Alt. model: FR-F846-00930-E2
FR-F846-55K-E1 Capacity: 55K | LD motor: 55 kW | LD current: 106 A | Type: FM, Ethernet | Alt. model: FR-F846-01160-E1
FR-F846-55K-E2 Capacity: 55K | LD motor: 55 kW | LD current: 106 A | Type: CA, Ethernet | Alt. model: FR-F846-01160-E2
FR-F846-75K-E1 Capacity: 75K | LD motor: 75 kW | LD current: 144 A | Type: FM, Ethernet | Alt. model: FR-F846-01800-E1
FR-F846-75K-E2 Capacity: 75K | LD motor: 75 kW | LD current: 144 A | Type: CA, Ethernet | Alt. model: FR-F846-01800-E2
FR-F846-90K-E1 Capacity: 90K | LD motor: 90 kW | LD current: 180 A | Type: FM, Ethernet | Alt. model: FR-F846-02160-E1
FR-F846-90K-E2 Capacity: 90K | LD motor: 90 kW | LD current: 180 A | Type: CA, Ethernet | Alt. model: FR-F846-02160-E2
FR-F846-110K-E1 Capacity: 110K | LD motor: 110 kW | LD current: 216 A | Type: FM, Ethernet | Alt. model: FR-F846-02600-E1
FR-F846-110K-E2 Capacity: 110K | LD motor: 110 kW | LD current: 216 A | Type: CA, Ethernet | Alt. model: FR-F846-02600-E2
FR-F846-132K-E1 Capacity: 132K | LD motor: 132 kW | LD current: 260 A | Type: FM, Ethernet | Alt. model: FR-F846-03250-E1
FR-F846-132K-E2 Capacity: 132K | LD motor: 132 kW | LD current: 260 A | Type: CA, Ethernet | Alt. model: FR-F846-03250-E2
FR-F846-160K-E1 Capacity: 160K | LD motor: 160 kW | LD current: 325 A | Type: FM, Ethernet | Alt. model: FR-F846-03610-E1
FR-F846-160K-E2 Capacity: 160K | LD motor: 160 kW | LD current: 325 A | Type: CA, Ethernet | Alt. model: FR-F846-03610-E2
Inverters (VFD)Mitsubishi Electric
38 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-F846-E 400V IP55 Fan & Pump VFD (0.75-160kW)

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (38)

FR-F846-0.75K-E1, FR-F846-0.75K-E2, FR-F846-1.5K-E1, FR-F846-1.5K-E2, FR-F846-2.2K-E1, FR-F846-2.2K-E2, FR-F846-3.7K-E1, FR-F846-3.7K-E2, FR-F846-5.5K-E1, FR-F846-5.5K-E2 + 28 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-F846-0.75K-E1Capacity: 0.75K | LD motor: 0.75 kW | LD current: 2.1 A | Type: FM, Ethernet | Alt. model: FR-F846-00023-E1
FR-F846-0.75K-E2Capacity: 0.75K | LD motor: 0.75 kW | LD current: 2.1 A | Type: CA, Ethernet | Alt. model: FR-F846-00023-E2
FR-F846-1.5K-E1Capacity: 1.5K | LD motor: 1.5 kW | LD current: 3.5 A | Type: FM, Ethernet | Alt. model: FR-F846-00038-E1
FR-F846-1.5K-E2Capacity: 1.5K | LD motor: 1.5 kW | LD current: 3.5 A | Type: CA, Ethernet | Alt. model: FR-F846-00038-E2
FR-F846-2.2K-E1Capacity: 2.2K | LD motor: 2.2 kW | LD current: 4.8 A | Type: FM, Ethernet | Alt. model: FR-F846-00052-E1
FR-F846-2.2K-E2Capacity: 2.2K | LD motor: 2.2 kW | LD current: 4.8 A | Type: CA, Ethernet | Alt. model: FR-F846-00052-E2
FR-F846-3.7K-E1Capacity: 3.7K | LD motor: 3.7 kW | LD current: 7.6 A | Type: FM, Ethernet | Alt. model: FR-F846-00083-E1
FR-F846-3.7K-E2Capacity: 3.7K | LD motor: 3.7 kW | LD current: 7.6 A | Type: CA, Ethernet | Alt. model: FR-F846-00083-E2
FR-F846-5.5K-E1Capacity: 5.5K | LD motor: 5.5 kW | LD current: 11.5 A | Type: FM, Ethernet | Alt. model: FR-F846-00126-E1
FR-F846-5.5K-E2Capacity: 5.5K | LD motor: 5.5 kW | LD current: 11.5 A | Type: CA, Ethernet | Alt. model: FR-F846-00126-E2
FR-F846-7.5K-E1Capacity: 7.5K | LD motor: 7.5 kW | LD current: 16 A | Type: FM, Ethernet | Alt. model: FR-F846-00170-E1
FR-F846-7.5K-E2Capacity: 7.5K | LD motor: 7.5 kW | LD current: 16 A | Type: CA, Ethernet | Alt. model: FR-F846-00170-E2
FR-F846-11K-E1Capacity: 11K | LD motor: 11 kW | LD current: 23 A | Type: FM, Ethernet | Alt. model: FR-F846-00250-E1
FR-F846-11K-E2Capacity: 11K | LD motor: 11 kW | LD current: 23 A | Type: CA, Ethernet | Alt. model: FR-F846-00250-E2
FR-F846-15K-E1Capacity: 15K | LD motor: 15 kW | LD current: 29 A | Type: FM, Ethernet | Alt. model: FR-F846-00310-E1
FR-F846-15K-E2Capacity: 15K | LD motor: 15 kW | LD current: 29 A | Type: CA, Ethernet | Alt. model: FR-F846-00310-E2
FR-F846-18.5K-E1Capacity: 18.5K | LD motor: 18.5 kW | LD current: 35 A | Type: FM, Ethernet | Alt. model: FR-F846-00380-E1
FR-F846-18.5K-E2Capacity: 18.5K | LD motor: 18.5 kW | LD current: 35 A | Type: CA, Ethernet | Alt. model: FR-F846-00380-E2
FR-F846-22K-E1Capacity: 22K | LD motor: 22 kW | LD current: 43 A | Type: FM, Ethernet | Alt. model: FR-F846-00470-E1
FR-F846-22K-E2Capacity: 22K | LD motor: 22 kW | LD current: 43 A | Type: CA, Ethernet | Alt. model: FR-F846-00470-E2
FR-F846-30K-E1Capacity: 30K | LD motor: 30 kW | LD current: 57 A | Type: FM, Ethernet | Alt. model: FR-F846-00620-E1
FR-F846-30K-E2Capacity: 30K | LD motor: 30 kW | LD current: 57 A | Type: CA, Ethernet | Alt. model: FR-F846-00620-E2
FR-F846-37K-E1Capacity: 37K | LD motor: 37 kW | LD current: 70 A | Type: FM, Ethernet | Alt. model: FR-F846-00770-E1
FR-F846-37K-E2Capacity: 37K | LD motor: 37 kW | LD current: 70 A | Type: CA, Ethernet | Alt. model: FR-F846-00770-E2
FR-F846-45K-E1Capacity: 45K | LD motor: 45 kW | LD current: 85 A | Type: FM, Ethernet | Alt. model: FR-F846-00930-E1
FR-F846-45K-E2Capacity: 45K | LD motor: 45 kW | LD current: 85 A | Type: CA, Ethernet | Alt. model: FR-F846-00930-E2
FR-F846-55K-E1Capacity: 55K | LD motor: 55 kW | LD current: 106 A | Type: FM, Ethernet | Alt. model: FR-F846-01160-E1
FR-F846-55K-E2Capacity: 55K | LD motor: 55 kW | LD current: 106 A | Type: CA, Ethernet | Alt. model: FR-F846-01160-E2
FR-F846-75K-E1Capacity: 75K | LD motor: 75 kW | LD current: 144 A | Type: FM, Ethernet | Alt. model: FR-F846-01800-E1
FR-F846-75K-E2Capacity: 75K | LD motor: 75 kW | LD current: 144 A | Type: CA, Ethernet | Alt. model: FR-F846-01800-E2
FR-F846-90K-E1Capacity: 90K | LD motor: 90 kW | LD current: 180 A | Type: FM, Ethernet | Alt. model: FR-F846-02160-E1
FR-F846-90K-E2Capacity: 90K | LD motor: 90 kW | LD current: 180 A | Type: CA, Ethernet | Alt. model: FR-F846-02160-E2
FR-F846-110K-E1Capacity: 110K | LD motor: 110 kW | LD current: 216 A | Type: FM, Ethernet | Alt. model: FR-F846-02600-E1
FR-F846-110K-E2Capacity: 110K | LD motor: 110 kW | LD current: 216 A | Type: CA, Ethernet | Alt. model: FR-F846-02600-E2
FR-F846-132K-E1Capacity: 132K | LD motor: 132 kW | LD current: 260 A | Type: FM, Ethernet | Alt. model: FR-F846-03250-E1
FR-F846-132K-E2Capacity: 132K | LD motor: 132 kW | LD current: 260 A | Type: CA, Ethernet | Alt. model: FR-F846-03250-E2
FR-F846-160K-E1Capacity: 160K | LD motor: 160 kW | LD current: 325 A | Type: FM, Ethernet | Alt. model: FR-F846-03610-E1
FR-F846-160K-E2Capacity: 160K | LD motor: 160 kW | LD current: 325 A | Type: CA, Ethernet | Alt. model: FR-F846-03610-E2
