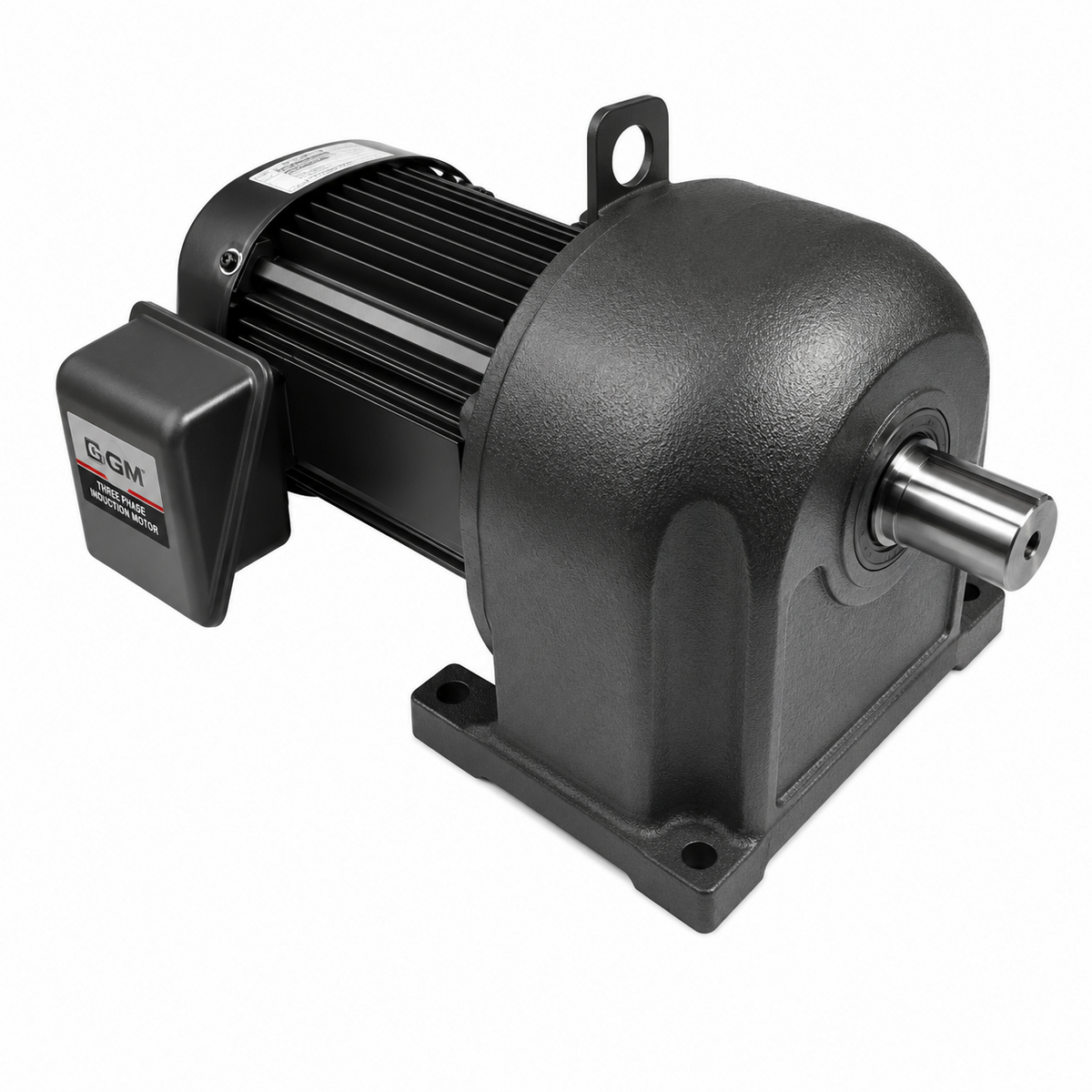

• Mitsubishi Electric GM-D 0.4kW 3-Phase Parallel Shaft Geared Motor (Leg Mount)
1 1

Mitsubishi Electric GM-D 0.4kW 3-Phase Parallel Shaft Geared Motor (Leg Mount)

Mitsubishi Electric GM-D 0.4kW 3-Phase Parallel Shaft Geared Motor (Leg Mount)

Mitsubishi Electric GM-D series parallel shaft geared motor, 0.4kW 3-phase, medium-duty (service factor 1.4). 4-pole induction motor with integral helical gear reducer, leg-mount, grease- or oil-lubricated depending on frame size.

Key features

  • Standard and intermediate reduction ratios
  • Available with or without built-in electromagnetic brake
  • Efficiency class IE1
  • For conveyors, mixers, agitators, and heavier industrial power transmission

Specifications

Type Parallel Shaft Geared Motor
Series GM-D
Capacity 0.4kW
Poles 4P
Phase 3-Phase
Voltage 200/200/220V 50/60/60Hz
Ratio Range Standard
Mount Leg
Service Factor 1.4
Efficiency Class IE1
GM-D 0.4kW 1/3 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/3 ratio, 500/600 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/3 | Output Speed: 500rpm (50Hz) / 600rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/5 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/5 ratio, 300/360 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/5 | Output Speed: 300rpm (50Hz) / 360rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/10 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/10 ratio, 150/180 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/10 | Output Speed: 150rpm (50Hz) / 180rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/15 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/15 ratio, 100/120 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/15 | Output Speed: 100rpm (50Hz) / 120rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/20 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/20 ratio, 75/90 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/20 | Output Speed: 75rpm (50Hz) / 90rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/25 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/25 ratio, 60/72 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/25 | Output Speed: 60rpm (50Hz) / 72rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/30 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/30 ratio, 50/60 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/30 | Output Speed: 50rpm (50Hz) / 60rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/40 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/40 ratio, 37.5/45 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/40 | Output Speed: 37.5rpm (50Hz) / 45rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/50 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/50 ratio, 30/36 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/50 | Output Speed: 30rpm (50Hz) / 36rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/60 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/60 ratio, 25/30 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/60 | Output Speed: 25rpm (50Hz) / 30rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: G | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/80 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/80 ratio, 18.8/22.5 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/80 | Output Speed: 18.8rpm (50Hz) / 22.5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: G | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/100 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/100 ratio, 15/18 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/100 | Output Speed: 15rpm (50Hz) / 18rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: G | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/120 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/120 ratio, 12.5/15 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/120 | Output Speed: 12.5rpm (50Hz) / 15rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: J | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/160 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/160 ratio, 9.4/11.3 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/160 | Output Speed: 9.4rpm (50Hz) / 11.3rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: J | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/200 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/200 ratio, 7.5/9 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/200 | Output Speed: 7.5rpm (50Hz) / 9rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: J | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/270 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/270 ratio, 5.6/6.7 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/270 | Output Speed: 5.6rpm (50Hz) / 6.7rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: LM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/360 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/360 ratio, 4.2/5 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/360 | Output Speed: 4.2rpm (50Hz) / 5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: LM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/450 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/450 ratio, 3.3/4 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/450 | Output Speed: 3.3rpm (50Hz) / 4rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: LM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/540 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/540 ratio, 2.8/3.3 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/540 | Output Speed: 2.8rpm (50Hz) / 3.3rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/720 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/720 ratio, 2.1/2.5 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/720 | Output Speed: 2.1rpm (50Hz) / 2.5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/900 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/900 ratio, 1.7/2 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/900 | Output Speed: 1.7rpm (50Hz) / 2rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/1200 GM-D 0.4kW 3-phase parallel shaft geared motor, 1/1200 ratio, 1.3/1.5 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/1200 | Output Speed: 1.3rpm (50Hz) / 1.5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/3 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/3 ratio, 500/600 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/3 | Output Speed: 500rpm (50Hz) / 600rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/5 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/5 ratio, 300/360 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/5 | Output Speed: 300rpm (50Hz) / 360rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/10 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/10 ratio, 150/180 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/10 | Output Speed: 150rpm (50Hz) / 180rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/15 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/15 ratio, 100/120 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/15 | Output Speed: 100rpm (50Hz) / 120rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/20 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/20 ratio, 75/90 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/20 | Output Speed: 75rpm (50Hz) / 90rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/25 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/25 ratio, 60/72 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/25 | Output Speed: 60rpm (50Hz) / 72rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/30 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/30 ratio, 50/60 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/30 | Output Speed: 50rpm (50Hz) / 60rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/40 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/40 ratio, 37.5/45 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/40 | Output Speed: 37.5rpm (50Hz) / 45rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/50 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/50 ratio, 30/36 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/50 | Output Speed: 30rpm (50Hz) / 36rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/60 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/60 ratio, 25/30 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/60 | Output Speed: 25rpm (50Hz) / 30rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: G | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/80 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/80 ratio, 18.8/22.5 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/80 | Output Speed: 18.8rpm (50Hz) / 22.5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: G | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/100 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/100 ratio, 15/18 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/100 | Output Speed: 15rpm (50Hz) / 18rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: G | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/120 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/120 ratio, 12.5/15 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/120 | Output Speed: 12.5rpm (50Hz) / 15rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: J | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/160 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/160 ratio, 9.4/11.3 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/160 | Output Speed: 9.4rpm (50Hz) / 11.3rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: J | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/200 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/200 ratio, 7.5/9 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/200 | Output Speed: 7.5rpm (50Hz) / 9rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: J | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/270 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/270 ratio, 5.6/6.7 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/270 | Output Speed: 5.6rpm (50Hz) / 6.7rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: LM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/360 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/360 ratio, 4.2/5 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/360 | Output Speed: 4.2rpm (50Hz) / 5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: LM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/450 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/450 ratio, 3.3/4 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/450 | Output Speed: 3.3rpm (50Hz) / 4rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: LM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/540 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/540 ratio, 2.8/3.3 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/540 | Output Speed: 2.8rpm (50Hz) / 3.3rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/720 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/720 ratio, 2.1/2.5 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/720 | Output Speed: 2.1rpm (50Hz) / 2.5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/900 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/900 ratio, 1.7/2 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/900 | Output Speed: 1.7rpm (50Hz) / 2rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/1200 GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/1200 ratio, 1.3/1.5 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/1200 | Output Speed: 1.3rpm (50Hz) / 1.5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
Geared MotorsMitsubishi Electric
44 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GM-D 0.4kW 3-Phase Parallel Shaft Geared Motor (Leg Mount)

Brand Mitsubishi Electric·Geared Motors

Available part numbers (44)

GM-D 0.4kW 1/3, GM-D 0.4kW 1/5, GM-D 0.4kW 1/10, GM-D 0.4kW 1/15, GM-D 0.4kW 1/20, GM-D 0.4kW 1/25, GM-D 0.4kW 1/30, GM-D 0.4kW 1/40, GM-D 0.4kW 1/50, GM-D 0.4kW 1/60 + 34 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GM-D 0.4kW 1/3GM-D 0.4kW 3-phase parallel shaft geared motor, 1/3 ratio, 500/600 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/3 | Output Speed: 500rpm (50Hz) / 600rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/5GM-D 0.4kW 3-phase parallel shaft geared motor, 1/5 ratio, 300/360 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/5 | Output Speed: 300rpm (50Hz) / 360rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/10GM-D 0.4kW 3-phase parallel shaft geared motor, 1/10 ratio, 150/180 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/10 | Output Speed: 150rpm (50Hz) / 180rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/15GM-D 0.4kW 3-phase parallel shaft geared motor, 1/15 ratio, 100/120 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/15 | Output Speed: 100rpm (50Hz) / 120rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/20GM-D 0.4kW 3-phase parallel shaft geared motor, 1/20 ratio, 75/90 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/20 | Output Speed: 75rpm (50Hz) / 90rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/25GM-D 0.4kW 3-phase parallel shaft geared motor, 1/25 ratio, 60/72 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/25 | Output Speed: 60rpm (50Hz) / 72rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/30GM-D 0.4kW 3-phase parallel shaft geared motor, 1/30 ratio, 50/60 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/30 | Output Speed: 50rpm (50Hz) / 60rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/40GM-D 0.4kW 3-phase parallel shaft geared motor, 1/40 ratio, 37.5/45 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/40 | Output Speed: 37.5rpm (50Hz) / 45rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/50GM-D 0.4kW 3-phase parallel shaft geared motor, 1/50 ratio, 30/36 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/50 | Output Speed: 30rpm (50Hz) / 36rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/60GM-D 0.4kW 3-phase parallel shaft geared motor, 1/60 ratio, 25/30 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/60 | Output Speed: 25rpm (50Hz) / 30rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: G | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/80GM-D 0.4kW 3-phase parallel shaft geared motor, 1/80 ratio, 18.8/22.5 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/80 | Output Speed: 18.8rpm (50Hz) / 22.5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: G | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/100GM-D 0.4kW 3-phase parallel shaft geared motor, 1/100 ratio, 15/18 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/100 | Output Speed: 15rpm (50Hz) / 18rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: G | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/120GM-D 0.4kW 3-phase parallel shaft geared motor, 1/120 ratio, 12.5/15 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/120 | Output Speed: 12.5rpm (50Hz) / 15rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: J | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-D 0.4kW 1/160GM-D 0.4kW 3-phase parallel shaft geared motor, 1/160 ratio, 9.4/11.3 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/160 | Output Speed: 9.4rpm (50Hz) / 11.3rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: J | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/200GM-D 0.4kW 3-phase parallel shaft geared motor, 1/200 ratio, 7.5/9 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/200 | Output Speed: 7.5rpm (50Hz) / 9rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: J | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/270GM-D 0.4kW 3-phase parallel shaft geared motor, 1/270 ratio, 5.6/6.7 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/270 | Output Speed: 5.6rpm (50Hz) / 6.7rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: LM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/360GM-D 0.4kW 3-phase parallel shaft geared motor, 1/360 ratio, 4.2/5 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/360 | Output Speed: 4.2rpm (50Hz) / 5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: LM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/450GM-D 0.4kW 3-phase parallel shaft geared motor, 1/450 ratio, 3.3/4 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/450 | Output Speed: 3.3rpm (50Hz) / 4rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: LM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/540GM-D 0.4kW 3-phase parallel shaft geared motor, 1/540 ratio, 2.8/3.3 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/540 | Output Speed: 2.8rpm (50Hz) / 3.3rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/720GM-D 0.4kW 3-phase parallel shaft geared motor, 1/720 ratio, 2.1/2.5 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/720 | Output Speed: 2.1rpm (50Hz) / 2.5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/900GM-D 0.4kW 3-phase parallel shaft geared motor, 1/900 ratio, 1.7/2 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/900 | Output Speed: 1.7rpm (50Hz) / 2rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-D 0.4kW 1/1200GM-D 0.4kW 3-phase parallel shaft geared motor, 1/1200 ratio, 1.3/1.5 rpm output, leg mount, without brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/1200 | Output Speed: 1.3rpm (50Hz) / 1.5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/3GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/3 ratio, 500/600 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/3 | Output Speed: 500rpm (50Hz) / 600rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/5GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/5 ratio, 300/360 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/5 | Output Speed: 300rpm (50Hz) / 360rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/10GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/10 ratio, 150/180 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/10 | Output Speed: 150rpm (50Hz) / 180rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/15GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/15 ratio, 100/120 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/15 | Output Speed: 100rpm (50Hz) / 120rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/20GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/20 ratio, 75/90 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/20 | Output Speed: 75rpm (50Hz) / 90rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/25GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/25 ratio, 60/72 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/25 | Output Speed: 60rpm (50Hz) / 72rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/30GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/30 ratio, 50/60 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/30 | Output Speed: 50rpm (50Hz) / 60rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/40GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/40 ratio, 37.5/45 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/40 | Output Speed: 37.5rpm (50Hz) / 45rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/50GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/50 ratio, 30/36 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/50 | Output Speed: 30rpm (50Hz) / 36rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: D | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/60GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/60 ratio, 25/30 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/60 | Output Speed: 25rpm (50Hz) / 30rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: G | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/80GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/80 ratio, 18.8/22.5 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/80 | Output Speed: 18.8rpm (50Hz) / 22.5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: G | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/100GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/100 ratio, 15/18 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/100 | Output Speed: 15rpm (50Hz) / 18rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: G | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Stock item
GM-DB 0.4kW 1/120GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/120 ratio, 12.5/15 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/120 | Output Speed: 12.5rpm (50Hz) / 15rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: J | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/160GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/160 ratio, 9.4/11.3 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/160 | Output Speed: 9.4rpm (50Hz) / 11.3rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: J | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/200GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/200 ratio, 7.5/9 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/200 | Output Speed: 7.5rpm (50Hz) / 9rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: J | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/270GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/270 ratio, 5.6/6.7 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/270 | Output Speed: 5.6rpm (50Hz) / 6.7rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: LM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/360GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/360 ratio, 4.2/5 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/360 | Output Speed: 4.2rpm (50Hz) / 5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: LM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/450GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/450 ratio, 3.3/4 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/450 | Output Speed: 3.3rpm (50Hz) / 4rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: LM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/540GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/540 ratio, 2.8/3.3 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/540 | Output Speed: 2.8rpm (50Hz) / 3.3rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/720GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/720 ratio, 2.1/2.5 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/720 | Output Speed: 2.1rpm (50Hz) / 2.5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/900GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/900 ratio, 1.7/2 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/900 | Output Speed: 1.7rpm (50Hz) / 2rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
GM-DB 0.4kW 1/1200GM-DB 0.4kW 3-phase parallel shaft geared motor, 1/1200 ratio, 1.3/1.5 rpm output, leg mount, with brake, IE1 | Type: Parallel Shaft Geared Motor | Series: GM-D | Capacity: 0.4kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/1200 | Output Speed: 1.3rpm (50Hz) / 1.5rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: MM | Service Factor: 1.4 | Efficiency Class: IE1 | Availability: Short-lead production
