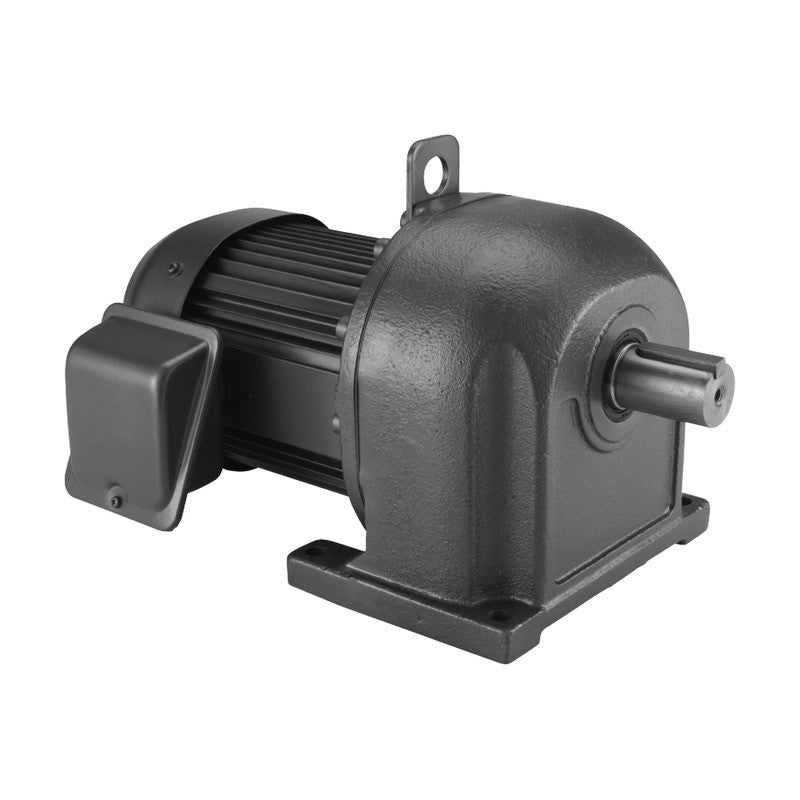

Mitsubishi Electric GM-D2 IE2 Parallel Shaft Geared Motor (0.4kW)

Mitsubishi Electric GM-D2 IE2 Parallel Shaft Geared Motor (0.4kW)

IE2 high-efficiency (EU) version of the GM-D parallel-shaft geared motor, 0.4 kW.

Key features

  • Complies with the European high-efficiency regulation (IE2) applied from 1 July 2021
  • Reduction ratio 1/3 to 1/1200
  • Frame 63 (0.2 kW) / 71 (0.4 kW); terminal block connection
  • Flange, leg-mount and brake versions can be manufactured as listed for the series
  • For China GB3 (IE3) use the premium GM-SP/DP/SSYP/SHYP models (0.75 kW and above)

Specifications

Efficiency IE2 (EU regulation, from July 2021)
Voltage 200/200/220V 50/60/60Hz (400V opt.)
Poles 4P
Insulation class 130 (B)
Lead wires 3, terminal block connection
Availability Made to order
Gearing Parallel shaft, SF 1.4
Output range 0.4kW
Source Mitsubishi Electric Geared Motor General Catalogue GM-56-F, p. 109-111
GM-D2 0.4kW 1/3 Model: GM-D2 | Output: 0.4kW | Ratio: 1/3 | Brake: No | Gear size: D
GM-D2 0.4kW 1/5 Model: GM-D2 | Output: 0.4kW | Ratio: 1/5 | Brake: No | Gear size: D
GM-D2 0.4kW 1/10 Model: GM-D2 | Output: 0.4kW | Ratio: 1/10 | Brake: No | Gear size: D
GM-D2 0.4kW 1/15 Model: GM-D2 | Output: 0.4kW | Ratio: 1/15 | Brake: No | Gear size: D
GM-D2 0.4kW 1/20 Model: GM-D2 | Output: 0.4kW | Ratio: 1/20 | Brake: No | Gear size: D
GM-D2 0.4kW 1/25 Model: GM-D2 | Output: 0.4kW | Ratio: 1/25 | Brake: No | Gear size: D
GM-D2 0.4kW 1/30 Model: GM-D2 | Output: 0.4kW | Ratio: 1/30 | Brake: No | Gear size: D
GM-D2 0.4kW 1/40 Model: GM-D2 | Output: 0.4kW | Ratio: 1/40 | Brake: No | Gear size: D
GM-D2 0.4kW 1/50 Model: GM-D2 | Output: 0.4kW | Ratio: 1/50 | Brake: No | Gear size: D
GM-D2 0.4kW 1/60 Model: GM-D2 | Output: 0.4kW | Ratio: 1/60 | Brake: No | Gear size: G
GM-D2 0.4kW 1/80 Model: GM-D2 | Output: 0.4kW | Ratio: 1/80 | Brake: No | Gear size: G
GM-D2 0.4kW 1/100 Model: GM-D2 | Output: 0.4kW | Ratio: 1/100 | Brake: No | Gear size: G
GM-D2 0.4kW 1/120 Model: GM-D2 | Output: 0.4kW | Ratio: 1/120 | Brake: No | Gear size: J
GM-D2 0.4kW 1/160 Model: GM-D2 | Output: 0.4kW | Ratio: 1/160 | Brake: No | Gear size: J
GM-D2 0.4kW 1/200 Model: GM-D2 | Output: 0.4kW | Ratio: 1/200 | Brake: No | Gear size: J
GM-D2 0.4kW 1/270 Model: GM-D2 | Output: 0.4kW | Ratio: 1/270 | Brake: No | Gear size: LM
GM-D2 0.4kW 1/360 Model: GM-D2 | Output: 0.4kW | Ratio: 1/360 | Brake: No | Gear size: LM
GM-D2 0.4kW 1/450 Model: GM-D2 | Output: 0.4kW | Ratio: 1/450 | Brake: No | Gear size: LM
GM-D2 0.4kW 1/540 Model: GM-D2 | Output: 0.4kW | Ratio: 1/540 | Brake: No | Gear size: MM
GM-D2 0.4kW 1/720 Model: GM-D2 | Output: 0.4kW | Ratio: 1/720 | Brake: No | Gear size: MM
GM-D2 0.4kW 1/900 Model: GM-D2 | Output: 0.4kW | Ratio: 1/900 | Brake: No | Gear size: MM
GM-D2 0.4kW 1/1200 Model: GM-D2 | Output: 0.4kW | Ratio: 1/1200 | Brake: No | Gear size: MM
Geared MotorsMitsubishi Electric
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GM-D2 IE2 Parallel Shaft Geared Motor (0.4kW)

Brand Mitsubishi Electric·Geared Motors

Available part numbers (22)

GM-D2 0.4kW 1/3, GM-D2 0.4kW 1/5, GM-D2 0.4kW 1/10, GM-D2 0.4kW 1/15, GM-D2 0.4kW 1/20, GM-D2 0.4kW 1/25, GM-D2 0.4kW 1/30, GM-D2 0.4kW 1/40, GM-D2 0.4kW 1/50, GM-D2 0.4kW 1/60 + 12 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GM-D2 0.4kW 1/3Model: GM-D2 | Output: 0.4kW | Ratio: 1/3 | Brake: No | Gear size: D
GM-D2 0.4kW 1/5Model: GM-D2 | Output: 0.4kW | Ratio: 1/5 | Brake: No | Gear size: D
GM-D2 0.4kW 1/10Model: GM-D2 | Output: 0.4kW | Ratio: 1/10 | Brake: No | Gear size: D
GM-D2 0.4kW 1/15Model: GM-D2 | Output: 0.4kW | Ratio: 1/15 | Brake: No | Gear size: D
GM-D2 0.4kW 1/20Model: GM-D2 | Output: 0.4kW | Ratio: 1/20 | Brake: No | Gear size: D
GM-D2 0.4kW 1/25Model: GM-D2 | Output: 0.4kW | Ratio: 1/25 | Brake: No | Gear size: D
GM-D2 0.4kW 1/30Model: GM-D2 | Output: 0.4kW | Ratio: 1/30 | Brake: No | Gear size: D
GM-D2 0.4kW 1/40Model: GM-D2 | Output: 0.4kW | Ratio: 1/40 | Brake: No | Gear size: D
GM-D2 0.4kW 1/50Model: GM-D2 | Output: 0.4kW | Ratio: 1/50 | Brake: No | Gear size: D
GM-D2 0.4kW 1/60Model: GM-D2 | Output: 0.4kW | Ratio: 1/60 | Brake: No | Gear size: G
GM-D2 0.4kW 1/80Model: GM-D2 | Output: 0.4kW | Ratio: 1/80 | Brake: No | Gear size: G
GM-D2 0.4kW 1/100Model: GM-D2 | Output: 0.4kW | Ratio: 1/100 | Brake: No | Gear size: G
GM-D2 0.4kW 1/120Model: GM-D2 | Output: 0.4kW | Ratio: 1/120 | Brake: No | Gear size: J
GM-D2 0.4kW 1/160Model: GM-D2 | Output: 0.4kW | Ratio: 1/160 | Brake: No | Gear size: J
GM-D2 0.4kW 1/200Model: GM-D2 | Output: 0.4kW | Ratio: 1/200 | Brake: No | Gear size: J
GM-D2 0.4kW 1/270Model: GM-D2 | Output: 0.4kW | Ratio: 1/270 | Brake: No | Gear size: LM
GM-D2 0.4kW 1/360Model: GM-D2 | Output: 0.4kW | Ratio: 1/360 | Brake: No | Gear size: LM
GM-D2 0.4kW 1/450Model: GM-D2 | Output: 0.4kW | Ratio: 1/450 | Brake: No | Gear size: LM
GM-D2 0.4kW 1/540Model: GM-D2 | Output: 0.4kW | Ratio: 1/540 | Brake: No | Gear size: MM
GM-D2 0.4kW 1/720Model: GM-D2 | Output: 0.4kW | Ratio: 1/720 | Brake: No | Gear size: MM
GM-D2 0.4kW 1/900Model: GM-D2 | Output: 0.4kW | Ratio: 1/900 | Brake: No | Gear size: MM
GM-D2 0.4kW 1/1200Model: GM-D2 | Output: 0.4kW | Ratio: 1/1200 | Brake: No | Gear size: MM
