• Mitsubishi Electric GM-DH 0.4kW High-Efficiency Energy-Saving Geared Motor (Parallel Shaft, Leg Mount)
1 1

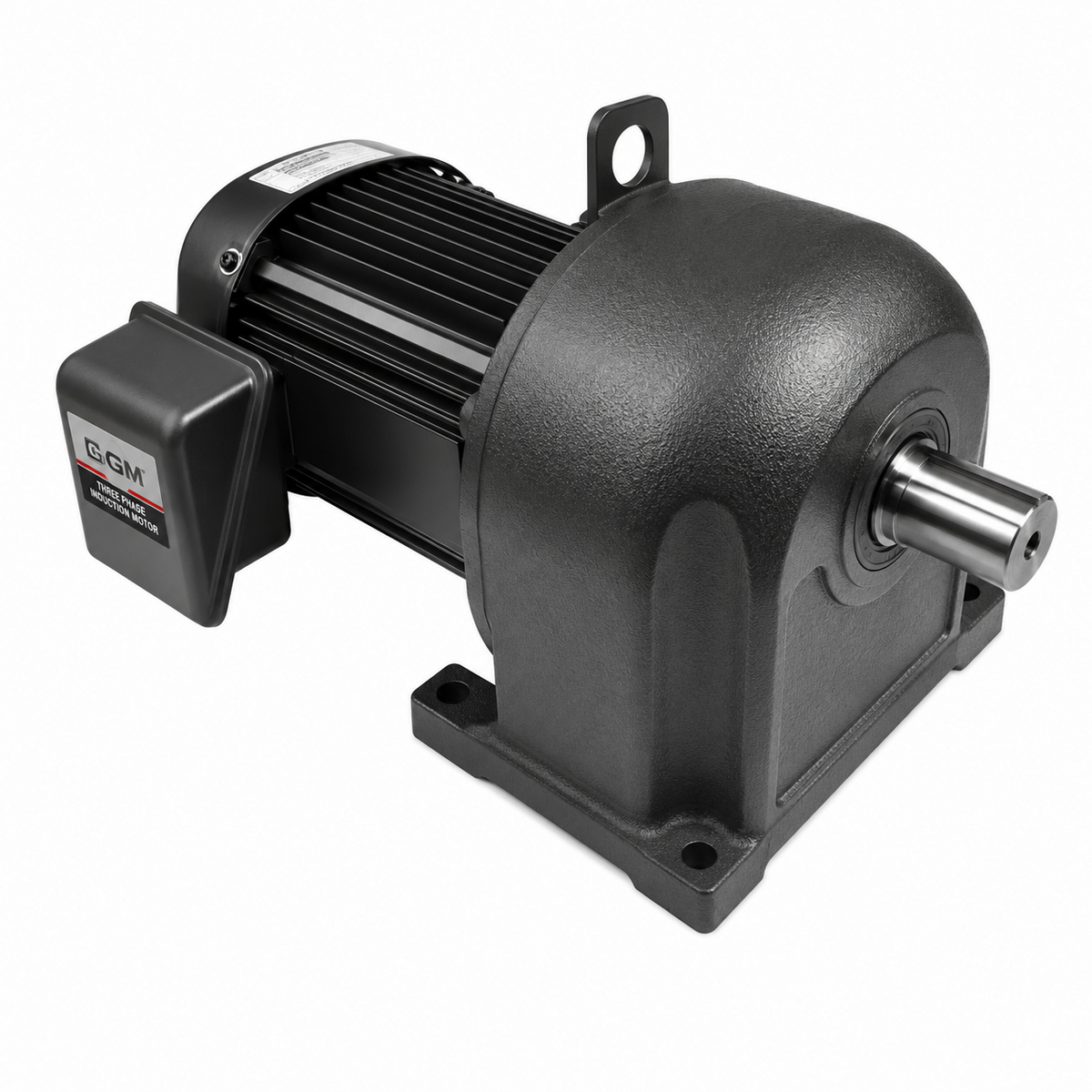

Mitsubishi Electric GM-DH 0.4kW High-Efficiency Energy-Saving Geared Motor (Parallel Shaft, Leg Mount)

Mitsubishi Electric GM-DH 0.4kW High-Efficiency Energy-Saving Geared Motor (Parallel Shaft, Leg Mount)

Mitsubishi Electric GM-DH 0.4kW high-efficiency energy-saving geared motor, parallel shaft type with leg mounting.

Key features

  • All models made-to-order
  • Flange type manufacturable on request
  • Brake not available
  • Other specifications identical to the standard GM-D series

Specifications

Output 0.4kW
Motor Superline Eco high-efficiency (JISC4212)
Power Supply 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order)
Poles 4P
Frame 71
Insulation 120(E)
Mount Leg
Brake Not available
Lead Wires 3 (terminal block)
Protection Indoor (outdoor semi-standard)
Availability Made-to-order
GM-DH 0.4kW 1/3 GM-DH 0.4kW ratio 1/3 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/3 | Gear Size: D | Output Speed 50Hz: 500r/min | Output Speed 60Hz: 600r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/5 GM-DH 0.4kW ratio 1/5 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/5 | Gear Size: D | Output Speed 50Hz: 300r/min | Output Speed 60Hz: 360r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/10 GM-DH 0.4kW ratio 1/10 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/10 | Gear Size: D | Output Speed 50Hz: 150r/min | Output Speed 60Hz: 180r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/15 GM-DH 0.4kW ratio 1/15 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/15 | Gear Size: D | Output Speed 50Hz: 100r/min | Output Speed 60Hz: 120r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/20 GM-DH 0.4kW ratio 1/20 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/20 | Gear Size: D | Output Speed 50Hz: 75r/min | Output Speed 60Hz: 90r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/25 GM-DH 0.4kW ratio 1/25 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/25 | Gear Size: D | Output Speed 50Hz: 60r/min | Output Speed 60Hz: 72r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/30 GM-DH 0.4kW ratio 1/30 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/30 | Gear Size: D | Output Speed 50Hz: 50r/min | Output Speed 60Hz: 60r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/40 GM-DH 0.4kW ratio 1/40 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/40 | Gear Size: D | Output Speed 50Hz: 37.5r/min | Output Speed 60Hz: 45r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/50 GM-DH 0.4kW ratio 1/50 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/50 | Gear Size: D | Output Speed 50Hz: 30r/min | Output Speed 60Hz: 36r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/60 GM-DH 0.4kW ratio 1/60 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/60 | Gear Size: G | Output Speed 50Hz: 25r/min | Output Speed 60Hz: 30r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/80 GM-DH 0.4kW ratio 1/80 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/80 | Gear Size: G | Output Speed 50Hz: 18.8r/min | Output Speed 60Hz: 22.5r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/100 GM-DH 0.4kW ratio 1/100 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/100 | Gear Size: G | Output Speed 50Hz: 15r/min | Output Speed 60Hz: 18r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/120 GM-DH 0.4kW ratio 1/120 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/120 | Gear Size: J | Output Speed 50Hz: 12.5r/min | Output Speed 60Hz: 15r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/160 GM-DH 0.4kW ratio 1/160 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/160 | Gear Size: J | Output Speed 50Hz: 9.4r/min | Output Speed 60Hz: 11.3r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/200 GM-DH 0.4kW ratio 1/200 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/200 | Gear Size: J | Output Speed 50Hz: 7.5r/min | Output Speed 60Hz: 9r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/270 GM-DH 0.4kW ratio 1/270 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/270 | Gear Size: LM | Output Speed 50Hz: 5.6r/min | Output Speed 60Hz: 6.7r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/360 GM-DH 0.4kW ratio 1/360 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/360 | Gear Size: LM | Output Speed 50Hz: 4.2r/min | Output Speed 60Hz: 5r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/450 GM-DH 0.4kW ratio 1/450 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/450 | Gear Size: LM | Output Speed 50Hz: 3.3r/min | Output Speed 60Hz: 4r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/540 GM-DH 0.4kW ratio 1/540 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/540 | Gear Size: MM | Output Speed 50Hz: 2.8r/min | Output Speed 60Hz: 3.3r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Oil (oil-only; shipped without oil, fill recommended oil before use) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/720 GM-DH 0.4kW ratio 1/720 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/720 | Gear Size: MM | Output Speed 50Hz: 2.1r/min | Output Speed 60Hz: 2.5r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Oil (oil-only; shipped without oil, fill recommended oil before use) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/900 GM-DH 0.4kW ratio 1/900 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/900 | Gear Size: MM | Output Speed 50Hz: 1.7r/min | Output Speed 60Hz: 2r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Oil (oil-only; shipped without oil, fill recommended oil before use) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/1200 GM-DH 0.4kW ratio 1/1200 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/1200 | Gear Size: MM | Output Speed 50Hz: 1.3r/min | Output Speed 60Hz: 1.5r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Oil (oil-only; shipped without oil, fill recommended oil before use) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
Geared MotorsMitsubishi Electric
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GM-DH 0.4kW High-Efficiency Energy-Saving Geared Motor (Parallel Shaft, Leg Mount)

Brand Mitsubishi Electric·Geared Motors

Available part numbers (22)

GM-DH 0.4kW 1/3, GM-DH 0.4kW 1/5, GM-DH 0.4kW 1/10, GM-DH 0.4kW 1/15, GM-DH 0.4kW 1/20, GM-DH 0.4kW 1/25, GM-DH 0.4kW 1/30, GM-DH 0.4kW 1/40, GM-DH 0.4kW 1/50, GM-DH 0.4kW 1/60 + 12 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GM-DH 0.4kW 1/3GM-DH 0.4kW ratio 1/3 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/3 | Gear Size: D | Output Speed 50Hz: 500r/min | Output Speed 60Hz: 600r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/5GM-DH 0.4kW ratio 1/5 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/5 | Gear Size: D | Output Speed 50Hz: 300r/min | Output Speed 60Hz: 360r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/10GM-DH 0.4kW ratio 1/10 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/10 | Gear Size: D | Output Speed 50Hz: 150r/min | Output Speed 60Hz: 180r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/15GM-DH 0.4kW ratio 1/15 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/15 | Gear Size: D | Output Speed 50Hz: 100r/min | Output Speed 60Hz: 120r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/20GM-DH 0.4kW ratio 1/20 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/20 | Gear Size: D | Output Speed 50Hz: 75r/min | Output Speed 60Hz: 90r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/25GM-DH 0.4kW ratio 1/25 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/25 | Gear Size: D | Output Speed 50Hz: 60r/min | Output Speed 60Hz: 72r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/30GM-DH 0.4kW ratio 1/30 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/30 | Gear Size: D | Output Speed 50Hz: 50r/min | Output Speed 60Hz: 60r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/40GM-DH 0.4kW ratio 1/40 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/40 | Gear Size: D | Output Speed 50Hz: 37.5r/min | Output Speed 60Hz: 45r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/50GM-DH 0.4kW ratio 1/50 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/50 | Gear Size: D | Output Speed 50Hz: 30r/min | Output Speed 60Hz: 36r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/60GM-DH 0.4kW ratio 1/60 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/60 | Gear Size: G | Output Speed 50Hz: 25r/min | Output Speed 60Hz: 30r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/80GM-DH 0.4kW ratio 1/80 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/80 | Gear Size: G | Output Speed 50Hz: 18.8r/min | Output Speed 60Hz: 22.5r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/100GM-DH 0.4kW ratio 1/100 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/100 | Gear Size: G | Output Speed 50Hz: 15r/min | Output Speed 60Hz: 18r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/120GM-DH 0.4kW ratio 1/120 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/120 | Gear Size: J | Output Speed 50Hz: 12.5r/min | Output Speed 60Hz: 15r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/160GM-DH 0.4kW ratio 1/160 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/160 | Gear Size: J | Output Speed 50Hz: 9.4r/min | Output Speed 60Hz: 11.3r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/200GM-DH 0.4kW ratio 1/200 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/200 | Gear Size: J | Output Speed 50Hz: 7.5r/min | Output Speed 60Hz: 9r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/270GM-DH 0.4kW ratio 1/270 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/270 | Gear Size: LM | Output Speed 50Hz: 5.6r/min | Output Speed 60Hz: 6.7r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/360GM-DH 0.4kW ratio 1/360 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/360 | Gear Size: LM | Output Speed 50Hz: 4.2r/min | Output Speed 60Hz: 5r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/450GM-DH 0.4kW ratio 1/450 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/450 | Gear Size: LM | Output Speed 50Hz: 3.3r/min | Output Speed 60Hz: 4r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Grease (grease-only, factory filled) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/540GM-DH 0.4kW ratio 1/540 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/540 | Gear Size: MM | Output Speed 50Hz: 2.8r/min | Output Speed 60Hz: 3.3r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Oil (oil-only; shipped without oil, fill recommended oil before use) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/720GM-DH 0.4kW ratio 1/720 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/720 | Gear Size: MM | Output Speed 50Hz: 2.1r/min | Output Speed 60Hz: 2.5r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Oil (oil-only; shipped without oil, fill recommended oil before use) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/900GM-DH 0.4kW ratio 1/900 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/900 | Gear Size: MM | Output Speed 50Hz: 1.7r/min | Output Speed 60Hz: 2r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Oil (oil-only; shipped without oil, fill recommended oil before use) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
GM-DH 0.4kW 1/1200GM-DH 0.4kW ratio 1/1200 high-efficiency energy-saving, leg mount | Output: 0.4kW | Nominal Ratio: 1/1200 | Gear Size: MM | Output Speed 50Hz: 1.3r/min | Output Speed 60Hz: 1.5r/min | Motor: Superline Eco high-efficiency (JISC4212) | Power Supply: 3-phase 200/200/220V or 400/400/440V 50/60/60Hz (select at order) | Poles: 4P | Frame: 71 | Insulation: 120(E) | Mount: Leg | Brake: Not available | Lubrication: Oil (oil-only; shipped without oil, fill recommended oil before use) | Lead Wires: 3 (terminal block) | Protection: Indoor (outdoor semi-standard) | Availability: Made-to-order
