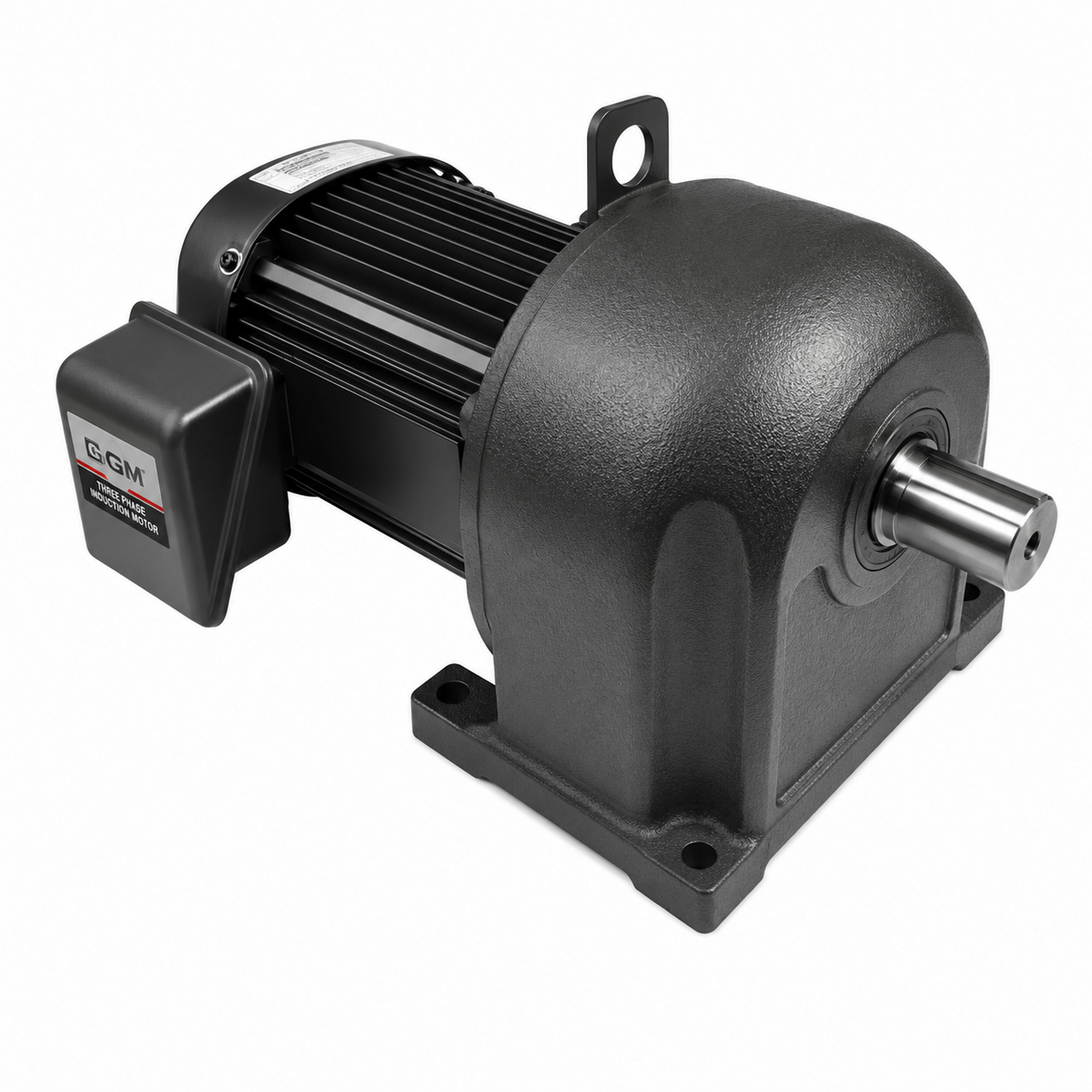

Mitsubishi Electric GM-DP 7.5kW 3-Phase Parallel Shaft Geared Motor (Leg Mount)

Mitsubishi Electric GM-DP 7.5kW 3-Phase Parallel Shaft Geared Motor (Leg Mount)

Mitsubishi Electric GM-DP series parallel shaft geared motor, 7.5kW 3-phase, medium-duty (service factor 1.4). 4-pole induction motor with integral helical gear reducer, leg-mount, grease- or oil-lubricated depending on frame size.

Key features

  • Standard and intermediate reduction ratios
  • Available with or without built-in electromagnetic brake
  • Efficiency class IE3
  • For conveyors, mixers, agitators, and heavier industrial power transmission

Specifications

Type Parallel Shaft Geared Motor
Series GM-DP
Capacity 7.5kW
Poles 4P
Phase 3-Phase
Voltage 200/200/220V 50/60/60Hz
Mount Leg
Service Factor 1.4
Efficiency Class IE3
GM-DP 7.5kW 1/3 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/3 ratio, 500/600 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/3 | Output Speed: 500rpm (50Hz) / 600rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/5 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/5 ratio, 300/360 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/5 | Output Speed: 300rpm (50Hz) / 360rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/10 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/10 ratio, 150/180 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/10 | Output Speed: 150rpm (50Hz) / 180rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/15 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/15 ratio, 100/120 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/15 | Output Speed: 100rpm (50Hz) / 120rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/20 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/20 ratio, 75/90 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/20 | Output Speed: 75rpm (50Hz) / 90rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/25 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/25 ratio, 60/72 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/25 | Output Speed: 60rpm (50Hz) / 72rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: N | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/30 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/30 ratio, 50/60 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/30 | Output Speed: 50rpm (50Hz) / 60rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: N | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/45 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/45 ratio, 33/40 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/45 | Output Speed: 33rpm (50Hz) / 40rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: TM | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/60 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/60 ratio, 25/30 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/60 | Output Speed: 25rpm (50Hz) / 30rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: TN | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/90 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/90 ratio, 16.7/20 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/90 | Output Speed: 16.7rpm (50Hz) / 20rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: TP | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/4 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/4 intermediate ratio, 375/450 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/4 | Output Speed: 375rpm (50Hz) / 450rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DP 7.5kW 1/6 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/6 intermediate ratio, 250/300 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/6 | Output Speed: 250rpm (50Hz) / 300rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DP 7.5kW 1/7 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/7 intermediate ratio, 214/257 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/7 | Output Speed: 214rpm (50Hz) / 257rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DP 7.5kW 1/8 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/8 intermediate ratio, 188/225 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/8 | Output Speed: 188rpm (50Hz) / 225rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DP 7.5kW 1/11 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/11 intermediate ratio, 136/164 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/11 | Output Speed: 136rpm (50Hz) / 164rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DP 7.5kW 1/13 GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/13 intermediate ratio, 115/138 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/13 | Output Speed: 115rpm (50Hz) / 138rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DPB 7.5kW 1/3 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/3 ratio, 500/600 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/3 | Output Speed: 500rpm (50Hz) / 600rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/5 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/5 ratio, 300/360 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/5 | Output Speed: 300rpm (50Hz) / 360rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/10 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/10 ratio, 150/180 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/10 | Output Speed: 150rpm (50Hz) / 180rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/15 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/15 ratio, 100/120 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/15 | Output Speed: 100rpm (50Hz) / 120rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/20 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/20 ratio, 75/90 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/20 | Output Speed: 75rpm (50Hz) / 90rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/25 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/25 ratio, 60/72 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/25 | Output Speed: 60rpm (50Hz) / 72rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: N | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/30 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/30 ratio, 50/60 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/30 | Output Speed: 50rpm (50Hz) / 60rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: N | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/45 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/45 ratio, 33/40 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/45 | Output Speed: 33rpm (50Hz) / 40rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: TM | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/60 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/60 ratio, 25/30 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/60 | Output Speed: 25rpm (50Hz) / 30rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: TN | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/90 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/90 ratio, 16.7/20 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/90 | Output Speed: 16.7rpm (50Hz) / 20rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: TP | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/4 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/4 intermediate ratio, 375/450 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/4 | Output Speed: 375rpm (50Hz) / 450rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DPB 7.5kW 1/6 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/6 intermediate ratio, 250/300 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/6 | Output Speed: 250rpm (50Hz) / 300rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DPB 7.5kW 1/7 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/7 intermediate ratio, 214/257 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/7 | Output Speed: 214rpm (50Hz) / 257rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DPB 7.5kW 1/8 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/8 intermediate ratio, 188/225 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/8 | Output Speed: 188rpm (50Hz) / 225rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DPB 7.5kW 1/11 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/11 intermediate ratio, 136/164 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/11 | Output Speed: 136rpm (50Hz) / 164rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DPB 7.5kW 1/13 GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/13 intermediate ratio, 115/138 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/13 | Output Speed: 115rpm (50Hz) / 138rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
Geared MotorsMitsubishi Electric
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GM-DP 7.5kW 3-Phase Parallel Shaft Geared Motor (Leg Mount)

Brand Mitsubishi Electric·Geared Motors

Available part numbers (32)

GM-DP 7.5kW 1/3, GM-DP 7.5kW 1/5, GM-DP 7.5kW 1/10, GM-DP 7.5kW 1/15, GM-DP 7.5kW 1/20, GM-DP 7.5kW 1/25, GM-DP 7.5kW 1/30, GM-DP 7.5kW 1/45, GM-DP 7.5kW 1/60, GM-DP 7.5kW 1/90 + 22 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GM-DP 7.5kW 1/3GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/3 ratio, 500/600 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/3 | Output Speed: 500rpm (50Hz) / 600rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/5GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/5 ratio, 300/360 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/5 | Output Speed: 300rpm (50Hz) / 360rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/10GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/10 ratio, 150/180 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/10 | Output Speed: 150rpm (50Hz) / 180rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/15GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/15 ratio, 100/120 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/15 | Output Speed: 100rpm (50Hz) / 120rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/20GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/20 ratio, 75/90 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/20 | Output Speed: 75rpm (50Hz) / 90rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/25GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/25 ratio, 60/72 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/25 | Output Speed: 60rpm (50Hz) / 72rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: N | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/30GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/30 ratio, 50/60 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/30 | Output Speed: 50rpm (50Hz) / 60rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: N | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/45GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/45 ratio, 33/40 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/45 | Output Speed: 33rpm (50Hz) / 40rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: TM | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/60GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/60 ratio, 25/30 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/60 | Output Speed: 25rpm (50Hz) / 30rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: TN | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/90GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/90 ratio, 16.7/20 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/90 | Output Speed: 16.7rpm (50Hz) / 20rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: None | Gear Size: TP | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DP 7.5kW 1/4GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/4 intermediate ratio, 375/450 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/4 | Output Speed: 375rpm (50Hz) / 450rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DP 7.5kW 1/6GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/6 intermediate ratio, 250/300 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/6 | Output Speed: 250rpm (50Hz) / 300rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DP 7.5kW 1/7GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/7 intermediate ratio, 214/257 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/7 | Output Speed: 214rpm (50Hz) / 257rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DP 7.5kW 1/8GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/8 intermediate ratio, 188/225 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/8 | Output Speed: 188rpm (50Hz) / 225rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DP 7.5kW 1/11GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/11 intermediate ratio, 136/164 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/11 | Output Speed: 136rpm (50Hz) / 164rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DP 7.5kW 1/13GM-DP 7.5kW 3-phase parallel shaft geared motor, 1/13 intermediate ratio, 115/138 rpm output, leg mount, without brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/13 | Output Speed: 115rpm (50Hz) / 138rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: None | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DPB 7.5kW 1/3GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/3 ratio, 500/600 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/3 | Output Speed: 500rpm (50Hz) / 600rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/5GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/5 ratio, 300/360 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/5 | Output Speed: 300rpm (50Hz) / 360rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/10GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/10 ratio, 150/180 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/10 | Output Speed: 150rpm (50Hz) / 180rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/15GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/15 ratio, 100/120 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/15 | Output Speed: 100rpm (50Hz) / 120rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/20GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/20 ratio, 75/90 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/20 | Output Speed: 75rpm (50Hz) / 90rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/25GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/25 ratio, 60/72 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/25 | Output Speed: 60rpm (50Hz) / 72rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: N | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/30GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/30 ratio, 50/60 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/30 | Output Speed: 50rpm (50Hz) / 60rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: N | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/45GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/45 ratio, 33/40 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/45 | Output Speed: 33rpm (50Hz) / 40rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: TM | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/60GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/60 ratio, 25/30 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/60 | Output Speed: 25rpm (50Hz) / 30rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: TN | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/90GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/90 ratio, 16.7/20 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/90 | Output Speed: 16.7rpm (50Hz) / 20rpm (60Hz) | Ratio Range: Standard | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: TP | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Stock item
GM-DPB 7.5kW 1/4GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/4 intermediate ratio, 375/450 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/4 | Output Speed: 375rpm (50Hz) / 450rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DPB 7.5kW 1/6GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/6 intermediate ratio, 250/300 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/6 | Output Speed: 250rpm (50Hz) / 300rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DPB 7.5kW 1/7GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/7 intermediate ratio, 214/257 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/7 | Output Speed: 214rpm (50Hz) / 257rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DPB 7.5kW 1/8GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/8 intermediate ratio, 188/225 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/8 | Output Speed: 188rpm (50Hz) / 225rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DPB 7.5kW 1/11GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/11 intermediate ratio, 136/164 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/11 | Output Speed: 136rpm (50Hz) / 164rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
GM-DPB 7.5kW 1/13GM-DPB 7.5kW 3-phase parallel shaft geared motor, 1/13 intermediate ratio, 115/138 rpm output, leg mount, with brake, IE3 | Type: Parallel Shaft Geared Motor | Series: GM-DP | Capacity: 7.5kW | Poles: 4P | Phase: 3-Phase | Voltage: 200/200/220V 50/60/60Hz | Reduction Ratio: 1/13 | Output Speed: 115rpm (50Hz) / 138rpm (60Hz) | Ratio Range: Intermediate | Mount: Leg | Brake: Built-in Electromagnetic Brake | Gear Size: M | Service Factor: 1.4 | Efficiency Class: IE3 | Availability: Made-to-order
