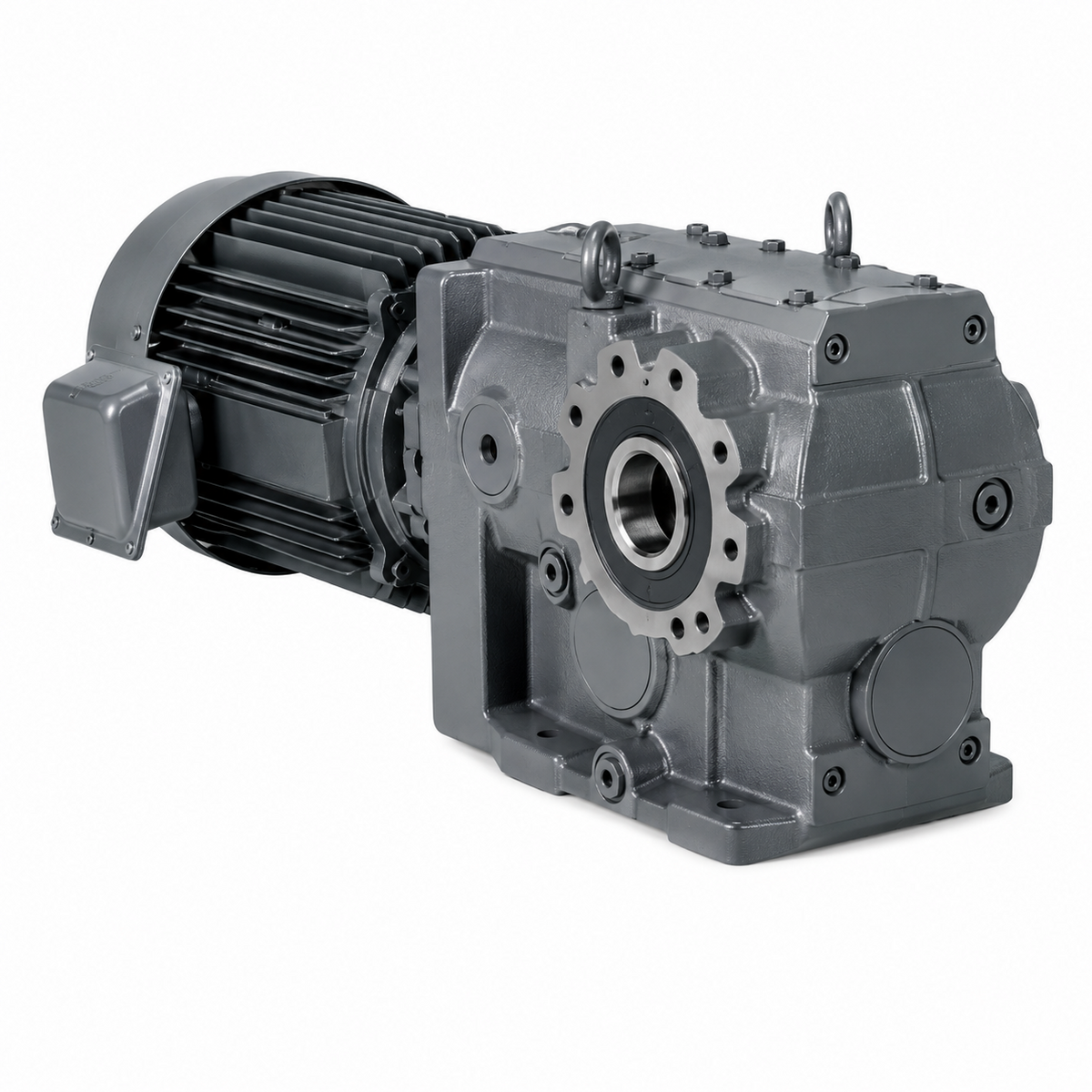

Mitsubishi Electric GM-DYPMB Hypoid Right-Angle Geared Motor (3.7-11kW, Foot Mount, Brake, SF1.4)

Mitsubishi Electric GM-DYPMB Hypoid Right-Angle Geared Motor (3.7-11kW, Foot Mount, Brake, SF1.4)

Mitsubishi Electric GM-DYPMB large-frame hypoid right-angle geared motor, 3.7 to 11kW, foot mount, service factor 1.4.

Key features

  • Reduction ratios 1/15 to 1/100 with output speeds 18 to 120 r/min at 60Hz
  • Heavy-duty hypoid gearing for high-torque right-angle drives in conveyors, mixers and process machinery. 3-phase 200/200/220V (400/400/440V option), 4-pole, oil-lubricated, insulation class 130(B), hollow output shaft, IP44 indoor, horizontal installation
  • Built-in brake (low-noise type 3.7-7.5kW, long-life type 11kW) for load holding
  • Solid output shaft (R) and outdoor variants available on request
  • Ships without oil; fill recommended lubricant

Specifications

Series GM-DYP
Type Right-Angle Hypoid (large frame)
Service Factor 1.4
Shaft Hollow shaft (standard); solid (R) on request
Mount Foot mount
Poles 4P
Phase 3-phase
Voltage 200/200/220V (50/60/60Hz); 400/400/440V option
Lubrication Oil (ships without oil; fill recommended lubricant)
Installation Horizontal
Protection IP44 (indoor)
Availability Made-to-order
GM-DYPMB 3.7kW 1/15 GM-DYPMB 3.7kW 1/15, foot mount, hollow shaft, gear size 34, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/15 | Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 34 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/20 GM-DYPMB 3.7kW 1/20, foot mount, hollow shaft, gear size 34, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/20 | Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 34 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/25 GM-DYPMB 3.7kW 1/25, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/25 | Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/30 GM-DYPMB 3.7kW 1/30, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/30 | Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/40 GM-DYPMB 3.7kW 1/40, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/40 | Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/50 GM-DYPMB 3.7kW 1/50, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/50 | Output Speed: 36 r/min (60Hz) / 30 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/60 GM-DYPMB 3.7kW 1/60, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/60 | Output Speed: 30 r/min (60Hz) / 25 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/80 GM-DYPMB 3.7kW 1/80, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/80 | Output Speed: 22.5 r/min (60Hz) / 18.8 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/100 GM-DYPMB 3.7kW 1/100, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/100 | Output Speed: 18 r/min (60Hz) / 15 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/15 GM-DYPMB 5.5kW 1/15, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/15 | Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/20 GM-DYPMB 5.5kW 1/20, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/20 | Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/25 GM-DYPMB 5.5kW 1/25, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/25 | Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/30 GM-DYPMB 5.5kW 1/30, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/30 | Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/40 GM-DYPMB 5.5kW 1/40, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/40 | Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/50 GM-DYPMB 5.5kW 1/50, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/50 | Output Speed: 36 r/min (60Hz) / 30 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/60 GM-DYPMB 5.5kW 1/60, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/60 | Output Speed: 30 r/min (60Hz) / 25 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/80 GM-DYPMB 5.5kW 1/80, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/80 | Output Speed: 22.5 r/min (60Hz) / 18.8 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 7.5kW 1/15 GM-DYPMB 7.5kW 1/15, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 7.5kW | Reduction Ratio: 1/15 | Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 7.5kW 1/20 GM-DYPMB 7.5kW 1/20, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 7.5kW | Reduction Ratio: 1/20 | Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 7.5kW 1/25 GM-DYPMB 7.5kW 1/25, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 7.5kW | Reduction Ratio: 1/25 | Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 7.5kW 1/30 GM-DYPMB 7.5kW 1/30, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 7.5kW | Reduction Ratio: 1/30 | Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 7.5kW 1/40 GM-DYPMB 7.5kW 1/40, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 7.5kW | Reduction Ratio: 1/40 | Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 7.5kW 1/50 GM-DYPMB 7.5kW 1/50, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 7.5kW | Reduction Ratio: 1/50 | Output Speed: 36 r/min (60Hz) / 30 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 7.5kW 1/60 GM-DYPMB 7.5kW 1/60, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 7.5kW | Reduction Ratio: 1/60 | Output Speed: 30 r/min (60Hz) / 25 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 11kW 1/15 GM-DYPMB 11kW 1/15, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in long-life type | Output: 11kW | Reduction Ratio: 1/15 | Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 11kW 1/20 GM-DYPMB 11kW 1/20, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in long-life type | Output: 11kW | Reduction Ratio: 1/20 | Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 11kW 1/25 GM-DYPMB 11kW 1/25, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in long-life type | Output: 11kW | Reduction Ratio: 1/25 | Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 11kW 1/30 GM-DYPMB 11kW 1/30, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in long-life type | Output: 11kW | Reduction Ratio: 1/30 | Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 11kW 1/40 GM-DYPMB 11kW 1/40, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in long-life type | Output: 11kW | Reduction Ratio: 1/40 | Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
Geared MotorsMitsubishi Electric
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GM-DYPMB Hypoid Right-Angle Geared Motor (3.7-11kW, Foot Mount, Brake, SF1.4)

Brand Mitsubishi Electric·Geared Motors

Available part numbers (29)

GM-DYPMB 3.7kW 1/15, GM-DYPMB 3.7kW 1/20, GM-DYPMB 3.7kW 1/25, GM-DYPMB 3.7kW 1/30, GM-DYPMB 3.7kW 1/40, GM-DYPMB 3.7kW 1/50, GM-DYPMB 3.7kW 1/60, GM-DYPMB 3.7kW 1/80, GM-DYPMB 3.7kW 1/100, GM-DYPMB 5.5kW 1/15 + 19 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GM-DYPMB 3.7kW 1/15GM-DYPMB 3.7kW 1/15, foot mount, hollow shaft, gear size 34, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/15 | Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 34 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/20GM-DYPMB 3.7kW 1/20, foot mount, hollow shaft, gear size 34, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/20 | Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 34 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/25GM-DYPMB 3.7kW 1/25, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/25 | Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/30GM-DYPMB 3.7kW 1/30, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/30 | Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/40GM-DYPMB 3.7kW 1/40, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/40 | Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/50GM-DYPMB 3.7kW 1/50, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/50 | Output Speed: 36 r/min (60Hz) / 30 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/60GM-DYPMB 3.7kW 1/60, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/60 | Output Speed: 30 r/min (60Hz) / 25 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/80GM-DYPMB 3.7kW 1/80, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/80 | Output Speed: 22.5 r/min (60Hz) / 18.8 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 3.7kW 1/100GM-DYPMB 3.7kW 1/100, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 3.7kW | Reduction Ratio: 1/100 | Output Speed: 18 r/min (60Hz) / 15 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/15GM-DYPMB 5.5kW 1/15, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/15 | Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/20GM-DYPMB 5.5kW 1/20, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/20 | Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/25GM-DYPMB 5.5kW 1/25, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/25 | Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/30GM-DYPMB 5.5kW 1/30, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/30 | Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/40GM-DYPMB 5.5kW 1/40, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/40 | Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/50GM-DYPMB 5.5kW 1/50, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/50 | Output Speed: 36 r/min (60Hz) / 30 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/60GM-DYPMB 5.5kW 1/60, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/60 | Output Speed: 30 r/min (60Hz) / 25 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 5.5kW 1/80GM-DYPMB 5.5kW 1/80, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 5.5kW | Reduction Ratio: 1/80 | Output Speed: 22.5 r/min (60Hz) / 18.8 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 7.5kW 1/15GM-DYPMB 7.5kW 1/15, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 7.5kW | Reduction Ratio: 1/15 | Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 7.5kW 1/20GM-DYPMB 7.5kW 1/20, foot mount, hollow shaft, gear size 44, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 7.5kW | Reduction Ratio: 1/20 | Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 44 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 7.5kW 1/25GM-DYPMB 7.5kW 1/25, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 7.5kW | Reduction Ratio: 1/25 | Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 7.5kW 1/30GM-DYPMB 7.5kW 1/30, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 7.5kW | Reduction Ratio: 1/30 | Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 7.5kW 1/40GM-DYPMB 7.5kW 1/40, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 7.5kW | Reduction Ratio: 1/40 | Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 7.5kW 1/50GM-DYPMB 7.5kW 1/50, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 7.5kW | Reduction Ratio: 1/50 | Output Speed: 36 r/min (60Hz) / 30 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 7.5kW 1/60GM-DYPMB 7.5kW 1/60, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in low-noise type | Output: 7.5kW | Reduction Ratio: 1/60 | Output Speed: 30 r/min (60Hz) / 25 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 11kW 1/15GM-DYPMB 11kW 1/15, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in long-life type | Output: 11kW | Reduction Ratio: 1/15 | Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 11kW 1/20GM-DYPMB 11kW 1/20, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in long-life type | Output: 11kW | Reduction Ratio: 1/20 | Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 11kW 1/25GM-DYPMB 11kW 1/25, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in long-life type | Output: 11kW | Reduction Ratio: 1/25 | Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 11kW 1/30GM-DYPMB 11kW 1/30, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in long-life type | Output: 11kW | Reduction Ratio: 1/30 | Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
GM-DYPMB 11kW 1/40GM-DYPMB 11kW 1/40, foot mount, hollow shaft, gear size 54, brake | Series: GM-DYP | Type: Right-Angle Hypoid (large frame) | Service Factor: 1.4 | Shaft: Hollow shaft (standard); solid (R) on request | Mount: Foot mount | Brake: Built-in long-life type | Output: 11kW | Reduction Ratio: 1/40 | Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz); 400/400/440V option | Gear Size: 54 | Lubrication: Oil (ships without oil; fill recommended lubricant) | Installation: Horizontal | Protection: IP44 (indoor) | Availability: Made-to-order
