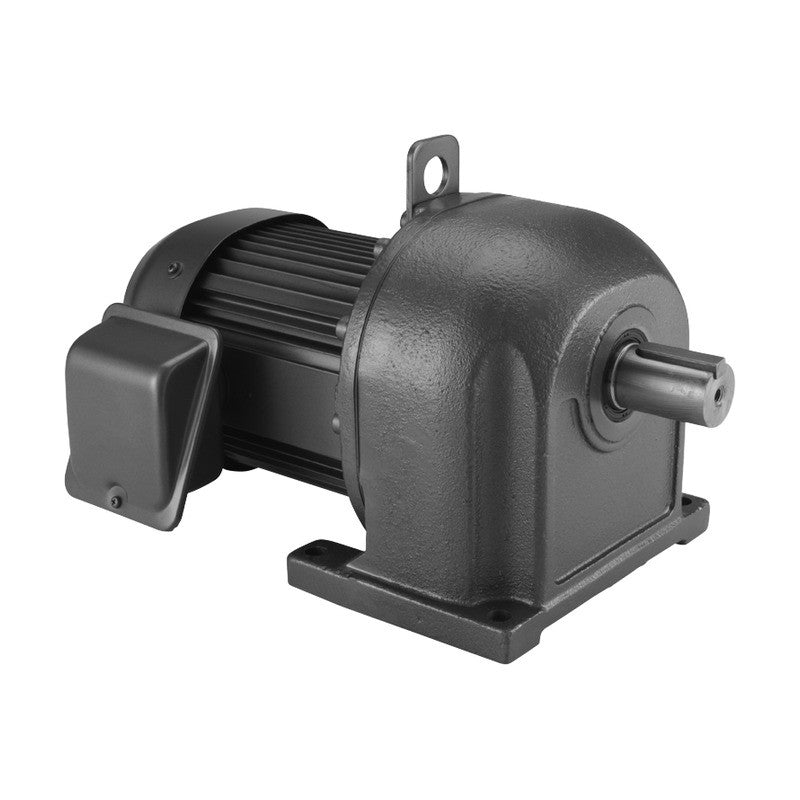

Mitsubishi Electric GM-DZY Gearmotor for PLG Feedback Control (0.4kW)

Mitsubishi Electric GM-DZY Gearmotor for PLG Feedback Control (0.4kW)

0.4 kW parallel-shaft geared motor with built-in PLG (encoder) for high-accuracy inverter speed control.

Key features

  • PLG feedback control with an inverter gives speed accuracy within +/-0.2% (at 1800 r/min)
  • Wide speed range 3 to 120 Hz (grease-lubricated series)
  • Reduction ratio 1/3 to 1/200
  • PLG 1024 pulses, DC5V supply; recommended inverter FR-A800 with FR-A8AP
  • 0.75-7.5 kW GM-DP and 11-22 kW GM-LJP can also be supplied for PLG feedback control

Specifications

Application Inverter drive with PLG feedback
PLG pulses 1024 p/rev
PLG supply DC5V
Lubrication Grease (filled at factory)
Usable frequency 3-120Hz
Availability Made to order
Output range 0.4kW
Source Mitsubishi Electric Geared Motor General Catalogue GM-56-F, p. 75-78
GM-DZY 0.4kW 1/3 Model: GM-DZY | Output: 0.4kW | Ratio: 1/3 | Brake: No | Gear size: D
GM-DZY 0.4kW 1/5 Model: GM-DZY | Output: 0.4kW | Ratio: 1/5 | Brake: No | Gear size: D
GM-DZY 0.4kW 1/10 Model: GM-DZY | Output: 0.4kW | Ratio: 1/10 | Brake: No | Gear size: D
GM-DZY 0.4kW 1/15 Model: GM-DZY | Output: 0.4kW | Ratio: 1/15 | Brake: No | Gear size: D
GM-DZY 0.4kW 1/20 Model: GM-DZY | Output: 0.4kW | Ratio: 1/20 | Brake: No | Gear size: D
GM-DZY 0.4kW 1/25 Model: GM-DZY | Output: 0.4kW | Ratio: 1/25 | Brake: No | Gear size: D
GM-DZY 0.4kW 1/30 Model: GM-DZY | Output: 0.4kW | Ratio: 1/30 | Brake: No | Gear size: D
GM-DZY 0.4kW 1/40 Model: GM-DZY | Output: 0.4kW | Ratio: 1/40 | Brake: No | Gear size: E
GM-DZY 0.4kW 1/50 Model: GM-DZY | Output: 0.4kW | Ratio: 1/50 | Brake: No | Gear size: E
GM-DZY 0.4kW 1/60 Model: GM-DZY | Output: 0.4kW | Ratio: 1/60 | Brake: No | Gear size: G
GM-DZY 0.4kW 1/80 Model: GM-DZY | Output: 0.4kW | Ratio: 1/80 | Brake: No | Gear size: G
GM-DZY 0.4kW 1/100 Model: GM-DZY | Output: 0.4kW | Ratio: 1/100 | Brake: No | Gear size: G
GM-DZY 0.4kW 1/120 Model: GM-DZY | Output: 0.4kW | Ratio: 1/120 | Brake: No | Gear size: J
GM-DZY 0.4kW 1/160 Model: GM-DZY | Output: 0.4kW | Ratio: 1/160 | Brake: No | Gear size: J
GM-DZY 0.4kW 1/200 Model: GM-DZY | Output: 0.4kW | Ratio: 1/200 | Brake: No | Gear size: J
Geared MotorsMitsubishi Electric
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GM-DZY Gearmotor for PLG Feedback Control (0.4kW)

Brand Mitsubishi Electric·Geared Motors

Available part numbers (15)

GM-DZY 0.4kW 1/3, GM-DZY 0.4kW 1/5, GM-DZY 0.4kW 1/10, GM-DZY 0.4kW 1/15, GM-DZY 0.4kW 1/20, GM-DZY 0.4kW 1/25, GM-DZY 0.4kW 1/30, GM-DZY 0.4kW 1/40, GM-DZY 0.4kW 1/50, GM-DZY 0.4kW 1/60 + 5 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GM-DZY 0.4kW 1/3Model: GM-DZY | Output: 0.4kW | Ratio: 1/3 | Brake: No | Gear size: D
GM-DZY 0.4kW 1/5Model: GM-DZY | Output: 0.4kW | Ratio: 1/5 | Brake: No | Gear size: D
GM-DZY 0.4kW 1/10Model: GM-DZY | Output: 0.4kW | Ratio: 1/10 | Brake: No | Gear size: D
GM-DZY 0.4kW 1/15Model: GM-DZY | Output: 0.4kW | Ratio: 1/15 | Brake: No | Gear size: D
GM-DZY 0.4kW 1/20Model: GM-DZY | Output: 0.4kW | Ratio: 1/20 | Brake: No | Gear size: D
GM-DZY 0.4kW 1/25Model: GM-DZY | Output: 0.4kW | Ratio: 1/25 | Brake: No | Gear size: D
GM-DZY 0.4kW 1/30Model: GM-DZY | Output: 0.4kW | Ratio: 1/30 | Brake: No | Gear size: D
GM-DZY 0.4kW 1/40Model: GM-DZY | Output: 0.4kW | Ratio: 1/40 | Brake: No | Gear size: E
GM-DZY 0.4kW 1/50Model: GM-DZY | Output: 0.4kW | Ratio: 1/50 | Brake: No | Gear size: E
GM-DZY 0.4kW 1/60Model: GM-DZY | Output: 0.4kW | Ratio: 1/60 | Brake: No | Gear size: G
GM-DZY 0.4kW 1/80Model: GM-DZY | Output: 0.4kW | Ratio: 1/80 | Brake: No | Gear size: G
GM-DZY 0.4kW 1/100Model: GM-DZY | Output: 0.4kW | Ratio: 1/100 | Brake: No | Gear size: G
GM-DZY 0.4kW 1/120Model: GM-DZY | Output: 0.4kW | Ratio: 1/120 | Brake: No | Gear size: J
GM-DZY 0.4kW 1/160Model: GM-DZY | Output: 0.4kW | Ratio: 1/160 | Brake: No | Gear size: J
GM-DZY 0.4kW 1/200Model: GM-DZY | Output: 0.4kW | Ratio: 1/200 | Brake: No | Gear size: J
