• Mitsubishi Electric GM-SHYTX Flameproof Inverter Hypoid Geared Motor
1 1

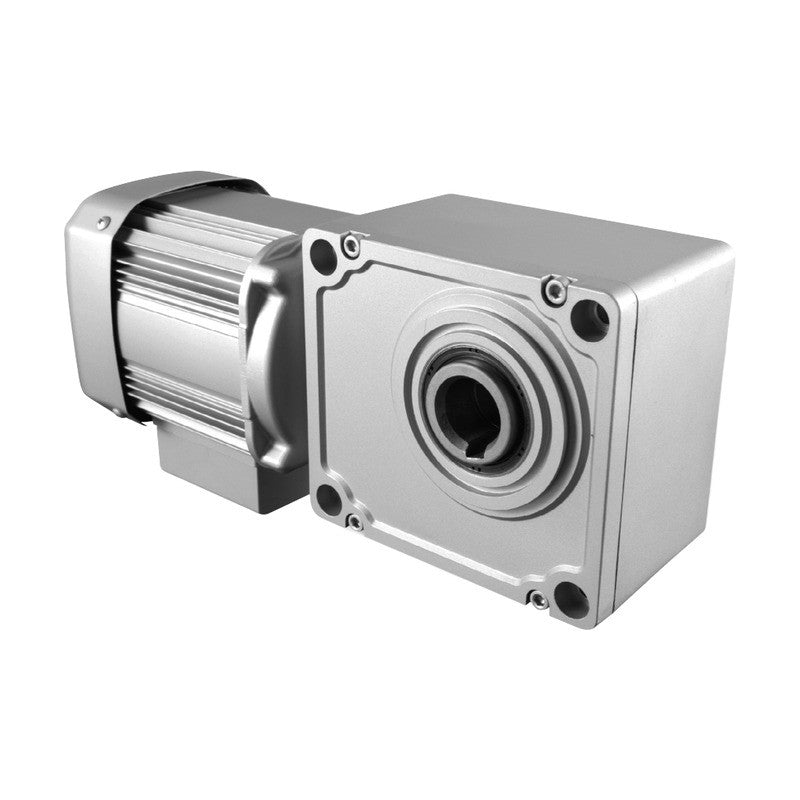

Mitsubishi Electric GM-SHYTX Flameproof Inverter Hypoid Geared Motor

Mitsubishi Electric GM-SHYTX Flameproof Inverter Hypoid Geared Motor

Flameproof right-angle hypoid geared motor for reduced-torque V/F inverter drive, 0.2 to 0.75 kW.

Key features

  • Must be used with the certified flameproof inverter FR-B series
  • Reduced-torque V/F characteristic, usable 6-120 Hz
  • Reduction ratio 1/5 to 1/240
  • Flameproof d2G4; no brake version; 0.1 kW not available
  • Dimensions on request

Specifications

Explosion protection Flameproof d2G4
Control V/F, reduced torque
Combined inverter FR-B series
Gearing Right angle, hypoid
Availability Made to order
Output range 0.2kW-0.75kW
Source Mitsubishi Electric Geared Motor General Catalogue GM-56-F, p. 83-86
GM-SHYTX 0.2kW 1/5 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/5 | Brake: No | Gear size: AT
GM-SHYTX 0.2kW 1/7.5 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/7.5 | Brake: No | Gear size: AT
GM-SHYTX 0.2kW 1/10 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/10 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/12.5 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/12.5 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/15 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/15 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/20 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/20 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/25 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/25 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/30 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/30 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/40 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/40 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/50 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/50 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/60 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/60 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/80 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/80 | Brake: No | Gear size: BT
GM-SHYTX 0.2kW 1/100 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/100 | Brake: No | Gear size: BT
GM-SHYTX 0.2kW 1/120 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/120 | Brake: No | Gear size: BT
GM-SHYTX 0.2kW 1/160 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/160 | Brake: No | Gear size: BT
GM-SHYTX 0.2kW 1/200 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/200 | Brake: No | Gear size: BT
GM-SHYTX 0.2kW 1/240 Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/240 | Brake: No | Gear size: BT
GM-SHYTX 0.4kW 1/5 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/5 | Brake: No | Gear size: BT
GM-SHYTX 0.4kW 1/7.5 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/7.5 | Brake: No | Gear size: BT
GM-SHYTX 0.4kW 1/10 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/10 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/12.5 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/12.5 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/15 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/15 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/20 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/20 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/25 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/25 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/30 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/30 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/40 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/40 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/50 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/50 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/60 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/60 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/80 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/80 | Brake: No | Gear size: CT
GM-SHYTX 0.4kW 1/100 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/100 | Brake: No | Gear size: CT
GM-SHYTX 0.4kW 1/120 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/120 | Brake: No | Gear size: CT
GM-SHYTX 0.4kW 1/160 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/160 | Brake: No | Gear size: CT
GM-SHYTX 0.4kW 1/200 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/200 | Brake: No | Gear size: CT
GM-SHYTX 0.4kW 1/240 Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/240 | Brake: No | Gear size: CT
GM-SHYTX 0.75kW 1/5 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/5 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/7.5 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/7.5 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/10 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/10 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/12.5 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/12.5 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/15 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/15 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/20 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/20 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/25 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/25 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/30 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/30 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/40 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/40 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/50 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/50 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/60 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/60 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/80 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/80 | Brake: No | Gear size: DT
GM-SHYTX 0.75kW 1/100 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/100 | Brake: No | Gear size: DT
GM-SHYTX 0.75kW 1/120 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/120 | Brake: No | Gear size: DT
GM-SHYTX 0.75kW 1/160 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/160 | Brake: No | Gear size: DT
GM-SHYTX 0.75kW 1/200 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/200 | Brake: No | Gear size: DT
GM-SHYTX 0.75kW 1/240 Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/240 | Brake: No | Gear size: DT
Geared MotorsMitsubishi Electric
51 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GM-SHYTX Flameproof Inverter Hypoid Geared Motor

Brand Mitsubishi Electric·Geared Motors

Available part numbers (51)

GM-SHYTX 0.2kW 1/5, GM-SHYTX 0.2kW 1/7.5, GM-SHYTX 0.2kW 1/10, GM-SHYTX 0.2kW 1/12.5, GM-SHYTX 0.2kW 1/15, GM-SHYTX 0.2kW 1/20, GM-SHYTX 0.2kW 1/25, GM-SHYTX 0.2kW 1/30, GM-SHYTX 0.2kW 1/40, GM-SHYTX 0.2kW 1/50 + 41 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GM-SHYTX 0.2kW 1/5Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/5 | Brake: No | Gear size: AT
GM-SHYTX 0.2kW 1/7.5Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/7.5 | Brake: No | Gear size: AT
GM-SHYTX 0.2kW 1/10Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/10 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/12.5Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/12.5 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/15Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/15 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/20Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/20 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/25Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/25 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/30Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/30 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/40Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/40 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/50Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/50 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/60Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/60 | Brake: No | Gear size: A
GM-SHYTX 0.2kW 1/80Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/80 | Brake: No | Gear size: BT
GM-SHYTX 0.2kW 1/100Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/100 | Brake: No | Gear size: BT
GM-SHYTX 0.2kW 1/120Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/120 | Brake: No | Gear size: BT
GM-SHYTX 0.2kW 1/160Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/160 | Brake: No | Gear size: BT
GM-SHYTX 0.2kW 1/200Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/200 | Brake: No | Gear size: BT
GM-SHYTX 0.2kW 1/240Model: GM-SHYTX | Output: 0.2kW | Ratio: 1/240 | Brake: No | Gear size: BT
GM-SHYTX 0.4kW 1/5Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/5 | Brake: No | Gear size: BT
GM-SHYTX 0.4kW 1/7.5Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/7.5 | Brake: No | Gear size: BT
GM-SHYTX 0.4kW 1/10Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/10 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/12.5Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/12.5 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/15Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/15 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/20Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/20 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/25Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/25 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/30Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/30 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/40Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/40 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/50Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/50 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/60Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/60 | Brake: No | Gear size: B
GM-SHYTX 0.4kW 1/80Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/80 | Brake: No | Gear size: CT
GM-SHYTX 0.4kW 1/100Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/100 | Brake: No | Gear size: CT
GM-SHYTX 0.4kW 1/120Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/120 | Brake: No | Gear size: CT
GM-SHYTX 0.4kW 1/160Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/160 | Brake: No | Gear size: CT
GM-SHYTX 0.4kW 1/200Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/200 | Brake: No | Gear size: CT
GM-SHYTX 0.4kW 1/240Model: GM-SHYTX | Output: 0.4kW | Ratio: 1/240 | Brake: No | Gear size: CT
GM-SHYTX 0.75kW 1/5Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/5 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/7.5Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/7.5 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/10Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/10 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/12.5Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/12.5 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/15Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/15 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/20Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/20 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/25Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/25 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/30Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/30 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/40Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/40 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/50Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/50 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/60Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/60 | Brake: No | Gear size: C
GM-SHYTX 0.75kW 1/80Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/80 | Brake: No | Gear size: DT
GM-SHYTX 0.75kW 1/100Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/100 | Brake: No | Gear size: DT
GM-SHYTX 0.75kW 1/120Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/120 | Brake: No | Gear size: DT
GM-SHYTX 0.75kW 1/160Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/160 | Brake: No | Gear size: DT
GM-SHYTX 0.75kW 1/200Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/200 | Brake: No | Gear size: DT
GM-SHYTX 0.75kW 1/240Model: GM-SHYTX | Output: 0.75kW | Ratio: 1/240 | Brake: No | Gear size: DT
