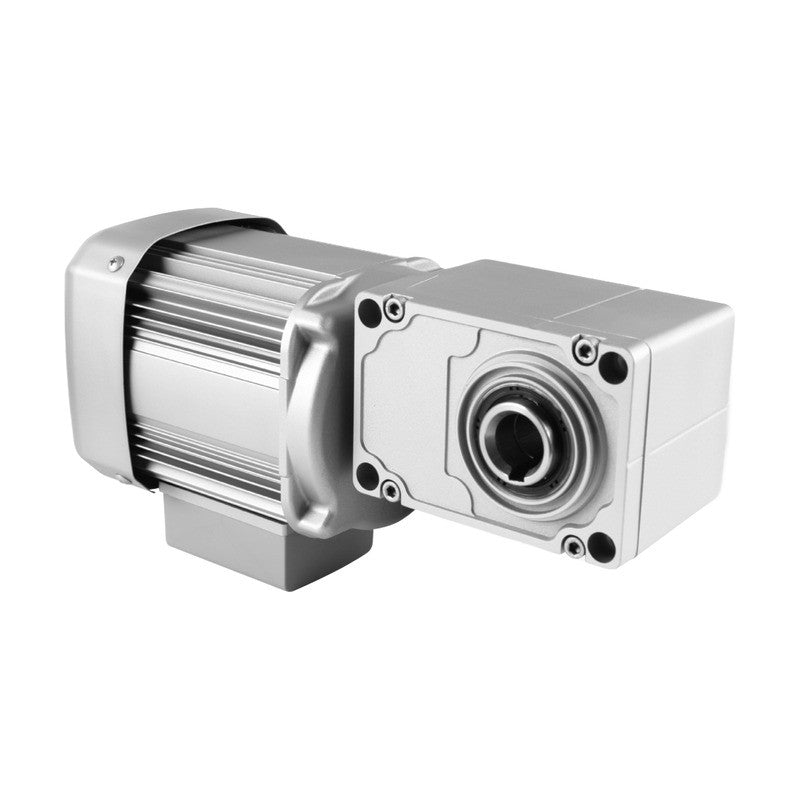

Mitsubishi Electric GM-SSY2 IE2 Right-Angle Geared Motor (0.2-0.4kW)

Mitsubishi Electric GM-SSY2 IE2 Right-Angle Geared Motor (0.2-0.4kW)

IE2 high-efficiency (EU) version of the GM-SSY right-angle hollow-shaft geared motor, 0.2 and 0.4 kW.

Key features

  • Complies with the European high-efficiency regulation (IE2) applied from 1 July 2021
  • Reduction ratio 1/7.5 to 1/60
  • Frame 63 (0.2 kW) / 71 (0.4 kW); terminal block connection
  • Flange, leg-mount and brake versions can be manufactured as listed for the series
  • For China GB3 (IE3) use the premium GM-SP/DP/SSYP/SHYP models (0.75 kW and above)

Specifications

Efficiency IE2 (EU regulation, from July 2021)
Voltage 200/200/220V 50/60/60Hz (400V opt.)
Poles 4P
Insulation class 130 (B)
Lead wires 3, terminal block connection
Availability Made to order
Gearing Right angle, Super Heli-Cross
Output range 0.2kW-0.4kW
Source Mitsubishi Electric Geared Motor General Catalogue GM-56-F, p. 109-111
GM-SSY2 0.2kW 1/7.5 Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/7.5 | Brake: No | Gear size: 20
GM-SSY2 0.2kW 1/10 Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/10 | Brake: No | Gear size: 20
GM-SSY2 0.2kW 1/12.5 Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/12.5 | Brake: No | Gear size: 20
GM-SSY2 0.2kW 1/15 Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/15 | Brake: No | Gear size: 20
GM-SSY2 0.2kW 1/20 Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/20 | Brake: No | Gear size: 20
GM-SSY2 0.2kW 1/25 Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/25 | Brake: No | Gear size: 20
GM-SSY2 0.2kW 1/30 Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/30 | Brake: No | Gear size: 20
GM-SSY2 0.2kW 1/40 Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/40 | Brake: No | Gear size: 25
GM-SSY2 0.2kW 1/50 Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/50 | Brake: No | Gear size: 25
GM-SSY2 0.2kW 1/60 Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/60 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/7.5 Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/7.5 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/10 Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/10 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/12.5 Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/12.5 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/15 Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/15 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/20 Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/20 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/25 Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/25 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/30 Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/30 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/40 Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/40 | Brake: No | Gear size: 30
GM-SSY2 0.4kW 1/50 Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/50 | Brake: No | Gear size: 30
GM-SSY2 0.4kW 1/60 Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/60 | Brake: No | Gear size: 30
Geared MotorsMitsubishi Electric
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GM-SSY2 IE2 Right-Angle Geared Motor (0.2-0.4kW)

Brand Mitsubishi Electric·Geared Motors

Available part numbers (20)

GM-SSY2 0.2kW 1/7.5, GM-SSY2 0.2kW 1/10, GM-SSY2 0.2kW 1/12.5, GM-SSY2 0.2kW 1/15, GM-SSY2 0.2kW 1/20, GM-SSY2 0.2kW 1/25, GM-SSY2 0.2kW 1/30, GM-SSY2 0.2kW 1/40, GM-SSY2 0.2kW 1/50, GM-SSY2 0.2kW 1/60 + 10 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GM-SSY2 0.2kW 1/7.5Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/7.5 | Brake: No | Gear size: 20
GM-SSY2 0.2kW 1/10Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/10 | Brake: No | Gear size: 20
GM-SSY2 0.2kW 1/12.5Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/12.5 | Brake: No | Gear size: 20
GM-SSY2 0.2kW 1/15Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/15 | Brake: No | Gear size: 20
GM-SSY2 0.2kW 1/20Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/20 | Brake: No | Gear size: 20
GM-SSY2 0.2kW 1/25Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/25 | Brake: No | Gear size: 20
GM-SSY2 0.2kW 1/30Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/30 | Brake: No | Gear size: 20
GM-SSY2 0.2kW 1/40Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/40 | Brake: No | Gear size: 25
GM-SSY2 0.2kW 1/50Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/50 | Brake: No | Gear size: 25
GM-SSY2 0.2kW 1/60Model: GM-SSY2 | Output: 0.2kW | Ratio: 1/60 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/7.5Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/7.5 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/10Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/10 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/12.5Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/12.5 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/15Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/15 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/20Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/20 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/25Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/25 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/30Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/30 | Brake: No | Gear size: 25
GM-SSY2 0.4kW 1/40Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/40 | Brake: No | Gear size: 30
GM-SSY2 0.4kW 1/50Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/50 | Brake: No | Gear size: 30
GM-SSY2 0.4kW 1/60Model: GM-SSY2 | Output: 0.4kW | Ratio: 1/60 | Brake: No | Gear size: 30
