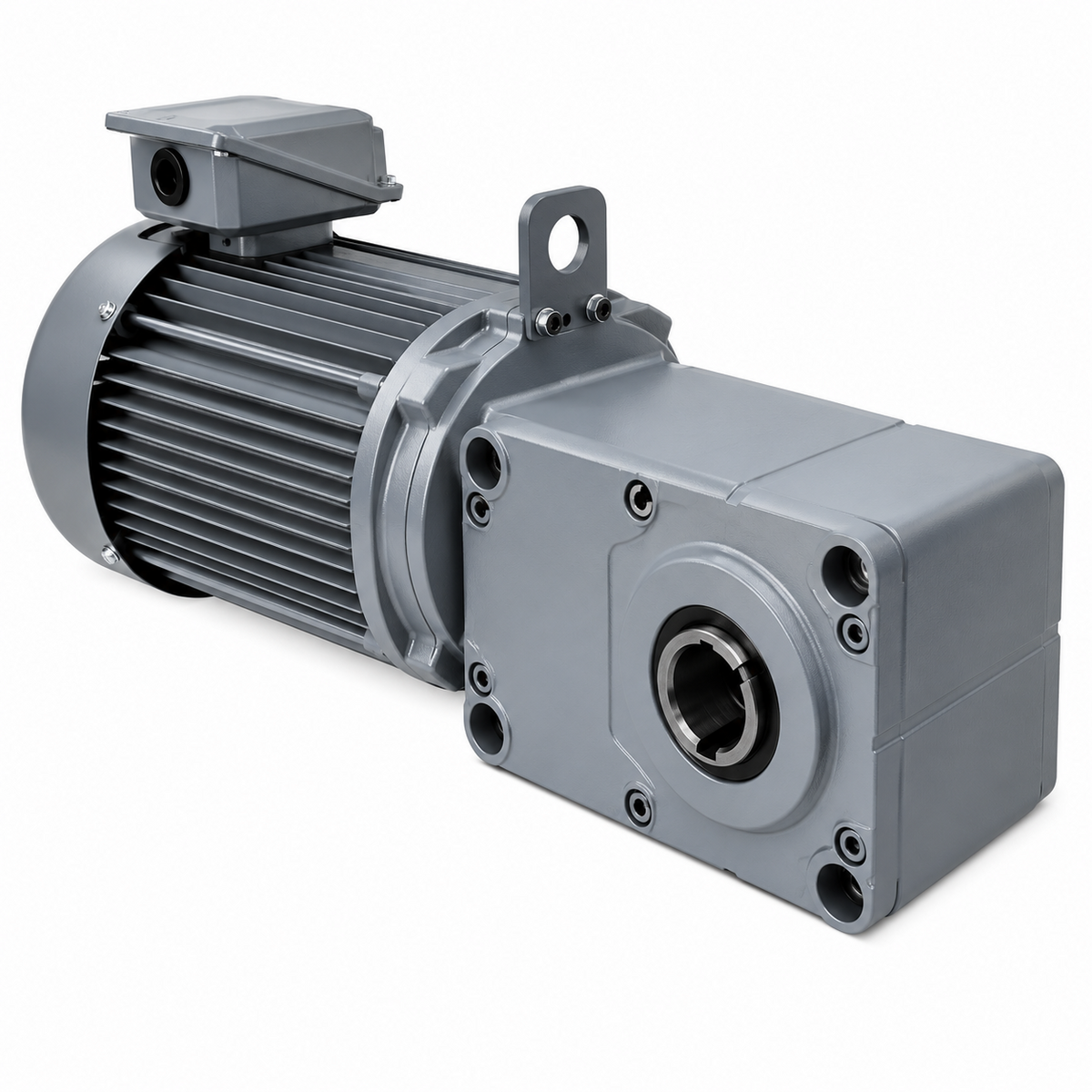

Mitsubishi Electric GM-SSYPFB Super Heli-Cross Right-Angle Geared Motor with Brake (0.75-2.2kW, Hollow Shaft, SF1.0)

Mitsubishi Electric GM-SSYPFB Super Heli-Cross Right-Angle Geared Motor with Brake (0.75-2.2kW, Hollow Shaft, SF1.0)

Mitsubishi Electric GM-SSYP Super Heli-Cross right-angle hollow-shaft geared motor, 0.75 to 2.2kW, service factor 1.0.

Key features

  • Reduction ratios 1/7.5 to 1/60 with output speeds 30 to 240 r/min at 60Hz
  • Higher-capacity right-angle drive with flange/face-common mounting for conveyors and general machinery. 3-phase 200/200/220V, 4-pole, grease-lubricated, insulation class 130(B), enclosure IP44 indoor
  • Built-in DC spring-applied brake for load holding
  • Waterproof (W/P) variant available on request

Specifications

Series GM-SSYP
Type Right-Angle Shaft (Super Heli-Cross)
Service Factor 1.0
Shaft Hollow shaft
Mount Flange / face mount (common)
Brake Built-in DC spring-applied
Poles 4P
Phase 3-phase
Voltage 200/200/220V (50/60/60Hz)
Lubrication Grease (factory-filled)
Enclosure Totally-enclosed fan-cooled (TEFC)
Protection IP44 (indoor)
GM-SSYPFB 0.75kW 1/7.5 GM-SSYPFB 0.75kW 1/7.5, hollow shaft, flange/face mount, gear size 30, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/7.5 | Output Speed: 240 r/min (60Hz) / 200 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 30 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/10 GM-SSYPFB 0.75kW 1/10, hollow shaft, flange/face mount, gear size 30, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/10 | Output Speed: 180 r/min (60Hz) / 150 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 30 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/12.5 GM-SSYPFB 0.75kW 1/12.5, hollow shaft, flange/face mount, gear size 30, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/12.5 | Output Speed: 144 r/min (60Hz) / 120 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 30 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/15 GM-SSYPFB 0.75kW 1/15, hollow shaft, flange/face mount, gear size 30, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/15 | Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 30 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/20 GM-SSYPFB 0.75kW 1/20, hollow shaft, flange/face mount, gear size 30, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/20 | Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 30 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/25 GM-SSYPFB 0.75kW 1/25, hollow shaft, flange/face mount, gear size 30, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/25 | Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 30 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/30 GM-SSYPFB 0.75kW 1/30, hollow shaft, flange/face mount, gear size 30, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/30 | Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 30 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/40 GM-SSYPFB 0.75kW 1/40, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/40 | Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/50 GM-SSYPFB 0.75kW 1/50, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/50 | Output Speed: 36 r/min (60Hz) / 30 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/60 GM-SSYPFB 0.75kW 1/60, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/60 | Output Speed: 30 r/min (60Hz) / 25 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 1.5kW 1/7.5 GM-SSYPFB 1.5kW 1/7.5, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Reduction Ratio: 1/7.5 | Output Speed: 240 r/min (60Hz) / 200 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 1.5kW 1/10 GM-SSYPFB 1.5kW 1/10, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Reduction Ratio: 1/10 | Output Speed: 180 r/min (60Hz) / 150 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 1.5kW 1/12.5 GM-SSYPFB 1.5kW 1/12.5, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Reduction Ratio: 1/12.5 | Output Speed: 144 r/min (60Hz) / 120 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 1.5kW 1/15 GM-SSYPFB 1.5kW 1/15, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Reduction Ratio: 1/15 | Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 1.5kW 1/20 GM-SSYPFB 1.5kW 1/20, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Reduction Ratio: 1/20 | Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 1.5kW 1/25 GM-SSYPFB 1.5kW 1/25, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Reduction Ratio: 1/25 | Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 1.5kW 1/30 GM-SSYPFB 1.5kW 1/30, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Reduction Ratio: 1/30 | Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 2.2kW 1/7.5 GM-SSYPFB 2.2kW 1/7.5, hollow shaft, flange/face mount, gear size 45, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 2.2kW | Reduction Ratio: 1/7.5 | Output Speed: 240 r/min (60Hz) / 200 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 45 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 2.2kW 1/10 GM-SSYPFB 2.2kW 1/10, hollow shaft, flange/face mount, gear size 45, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 2.2kW | Reduction Ratio: 1/10 | Output Speed: 180 r/min (60Hz) / 150 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 45 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 2.2kW 1/12.5 GM-SSYPFB 2.2kW 1/12.5, hollow shaft, flange/face mount, gear size 45, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 2.2kW | Reduction Ratio: 1/12.5 | Output Speed: 144 r/min (60Hz) / 120 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 45 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 2.2kW 1/15 GM-SSYPFB 2.2kW 1/15, hollow shaft, flange/face mount, gear size 45, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 2.2kW | Reduction Ratio: 1/15 | Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 45 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 2.2kW 1/20 GM-SSYPFB 2.2kW 1/20, hollow shaft, flange/face mount, gear size 45, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 2.2kW | Reduction Ratio: 1/20 | Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 45 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 2.2kW 1/25 GM-SSYPFB 2.2kW 1/25, hollow shaft, flange/face mount, gear size 45, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 2.2kW | Reduction Ratio: 1/25 | Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 45 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 2.2kW 1/30 GM-SSYPFB 2.2kW 1/30, hollow shaft, flange/face mount, gear size 45, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 2.2kW | Reduction Ratio: 1/30 | Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 45 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
Geared MotorsMitsubishi Electric
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GM-SSYPFB Super Heli-Cross Right-Angle Geared Motor with Brake (0.75-2.2kW, Hollow Shaft, SF1.0)

Brand Mitsubishi Electric·Geared Motors

Available part numbers (24)

GM-SSYPFB 0.75kW 1/7.5, GM-SSYPFB 0.75kW 1/10, GM-SSYPFB 0.75kW 1/12.5, GM-SSYPFB 0.75kW 1/15, GM-SSYPFB 0.75kW 1/20, GM-SSYPFB 0.75kW 1/25, GM-SSYPFB 0.75kW 1/30, GM-SSYPFB 0.75kW 1/40, GM-SSYPFB 0.75kW 1/50, GM-SSYPFB 0.75kW 1/60 + 14 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GM-SSYPFB 0.75kW 1/7.5GM-SSYPFB 0.75kW 1/7.5, hollow shaft, flange/face mount, gear size 30, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/7.5 | Output Speed: 240 r/min (60Hz) / 200 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 30 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/10GM-SSYPFB 0.75kW 1/10, hollow shaft, flange/face mount, gear size 30, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/10 | Output Speed: 180 r/min (60Hz) / 150 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 30 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/12.5GM-SSYPFB 0.75kW 1/12.5, hollow shaft, flange/face mount, gear size 30, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/12.5 | Output Speed: 144 r/min (60Hz) / 120 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 30 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/15GM-SSYPFB 0.75kW 1/15, hollow shaft, flange/face mount, gear size 30, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/15 | Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 30 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/20GM-SSYPFB 0.75kW 1/20, hollow shaft, flange/face mount, gear size 30, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/20 | Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 30 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/25GM-SSYPFB 0.75kW 1/25, hollow shaft, flange/face mount, gear size 30, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/25 | Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 30 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/30GM-SSYPFB 0.75kW 1/30, hollow shaft, flange/face mount, gear size 30, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/30 | Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 30 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/40GM-SSYPFB 0.75kW 1/40, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/40 | Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/50GM-SSYPFB 0.75kW 1/50, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/50 | Output Speed: 36 r/min (60Hz) / 30 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 0.75kW 1/60GM-SSYPFB 0.75kW 1/60, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.75kW | Reduction Ratio: 1/60 | Output Speed: 30 r/min (60Hz) / 25 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 1.5kW 1/7.5GM-SSYPFB 1.5kW 1/7.5, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Reduction Ratio: 1/7.5 | Output Speed: 240 r/min (60Hz) / 200 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 1.5kW 1/10GM-SSYPFB 1.5kW 1/10, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Reduction Ratio: 1/10 | Output Speed: 180 r/min (60Hz) / 150 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 1.5kW 1/12.5GM-SSYPFB 1.5kW 1/12.5, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Reduction Ratio: 1/12.5 | Output Speed: 144 r/min (60Hz) / 120 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 1.5kW 1/15GM-SSYPFB 1.5kW 1/15, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Reduction Ratio: 1/15 | Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 1.5kW 1/20GM-SSYPFB 1.5kW 1/20, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Reduction Ratio: 1/20 | Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 1.5kW 1/25GM-SSYPFB 1.5kW 1/25, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Reduction Ratio: 1/25 | Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 1.5kW 1/30GM-SSYPFB 1.5kW 1/30, hollow shaft, flange/face mount, gear size 35, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Reduction Ratio: 1/30 | Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 35 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 2.2kW 1/7.5GM-SSYPFB 2.2kW 1/7.5, hollow shaft, flange/face mount, gear size 45, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 2.2kW | Reduction Ratio: 1/7.5 | Output Speed: 240 r/min (60Hz) / 200 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 45 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 2.2kW 1/10GM-SSYPFB 2.2kW 1/10, hollow shaft, flange/face mount, gear size 45, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 2.2kW | Reduction Ratio: 1/10 | Output Speed: 180 r/min (60Hz) / 150 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 45 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 2.2kW 1/12.5GM-SSYPFB 2.2kW 1/12.5, hollow shaft, flange/face mount, gear size 45, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 2.2kW | Reduction Ratio: 1/12.5 | Output Speed: 144 r/min (60Hz) / 120 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 45 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 2.2kW 1/15GM-SSYPFB 2.2kW 1/15, hollow shaft, flange/face mount, gear size 45, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 2.2kW | Reduction Ratio: 1/15 | Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 45 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 2.2kW 1/20GM-SSYPFB 2.2kW 1/20, hollow shaft, flange/face mount, gear size 45, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 2.2kW | Reduction Ratio: 1/20 | Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 45 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 2.2kW 1/25GM-SSYPFB 2.2kW 1/25, hollow shaft, flange/face mount, gear size 45, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 2.2kW | Reduction Ratio: 1/25 | Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 45 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
GM-SSYPFB 2.2kW 1/30GM-SSYPFB 2.2kW 1/30, hollow shaft, flange/face mount, gear size 45, brake | Series: GM-SSYP | Type: Right-Angle Shaft (Super Heli-Cross) | Service Factor: 1.0 | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 2.2kW | Reduction Ratio: 1/30 | Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) | Poles: 4P | Phase: 3-phase | Voltage: 200/200/220V (50/60/60Hz) | Gear Size: 45 | Lubrication: Grease (factory-filled) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Protection: IP44 (indoor) | Availability: Short-delivery made-to-order (consult for 10+ units/order)
