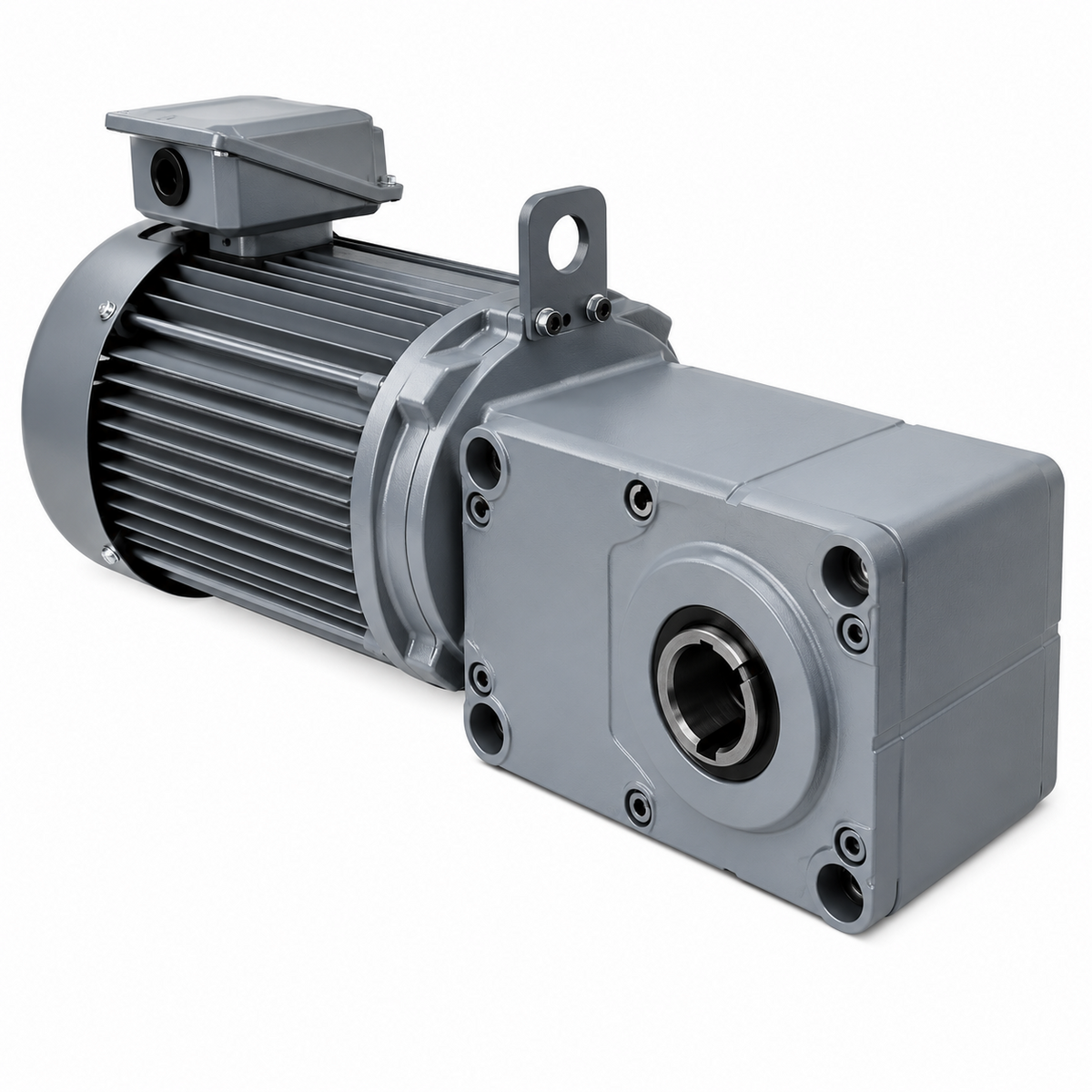

• Mitsubishi Electric GM-SSYZ 0.2kW Constant-Torque Geared Motor for V/F Inverter Drive (Right-Angle Super Heli-Cross, Leg Mount)
1 1

Mitsubishi Electric GM-SSYZ 0.2kW Constant-Torque Geared Motor for V/F Inverter Drive (Right-Angle Super Heli-Cross, Leg Mount)

Mitsubishi Electric GM-SSYZ 0.2kW Constant-Torque Geared Motor for V/F Inverter Drive (Right-Angle Super Heli-Cross, Leg Mount)

Mitsubishi Electric GM-SSYZ 0.2kW constant-torque geared motor for V/F inverter control, right-angle super heli-cross type with leg mounting.

Key features

  • Delivers 100 percent rated torque across a 1:10 speed range (6-60Hz) without derating, with constant-output characteristics above 60Hz - ideal for conveyors, hoists, and other constant-torque loads
  • Usable frequency range 3-120Hz (base 60Hz). 10 reduction ratios 1/7.5-1/60, 4-pole, 200/220V 60/60Hz inverter-drive power, insulation class 130(B), grease lubrication (factory filled), indoor type with 3 lead-out wires
  • Recommended inverters: FR-A800, FR-E700, FR-D700 series (select one frame size larger inverter capacity for this output)
  • All models made-to-order
  • Flange and brake versions manufacturable on request (brake shipped with separate brake wiring)
  • Semi-standard: 400/440V 60/60Hz, outdoor type, terminal box assembly, one-touch manual release brake

Specifications

Output 0.2kW
Torque Characteristic Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz
Usable Frequency 3-120Hz (base 60Hz)
Power Supply 200/220V 60/60Hz (inverter drive only)
Poles 4P
Insulation 130(B)
Mount Leg
Recommended Inverter FR-A800 / FR-E700 / FR-D700 (one frame size up)
Lubrication Grease (factory filled)
Lead Wires 3
Protection Indoor (outdoor semi-standard)
Options Flange type - brake type on request
GM-SSYZ 0.2kW 1/7.5 GM-SSYZ 0.2kW ratio 1/7.5 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/7.5 | Gear Size: 20 | Output Speed 60Hz: 240r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/10 GM-SSYZ 0.2kW ratio 1/10 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/10 | Gear Size: 20 | Output Speed 60Hz: 180r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/12.5 GM-SSYZ 0.2kW ratio 1/12.5 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/12.5 | Gear Size: 20 | Output Speed 60Hz: 144r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/15 GM-SSYZ 0.2kW ratio 1/15 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/15 | Gear Size: 20 | Output Speed 60Hz: 120r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/20 GM-SSYZ 0.2kW ratio 1/20 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/20 | Gear Size: 20 | Output Speed 60Hz: 90r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/25 GM-SSYZ 0.2kW ratio 1/25 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/25 | Gear Size: 20 | Output Speed 60Hz: 72r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/30 GM-SSYZ 0.2kW ratio 1/30 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/30 | Gear Size: 20 | Output Speed 60Hz: 60r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/40 GM-SSYZ 0.2kW ratio 1/40 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/40 | Gear Size: 25 | Output Speed 60Hz: 45r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/50 GM-SSYZ 0.2kW ratio 1/50 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/50 | Gear Size: 25 | Output Speed 60Hz: 36r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/60 GM-SSYZ 0.2kW ratio 1/60 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/60 | Gear Size: 25 | Output Speed 60Hz: 30r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
Geared MotorsMitsubishi Electric
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GM-SSYZ 0.2kW Constant-Torque Geared Motor for V/F Inverter Drive (Right-Angle Super Heli-Cross, Leg Mount)

Brand Mitsubishi Electric·Geared Motors

Available part numbers (10)

GM-SSYZ 0.2kW 1/7.5, GM-SSYZ 0.2kW 1/10, GM-SSYZ 0.2kW 1/12.5, GM-SSYZ 0.2kW 1/15, GM-SSYZ 0.2kW 1/20, GM-SSYZ 0.2kW 1/25, GM-SSYZ 0.2kW 1/30, GM-SSYZ 0.2kW 1/40, GM-SSYZ 0.2kW 1/50, GM-SSYZ 0.2kW 1/60

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GM-SSYZ 0.2kW 1/7.5GM-SSYZ 0.2kW ratio 1/7.5 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/7.5 | Gear Size: 20 | Output Speed 60Hz: 240r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/10GM-SSYZ 0.2kW ratio 1/10 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/10 | Gear Size: 20 | Output Speed 60Hz: 180r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/12.5GM-SSYZ 0.2kW ratio 1/12.5 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/12.5 | Gear Size: 20 | Output Speed 60Hz: 144r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/15GM-SSYZ 0.2kW ratio 1/15 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/15 | Gear Size: 20 | Output Speed 60Hz: 120r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/20GM-SSYZ 0.2kW ratio 1/20 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/20 | Gear Size: 20 | Output Speed 60Hz: 90r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/25GM-SSYZ 0.2kW ratio 1/25 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/25 | Gear Size: 20 | Output Speed 60Hz: 72r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/30GM-SSYZ 0.2kW ratio 1/30 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/30 | Gear Size: 20 | Output Speed 60Hz: 60r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/40GM-SSYZ 0.2kW ratio 1/40 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/40 | Gear Size: 25 | Output Speed 60Hz: 45r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/50GM-SSYZ 0.2kW ratio 1/50 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/50 | Gear Size: 25 | Output Speed 60Hz: 36r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
GM-SSYZ 0.2kW 1/60GM-SSYZ 0.2kW ratio 1/60 constant-torque V/F inverter drive, leg mount | Output: 0.2kW | Nominal Ratio: 1/60 | Gear Size: 25 | Output Speed 60Hz: 30r/min | Torque Characteristic: Constant torque 100 percent over 6-60Hz (1:10) - constant output above 60Hz | Usable Frequency: 3-120Hz (base 60Hz) | Power Supply: 200/220V 60/60Hz (inverter drive only) | Poles: 4P | Insulation: 130(B) | Mount: Leg | Recommended Inverter: FR-A800 / FR-E700 / FR-D700 (one frame size up) | Lubrication: Grease (factory filled) | Lead Wires: 3 | Protection: Indoor (outdoor semi-standard) | Options: Flange type - brake type on request | Availability: Made-to-order
