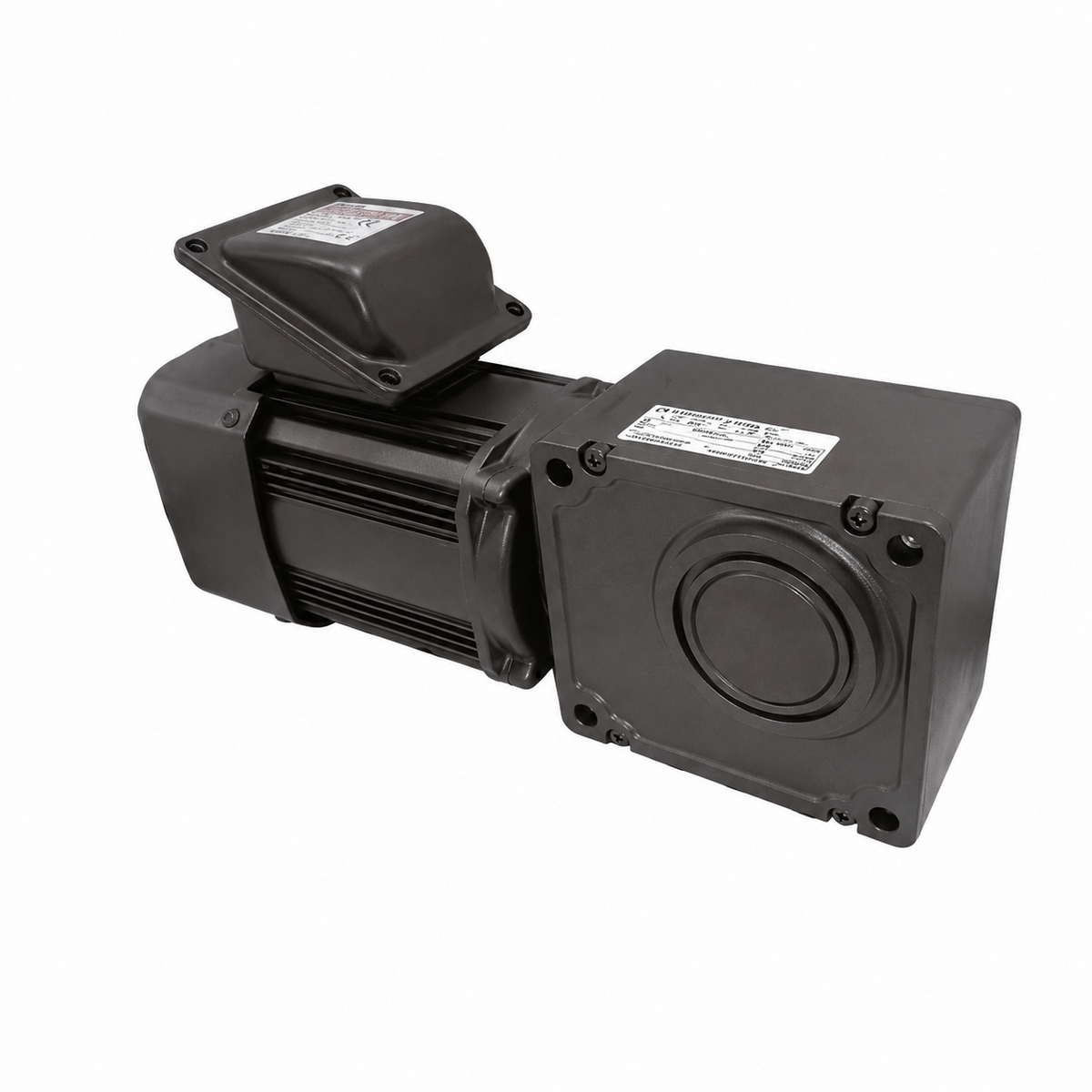

Mitsubishi Electric GV-SHYF 0.2kW 400V Class S-PM Sensorless Servo Geared Motor (Right-Angle Hypoid, Flange/Face Mount, without Brake)

Mitsubishi Electric GV-SHYF 0.2kW 400V Class S-PM Sensorless Servo Geared Motor (Right-Angle Hypoid, Flange/Face Mount, without Brake)

Mitsubishi Electric GV-SHYF 0.2kW 400V class S-PM sensorless servo geared motor, right-angle hypoid type with flange/face mounting, without brake.

Key features

  • Combines an S-PM permanent magnet motor with Mitsubishi PM sensorless vector control for high-accuracy speed regulation under load fluctuation without an encoder
  • Motor rated speed 3000r/min, 25 reduction ratios 1/5-1/1440, permissible output shaft torque 2.5-349Nm
  • Requires dedicated drive unit FR-D740-0.4K-G (3-phase 380-480V 50/60Hz input; direct commercial power connection is not possible). 4P motor, TENV enclosure, indoor IP44, grease lubrication, insulation class 130(B), continuous rating
  • Semi-standard options: outdoor type, tropical treatment, one-touch manual release brake

Specifications

Voltage Class 400V (drive input 3-phase 380-480V 50/60Hz)
Output 0.2kW
Motor Rated Voltage 300V
Motor Rated Current 0.5A
Poles 4P
Motor Rated Frequency 100Hz
Motor Speed 3000r/min
Drive Unit FR-D740-0.4K-G
Power Supply Capacity 0.9kVA
Mount Flange/Face
Brake None
Shaft Hollow shaft (standard); solid (RR/RL) on request
GV-SHYF 0.2kW 1/5 400V GV-SHYF 0.2kW ratio 1/5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/5 | Actual Ratio: 1/5.13 | Output Shaft Speed: 600r/min | Permissible Output Torque: 2.5Nm | Permissible Overhang Load: 1170N | Permissible Thrust Load: 235N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/7.5 400V GV-SHYF 0.2kW ratio 1/7.5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/7.5 | Actual Ratio: 1/7.81 | Output Shaft Speed: 400r/min | Permissible Output Torque: 3.9Nm | Permissible Overhang Load: 1170N | Permissible Thrust Load: 235N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/10 400V GV-SHYF 0.2kW ratio 1/10 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/10 | Actual Ratio: 1/10.24 | Output Shaft Speed: 300r/min | Permissible Output Torque: 5.2Nm | Permissible Overhang Load: 1170N | Permissible Thrust Load: 235N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/12.5 400V GV-SHYF 0.2kW ratio 1/12.5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/12.5 | Actual Ratio: 1/13.05 | Output Shaft Speed: 240r/min | Permissible Output Torque: 6.6Nm | Permissible Overhang Load: 1170N | Permissible Thrust Load: 235N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/15 400V GV-SHYF 0.2kW ratio 1/15 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/15 | Actual Ratio: 1/15.22 | Output Shaft Speed: 200r/min | Permissible Output Torque: 7.8Nm | Permissible Overhang Load: 1370N | Permissible Thrust Load: 275N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/20 400V GV-SHYF 0.2kW ratio 1/20 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/20 | Actual Ratio: 1/20.65 | Output Shaft Speed: 150r/min | Permissible Output Torque: 11Nm | Permissible Overhang Load: 1560N | Permissible Thrust Load: 314N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/25 400V GV-SHYF 0.2kW ratio 1/25 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/25 | Actual Ratio: 1/25.83 | Output Shaft Speed: 120r/min | Permissible Output Torque: 13Nm | Permissible Overhang Load: 1660N | Permissible Thrust Load: 334N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/30 400V GV-SHYF 0.2kW ratio 1/30 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/30 | Actual Ratio: 1/31.00 | Output Shaft Speed: 100r/min | Permissible Output Torque: 16Nm | Permissible Overhang Load: 1760N | Permissible Thrust Load: 353N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/40 400V GV-SHYF 0.2kW ratio 1/40 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/40 | Actual Ratio: 1/40.73 | Output Shaft Speed: 75r/min | Permissible Output Torque: 21Nm | Permissible Overhang Load: 1860N | Permissible Thrust Load: 372N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/50 400V GV-SHYF 0.2kW ratio 1/50 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/50 | Actual Ratio: 1/51.67 | Output Shaft Speed: 60r/min | Permissible Output Torque: 26Nm | Permissible Overhang Load: 2050N | Permissible Thrust Load: 412N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/60 400V GV-SHYF 0.2kW ratio 1/60 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/60 | Actual Ratio: 1/61.14 | Output Shaft Speed: 50r/min | Permissible Output Torque: 31Nm | Permissible Overhang Load: 2150N | Permissible Thrust Load: 431N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/80 400V GV-SHYF 0.2kW ratio 1/80 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/80 | Actual Ratio: 1/82.52 | Output Shaft Speed: 37.5r/min | Permissible Output Torque: 41Nm | Permissible Overhang Load: 2350N | Permissible Thrust Load: 470N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/100 400V GV-SHYF 0.2kW ratio 1/100 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/100 | Actual Ratio: 1/99.98 | Output Shaft Speed: 30r/min | Permissible Output Torque: 50Nm | Permissible Overhang Load: 2540N | Permissible Thrust Load: 510N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/120 400V GV-SHYF 0.2kW ratio 1/120 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/120 | Actual Ratio: 1/124.41 | Output Shaft Speed: 25r/min | Permissible Output Torque: 62Nm | Permissible Overhang Load: 2540N | Permissible Thrust Load: 510N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/160 400V GV-SHYF 0.2kW ratio 1/160 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/160 | Actual Ratio: 1/162.75 | Output Shaft Speed: 18.8r/min | Permissible Output Torque: 81Nm | Permissible Overhang Load: 2740N | Permissible Thrust Load: 549N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/200 400V GV-SHYF 0.2kW ratio 1/200 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/200 | Actual Ratio: 1/202.53 | Output Shaft Speed: 15r/min | Permissible Output Torque: 99Nm (torque-limited) | Permissible Overhang Load: 2740N | Permissible Thrust Load: 549N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/240 400V GV-SHYF 0.2kW ratio 1/240 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/240 | Actual Ratio: 1/229.06 | Output Shaft Speed: 12.5r/min | Permissible Output Torque: 99Nm (torque-limited) | Permissible Overhang Load: 2740N | Permissible Thrust Load: 549N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/300 400V GV-SHYF 0.2kW ratio 1/300 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/300 | Actual Ratio: 1/294.71 | Output Shaft Speed: 10r/min | Permissible Output Torque: 141Nm | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/360 400V GV-SHYF 0.2kW ratio 1/360 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/360 | Actual Ratio: 1/358.31 | Output Shaft Speed: 8.3r/min | Permissible Output Torque: 171Nm | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/480 400V GV-SHYF 0.2kW ratio 1/480 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/480 | Actual Ratio: 1/478.03 | Output Shaft Speed: 6.3r/min | Permissible Output Torque: 228Nm | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/560 400V GV-SHYF 0.2kW ratio 1/560 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/560 | Actual Ratio: 1/561.83 | Output Shaft Speed: 5.4r/min | Permissible Output Torque: 268Nm | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/750 400V GV-SHYF 0.2kW ratio 1/750 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/750 | Actual Ratio: 1/739.91 | Output Shaft Speed: 4r/min | Permissible Output Torque: 349Nm (torque-limited) | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/900 400V GV-SHYF 0.2kW ratio 1/900 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/900 | Actual Ratio: 1/911.65 | Output Shaft Speed: 3.3r/min | Permissible Output Torque: 349Nm (torque-limited) | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/1200 400V GV-SHYF 0.2kW ratio 1/1200 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/1200 | Actual Ratio: 1/1215.53 | Output Shaft Speed: 2.5r/min | Permissible Output Torque: 349Nm (torque-limited) | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/1440 400V GV-SHYF 0.2kW ratio 1/1440 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/1440 | Actual Ratio: 1/1370.99 | Output Shaft Speed: 2.1r/min | Permissible Output Torque: 349Nm (torque-limited) | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
Sensorless Servo Geared MotorsMitsubishi Electric
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GV-SHYF 0.2kW 400V Class S-PM Sensorless Servo Geared Motor (Right-Angle Hypoid, Flange/Face Mount, without Brake)

Brand Mitsubishi Electric·Sensorless Servo Geared Motors

Available part numbers (25)

GV-SHYF 0.2kW 1/5 400V, GV-SHYF 0.2kW 1/7.5 400V, GV-SHYF 0.2kW 1/10 400V, GV-SHYF 0.2kW 1/12.5 400V, GV-SHYF 0.2kW 1/15 400V, GV-SHYF 0.2kW 1/20 400V, GV-SHYF 0.2kW 1/25 400V, GV-SHYF 0.2kW 1/30 400V, GV-SHYF 0.2kW 1/40 400V, GV-SHYF 0.2kW 1/50 400V + 15 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GV-SHYF 0.2kW 1/5 400VGV-SHYF 0.2kW ratio 1/5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/5 | Actual Ratio: 1/5.13 | Output Shaft Speed: 600r/min | Permissible Output Torque: 2.5Nm | Permissible Overhang Load: 1170N | Permissible Thrust Load: 235N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/7.5 400VGV-SHYF 0.2kW ratio 1/7.5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/7.5 | Actual Ratio: 1/7.81 | Output Shaft Speed: 400r/min | Permissible Output Torque: 3.9Nm | Permissible Overhang Load: 1170N | Permissible Thrust Load: 235N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/10 400VGV-SHYF 0.2kW ratio 1/10 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/10 | Actual Ratio: 1/10.24 | Output Shaft Speed: 300r/min | Permissible Output Torque: 5.2Nm | Permissible Overhang Load: 1170N | Permissible Thrust Load: 235N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/12.5 400VGV-SHYF 0.2kW ratio 1/12.5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/12.5 | Actual Ratio: 1/13.05 | Output Shaft Speed: 240r/min | Permissible Output Torque: 6.6Nm | Permissible Overhang Load: 1170N | Permissible Thrust Load: 235N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/15 400VGV-SHYF 0.2kW ratio 1/15 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/15 | Actual Ratio: 1/15.22 | Output Shaft Speed: 200r/min | Permissible Output Torque: 7.8Nm | Permissible Overhang Load: 1370N | Permissible Thrust Load: 275N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/20 400VGV-SHYF 0.2kW ratio 1/20 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/20 | Actual Ratio: 1/20.65 | Output Shaft Speed: 150r/min | Permissible Output Torque: 11Nm | Permissible Overhang Load: 1560N | Permissible Thrust Load: 314N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/25 400VGV-SHYF 0.2kW ratio 1/25 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/25 | Actual Ratio: 1/25.83 | Output Shaft Speed: 120r/min | Permissible Output Torque: 13Nm | Permissible Overhang Load: 1660N | Permissible Thrust Load: 334N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/30 400VGV-SHYF 0.2kW ratio 1/30 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/30 | Actual Ratio: 1/31.00 | Output Shaft Speed: 100r/min | Permissible Output Torque: 16Nm | Permissible Overhang Load: 1760N | Permissible Thrust Load: 353N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/40 400VGV-SHYF 0.2kW ratio 1/40 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/40 | Actual Ratio: 1/40.73 | Output Shaft Speed: 75r/min | Permissible Output Torque: 21Nm | Permissible Overhang Load: 1860N | Permissible Thrust Load: 372N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/50 400VGV-SHYF 0.2kW ratio 1/50 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/50 | Actual Ratio: 1/51.67 | Output Shaft Speed: 60r/min | Permissible Output Torque: 26Nm | Permissible Overhang Load: 2050N | Permissible Thrust Load: 412N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/60 400VGV-SHYF 0.2kW ratio 1/60 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/60 | Actual Ratio: 1/61.14 | Output Shaft Speed: 50r/min | Permissible Output Torque: 31Nm | Permissible Overhang Load: 2150N | Permissible Thrust Load: 431N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/80 400VGV-SHYF 0.2kW ratio 1/80 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/80 | Actual Ratio: 1/82.52 | Output Shaft Speed: 37.5r/min | Permissible Output Torque: 41Nm | Permissible Overhang Load: 2350N | Permissible Thrust Load: 470N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/100 400VGV-SHYF 0.2kW ratio 1/100 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/100 | Actual Ratio: 1/99.98 | Output Shaft Speed: 30r/min | Permissible Output Torque: 50Nm | Permissible Overhang Load: 2540N | Permissible Thrust Load: 510N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/120 400VGV-SHYF 0.2kW ratio 1/120 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/120 | Actual Ratio: 1/124.41 | Output Shaft Speed: 25r/min | Permissible Output Torque: 62Nm | Permissible Overhang Load: 2540N | Permissible Thrust Load: 510N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/160 400VGV-SHYF 0.2kW ratio 1/160 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/160 | Actual Ratio: 1/162.75 | Output Shaft Speed: 18.8r/min | Permissible Output Torque: 81Nm | Permissible Overhang Load: 2740N | Permissible Thrust Load: 549N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/200 400VGV-SHYF 0.2kW ratio 1/200 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/200 | Actual Ratio: 1/202.53 | Output Shaft Speed: 15r/min | Permissible Output Torque: 99Nm (torque-limited) | Permissible Overhang Load: 2740N | Permissible Thrust Load: 549N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/240 400VGV-SHYF 0.2kW ratio 1/240 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/240 | Actual Ratio: 1/229.06 | Output Shaft Speed: 12.5r/min | Permissible Output Torque: 99Nm (torque-limited) | Permissible Overhang Load: 2740N | Permissible Thrust Load: 549N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/300 400VGV-SHYF 0.2kW ratio 1/300 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/300 | Actual Ratio: 1/294.71 | Output Shaft Speed: 10r/min | Permissible Output Torque: 141Nm | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/360 400VGV-SHYF 0.2kW ratio 1/360 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/360 | Actual Ratio: 1/358.31 | Output Shaft Speed: 8.3r/min | Permissible Output Torque: 171Nm | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/480 400VGV-SHYF 0.2kW ratio 1/480 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/480 | Actual Ratio: 1/478.03 | Output Shaft Speed: 6.3r/min | Permissible Output Torque: 228Nm | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/560 400VGV-SHYF 0.2kW ratio 1/560 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/560 | Actual Ratio: 1/561.83 | Output Shaft Speed: 5.4r/min | Permissible Output Torque: 268Nm | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/750 400VGV-SHYF 0.2kW ratio 1/750 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/750 | Actual Ratio: 1/739.91 | Output Shaft Speed: 4r/min | Permissible Output Torque: 349Nm (torque-limited) | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/900 400VGV-SHYF 0.2kW ratio 1/900 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/900 | Actual Ratio: 1/911.65 | Output Shaft Speed: 3.3r/min | Permissible Output Torque: 349Nm (torque-limited) | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/1200 400VGV-SHYF 0.2kW ratio 1/1200 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/1200 | Actual Ratio: 1/1215.53 | Output Shaft Speed: 2.5r/min | Permissible Output Torque: 349Nm (torque-limited) | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 0.2kW 1/1440 400VGV-SHYF 0.2kW ratio 1/1440 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/1440 | Actual Ratio: 1/1370.99 | Output Shaft Speed: 2.1r/min | Permissible Output Torque: 349Nm (torque-limited) | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
