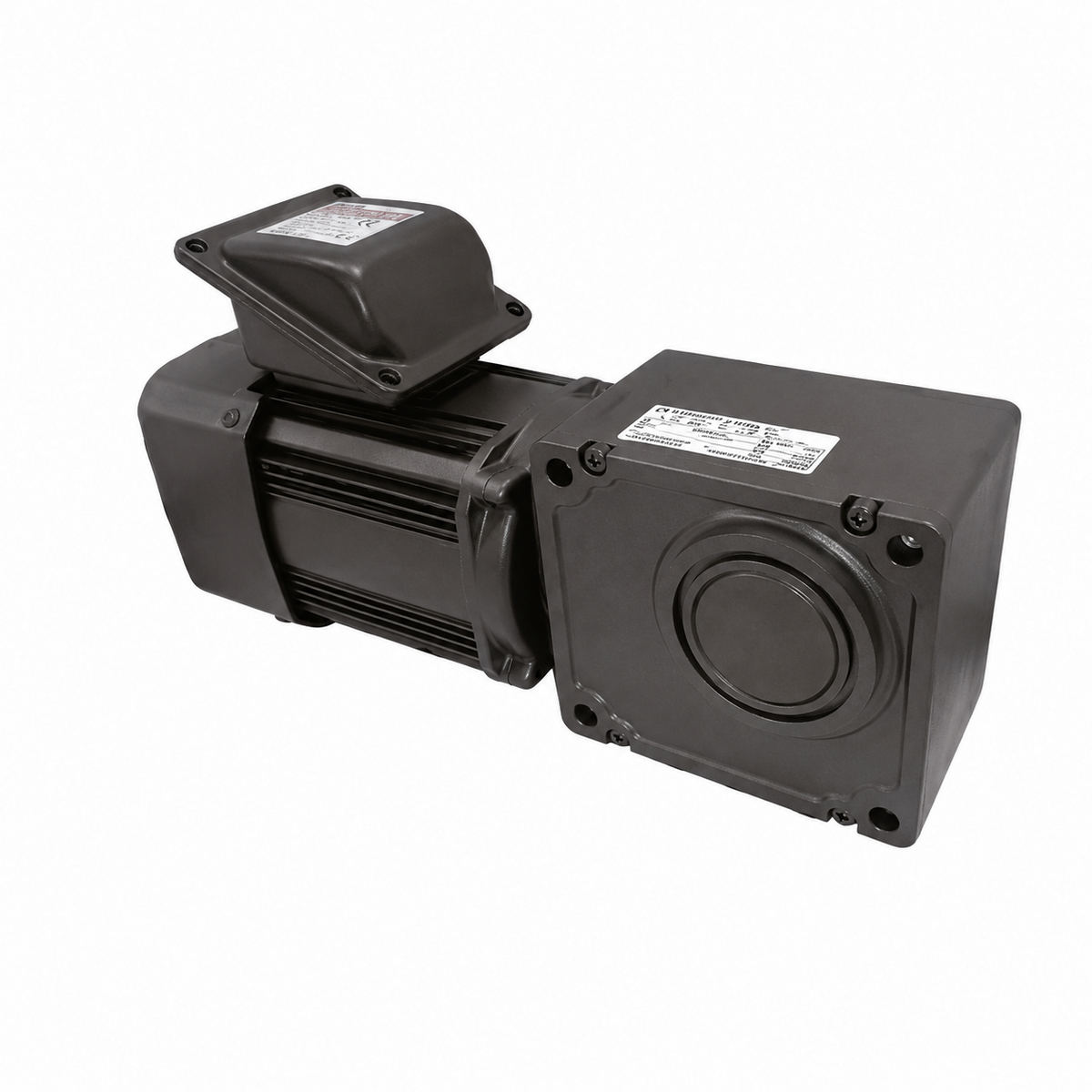

Mitsubishi Electric GV-SHYF 1.5kW 400V Class S-PM Sensorless Servo Geared Motor (Right-Angle Hypoid, Flange/Face Mount, without Brake)

Mitsubishi Electric GV-SHYF 1.5kW 400V Class S-PM Sensorless Servo Geared Motor (Right-Angle Hypoid, Flange/Face Mount, without Brake)

Mitsubishi Electric GV-SHYF 1.5kW 400V class S-PM sensorless servo geared motor, right-angle hypoid type with flange/face mounting, without brake.

Key features

  • Combines an S-PM permanent magnet motor with Mitsubishi PM sensorless vector control for high-accuracy speed regulation under load fluctuation without an encoder
  • Motor rated speed 3000r/min, 17 reduction ratios 1/5-1/240, permissible output shaft torque 22-642Nm
  • Requires dedicated drive unit FR-D740-2.2K-G (3-phase 380-480V 50/60Hz input; direct commercial power connection is not possible). 4P motor, TEFC enclosure, indoor IP44, grease lubrication, insulation class 130(B), continuous rating
  • Semi-standard options: outdoor type, tropical treatment, one-touch manual release brake

Specifications

Voltage Class 400V (drive input 3-phase 380-480V 50/60Hz)
Output 1.5kW
Motor Rated Voltage 375V
Motor Rated Current 2.8A
Poles 4P
Motor Rated Frequency 100Hz
Motor Speed 3000r/min
Drive Unit FR-D740-2.2K-G
Power Supply Capacity 5.5kVA
Mount Flange/Face
Brake None
Shaft Hollow shaft (standard); solid (RR/RL) on request
GV-SHYF 1.5kW 1/5 400V GV-SHYF 1.5kW ratio 1/5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/5 | Actual Ratio: 1/5.05 | Output Shaft Speed: 600r/min | Permissible Output Torque: 22Nm | Permissible Overhang Load: 2200N | Permissible Thrust Load: 440N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/7.5 400V GV-SHYF 1.5kW ratio 1/7.5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/7.5 | Actual Ratio: 1/7.58 | Output Shaft Speed: 400r/min | Permissible Output Torque: 33Nm | Permissible Overhang Load: 2400N | Permissible Thrust Load: 480N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/10 400V GV-SHYF 1.5kW ratio 1/10 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/10 | Actual Ratio: 1/10.94 | Output Shaft Speed: 300r/min | Permissible Output Torque: 47Nm | Permissible Overhang Load: 2600N | Permissible Thrust Load: 520N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/12.5 400V GV-SHYF 1.5kW ratio 1/12.5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/12.5 | Actual Ratio: 1/12.68 | Output Shaft Speed: 240r/min | Permissible Output Torque: 54Nm | Permissible Overhang Load: 2850N | Permissible Thrust Load: 570N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/15 400V GV-SHYF 1.5kW ratio 1/15 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/15 | Actual Ratio: 1/15.17 | Output Shaft Speed: 200r/min | Permissible Output Torque: 65Nm | Permissible Overhang Load: 3050N | Permissible Thrust Load: 610N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/20 400V GV-SHYF 1.5kW ratio 1/20 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/20 | Actual Ratio: 1/20.83 | Output Shaft Speed: 150r/min | Permissible Output Torque: 90Nm | Permissible Overhang Load: 3200N | Permissible Thrust Load: 640N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/25 400V GV-SHYF 1.5kW ratio 1/25 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/25 | Actual Ratio: 1/25.66 | Output Shaft Speed: 120r/min | Permissible Output Torque: 110Nm | Permissible Overhang Load: 3400N | Permissible Thrust Load: 680N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/30 400V GV-SHYF 1.5kW ratio 1/30 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/30 | Actual Ratio: 1/31.82 | Output Shaft Speed: 100r/min | Permissible Output Torque: 137Nm | Permissible Overhang Load: 3600N | Permissible Thrust Load: 720N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/40 400V GV-SHYF 1.5kW ratio 1/40 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/40 | Actual Ratio: 1/40.39 | Output Shaft Speed: 75r/min | Permissible Output Torque: 174Nm | Permissible Overhang Load: 3730N | Permissible Thrust Load: 746N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/50 400V GV-SHYF 1.5kW ratio 1/50 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/50 | Actual Ratio: 1/53.18 | Output Shaft Speed: 60r/min | Permissible Output Torque: 229Nm | Permissible Overhang Load: 3850N | Permissible Thrust Load: 770N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/60 400V GV-SHYF 1.5kW ratio 1/60 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/60 | Actual Ratio: 1/59.39 | Output Shaft Speed: 50r/min | Permissible Output Torque: 255Nm | Permissible Overhang Load: 3850N | Permissible Thrust Load: 770N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/80 400V GV-SHYF 1.5kW ratio 1/80 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/80 | Actual Ratio: 1/81.06 | Output Shaft Speed: 37.5r/min | Permissible Output Torque: 337Nm | Permissible Overhang Load: 4400N | Permissible Thrust Load: 880N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/100 400V GV-SHYF 1.5kW ratio 1/100 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/100 | Actual Ratio: 1/102.78 | Output Shaft Speed: 30r/min | Permissible Output Torque: 427Nm | Permissible Overhang Load: 4700N | Permissible Thrust Load: 941N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/120 400V GV-SHYF 1.5kW ratio 1/120 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/120 | Actual Ratio: 1/122.82 | Output Shaft Speed: 25r/min | Permissible Output Torque: 510Nm | Permissible Overhang Load: 4700N | Permissible Thrust Load: 941N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/160 400V GV-SHYF 1.5kW ratio 1/160 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/160 | Actual Ratio: 1/155.03 | Output Shaft Speed: 18.8r/min | Permissible Output Torque: 641Nm (torque-limited) | Permissible Overhang Load: 4850N | Permissible Thrust Load: 970N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/200 400V GV-SHYF 1.5kW ratio 1/200 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/200 | Actual Ratio: 1/196.56 | Output Shaft Speed: 15r/min | Permissible Output Torque: 642Nm (torque-limited) | Permissible Overhang Load: 5290N | Permissible Thrust Load: 1058N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/240 400V GV-SHYF 1.5kW ratio 1/240 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/240 | Actual Ratio: 1/234.90 | Output Shaft Speed: 12.5r/min | Permissible Output Torque: 642Nm (torque-limited) | Permissible Overhang Load: 5290N | Permissible Thrust Load: 1058N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
Sensorless Servo Geared MotorsMitsubishi Electric
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GV-SHYF 1.5kW 400V Class S-PM Sensorless Servo Geared Motor (Right-Angle Hypoid, Flange/Face Mount, without Brake)

Brand Mitsubishi Electric·Sensorless Servo Geared Motors

Available part numbers (17)

GV-SHYF 1.5kW 1/5 400V, GV-SHYF 1.5kW 1/7.5 400V, GV-SHYF 1.5kW 1/10 400V, GV-SHYF 1.5kW 1/12.5 400V, GV-SHYF 1.5kW 1/15 400V, GV-SHYF 1.5kW 1/20 400V, GV-SHYF 1.5kW 1/25 400V, GV-SHYF 1.5kW 1/30 400V, GV-SHYF 1.5kW 1/40 400V, GV-SHYF 1.5kW 1/50 400V + 7 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GV-SHYF 1.5kW 1/5 400VGV-SHYF 1.5kW ratio 1/5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/5 | Actual Ratio: 1/5.05 | Output Shaft Speed: 600r/min | Permissible Output Torque: 22Nm | Permissible Overhang Load: 2200N | Permissible Thrust Load: 440N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/7.5 400VGV-SHYF 1.5kW ratio 1/7.5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/7.5 | Actual Ratio: 1/7.58 | Output Shaft Speed: 400r/min | Permissible Output Torque: 33Nm | Permissible Overhang Load: 2400N | Permissible Thrust Load: 480N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/10 400VGV-SHYF 1.5kW ratio 1/10 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/10 | Actual Ratio: 1/10.94 | Output Shaft Speed: 300r/min | Permissible Output Torque: 47Nm | Permissible Overhang Load: 2600N | Permissible Thrust Load: 520N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/12.5 400VGV-SHYF 1.5kW ratio 1/12.5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/12.5 | Actual Ratio: 1/12.68 | Output Shaft Speed: 240r/min | Permissible Output Torque: 54Nm | Permissible Overhang Load: 2850N | Permissible Thrust Load: 570N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/15 400VGV-SHYF 1.5kW ratio 1/15 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/15 | Actual Ratio: 1/15.17 | Output Shaft Speed: 200r/min | Permissible Output Torque: 65Nm | Permissible Overhang Load: 3050N | Permissible Thrust Load: 610N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/20 400VGV-SHYF 1.5kW ratio 1/20 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/20 | Actual Ratio: 1/20.83 | Output Shaft Speed: 150r/min | Permissible Output Torque: 90Nm | Permissible Overhang Load: 3200N | Permissible Thrust Load: 640N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/25 400VGV-SHYF 1.5kW ratio 1/25 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/25 | Actual Ratio: 1/25.66 | Output Shaft Speed: 120r/min | Permissible Output Torque: 110Nm | Permissible Overhang Load: 3400N | Permissible Thrust Load: 680N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/30 400VGV-SHYF 1.5kW ratio 1/30 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/30 | Actual Ratio: 1/31.82 | Output Shaft Speed: 100r/min | Permissible Output Torque: 137Nm | Permissible Overhang Load: 3600N | Permissible Thrust Load: 720N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/40 400VGV-SHYF 1.5kW ratio 1/40 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/40 | Actual Ratio: 1/40.39 | Output Shaft Speed: 75r/min | Permissible Output Torque: 174Nm | Permissible Overhang Load: 3730N | Permissible Thrust Load: 746N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/50 400VGV-SHYF 1.5kW ratio 1/50 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/50 | Actual Ratio: 1/53.18 | Output Shaft Speed: 60r/min | Permissible Output Torque: 229Nm | Permissible Overhang Load: 3850N | Permissible Thrust Load: 770N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/60 400VGV-SHYF 1.5kW ratio 1/60 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/60 | Actual Ratio: 1/59.39 | Output Shaft Speed: 50r/min | Permissible Output Torque: 255Nm | Permissible Overhang Load: 3850N | Permissible Thrust Load: 770N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/80 400VGV-SHYF 1.5kW ratio 1/80 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/80 | Actual Ratio: 1/81.06 | Output Shaft Speed: 37.5r/min | Permissible Output Torque: 337Nm | Permissible Overhang Load: 4400N | Permissible Thrust Load: 880N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/100 400VGV-SHYF 1.5kW ratio 1/100 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/100 | Actual Ratio: 1/102.78 | Output Shaft Speed: 30r/min | Permissible Output Torque: 427Nm | Permissible Overhang Load: 4700N | Permissible Thrust Load: 941N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/120 400VGV-SHYF 1.5kW ratio 1/120 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/120 | Actual Ratio: 1/122.82 | Output Shaft Speed: 25r/min | Permissible Output Torque: 510Nm | Permissible Overhang Load: 4700N | Permissible Thrust Load: 941N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/160 400VGV-SHYF 1.5kW ratio 1/160 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/160 | Actual Ratio: 1/155.03 | Output Shaft Speed: 18.8r/min | Permissible Output Torque: 641Nm (torque-limited) | Permissible Overhang Load: 4850N | Permissible Thrust Load: 970N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/200 400VGV-SHYF 1.5kW ratio 1/200 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/200 | Actual Ratio: 1/196.56 | Output Shaft Speed: 15r/min | Permissible Output Torque: 642Nm (torque-limited) | Permissible Overhang Load: 5290N | Permissible Thrust Load: 1058N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYF 1.5kW 1/240 400VGV-SHYF 1.5kW ratio 1/240 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 1.5kW | Nominal Ratio: 1/240 | Actual Ratio: 1/234.90 | Output Shaft Speed: 12.5r/min | Permissible Output Torque: 642Nm (torque-limited) | Permissible Overhang Load: 5290N | Permissible Thrust Load: 1058N | Motor Rated Voltage: 375V | Motor Rated Current: 2.8A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-2.2K-G | Power Supply Capacity: 5.5kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
