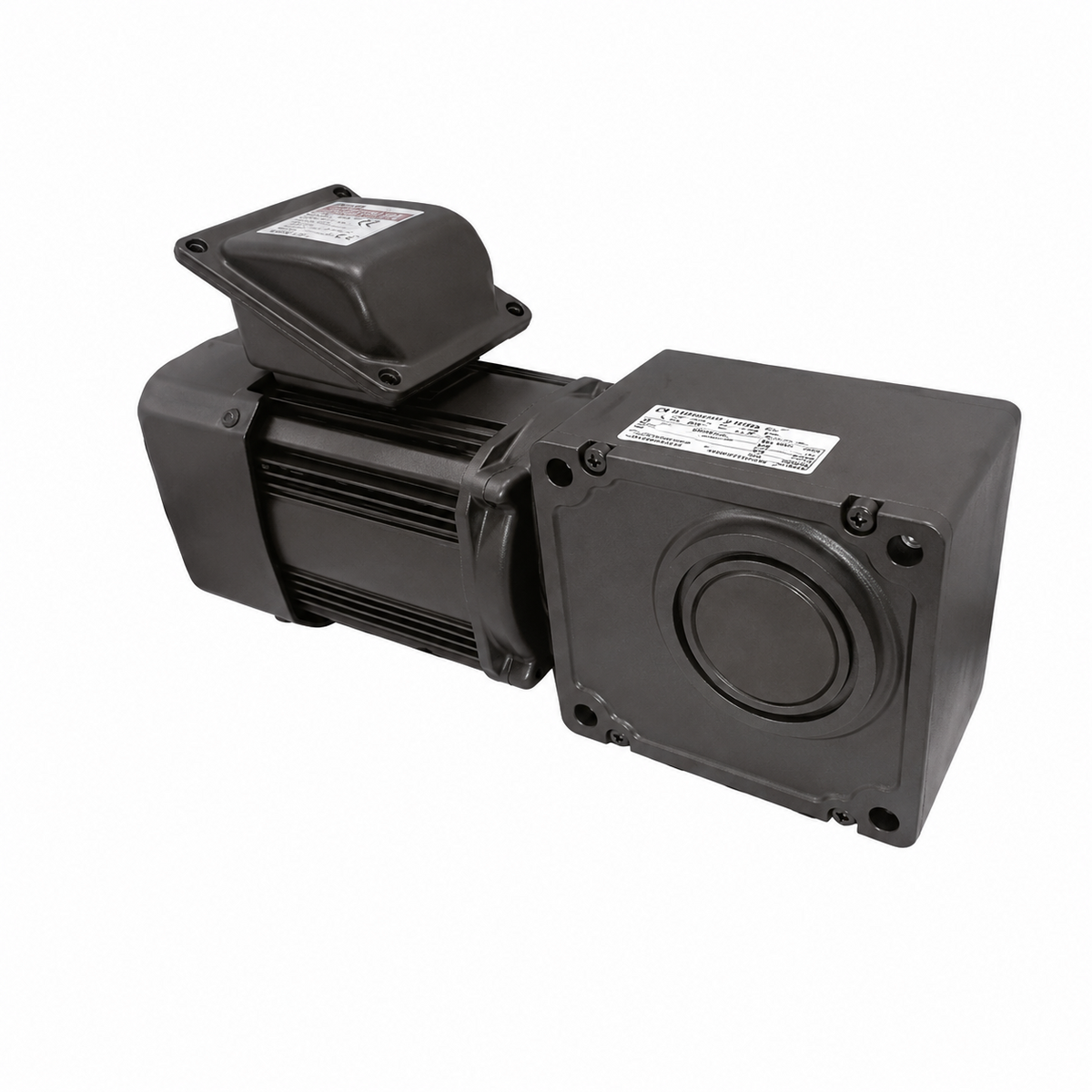

Mitsubishi Electric GV-SHYFB 0.4kW S-PM Sensorless Servo Right-Angle Geared Motor (Hypoid, Brake)

Mitsubishi Electric GV-SHYFB 0.4kW S-PM Sensorless Servo Right-Angle Geared Motor (Hypoid, Brake)

Mitsubishi Electric GV-SHYFB 0.4kW S-PM sensorless servo hypoid right-angle geared motor, hollow shaft with flange/face-common mounting.

Key features

  • Permanent-magnet motor with PM sensorless vector control for wide constant-torque control
  • Nominal reduction ratios 1/5 to 1/1200 with permissible output torque 5.4 to 642 Nm
  • Motor rated 3000 r/min, 4P, insulation 130(B), grease-lubricated, IP44 indoor
  • Built-in DC spring-applied brake for load holding
  • Requires a matching S-PM drive unit (3-phase 200-240V input; cannot be connected directly to commercial power)

Specifications

Series GV-SHY (S-PM sensorless servo)
Type Right-Angle Hypoid
Shaft Hollow shaft (standard); solid (RR/RL) on request
Mount Flange / face mount (common)
Brake Built-in DC spring-applied
Output 0.4kW
Poles 4P
Motor Rated Voltage 175V
Motor Rated Current 1.6A
Drive Input 3-phase 200-240V 50/60Hz (drive unit required)
Insulation 130(B)
Enclosure Totally-enclosed non-ventilated (TENV)
GV-SHYFB 0.4kW 1/5 GV-SHYFB 0.4kW 1/5, hollow shaft flange/face mount, 5.4Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/5 | Actual Ratio: 1/5.13 | Output Speed: 600 r/min (motor 3000 r/min) | Permissible Output Torque: 5.4 Nm | Permissible Overhang Load: 1280 N | Permissible Thrust Load: 256 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/7 GV-SHYFB 0.4kW 1/7, hollow shaft flange/face mount, 8.3Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/7 | Actual Ratio: 1/7.81 | Output Speed: 428.6 r/min (motor 3000 r/min) | Permissible Output Torque: 8.3 Nm | Permissible Overhang Load: 1380 N | Permissible Thrust Load: 256 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/10 GV-SHYFB 0.4kW 1/10, hollow shaft flange/face mount, 11Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/10 | Actual Ratio: 1/10.24 | Output Speed: 300 r/min (motor 3000 r/min) | Permissible Output Torque: 11 Nm | Permissible Overhang Load: 1560 N | Permissible Thrust Load: 314 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/12 GV-SHYFB 0.4kW 1/12, hollow shaft flange/face mount, 14Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/12 | Actual Ratio: 1/13.05 | Output Speed: 250 r/min (motor 3000 r/min) | Permissible Output Torque: 14 Nm | Permissible Overhang Load: 1560 N | Permissible Thrust Load: 314 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/15 GV-SHYFB 0.4kW 1/15, hollow shaft flange/face mount, 16Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/15 | Actual Ratio: 1/15.22 | Output Speed: 200 r/min (motor 3000 r/min) | Permissible Output Torque: 16 Nm | Permissible Overhang Load: 1710 N | Permissible Thrust Load: 343 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/20 GV-SHYFB 0.4kW 1/20, hollow shaft flange/face mount, 22Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/20 | Actual Ratio: 1/20.65 | Output Speed: 150 r/min (motor 3000 r/min) | Permissible Output Torque: 22 Nm | Permissible Overhang Load: 1860 N | Permissible Thrust Load: 372 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/25 GV-SHYFB 0.4kW 1/25, hollow shaft flange/face mount, 28Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/25 | Actual Ratio: 1/25.83 | Output Speed: 120 r/min (motor 3000 r/min) | Permissible Output Torque: 28 Nm | Permissible Overhang Load: 2000 N | Permissible Thrust Load: 402 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/30 GV-SHYFB 0.4kW 1/30, hollow shaft flange/face mount, 34Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/30 | Actual Ratio: 1/31.00 | Output Speed: 100 r/min (motor 3000 r/min) | Permissible Output Torque: 34 Nm | Permissible Overhang Load: 2150 N | Permissible Thrust Load: 431 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/40 GV-SHYFB 0.4kW 1/40, hollow shaft flange/face mount, 44Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/40 | Actual Ratio: 1/40.73 | Output Speed: 75 r/min (motor 3000 r/min) | Permissible Output Torque: 44 Nm | Permissible Overhang Load: 2350 N | Permissible Thrust Load: 470 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/50 GV-SHYFB 0.4kW 1/50, hollow shaft flange/face mount, 56Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/50 | Actual Ratio: 1/51.67 | Output Speed: 60 r/min (motor 3000 r/min) | Permissible Output Torque: 56 Nm | Permissible Overhang Load: 2540 N | Permissible Thrust Load: 510 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/60 GV-SHYFB 0.4kW 1/60, hollow shaft flange/face mount, 66Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/60 | Actual Ratio: 1/61.14 | Output Speed: 50 r/min (motor 3000 r/min) | Permissible Output Torque: 66 Nm | Permissible Overhang Load: 2640 N | Permissible Thrust Load: 529 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/80 GV-SHYFB 0.4kW 1/80, hollow shaft flange/face mount, 84Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/80 | Actual Ratio: 1/79.16 | Output Speed: 37.5 r/min (motor 3000 r/min) | Permissible Output Torque: 84 Nm | Permissible Overhang Load: 2840 N | Permissible Thrust Load: N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/100 GV-SHYFB 0.4kW 1/100, hollow shaft flange/face mount, 108Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/100 | Actual Ratio: 1/101.86 | Output Speed: 30 r/min (motor 3000 r/min) | Permissible Output Torque: 108 Nm | Permissible Overhang Load: 3030 N | Permissible Thrust Load: 608 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/120 GV-SHYFB 0.4kW 1/120, hollow shaft flange/face mount, 133Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/120 | Actual Ratio: 1/125.61 | Output Speed: 25 r/min (motor 3000 r/min) | Permissible Output Torque: 133 Nm | Permissible Overhang Load: 3030 N | Permissible Thrust Load: 608 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/160 GV-SHYFB 0.4kW 1/160, hollow shaft flange/face mount, 169Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/160 | Actual Ratio: 1/159.92 | Output Speed: 18.8 r/min (motor 3000 r/min) | Permissible Output Torque: 169 Nm | Permissible Overhang Load: 3130 N | Permissible Thrust Load: 627 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/200 GV-SHYFB 0.4kW 1/200, hollow shaft flange/face mount, 193Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/200 | Actual Ratio: 1/212.66 | Output Speed: 15 r/min (motor 3000 r/min) | Permissible Output Torque: 193 Nm (torque-limited) | Permissible Overhang Load: 3130 N | Permissible Thrust Load: 627 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/240 GV-SHYFB 0.4kW 1/240, hollow shaft flange/face mount, 193Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/240 | Actual Ratio: 1/241.11 | Output Speed: 12.5 r/min (motor 3000 r/min) | Permissible Output Torque: 193 Nm (torque-limited) | Permissible Overhang Load: 3130 N | Permissible Thrust Load: 627 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/300 GV-SHYFB 0.4kW 1/300, hollow shaft flange/face mount, 300Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/300 | Actual Ratio: 1/294.96 | Output Speed: 10 r/min (motor 3000 r/min) | Permissible Output Torque: 300 Nm | Permissible Overhang Load: 5290 N | Permissible Thrust Load: 1058 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/360 GV-SHYFB 0.4kW 1/360, hollow shaft flange/face mount, 372Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/360 | Actual Ratio: 1/364.76 | Output Speed: 8.3 r/min (motor 3000 r/min) | Permissible Output Torque: 372 Nm | Permissible Overhang Load: 5290 N | Permissible Thrust Load: 1058 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/480 GV-SHYFB 0.4kW 1/480, hollow shaft flange/face mount, 471Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/480 | Actual Ratio: 1/462.49 | Output Speed: 6.2 r/min (motor 3000 r/min) | Permissible Output Torque: 471 Nm | Permissible Overhang Load: 5290 N | Permissible Thrust Load: 1058 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/560 GV-SHYFB 0.4kW 1/560, hollow shaft flange/face mount, 563Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/560 | Actual Ratio: 1/552.71 | Output Speed: 5.4 r/min (motor 3000 r/min) | Permissible Output Torque: 563 Nm | Permissible Overhang Load: 5290 N | Permissible Thrust Load: 1058 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/750 GV-SHYFB 0.4kW 1/750, hollow shaft flange/face mount, 642Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/750 | Actual Ratio: 1/697.61 | Output Speed: 4 r/min (motor 3000 r/min) | Permissible Output Torque: 642 Nm (torque-limited) | Permissible Overhang Load: 5290 N | Permissible Thrust Load: 1058 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/900 GV-SHYFB 0.4kW 1/900, hollow shaft flange/face mount, 642Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/900 | Actual Ratio: 1/884.52 | Output Speed: 3.3 r/min (motor 3000 r/min) | Permissible Output Torque: 642 Nm (torque-limited) | Permissible Overhang Load: 5290 N | Permissible Thrust Load: 1058 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 0.4kW 1/1200 GV-SHYFB 0.4kW 1/1200, hollow shaft flange/face mount, 642Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/1200 | Actual Ratio: 1/1179.36 | Output Speed: 2.5 r/min (motor 3000 r/min) | Permissible Output Torque: 642 Nm (torque-limited) | Permissible Overhang Load: 5290 N | Permissible Thrust Load: 1058 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
Sensorless Servo Geared MotorsMitsubishi Electric
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GV-SHYFB 0.4kW S-PM Sensorless Servo Right-Angle Geared Motor (Hypoid, Brake)

Brand Mitsubishi Electric·Sensorless Servo Geared Motors

Available part numbers (24)

GV-SHYFB 0.4kW 1/5, GV-SHYFB 0.4kW 1/7, GV-SHYFB 0.4kW 1/10, GV-SHYFB 0.4kW 1/12, GV-SHYFB 0.4kW 1/15, GV-SHYFB 0.4kW 1/20, GV-SHYFB 0.4kW 1/25, GV-SHYFB 0.4kW 1/30, GV-SHYFB 0.4kW 1/40, GV-SHYFB 0.4kW 1/50 + 14 more — see full table ↓
