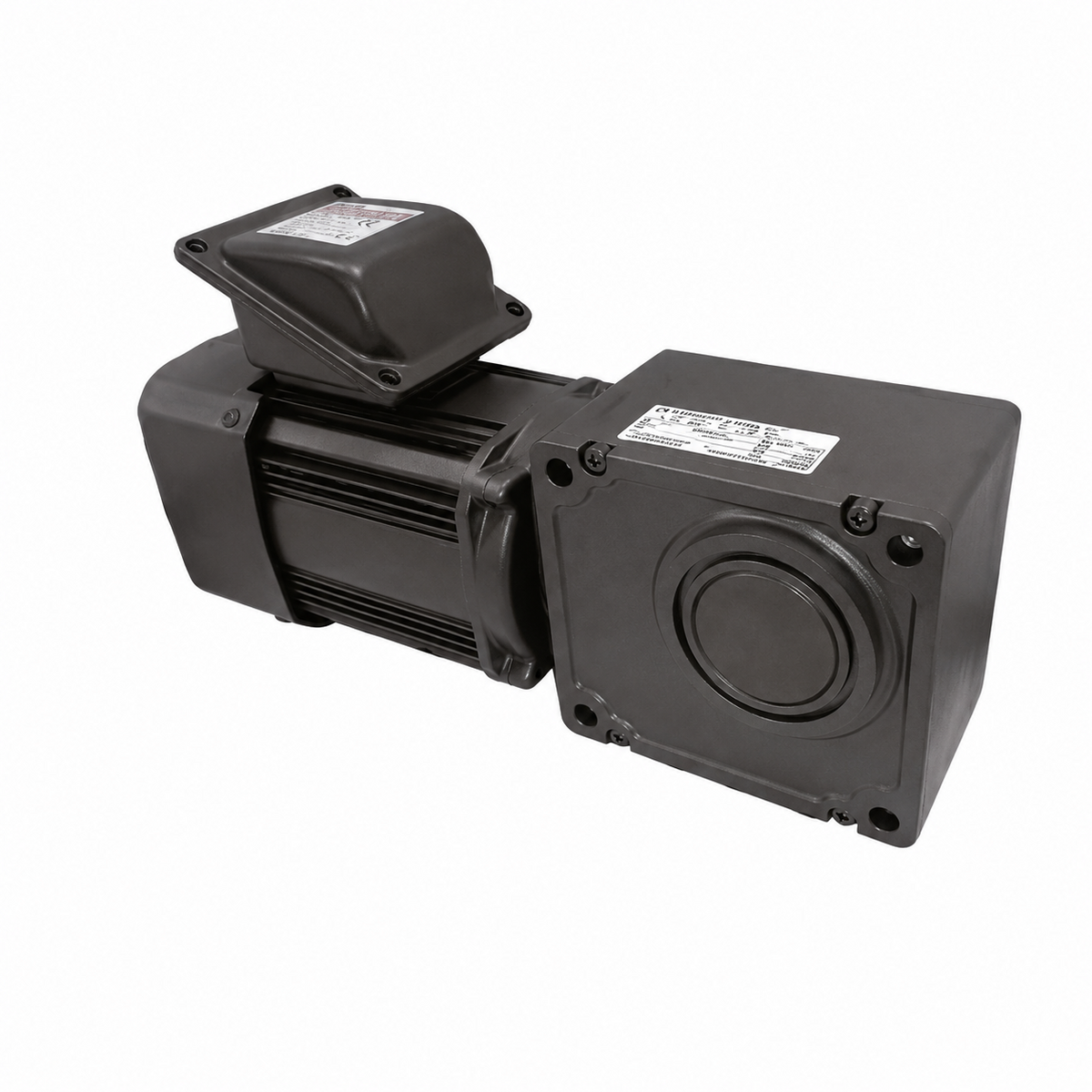

Mitsubishi Electric GV-SHYFB 0.75kW 400V Class S-PM Sensorless Servo Geared Motor (Right-Angle Hypoid, Flange/Face Mount, with Brake)

Mitsubishi Electric GV-SHYFB 0.75kW 400V Class S-PM Sensorless Servo Geared Motor (Right-Angle Hypoid, Flange/Face Mount, with Brake)

Mitsubishi Electric GV-SHYFB 0.75kW 400V class S-PM sensorless servo geared motor, right-angle hypoid type with flange/face mounting, with brake.

Key features

  • Combines an S-PM permanent magnet motor with Mitsubishi PM sensorless vector control for high-accuracy speed regulation under load fluctuation without an encoder
  • Motor rated speed 3000r/min, 20 reduction ratios 1/5-1/480, permissible output shaft torque 10-642Nm
  • Requires dedicated drive unit FR-D740-1.5K-G (3-phase 380-480V 50/60Hz input; direct commercial power connection is not possible). 4P motor, TEFC enclosure, indoor IP44, grease lubrication, insulation class 130(B), continuous rating
  • Semi-standard options: outdoor type, tropical treatment, one-touch manual release brake

Specifications

Voltage Class 400V (drive input 3-phase 380-480V 50/60Hz)
Output 0.75kW
Motor Rated Voltage 340V
Motor Rated Current 1.4A
Poles 4P
Motor Rated Frequency 100Hz
Motor Speed 3000r/min
Drive Unit FR-D740-1.5K-G
Power Supply Capacity 2.5kVA
Mount Flange/Face
Brake Built-in spring brake
Shaft Hollow shaft (standard); solid (RR/RL) on request
GV-SHYFB 0.75kW 1/5 400V GV-SHYFB 0.75kW ratio 1/5 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/5 | Actual Ratio: 1/5.18 | Output Shaft Speed: 600r/min | Permissible Output Torque: 10Nm | Permissible Overhang Load: 1560N | Permissible Thrust Load: 314N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/7.5 400V GV-SHYFB 0.75kW ratio 1/7.5 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/7.5 | Actual Ratio: 1/7.82 | Output Shaft Speed: 400r/min | Permissible Output Torque: 15Nm | Permissible Overhang Load: 1750N | Permissible Thrust Load: 350N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/10 400V GV-SHYFB 0.75kW ratio 1/10 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/10 | Actual Ratio: 1/10.35 | Output Shaft Speed: 300r/min | Permissible Output Torque: 21Nm | Permissible Overhang Load: 1960N | Permissible Thrust Load: 392N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/12.5 400V GV-SHYFB 0.75kW ratio 1/12.5 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/12.5 | Actual Ratio: 1/13.21 | Output Shaft Speed: 240r/min | Permissible Output Torque: 27Nm | Permissible Overhang Load: 2100N | Permissible Thrust Load: 420N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/15 400V GV-SHYFB 0.75kW ratio 1/15 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/15 | Actual Ratio: 1/15.91 | Output Shaft Speed: 200r/min | Permissible Output Torque: 32Nm | Permissible Overhang Load: 2200N | Permissible Thrust Load: 441N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/20 400V GV-SHYFB 0.75kW ratio 1/20 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/20 | Actual Ratio: 1/20.70 | Output Shaft Speed: 150r/min | Permissible Output Torque: 42Nm | Permissible Overhang Load: 2450N | Permissible Thrust Load: 490N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/25 400V GV-SHYFB 0.75kW ratio 1/25 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/25 | Actual Ratio: 1/25.69 | Output Shaft Speed: 120r/min | Permissible Output Torque: 52Nm | Permissible Overhang Load: 2590N | Permissible Thrust Load: 520N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/30 400V GV-SHYFB 0.75kW ratio 1/30 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/30 | Actual Ratio: 1/32.07 | Output Shaft Speed: 100r/min | Permissible Output Torque: 65Nm | Permissible Overhang Load: 2740N | Permissible Thrust Load: 549N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/40 400V GV-SHYFB 0.75kW ratio 1/40 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/40 | Actual Ratio: 1/42.40 | Output Shaft Speed: 75r/min | Permissible Output Torque: 86Nm | Permissible Overhang Load: 3030N | Permissible Thrust Load: 608N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/50 400V GV-SHYFB 0.75kW ratio 1/50 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/50 | Actual Ratio: 1/52.73 | Output Shaft Speed: 60r/min | Permissible Output Torque: 107Nm | Permissible Overhang Load: 3230N | Permissible Thrust Load: 647N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/60 400V GV-SHYFB 0.75kW ratio 1/60 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/60 | Actual Ratio: 1/60.64 | Output Shaft Speed: 50r/min | Permissible Output Torque: 123Nm | Permissible Overhang Load: 3330N | Permissible Thrust Load: 666N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/80 400V GV-SHYFB 0.75kW ratio 1/80 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/80 | Actual Ratio: 1/79.62 | Output Shaft Speed: 37.5r/min | Permissible Output Torque: 158Nm | Permissible Overhang Load: 3520N | Permissible Thrust Load: 706N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/100 400V GV-SHYFB 0.75kW ratio 1/100 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/100 | Actual Ratio: 1/106.23 | Output Shaft Speed: 30r/min | Permissible Output Torque: 211Nm | Permissible Overhang Load: 3520N | Permissible Thrust Load: 706N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/120 400V GV-SHYFB 0.75kW ratio 1/120 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/120 | Actual Ratio: 1/124.85 | Output Shaft Speed: 25r/min | Permissible Output Torque: 247Nm | Permissible Overhang Load: 3520N | Permissible Thrust Load: 706N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/160 400V GV-SHYFB 0.75kW ratio 1/160 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/160 | Actual Ratio: 1/164.42 | Output Shaft Speed: 18.8r/min | Permissible Output Torque: 326Nm | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/200 400V GV-SHYFB 0.75kW ratio 1/200 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/200 | Actual Ratio: 1/202.59 | Output Shaft Speed: 15r/min | Permissible Output Torque: 349Nm (torque-limited) | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/240 400V GV-SHYFB 0.75kW ratio 1/240 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/240 | Actual Ratio: 1/228.50 | Output Shaft Speed: 12.5r/min | Permissible Output Torque: 349Nm (torque-limited) | Permissible Overhang Load: 3720N | Permissible Thrust Load: 745N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/300 400V GV-SHYFB 0.75kW ratio 1/300 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/300 | Actual Ratio: 1/294.96 | Output Shaft Speed: 10r/min | Permissible Output Torque: 563Nm | Permissible Overhang Load: 4100N | Permissible Thrust Load: 820N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/360 400V GV-SHYFB 0.75kW ratio 1/360 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/360 | Actual Ratio: 1/364.76 | Output Shaft Speed: 8.3r/min | Permissible Output Torque: 642Nm (torque-limited) | Permissible Overhang Load: 4100N | Permissible Thrust Load: 820N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SHYFB 0.75kW 1/480 400V GV-SHYFB 0.75kW ratio 1/480 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.75kW | Nominal Ratio: 1/480 | Actual Ratio: 1/462.49 | Output Shaft Speed: 6.3r/min | Permissible Output Torque: 642Nm (torque-limited) | Permissible Overhang Load: 4100N | Permissible Thrust Load: 820N | Motor Rated Voltage: 340V | Motor Rated Current: 1.4A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-1.5K-G | Power Supply Capacity: 2.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
Sensorless Servo Geared MotorsMitsubishi Electric
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GV-SHYFB 0.75kW 400V Class S-PM Sensorless Servo Geared Motor (Right-Angle Hypoid, Flange/Face Mount, with Brake)

Brand Mitsubishi Electric·Sensorless Servo Geared Motors

Available part numbers (20)

GV-SHYFB 0.75kW 1/5 400V, GV-SHYFB 0.75kW 1/7.5 400V, GV-SHYFB 0.75kW 1/10 400V, GV-SHYFB 0.75kW 1/12.5 400V, GV-SHYFB 0.75kW 1/15 400V, GV-SHYFB 0.75kW 1/20 400V, GV-SHYFB 0.75kW 1/25 400V, GV-SHYFB 0.75kW 1/30 400V, GV-SHYFB 0.75kW 1/40 400V, GV-SHYFB 0.75kW 1/50 400V + 10 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
