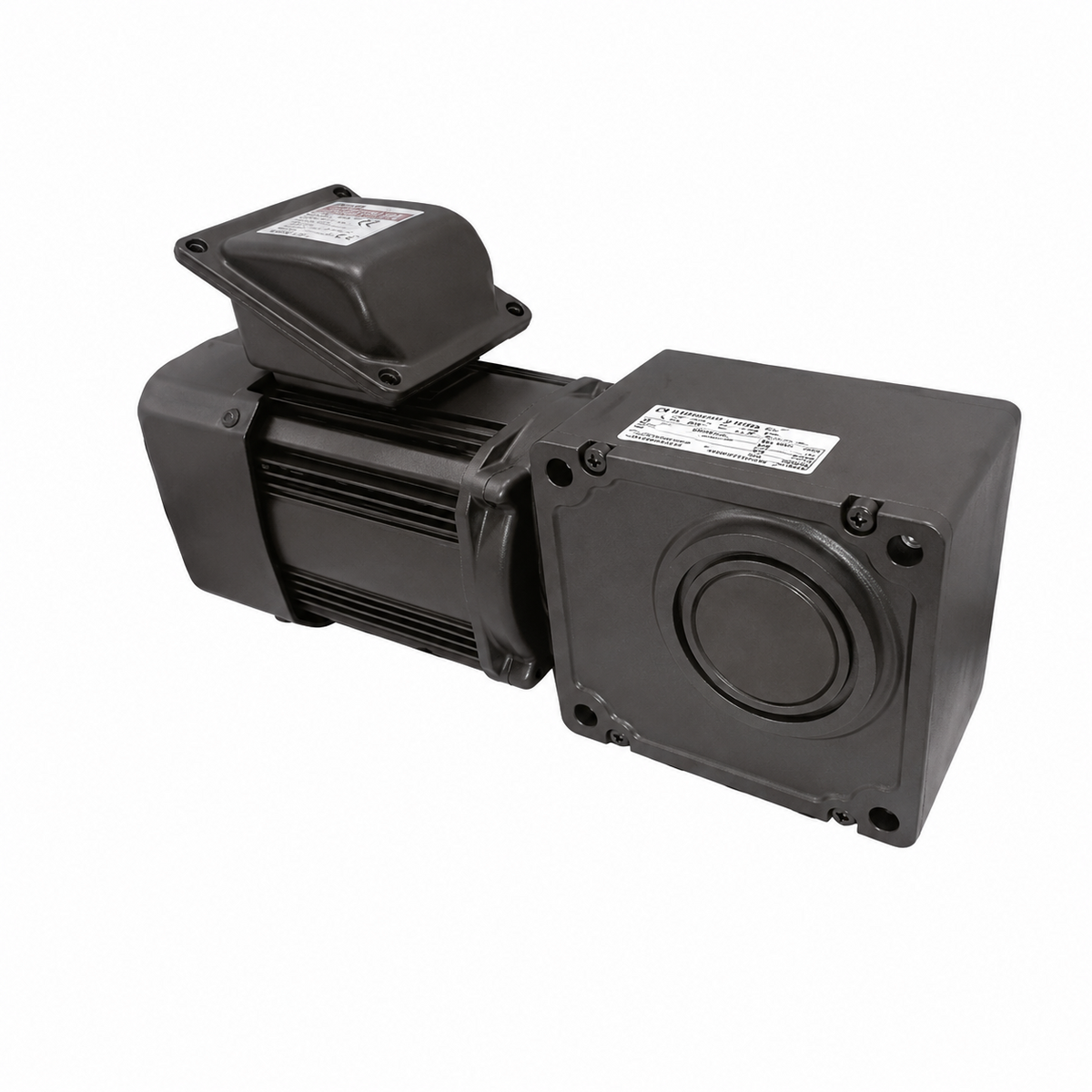

Mitsubishi Electric GV-SHYFB 1.5kW S-PM Sensorless Servo Right-Angle Geared Motor (Hypoid, Brake)

Mitsubishi Electric GV-SHYFB 1.5kW S-PM Sensorless Servo Right-Angle Geared Motor (Hypoid, Brake)

Mitsubishi Electric GV-SHYFB 1.5kW S-PM sensorless servo hypoid right-angle geared motor, hollow shaft with flange/face-common mounting.

Key features

  • Permanent-magnet motor with PM sensorless vector control for wide constant-torque control
  • Nominal reduction ratios 1/5 to 1/240 with permissible output torque 22 to 642 Nm
  • Motor rated 3000 r/min, 6P, insulation 130(B), grease-lubricated, IP44 indoor
  • Built-in DC spring-applied brake for load holding
  • Requires a matching S-PM drive unit (3-phase 200-240V input; cannot be connected directly to commercial power)

Specifications

Series GV-SHY (S-PM sensorless servo)
Type Right-Angle Hypoid
Shaft Hollow shaft (standard); solid (RR/RL) on request
Mount Flange / face mount (common)
Brake Built-in DC spring-applied
Output 1.5kW
Poles 6P
Motor Rated Voltage 180V
Motor Rated Current 5.5A
Drive Input 3-phase 200-240V 50/60Hz (drive unit required)
Insulation 130(B)
Enclosure Totally-enclosed fan-cooled (TEFC)
GV-SHYFB 1.5kW 1/5 GV-SHYFB 1.5kW 1/5, hollow shaft flange/face mount, 22Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/5 | Actual Ratio: 1/5.05 | Output Speed: 600 r/min (motor 3000 r/min) | Permissible Output Torque: 22 Nm | Permissible Overhang Load: 2200 N | Permissible Thrust Load: 440 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/7 GV-SHYFB 1.5kW 1/7, hollow shaft flange/face mount, 33Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/7 | Actual Ratio: 1/7.58 | Output Speed: 428.6 r/min (motor 3000 r/min) | Permissible Output Torque: 33 Nm | Permissible Overhang Load: 2400 N | Permissible Thrust Load: 480 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/10 GV-SHYFB 1.5kW 1/10, hollow shaft flange/face mount, 47Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/10 | Actual Ratio: 1/10.94 | Output Speed: 300 r/min (motor 3000 r/min) | Permissible Output Torque: 47 Nm | Permissible Overhang Load: 2600 N | Permissible Thrust Load: 520 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/12 GV-SHYFB 1.5kW 1/12, hollow shaft flange/face mount, 54Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/12 | Actual Ratio: 1/12.68 | Output Speed: 250 r/min (motor 3000 r/min) | Permissible Output Torque: 54 Nm | Permissible Overhang Load: 2850 N | Permissible Thrust Load: 570 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/15 GV-SHYFB 1.5kW 1/15, hollow shaft flange/face mount, 65Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/15 | Actual Ratio: 1/15.17 | Output Speed: 200 r/min (motor 3000 r/min) | Permissible Output Torque: 65 Nm | Permissible Overhang Load: 3050 N | Permissible Thrust Load: 610 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/20 GV-SHYFB 1.5kW 1/20, hollow shaft flange/face mount, 90Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/20 | Actual Ratio: 1/20.83 | Output Speed: 150 r/min (motor 3000 r/min) | Permissible Output Torque: 90 Nm | Permissible Overhang Load: 3200 N | Permissible Thrust Load: 640 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/25 GV-SHYFB 1.5kW 1/25, hollow shaft flange/face mount, 110Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/25 | Actual Ratio: 1/25.66 | Output Speed: 120 r/min (motor 3000 r/min) | Permissible Output Torque: 110 Nm | Permissible Overhang Load: 3400 N | Permissible Thrust Load: 680 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/30 GV-SHYFB 1.5kW 1/30, hollow shaft flange/face mount, 137Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/30 | Actual Ratio: 1/31.82 | Output Speed: 100 r/min (motor 3000 r/min) | Permissible Output Torque: 137 Nm | Permissible Overhang Load: 3600 N | Permissible Thrust Load: 720 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/40 GV-SHYFB 1.5kW 1/40, hollow shaft flange/face mount, 174Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/40 | Actual Ratio: 1/40.39 | Output Speed: 75 r/min (motor 3000 r/min) | Permissible Output Torque: 174 Nm | Permissible Overhang Load: 3730 N | Permissible Thrust Load: 746 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/50 GV-SHYFB 1.5kW 1/50, hollow shaft flange/face mount, 229Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/50 | Actual Ratio: 1/53.18 | Output Speed: 60 r/min (motor 3000 r/min) | Permissible Output Torque: 229 Nm | Permissible Overhang Load: 3850 N | Permissible Thrust Load: 770 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/60 GV-SHYFB 1.5kW 1/60, hollow shaft flange/face mount, 255Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/60 | Actual Ratio: 1/59.39 | Output Speed: 50 r/min (motor 3000 r/min) | Permissible Output Torque: 255 Nm | Permissible Overhang Load: 3850 N | Permissible Thrust Load: 770 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/80 GV-SHYFB 1.5kW 1/80, hollow shaft flange/face mount, 337Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/80 | Actual Ratio: 1/81.06 | Output Speed: 37.5 r/min (motor 3000 r/min) | Permissible Output Torque: 337 Nm | Permissible Overhang Load: 4400 N | Permissible Thrust Load: 880 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/100 GV-SHYFB 1.5kW 1/100, hollow shaft flange/face mount, 427Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/100 | Actual Ratio: 1/102.78 | Output Speed: 30 r/min (motor 3000 r/min) | Permissible Output Torque: 427 Nm | Permissible Overhang Load: 4700 N | Permissible Thrust Load: 941 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/120 GV-SHYFB 1.5kW 1/120, hollow shaft flange/face mount, 510Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/120 | Actual Ratio: 1/122.82 | Output Speed: 25 r/min (motor 3000 r/min) | Permissible Output Torque: 510 Nm | Permissible Overhang Load: 4700 N | Permissible Thrust Load: 941 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/160 GV-SHYFB 1.5kW 1/160, hollow shaft flange/face mount, 641Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/160 | Actual Ratio: 1/155.03 | Output Speed: 18.8 r/min (motor 3000 r/min) | Permissible Output Torque: 641 Nm (torque-limited) | Permissible Overhang Load: 4850 N | Permissible Thrust Load: 970 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/200 GV-SHYFB 1.5kW 1/200, hollow shaft flange/face mount, 642Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/200 | Actual Ratio: 1/196.56 | Output Speed: 15 r/min (motor 3000 r/min) | Permissible Output Torque: 642 Nm (torque-limited) | Permissible Overhang Load: 5290 N | Permissible Thrust Load: 1058 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/240 GV-SHYFB 1.5kW 1/240, hollow shaft flange/face mount, 642Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/240 | Actual Ratio: 1/234.90 | Output Speed: 12.5 r/min (motor 3000 r/min) | Permissible Output Torque: 642 Nm (torque-limited) | Permissible Overhang Load: 5290 N | Permissible Thrust Load: 1058 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
Sensorless Servo Geared MotorsMitsubishi Electric
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GV-SHYFB 1.5kW S-PM Sensorless Servo Right-Angle Geared Motor (Hypoid, Brake)

Brand Mitsubishi Electric·Sensorless Servo Geared Motors

Available part numbers (17)

GV-SHYFB 1.5kW 1/5, GV-SHYFB 1.5kW 1/7, GV-SHYFB 1.5kW 1/10, GV-SHYFB 1.5kW 1/12, GV-SHYFB 1.5kW 1/15, GV-SHYFB 1.5kW 1/20, GV-SHYFB 1.5kW 1/25, GV-SHYFB 1.5kW 1/30, GV-SHYFB 1.5kW 1/40, GV-SHYFB 1.5kW 1/50 + 7 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GV-SHYFB 1.5kW 1/5GV-SHYFB 1.5kW 1/5, hollow shaft flange/face mount, 22Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/5 | Actual Ratio: 1/5.05 | Output Speed: 600 r/min (motor 3000 r/min) | Permissible Output Torque: 22 Nm | Permissible Overhang Load: 2200 N | Permissible Thrust Load: 440 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/7GV-SHYFB 1.5kW 1/7, hollow shaft flange/face mount, 33Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/7 | Actual Ratio: 1/7.58 | Output Speed: 428.6 r/min (motor 3000 r/min) | Permissible Output Torque: 33 Nm | Permissible Overhang Load: 2400 N | Permissible Thrust Load: 480 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/10GV-SHYFB 1.5kW 1/10, hollow shaft flange/face mount, 47Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/10 | Actual Ratio: 1/10.94 | Output Speed: 300 r/min (motor 3000 r/min) | Permissible Output Torque: 47 Nm | Permissible Overhang Load: 2600 N | Permissible Thrust Load: 520 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/12GV-SHYFB 1.5kW 1/12, hollow shaft flange/face mount, 54Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/12 | Actual Ratio: 1/12.68 | Output Speed: 250 r/min (motor 3000 r/min) | Permissible Output Torque: 54 Nm | Permissible Overhang Load: 2850 N | Permissible Thrust Load: 570 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/15GV-SHYFB 1.5kW 1/15, hollow shaft flange/face mount, 65Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/15 | Actual Ratio: 1/15.17 | Output Speed: 200 r/min (motor 3000 r/min) | Permissible Output Torque: 65 Nm | Permissible Overhang Load: 3050 N | Permissible Thrust Load: 610 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/20GV-SHYFB 1.5kW 1/20, hollow shaft flange/face mount, 90Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/20 | Actual Ratio: 1/20.83 | Output Speed: 150 r/min (motor 3000 r/min) | Permissible Output Torque: 90 Nm | Permissible Overhang Load: 3200 N | Permissible Thrust Load: 640 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/25GV-SHYFB 1.5kW 1/25, hollow shaft flange/face mount, 110Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/25 | Actual Ratio: 1/25.66 | Output Speed: 120 r/min (motor 3000 r/min) | Permissible Output Torque: 110 Nm | Permissible Overhang Load: 3400 N | Permissible Thrust Load: 680 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/30GV-SHYFB 1.5kW 1/30, hollow shaft flange/face mount, 137Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/30 | Actual Ratio: 1/31.82 | Output Speed: 100 r/min (motor 3000 r/min) | Permissible Output Torque: 137 Nm | Permissible Overhang Load: 3600 N | Permissible Thrust Load: 720 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/40GV-SHYFB 1.5kW 1/40, hollow shaft flange/face mount, 174Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/40 | Actual Ratio: 1/40.39 | Output Speed: 75 r/min (motor 3000 r/min) | Permissible Output Torque: 174 Nm | Permissible Overhang Load: 3730 N | Permissible Thrust Load: 746 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/50GV-SHYFB 1.5kW 1/50, hollow shaft flange/face mount, 229Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/50 | Actual Ratio: 1/53.18 | Output Speed: 60 r/min (motor 3000 r/min) | Permissible Output Torque: 229 Nm | Permissible Overhang Load: 3850 N | Permissible Thrust Load: 770 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/60GV-SHYFB 1.5kW 1/60, hollow shaft flange/face mount, 255Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/60 | Actual Ratio: 1/59.39 | Output Speed: 50 r/min (motor 3000 r/min) | Permissible Output Torque: 255 Nm | Permissible Overhang Load: 3850 N | Permissible Thrust Load: 770 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/80GV-SHYFB 1.5kW 1/80, hollow shaft flange/face mount, 337Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/80 | Actual Ratio: 1/81.06 | Output Speed: 37.5 r/min (motor 3000 r/min) | Permissible Output Torque: 337 Nm | Permissible Overhang Load: 4400 N | Permissible Thrust Load: 880 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/100GV-SHYFB 1.5kW 1/100, hollow shaft flange/face mount, 427Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/100 | Actual Ratio: 1/102.78 | Output Speed: 30 r/min (motor 3000 r/min) | Permissible Output Torque: 427 Nm | Permissible Overhang Load: 4700 N | Permissible Thrust Load: 941 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/120GV-SHYFB 1.5kW 1/120, hollow shaft flange/face mount, 510Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/120 | Actual Ratio: 1/122.82 | Output Speed: 25 r/min (motor 3000 r/min) | Permissible Output Torque: 510 Nm | Permissible Overhang Load: 4700 N | Permissible Thrust Load: 941 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/160GV-SHYFB 1.5kW 1/160, hollow shaft flange/face mount, 641Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/160 | Actual Ratio: 1/155.03 | Output Speed: 18.8 r/min (motor 3000 r/min) | Permissible Output Torque: 641 Nm (torque-limited) | Permissible Overhang Load: 4850 N | Permissible Thrust Load: 970 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/200GV-SHYFB 1.5kW 1/200, hollow shaft flange/face mount, 642Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/200 | Actual Ratio: 1/196.56 | Output Speed: 15 r/min (motor 3000 r/min) | Permissible Output Torque: 642 Nm (torque-limited) | Permissible Overhang Load: 5290 N | Permissible Thrust Load: 1058 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SHYFB 1.5kW 1/240GV-SHYFB 1.5kW 1/240, hollow shaft flange/face mount, 642Nm, brake | Series: GV-SHY (S-PM sensorless servo) | Type: Right-Angle Hypoid | Shaft: Hollow shaft (standard); solid (RR/RL) on request | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 1.5kW | Poles: 6P | Nominal Ratio: 1/240 | Actual Ratio: 1/234.90 | Output Speed: 12.5 r/min (motor 3000 r/min) | Permissible Output Torque: 642 Nm (torque-limited) | Permissible Overhang Load: 5290 N | Permissible Thrust Load: 1058 N | Motor Rated Voltage: 180V | Motor Rated Current: 5.5A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
