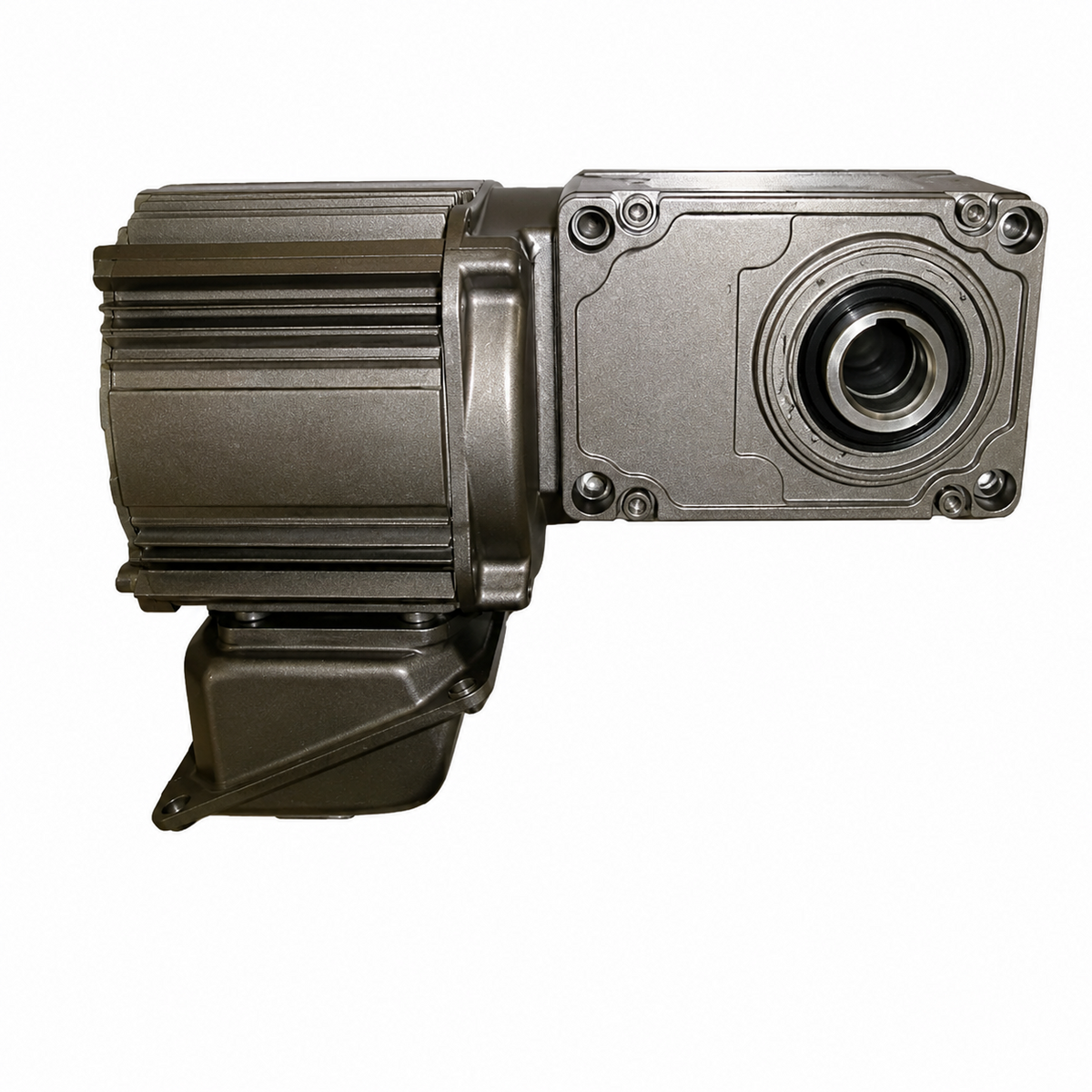

Mitsubishi Electric GV-SSYF 0.2kW 400V Class S-PM Sensorless Servo Geared Motor (Right-Angle Super Heli-Cross, Flange/Face Mount, without Brake)

Mitsubishi Electric GV-SSYF 0.2kW 400V Class S-PM Sensorless Servo Geared Motor (Right-Angle Super Heli-Cross, Flange/Face Mount, without Brake)

Mitsubishi Electric GV-SSYF 0.2kW 400V class S-PM sensorless servo geared motor, right-angle super heli-cross type with flange/face mounting, without brake.

Key features

  • Combines an S-PM permanent magnet motor with Mitsubishi PM sensorless vector control for high-accuracy speed regulation under load fluctuation without an encoder
  • Motor rated speed 3000r/min, 10 reduction ratios 1/7.5-1/60, permissible output shaft torque 3.9-28Nm
  • Requires dedicated drive unit FR-D740-0.4K-G (3-phase 380-480V 50/60Hz input; direct commercial power connection is not possible). 4P motor, TENV enclosure, indoor IP44, grease lubrication, insulation class 130(B), continuous rating
  • Semi-standard options: outdoor type, tropical treatment, one-touch manual release brake

Specifications

Voltage Class 400V (drive input 3-phase 380-480V 50/60Hz)
Output 0.2kW
Motor Rated Voltage 300V
Motor Rated Current 0.5A
Poles 4P
Motor Rated Frequency 100Hz
Motor Speed 3000r/min
Drive Unit FR-D740-0.4K-G
Power Supply Capacity 0.9kVA
Mount Flange/Face
Brake None
Shaft Hollow shaft (RH)
GV-SSYF 0.2kW 1/7.5 400V GV-SSYF 0.2kW ratio 1/7.5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/7.5 | Actual Ratio: 1/7.68 | Output Shaft Speed: 400r/min | Permissible Output Torque: 3.9Nm | Permissible Overhang Load: 900N | Permissible Thrust Load: 180N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/10 400V GV-SSYF 0.2kW ratio 1/10 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/10 | Actual Ratio: 1/10.06 | Output Shaft Speed: 300r/min | Permissible Output Torque: 5.1Nm | Permissible Overhang Load: 950N | Permissible Thrust Load: 190N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/12.5 400V GV-SSYF 0.2kW ratio 1/12.5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/12.5 | Actual Ratio: 1/12.90 | Output Shaft Speed: 240r/min | Permissible Output Torque: 6.6Nm | Permissible Overhang Load: 1070N | Permissible Thrust Load: 216N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/15 400V GV-SSYF 0.2kW ratio 1/15 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/15 | Actual Ratio: 1/15.79 | Output Shaft Speed: 200r/min | Permissible Output Torque: 8.0Nm | Permissible Overhang Load: 1070N | Permissible Thrust Load: 216N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/20 400V GV-SSYF 0.2kW ratio 1/20 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/20 | Actual Ratio: 1/20.77 | Output Shaft Speed: 150r/min | Permissible Output Torque: 11Nm | Permissible Overhang Load: 1170N | Permissible Thrust Load: 235N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/25 400V GV-SSYF 0.2kW ratio 1/25 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/25 | Actual Ratio: 1/25.83 | Output Shaft Speed: 120r/min | Permissible Output Torque: 13Nm | Permissible Overhang Load: 1220N | Permissible Thrust Load: 245N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/30 400V GV-SSYF 0.2kW ratio 1/30 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/30 | Actual Ratio: 1/30.21 | Output Shaft Speed: 100r/min | Permissible Output Torque: 15Nm | Permissible Overhang Load: 1270N | Permissible Thrust Load: 255N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/40 400V GV-SSYF 0.2kW ratio 1/40 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/40 | Actual Ratio: 1/39.74 | Output Shaft Speed: 75r/min | Permissible Output Torque: 20Nm | Permissible Overhang Load: 1420N | Permissible Thrust Load: 284N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/50 400V GV-SSYF 0.2kW ratio 1/50 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/50 | Actual Ratio: 1/48.85 | Output Shaft Speed: 60r/min | Permissible Output Torque: 25Nm | Permissible Overhang Load: 1470N | Permissible Thrust Load: 294N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/60 400V GV-SSYF 0.2kW ratio 1/60 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/60 | Actual Ratio: 1/54.77 | Output Shaft Speed: 50r/min | Permissible Output Torque: 28Nm | Permissible Overhang Load: 1510N | Permissible Thrust Load: 304N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
Sensorless Servo Geared MotorsMitsubishi Electric
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GV-SSYF 0.2kW 400V Class S-PM Sensorless Servo Geared Motor (Right-Angle Super Heli-Cross, Flange/Face Mount, without Brake)

Brand Mitsubishi Electric·Sensorless Servo Geared Motors

Available part numbers (10)

GV-SSYF 0.2kW 1/7.5 400V, GV-SSYF 0.2kW 1/10 400V, GV-SSYF 0.2kW 1/12.5 400V, GV-SSYF 0.2kW 1/15 400V, GV-SSYF 0.2kW 1/20 400V, GV-SSYF 0.2kW 1/25 400V, GV-SSYF 0.2kW 1/30 400V, GV-SSYF 0.2kW 1/40 400V, GV-SSYF 0.2kW 1/50 400V, GV-SSYF 0.2kW 1/60 400V

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GV-SSYF 0.2kW 1/7.5 400VGV-SSYF 0.2kW ratio 1/7.5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/7.5 | Actual Ratio: 1/7.68 | Output Shaft Speed: 400r/min | Permissible Output Torque: 3.9Nm | Permissible Overhang Load: 900N | Permissible Thrust Load: 180N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/10 400VGV-SSYF 0.2kW ratio 1/10 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/10 | Actual Ratio: 1/10.06 | Output Shaft Speed: 300r/min | Permissible Output Torque: 5.1Nm | Permissible Overhang Load: 950N | Permissible Thrust Load: 190N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/12.5 400VGV-SSYF 0.2kW ratio 1/12.5 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/12.5 | Actual Ratio: 1/12.90 | Output Shaft Speed: 240r/min | Permissible Output Torque: 6.6Nm | Permissible Overhang Load: 1070N | Permissible Thrust Load: 216N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/15 400VGV-SSYF 0.2kW ratio 1/15 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/15 | Actual Ratio: 1/15.79 | Output Shaft Speed: 200r/min | Permissible Output Torque: 8.0Nm | Permissible Overhang Load: 1070N | Permissible Thrust Load: 216N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/20 400VGV-SSYF 0.2kW ratio 1/20 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/20 | Actual Ratio: 1/20.77 | Output Shaft Speed: 150r/min | Permissible Output Torque: 11Nm | Permissible Overhang Load: 1170N | Permissible Thrust Load: 235N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/25 400VGV-SSYF 0.2kW ratio 1/25 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/25 | Actual Ratio: 1/25.83 | Output Shaft Speed: 120r/min | Permissible Output Torque: 13Nm | Permissible Overhang Load: 1220N | Permissible Thrust Load: 245N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/30 400VGV-SSYF 0.2kW ratio 1/30 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/30 | Actual Ratio: 1/30.21 | Output Shaft Speed: 100r/min | Permissible Output Torque: 15Nm | Permissible Overhang Load: 1270N | Permissible Thrust Load: 255N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/40 400VGV-SSYF 0.2kW ratio 1/40 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/40 | Actual Ratio: 1/39.74 | Output Shaft Speed: 75r/min | Permissible Output Torque: 20Nm | Permissible Overhang Load: 1420N | Permissible Thrust Load: 284N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/50 400VGV-SSYF 0.2kW ratio 1/50 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/50 | Actual Ratio: 1/48.85 | Output Shaft Speed: 60r/min | Permissible Output Torque: 25Nm | Permissible Overhang Load: 1470N | Permissible Thrust Load: 294N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYF 0.2kW 1/60 400VGV-SSYF 0.2kW ratio 1/60 400V class, flange/face mount, without brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 0.2kW | Nominal Ratio: 1/60 | Actual Ratio: 1/54.77 | Output Shaft Speed: 50r/min | Permissible Output Torque: 28Nm | Permissible Overhang Load: 1510N | Permissible Thrust Load: 304N | Motor Rated Voltage: 300V | Motor Rated Current: 0.5A | Poles: 4P | Motor Rated Frequency: 100Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-0.4K-G | Power Supply Capacity: 0.9kVA | Mount: Flange/Face | Brake: None | Shaft: Hollow shaft (RH) | Enclosure: TENV | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
