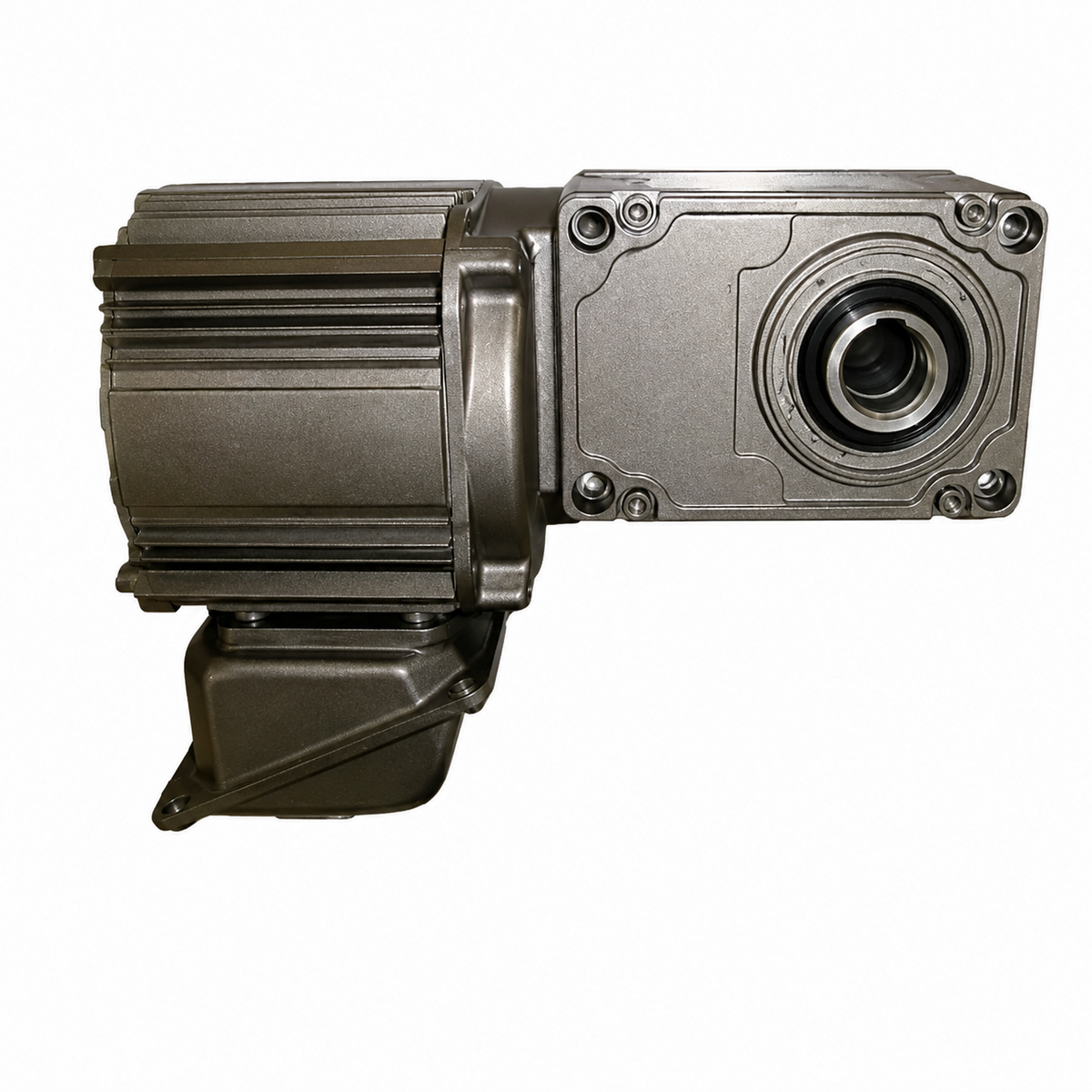

Mitsubishi Electric GV-SSYF 0.2kW S-PM Sensorless Servo Right-Angle Geared Motor (Super Heli-Cross)

Mitsubishi Electric GV-SSYF 0.2kW S-PM Sensorless Servo Right-Angle Geared Motor (Super Heli-Cross)

Mitsubishi Electric GV-SSYF 0.2kW S-PM sensorless servo super heli-cross right-angle geared motor, hollow shaft with flange/face-common mounting.

Key features

  • Permanent-magnet motor with PM sensorless vector control for wide constant-torque control
  • Nominal reduction ratios 1/7.5 to 1/60 with permissible output torque 3.9 to 28 Nm
  • Motor rated 3000 r/min, 4P, insulation 130(B), grease-lubricated, IP44 indoor
  • Requires a matching S-PM drive unit (3-phase 200-240V input; cannot be connected directly to commercial power)

Specifications

Series GV-SSY (S-PM sensorless servo)
Type Right-Angle Super Heli-Cross
Shaft Hollow shaft
Mount Flange / face mount (common)
Brake None
Output 0.2kW
Poles 4P
Motor Rated Voltage 150V
Motor Rated Current 1.05A
Drive Input 3-phase 200-240V 50/60Hz (drive unit required)
Insulation 130(B)
Enclosure Totally-enclosed non-ventilated (TENV)
GV-SSYF 0.2kW 1/7.5 GV-SSYF 0.2kW 1/7.5, hollow shaft flange/face mount, 3.9Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/7.5 | Actual Ratio: 1/7.68 | Output Speed: 400 r/min (motor 3000 r/min) | Permissible Output Torque: 3.9 Nm | Permissible Overhang Load: 900 N | Permissible Thrust Load: 180 N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/10 GV-SSYF 0.2kW 1/10, hollow shaft flange/face mount, 5.1Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/10 | Actual Ratio: 1/10.06 | Output Speed: 300 r/min (motor 3000 r/min) | Permissible Output Torque: 5.1 Nm | Permissible Overhang Load: 950 N | Permissible Thrust Load: N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/12.5 GV-SSYF 0.2kW 1/12.5, hollow shaft flange/face mount, 6.6Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/12.5 | Actual Ratio: 1/12.90 | Output Speed: 240 r/min (motor 3000 r/min) | Permissible Output Torque: 6.6 Nm | Permissible Overhang Load: 1070 N | Permissible Thrust Load: 216 N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/15 GV-SSYF 0.2kW 1/15, hollow shaft flange/face mount, 8.0Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/15 | Actual Ratio: 1/15.79 | Output Speed: 200 r/min (motor 3000 r/min) | Permissible Output Torque: 8.0 Nm | Permissible Overhang Load: 1070 N | Permissible Thrust Load: N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/20 GV-SSYF 0.2kW 1/20, hollow shaft flange/face mount, 11Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/20 | Actual Ratio: 1/20.77 | Output Speed: 150 r/min (motor 3000 r/min) | Permissible Output Torque: 11 Nm | Permissible Overhang Load: 1170 N | Permissible Thrust Load: 235 N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/25 GV-SSYF 0.2kW 1/25, hollow shaft flange/face mount, 13Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/25 | Actual Ratio: 1/25.83 | Output Speed: 120 r/min (motor 3000 r/min) | Permissible Output Torque: 13 Nm | Permissible Overhang Load: 1220 N | Permissible Thrust Load: N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/30 GV-SSYF 0.2kW 1/30, hollow shaft flange/face mount, 15Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/30 | Actual Ratio: 1/30.21 | Output Speed: 100 r/min (motor 3000 r/min) | Permissible Output Torque: 15 Nm | Permissible Overhang Load: 1270 N | Permissible Thrust Load: 255 N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/40 GV-SSYF 0.2kW 1/40, hollow shaft flange/face mount, 20Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/40 | Actual Ratio: 1/39.74 | Output Speed: 75 r/min (motor 3000 r/min) | Permissible Output Torque: 20 Nm | Permissible Overhang Load: 1420 N | Permissible Thrust Load: N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/50 GV-SSYF 0.2kW 1/50, hollow shaft flange/face mount, 25Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/50 | Actual Ratio: 1/48.85 | Output Speed: 60 r/min (motor 3000 r/min) | Permissible Output Torque: 25 Nm | Permissible Overhang Load: 1470 N | Permissible Thrust Load: 294 N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/60 GV-SSYF 0.2kW 1/60, hollow shaft flange/face mount, 28Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/60 | Actual Ratio: 1/54.77 | Output Speed: 50 r/min (motor 3000 r/min) | Permissible Output Torque: 28 Nm | Permissible Overhang Load: 1510 N | Permissible Thrust Load: N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
Sensorless Servo Geared MotorsMitsubishi Electric
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GV-SSYF 0.2kW S-PM Sensorless Servo Right-Angle Geared Motor (Super Heli-Cross)

Brand Mitsubishi Electric·Sensorless Servo Geared Motors

Available part numbers (10)

GV-SSYF 0.2kW 1/7.5, GV-SSYF 0.2kW 1/10, GV-SSYF 0.2kW 1/12.5, GV-SSYF 0.2kW 1/15, GV-SSYF 0.2kW 1/20, GV-SSYF 0.2kW 1/25, GV-SSYF 0.2kW 1/30, GV-SSYF 0.2kW 1/40, GV-SSYF 0.2kW 1/50, GV-SSYF 0.2kW 1/60

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GV-SSYF 0.2kW 1/7.5GV-SSYF 0.2kW 1/7.5, hollow shaft flange/face mount, 3.9Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/7.5 | Actual Ratio: 1/7.68 | Output Speed: 400 r/min (motor 3000 r/min) | Permissible Output Torque: 3.9 Nm | Permissible Overhang Load: 900 N | Permissible Thrust Load: 180 N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/10GV-SSYF 0.2kW 1/10, hollow shaft flange/face mount, 5.1Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/10 | Actual Ratio: 1/10.06 | Output Speed: 300 r/min (motor 3000 r/min) | Permissible Output Torque: 5.1 Nm | Permissible Overhang Load: 950 N | Permissible Thrust Load: N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/12.5GV-SSYF 0.2kW 1/12.5, hollow shaft flange/face mount, 6.6Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/12.5 | Actual Ratio: 1/12.90 | Output Speed: 240 r/min (motor 3000 r/min) | Permissible Output Torque: 6.6 Nm | Permissible Overhang Load: 1070 N | Permissible Thrust Load: 216 N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/15GV-SSYF 0.2kW 1/15, hollow shaft flange/face mount, 8.0Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/15 | Actual Ratio: 1/15.79 | Output Speed: 200 r/min (motor 3000 r/min) | Permissible Output Torque: 8.0 Nm | Permissible Overhang Load: 1070 N | Permissible Thrust Load: N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/20GV-SSYF 0.2kW 1/20, hollow shaft flange/face mount, 11Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/20 | Actual Ratio: 1/20.77 | Output Speed: 150 r/min (motor 3000 r/min) | Permissible Output Torque: 11 Nm | Permissible Overhang Load: 1170 N | Permissible Thrust Load: 235 N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/25GV-SSYF 0.2kW 1/25, hollow shaft flange/face mount, 13Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/25 | Actual Ratio: 1/25.83 | Output Speed: 120 r/min (motor 3000 r/min) | Permissible Output Torque: 13 Nm | Permissible Overhang Load: 1220 N | Permissible Thrust Load: N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/30GV-SSYF 0.2kW 1/30, hollow shaft flange/face mount, 15Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/30 | Actual Ratio: 1/30.21 | Output Speed: 100 r/min (motor 3000 r/min) | Permissible Output Torque: 15 Nm | Permissible Overhang Load: 1270 N | Permissible Thrust Load: 255 N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/40GV-SSYF 0.2kW 1/40, hollow shaft flange/face mount, 20Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/40 | Actual Ratio: 1/39.74 | Output Speed: 75 r/min (motor 3000 r/min) | Permissible Output Torque: 20 Nm | Permissible Overhang Load: 1420 N | Permissible Thrust Load: N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/50GV-SSYF 0.2kW 1/50, hollow shaft flange/face mount, 25Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/50 | Actual Ratio: 1/48.85 | Output Speed: 60 r/min (motor 3000 r/min) | Permissible Output Torque: 25 Nm | Permissible Overhang Load: 1470 N | Permissible Thrust Load: 294 N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 0.2kW 1/60GV-SSYF 0.2kW 1/60, hollow shaft flange/face mount, 28Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 0.2kW | Poles: 4P | Nominal Ratio: 1/60 | Actual Ratio: 1/54.77 | Output Speed: 50 r/min (motor 3000 r/min) | Permissible Output Torque: 28 Nm | Permissible Overhang Load: 1510 N | Permissible Thrust Load: N | Motor Rated Voltage: 150V | Motor Rated Current: 1.05A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
