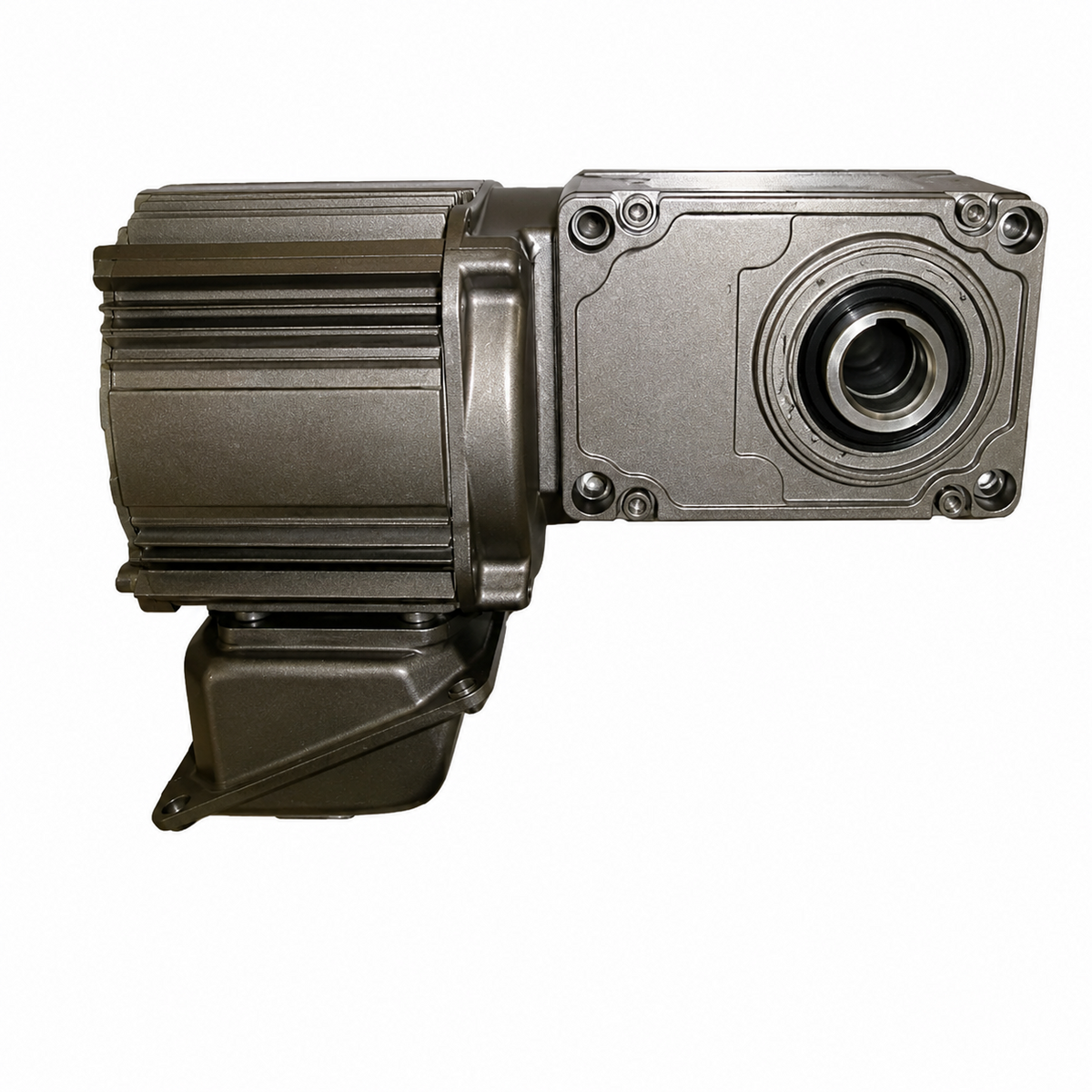

Mitsubishi Electric GV-SSYFB 2.2kW 400V Class S-PM Sensorless Servo Geared Motor (Right-Angle Super Heli-Cross, Flange/Face Mount, with Brake)

Mitsubishi Electric GV-SSYFB 2.2kW 400V Class S-PM Sensorless Servo Geared Motor (Right-Angle Super Heli-Cross, Flange/Face Mount, with Brake)

Mitsubishi Electric GV-SSYFB 2.2kW 400V class S-PM sensorless servo geared motor, right-angle super heli-cross type with flange/face mounting, with brake.

Key features

  • Combines an S-PM permanent magnet motor with Mitsubishi PM sensorless vector control for high-accuracy speed regulation under load fluctuation without an encoder
  • Motor rated speed 3000r/min, 7 reduction ratios 1/7.5-1/30, permissible output shaft torque 46-172Nm
  • Requires dedicated drive unit FR-D740-3.7K-G (3-phase 380-480V 50/60Hz input; direct commercial power connection is not possible). 6P motor, TEFC enclosure, indoor IP44, grease lubrication, insulation class 130(B), continuous rating
  • Semi-standard options: outdoor type, tropical treatment, one-touch manual release brake

Specifications

Voltage Class 400V (drive input 3-phase 380-480V 50/60Hz)
Output 2.2kW
Motor Rated Voltage 315V
Motor Rated Current 4.7A
Poles 6P
Motor Rated Frequency 150Hz
Motor Speed 3000r/min
Drive Unit FR-D740-3.7K-G
Power Supply Capacity 9.5kVA
Mount Flange/Face
Brake Built-in spring brake
Shaft Hollow shaft (RH)
GV-SSYFB 2.2kW 1/7.5 400V GV-SSYFB 2.2kW ratio 1/7.5 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 2.2kW | Nominal Ratio: 1/7.5 | Actual Ratio: 1/7.26 | Output Shaft Speed: 400r/min | Permissible Output Torque: 46Nm | Permissible Overhang Load: 2260N | Permissible Thrust Load: 452N | Motor Rated Voltage: 315V | Motor Rated Current: 4.7A | Poles: 6P | Motor Rated Frequency: 150Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-3.7K-G | Power Supply Capacity: 9.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (RH) | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYFB 2.2kW 1/10 400V GV-SSYFB 2.2kW ratio 1/10 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 2.2kW | Nominal Ratio: 1/10 | Actual Ratio: 1/10.00 | Output Shaft Speed: 300r/min | Permissible Output Torque: 63Nm | Permissible Overhang Load: 2350N | Permissible Thrust Load: 470N | Motor Rated Voltage: 315V | Motor Rated Current: 4.7A | Poles: 6P | Motor Rated Frequency: 150Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-3.7K-G | Power Supply Capacity: 9.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (RH) | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYFB 2.2kW 1/12.5 400V GV-SSYFB 2.2kW ratio 1/12.5 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 2.2kW | Nominal Ratio: 1/12.5 | Actual Ratio: 1/12.42 | Output Shaft Speed: 240r/min | Permissible Output Torque: 78Nm | Permissible Overhang Load: 2450N | Permissible Thrust Load: 490N | Motor Rated Voltage: 315V | Motor Rated Current: 4.7A | Poles: 6P | Motor Rated Frequency: 150Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-3.7K-G | Power Supply Capacity: 9.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (RH) | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYFB 2.2kW 1/15 400V GV-SSYFB 2.2kW ratio 1/15 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 2.2kW | Nominal Ratio: 1/15 | Actual Ratio: 1/15.00 | Output Shaft Speed: 200r/min | Permissible Output Torque: 95Nm | Permissible Overhang Load: 2540N | Permissible Thrust Load: 510N | Motor Rated Voltage: 315V | Motor Rated Current: 4.7A | Poles: 6P | Motor Rated Frequency: 150Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-3.7K-G | Power Supply Capacity: 9.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (RH) | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYFB 2.2kW 1/20 400V GV-SSYFB 2.2kW ratio 1/20 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 2.2kW | Nominal Ratio: 1/20 | Actual Ratio: 1/20.16 | Output Shaft Speed: 150r/min | Permissible Output Torque: 127Nm | Permissible Overhang Load: 2740N | Permissible Thrust Load: 549N | Motor Rated Voltage: 315V | Motor Rated Current: 4.7A | Poles: 6P | Motor Rated Frequency: 150Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-3.7K-G | Power Supply Capacity: 9.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (RH) | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYFB 2.2kW 1/25 400V GV-SSYFB 2.2kW ratio 1/25 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 2.2kW | Nominal Ratio: 1/25 | Actual Ratio: 1/25.33 | Output Shaft Speed: 120r/min | Permissible Output Torque: 160Nm | Permissible Overhang Load: 2940N | Permissible Thrust Load: 588N | Motor Rated Voltage: 315V | Motor Rated Current: 4.7A | Poles: 6P | Motor Rated Frequency: 150Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-3.7K-G | Power Supply Capacity: 9.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (RH) | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
GV-SSYFB 2.2kW 1/30 400V GV-SSYFB 2.2kW ratio 1/30 400V class, flange/face mount, with brake | Voltage Class: 400V (drive input 3-phase 380-480V 50/60Hz) | Output: 2.2kW | Nominal Ratio: 1/30 | Actual Ratio: 1/27.22 | Output Shaft Speed: 100r/min | Permissible Output Torque: 172Nm | Permissible Overhang Load: 3130N | Permissible Thrust Load: 627N | Motor Rated Voltage: 315V | Motor Rated Current: 4.7A | Poles: 6P | Motor Rated Frequency: 150Hz | Motor Speed: 3000r/min | Drive Unit: FR-D740-3.7K-G | Power Supply Capacity: 9.5kVA | Mount: Flange/Face | Brake: Built-in spring brake | Shaft: Hollow shaft (RH) | Enclosure: TEFC | Protection: IP44 (indoor) | Insulation: 130(B) | Lubrication: Grease
Sensorless Servo Geared MotorsMitsubishi Electric
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GV-SSYFB 2.2kW 400V Class S-PM Sensorless Servo Geared Motor (Right-Angle Super Heli-Cross, Flange/Face Mount, with Brake)

Brand Mitsubishi Electric·Sensorless Servo Geared Motors

Available part numbers (7)

GV-SSYFB 2.2kW 1/7.5 400V, GV-SSYFB 2.2kW 1/10 400V, GV-SSYFB 2.2kW 1/12.5 400V, GV-SSYFB 2.2kW 1/15 400V, GV-SSYFB 2.2kW 1/20 400V, GV-SSYFB 2.2kW 1/25 400V, GV-SSYFB 2.2kW 1/30 400V
