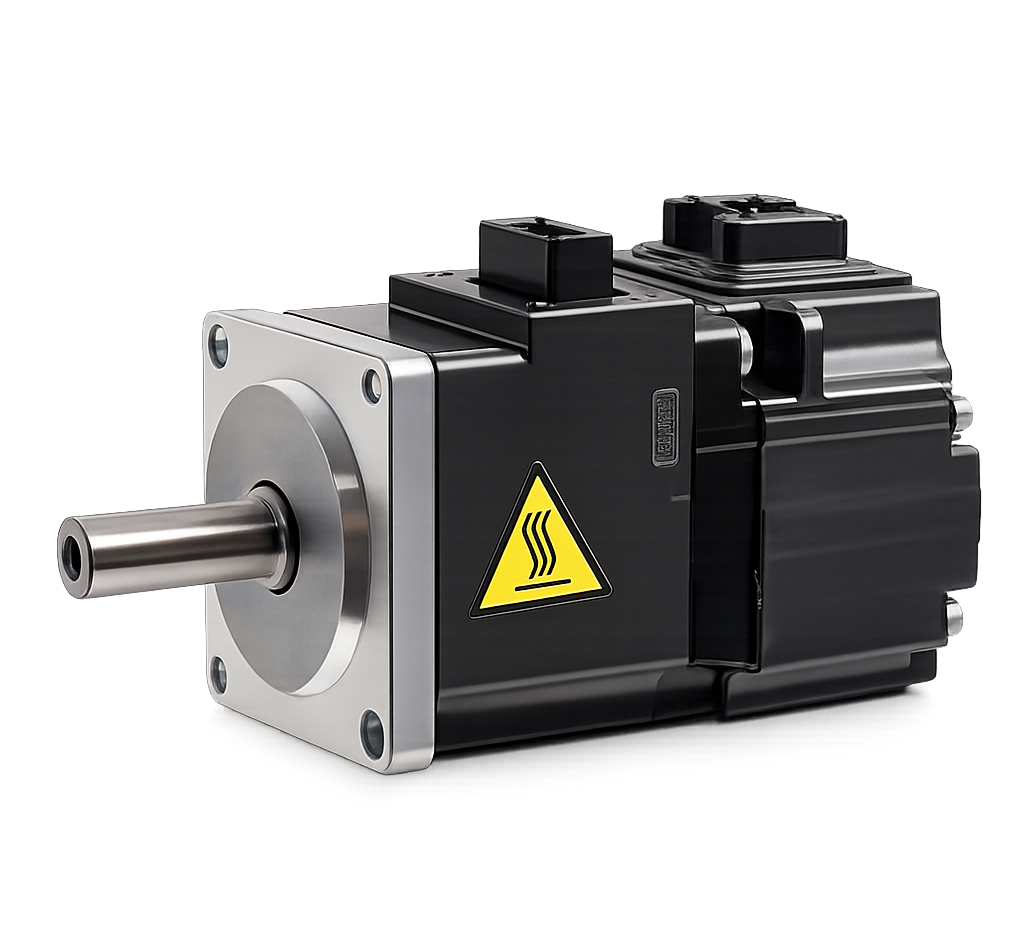

Mitsubishi Electric MELSERVO-J4 HG-JR Rotary Servo Motor 400V (Low Inertia, Medium-Large Capacity)

Mitsubishi Electric MELSERVO-J4 HG-JR Rotary Servo Motor 400V (Low Inertia, Medium-Large Capacity)

Mitsubishi MELSERVO-J4 HG-JR rotary servo motor, Low Inertia, Medium-Large Capacity. 22-bit absolute/incremental encoder, electromagnetic brake variants, MR-J4 servo amplifier compatible.

Specifications

Series Low Inertia, Medium-Large Capacity
Encoder 22-bit absolute/incremental
Options (RFQ) oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR534 HG-JR534, 0.5kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 0.5kW | Rated Torque: 1.6 N·m | Max Torque: 4.8 (up to 6.4 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 1.5 A | Moment of Inertia: 1.52 x10^-4 kg·m^2 | Protection: IP67 | Mass: 3.0 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-60(4) / MR-J4-100(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR534B HG-JR534B, 0.5kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 0.5kW | Rated Torque: 1.6 N·m | Max Torque: 4.8 (up to 6.4 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 1.5 A | Moment of Inertia: 1.52 x10^-4 kg·m^2 | Protection: IP67 | Mass: 4.4 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-60(4) / MR-J4-100(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR734 HG-JR734, 0.75kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 0.75kW | Rated Torque: 2.4 N·m | Max Torque: 7.2 (up to 9.6 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 2.8 A | Moment of Inertia: 2.09 x10^-4 kg·m^2 | Protection: IP67 | Mass: 3.7 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-100(4) / MR-J4-200(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR734B HG-JR734B, 0.75kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 0.75kW | Rated Torque: 2.4 N·m | Max Torque: 7.2 (up to 9.6 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 2.8 A | Moment of Inertia: 2.09 x10^-4 kg·m^2 | Protection: IP67 | Mass: 5.1 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-100(4) / MR-J4-200(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR1034 HG-JR1034, 1.0kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 1.0kW | Rated Torque: 3.2 N·m | Max Torque: 9.6 (up to 12.7 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 2.8 A | Moment of Inertia: 2.65 x10^-4 kg·m^2 | Protection: IP67 | Mass: 4.5 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-100(4) / MR-J4-200(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR1034B HG-JR1034B, 1.0kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 1.0kW | Rated Torque: 3.2 N·m | Max Torque: 9.6 (up to 12.7 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 2.8 A | Moment of Inertia: 2.65 x10^-4 kg·m^2 | Protection: IP67 | Mass: 5.9 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-100(4) / MR-J4-200(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR1534 HG-JR1534, 1.5kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 1.5kW | Rated Torque: 4.8 N·m | Max Torque: 14.3 (up to 19.1 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 5.4 A | Moment of Inertia: 3.79 x10^-4 kg·m^2 | Protection: IP67 | Mass: 5.9 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-200(4) / MR-J4-350(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR1534B HG-JR1534B, 1.5kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 1.5kW | Rated Torque: 4.8 N·m | Max Torque: 14.3 (up to 19.1 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 5.4 A | Moment of Inertia: 3.79 x10^-4 kg·m^2 | Protection: IP67 | Mass: 7.3 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-200(4) / MR-J4-350(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR2034 HG-JR2034, 2.0kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 2.0kW | Rated Torque: 6.4 N·m | Max Torque: 19.1 (up to 25.5 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 5.4 A | Moment of Inertia: 4.92 x10^-4 kg·m^2 | Protection: IP67 | Mass: 7.5 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-200(4) / MR-J4-350(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR2034B HG-JR2034B, 2.0kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 2.0kW | Rated Torque: 6.4 N·m | Max Torque: 19.1 (up to 25.5 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 5.4 A | Moment of Inertia: 4.92 x10^-4 kg·m^2 | Protection: IP67 | Mass: 8.9 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-200(4) / MR-J4-350(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR3534 HG-JR3534, 3.3 (3.5 with specific amp)kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 3.3 (3.5 with specific amp)kW | Rated Torque: 10.5 (11.1 with specific amp) N·m | Max Torque: 32.0 (up to 44.6 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 8.3 (8.8 with specific amp) A | Moment of Inertia: 13.2 x10^-4 kg·m^2 | Protection: IP67 | Mass: 13 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-350(4) / MR-J4-500(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR3534B HG-JR3534B, 3.3 (3.5 with specific amp)kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 3.3 (3.5 with specific amp)kW | Rated Torque: 10.5 (11.1 with specific amp) N·m | Max Torque: 32.0 (up to 44.6 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 8.3 (8.8 with specific amp) A | Moment of Inertia: 13.2 x10^-4 kg·m^2 | Protection: IP67 | Mass: 15 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-350(4) / MR-J4-500(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR5034 HG-JR5034, 5.0kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 5.0kW | Rated Torque: 15.9 N·m | Max Torque: 47.7 (up to 63.7 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 14 A | Moment of Inertia: 19.0 x10^-4 kg·m^2 | Protection: IP67 | Mass: 18 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-500(4) / MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR5034B HG-JR5034B, 5.0kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 5.0kW | Rated Torque: 15.9 N·m | Max Torque: 47.7 (up to 63.7 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 14 A | Moment of Inertia: 19.0 x10^-4 kg·m^2 | Protection: IP67 | Mass: 20 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-500(4) / MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR7034 HG-JR7034, 7.0kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 7.0kW | Rated Torque: 22.3 N·m | Max Torque: 66.8 N·m | Rated Speed: 3000 r/min | Max Speed: 5000 r/min | Rated Current: 17 A | Moment of Inertia: 43.3 x10^-4 kg·m^2 | Protection: IP67 | Mass: 29 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR7034B HG-JR7034B, 7.0kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 7.0kW | Rated Torque: 22.3 N·m | Max Torque: 66.8 N·m | Rated Speed: 3000 r/min | Max Speed: 5000 r/min | Rated Current: 17 A | Moment of Inertia: 43.3 x10^-4 kg·m^2 | Protection: IP67 | Mass: 35 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR9034 HG-JR9034, 9.0kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 9.0kW | Rated Torque: 28.6 N·m | Max Torque: 85.8 N·m | Rated Speed: 3000 r/min | Max Speed: 5000 r/min | Rated Current: 21 A | Moment of Inertia: 55.5 x10^-4 kg·m^2 | Protection: IP67 | Mass: 36 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR9034B HG-JR9034B, 9.0kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 9.0kW | Rated Torque: 28.6 N·m | Max Torque: 85.8 N·m | Rated Speed: 3000 r/min | Max Speed: 5000 r/min | Rated Current: 21 A | Moment of Inertia: 55.5 x10^-4 kg·m^2 | Protection: IP67 | Mass: 42 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR6014 HG-JR6014, 6.0kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 6.0kW | Rated Torque: 57.3 N·m | Max Torque: 172 N·m | Rated Speed: 1000 r/min | Max Speed: 2000 r/min | Rated Current: 16 A | Moment of Inertia: 176 x10^-4 kg·m^2 | Protection: IP67 | Mass: 53 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR6014B HG-JR6014B, 6.0kW, 1000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 6.0kW | Rated Torque: 57.3 N·m | Max Torque: 172 N·m | Rated Speed: 1000 r/min | Max Speed: 2000 r/min | Rated Current: 16 A | Moment of Inertia: 176 x10^-4 kg·m^2 | Protection: IP67 | Mass: 65 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR8014 HG-JR8014, 8.0kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 8.0kW | Rated Torque: 76.4 N·m | Max Torque: 229 N·m | Rated Speed: 1000 r/min | Max Speed: 2000 r/min | Rated Current: 23 A | Moment of Inertia: 220 x10^-4 kg·m^2 | Protection: IP67 | Mass: 62 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR8014B HG-JR8014B, 8.0kW, 1000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 8.0kW | Rated Torque: 76.4 N·m | Max Torque: 229 N·m | Rated Speed: 1000 r/min | Max Speed: 2000 r/min | Rated Current: 23 A | Moment of Inertia: 220 x10^-4 kg·m^2 | Protection: IP67 | Mass: 74 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR12K14 HG-JR12K14, 12kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 12kW | Rated Torque: 115 N·m | Max Torque: 345 N·m | Rated Speed: 1000 r/min | Max Speed: 2000 r/min | Rated Current: 30 A | Moment of Inertia: 315 x10^-4 kg·m^2 | Protection: IP67 | Mass: 86 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR12K14B HG-JR12K14B, 12kW, 1000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 12kW | Rated Torque: 115 N·m | Max Torque: 345 N·m | Rated Speed: 1000 r/min | Max Speed: 2000 r/min | Rated Current: 30 A | Moment of Inertia: 315 x10^-4 kg·m^2 | Protection: IP67 | Mass: 97 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR15K14 HG-JR15K14, 15kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 15kW | Rated Torque: 143 N·m | Max Torque: 429 N·m | Rated Speed: 1000 r/min | Max Speed: 1500 r/min | Rated Current: 33 A | Moment of Inertia: 489 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 120 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-15K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR20K14 HG-JR20K14, 20kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 20kW | Rated Torque: 191 N·m | Max Torque: 573 N·m | Rated Speed: 1000 r/min | Max Speed: 1500 r/min | Rated Current: 47 A | Moment of Inertia: 627 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 145 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-22K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR25K14 HG-JR25K14, 25kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 25kW | Rated Torque: 239 N·m | Max Torque: 717 N·m | Rated Speed: 1000 r/min | Max Speed: 1500 r/min | Rated Current: 48 A | Moment of Inertia: 764 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 165 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-22K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR30K14 HG-JR30K14, 30kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 30kW | Rated Torque: 286 N·m | Max Torque: 858 N·m | Rated Speed: 1000 r/min | Max Speed: 1500 r/min | Rated Current: 60 A | Moment of Inertia: 1377 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 215 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-DU30K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR37K14 HG-JR37K14, 37kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 37kW | Rated Torque: 353 N·m | Max Torque: 1059 N·m | Rated Speed: 1000 r/min | Max Speed: 1500 r/min | Rated Current: 76 A | Moment of Inertia: 1637 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 240 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-DU37K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR701M4 HG-JR701M4, 7.0kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 7.0kW | Rated Torque: 44.6 N·m | Max Torque: 134 N·m | Rated Speed: 1500 r/min | Max Speed: 3000 r/min | Rated Current: 17 A | Moment of Inertia: 176 x10^-4 kg·m^2 | Protection: IP67 | Mass: 53 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR701M4B HG-JR701M4B, 7.0kW, 1500 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 7.0kW | Rated Torque: 44.6 N·m | Max Torque: 134 N·m | Rated Speed: 1500 r/min | Max Speed: 3000 r/min | Rated Current: 17 A | Moment of Inertia: 176 x10^-4 kg·m^2 | Protection: IP67 | Mass: 65 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR11K1M4 HG-JR11K1M4, 11kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 11kW | Rated Torque: 70.0 N·m | Max Torque: 210 N·m | Rated Speed: 1500 r/min | Max Speed: 3000 r/min | Rated Current: 31 A | Moment of Inertia: 220 x10^-4 kg·m^2 | Protection: IP67 | Mass: 62 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR11K1M4B HG-JR11K1M4B, 11kW, 1500 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 11kW | Rated Torque: 70.0 N·m | Max Torque: 210 N·m | Rated Speed: 1500 r/min | Max Speed: 3000 r/min | Rated Current: 31 A | Moment of Inertia: 220 x10^-4 kg·m^2 | Protection: IP67 | Mass: 74 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR15K1M4 HG-JR15K1M4, 15kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 15kW | Rated Torque: 95.5 N·m | Max Torque: 286 N·m | Rated Speed: 1500 r/min | Max Speed: 3000 r/min | Rated Current: 38 A | Moment of Inertia: 315 x10^-4 kg·m^2 | Protection: IP67 | Mass: 86 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-15K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR15K1M4B HG-JR15K1M4B, 15kW, 1500 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 15kW | Rated Torque: 95.5 N·m | Max Torque: 286 N·m | Rated Speed: 1500 r/min | Max Speed: 3000 r/min | Rated Current: 38 A | Moment of Inertia: 315 x10^-4 kg·m^2 | Protection: IP67 | Mass: 97 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-15K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR22K1M4 HG-JR22K1M4, 22kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 22kW | Rated Torque: 140 N·m | Max Torque: 420 N·m | Rated Speed: 1500 r/min | Max Speed: 2500 r/min | Rated Current: 50 A | Moment of Inertia: 489 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 120 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-22K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR30K1M4 HG-JR30K1M4, 30kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 30kW | Rated Torque: 191 N·m | Max Torque: 573 N·m | Rated Speed: 1500 r/min | Max Speed: 2500 r/min | Rated Current: 68 A | Moment of Inertia: 627 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 145 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-DU30K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR37K1M4 HG-JR37K1M4, 37kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 37kW | Rated Torque: 236 N·m | Max Torque: 707 N·m | Rated Speed: 1500 r/min | Max Speed: 2500 r/min | Rated Current: 79 A | Moment of Inertia: 764 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 165 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-DU37K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR45K1M4 HG-JR45K1M4, 45kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 45kW | Rated Torque: 286 N·m | Max Torque: 859 N·m | Rated Speed: 1500 r/min | Max Speed: 2500 r/min | Rated Current: 85 A | Moment of Inertia: 1377 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 215 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-DU45K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR55K1M4 HG-JR55K1M4, 55kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 55kW | Rated Torque: 350 N·m | Max Torque: 1050 N·m | Rated Speed: 1500 r/min | Max Speed: 2500 r/min | Rated Current: 110 A | Moment of Inertia: 1637 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 240 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-DU55K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
Servo MotorsMitsubishi Electric
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric MELSERVO-J4 HG-JR Rotary Servo Motor 400V (Low Inertia, Medium-Large Capacity)

Brand Mitsubishi Electric·Servo Motors

Available part numbers (40)

HG-JR534, HG-JR534B, HG-JR734, HG-JR734B, HG-JR1034, HG-JR1034B, HG-JR1534, HG-JR1534B, HG-JR2034, HG-JR2034B + 30 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HG-JR534HG-JR534, 0.5kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 0.5kW | Rated Torque: 1.6 N·m | Max Torque: 4.8 (up to 6.4 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 1.5 A | Moment of Inertia: 1.52 x10^-4 kg·m^2 | Protection: IP67 | Mass: 3.0 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-60(4) / MR-J4-100(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR534BHG-JR534B, 0.5kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 0.5kW | Rated Torque: 1.6 N·m | Max Torque: 4.8 (up to 6.4 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 1.5 A | Moment of Inertia: 1.52 x10^-4 kg·m^2 | Protection: IP67 | Mass: 4.4 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-60(4) / MR-J4-100(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR734HG-JR734, 0.75kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 0.75kW | Rated Torque: 2.4 N·m | Max Torque: 7.2 (up to 9.6 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 2.8 A | Moment of Inertia: 2.09 x10^-4 kg·m^2 | Protection: IP67 | Mass: 3.7 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-100(4) / MR-J4-200(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR734BHG-JR734B, 0.75kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 0.75kW | Rated Torque: 2.4 N·m | Max Torque: 7.2 (up to 9.6 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 2.8 A | Moment of Inertia: 2.09 x10^-4 kg·m^2 | Protection: IP67 | Mass: 5.1 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-100(4) / MR-J4-200(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR1034HG-JR1034, 1.0kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 1.0kW | Rated Torque: 3.2 N·m | Max Torque: 9.6 (up to 12.7 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 2.8 A | Moment of Inertia: 2.65 x10^-4 kg·m^2 | Protection: IP67 | Mass: 4.5 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-100(4) / MR-J4-200(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR1034BHG-JR1034B, 1.0kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 1.0kW | Rated Torque: 3.2 N·m | Max Torque: 9.6 (up to 12.7 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 2.8 A | Moment of Inertia: 2.65 x10^-4 kg·m^2 | Protection: IP67 | Mass: 5.9 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-100(4) / MR-J4-200(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR1534HG-JR1534, 1.5kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 1.5kW | Rated Torque: 4.8 N·m | Max Torque: 14.3 (up to 19.1 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 5.4 A | Moment of Inertia: 3.79 x10^-4 kg·m^2 | Protection: IP67 | Mass: 5.9 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-200(4) / MR-J4-350(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR1534BHG-JR1534B, 1.5kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 1.5kW | Rated Torque: 4.8 N·m | Max Torque: 14.3 (up to 19.1 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 5.4 A | Moment of Inertia: 3.79 x10^-4 kg·m^2 | Protection: IP67 | Mass: 7.3 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-200(4) / MR-J4-350(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR2034HG-JR2034, 2.0kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 2.0kW | Rated Torque: 6.4 N·m | Max Torque: 19.1 (up to 25.5 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 5.4 A | Moment of Inertia: 4.92 x10^-4 kg·m^2 | Protection: IP67 | Mass: 7.5 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-200(4) / MR-J4-350(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR2034BHG-JR2034B, 2.0kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 2.0kW | Rated Torque: 6.4 N·m | Max Torque: 19.1 (up to 25.5 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 5.4 A | Moment of Inertia: 4.92 x10^-4 kg·m^2 | Protection: IP67 | Mass: 8.9 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-200(4) / MR-J4-350(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR3534HG-JR3534, 3.3 (3.5 with specific amp)kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 3.3 (3.5 with specific amp)kW | Rated Torque: 10.5 (11.1 with specific amp) N·m | Max Torque: 32.0 (up to 44.6 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 8.3 (8.8 with specific amp) A | Moment of Inertia: 13.2 x10^-4 kg·m^2 | Protection: IP67 | Mass: 13 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-350(4) / MR-J4-500(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR3534BHG-JR3534B, 3.3 (3.5 with specific amp)kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 3.3 (3.5 with specific amp)kW | Rated Torque: 10.5 (11.1 with specific amp) N·m | Max Torque: 32.0 (up to 44.6 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 8.3 (8.8 with specific amp) A | Moment of Inertia: 13.2 x10^-4 kg·m^2 | Protection: IP67 | Mass: 15 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-350(4) / MR-J4-500(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR5034HG-JR5034, 5.0kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 5.0kW | Rated Torque: 15.9 N·m | Max Torque: 47.7 (up to 63.7 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 14 A | Moment of Inertia: 19.0 x10^-4 kg·m^2 | Protection: IP67 | Mass: 18 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-500(4) / MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR5034BHG-JR5034B, 5.0kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 5.0kW | Rated Torque: 15.9 N·m | Max Torque: 47.7 (up to 63.7 with 400% MR-J4 amplifier combination) N·m | Rated Speed: 3000 r/min | Max Speed: 6000 r/min | Rated Current: 14 A | Moment of Inertia: 19.0 x10^-4 kg·m^2 | Protection: IP67 | Mass: 20 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-500(4) / MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR7034HG-JR7034, 7.0kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 7.0kW | Rated Torque: 22.3 N·m | Max Torque: 66.8 N·m | Rated Speed: 3000 r/min | Max Speed: 5000 r/min | Rated Current: 17 A | Moment of Inertia: 43.3 x10^-4 kg·m^2 | Protection: IP67 | Mass: 29 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR7034BHG-JR7034B, 7.0kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 7.0kW | Rated Torque: 22.3 N·m | Max Torque: 66.8 N·m | Rated Speed: 3000 r/min | Max Speed: 5000 r/min | Rated Current: 17 A | Moment of Inertia: 43.3 x10^-4 kg·m^2 | Protection: IP67 | Mass: 35 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR9034HG-JR9034, 9.0kW, 3000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 9.0kW | Rated Torque: 28.6 N·m | Max Torque: 85.8 N·m | Rated Speed: 3000 r/min | Max Speed: 5000 r/min | Rated Current: 21 A | Moment of Inertia: 55.5 x10^-4 kg·m^2 | Protection: IP67 | Mass: 36 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR9034BHG-JR9034B, 9.0kW, 3000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 9.0kW | Rated Torque: 28.6 N·m | Max Torque: 85.8 N·m | Rated Speed: 3000 r/min | Max Speed: 5000 r/min | Rated Current: 21 A | Moment of Inertia: 55.5 x10^-4 kg·m^2 | Protection: IP67 | Mass: 42 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR6014HG-JR6014, 6.0kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 6.0kW | Rated Torque: 57.3 N·m | Max Torque: 172 N·m | Rated Speed: 1000 r/min | Max Speed: 2000 r/min | Rated Current: 16 A | Moment of Inertia: 176 x10^-4 kg·m^2 | Protection: IP67 | Mass: 53 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR6014BHG-JR6014B, 6.0kW, 1000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 6.0kW | Rated Torque: 57.3 N·m | Max Torque: 172 N·m | Rated Speed: 1000 r/min | Max Speed: 2000 r/min | Rated Current: 16 A | Moment of Inertia: 176 x10^-4 kg·m^2 | Protection: IP67 | Mass: 65 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR8014HG-JR8014, 8.0kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 8.0kW | Rated Torque: 76.4 N·m | Max Torque: 229 N·m | Rated Speed: 1000 r/min | Max Speed: 2000 r/min | Rated Current: 23 A | Moment of Inertia: 220 x10^-4 kg·m^2 | Protection: IP67 | Mass: 62 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR8014BHG-JR8014B, 8.0kW, 1000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 8.0kW | Rated Torque: 76.4 N·m | Max Torque: 229 N·m | Rated Speed: 1000 r/min | Max Speed: 2000 r/min | Rated Current: 23 A | Moment of Inertia: 220 x10^-4 kg·m^2 | Protection: IP67 | Mass: 74 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR12K14HG-JR12K14, 12kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 12kW | Rated Torque: 115 N·m | Max Torque: 345 N·m | Rated Speed: 1000 r/min | Max Speed: 2000 r/min | Rated Current: 30 A | Moment of Inertia: 315 x10^-4 kg·m^2 | Protection: IP67 | Mass: 86 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR12K14BHG-JR12K14B, 12kW, 1000 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 12kW | Rated Torque: 115 N·m | Max Torque: 345 N·m | Rated Speed: 1000 r/min | Max Speed: 2000 r/min | Rated Current: 30 A | Moment of Inertia: 315 x10^-4 kg·m^2 | Protection: IP67 | Mass: 97 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR15K14HG-JR15K14, 15kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 15kW | Rated Torque: 143 N·m | Max Torque: 429 N·m | Rated Speed: 1000 r/min | Max Speed: 1500 r/min | Rated Current: 33 A | Moment of Inertia: 489 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 120 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-15K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR20K14HG-JR20K14, 20kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 20kW | Rated Torque: 191 N·m | Max Torque: 573 N·m | Rated Speed: 1000 r/min | Max Speed: 1500 r/min | Rated Current: 47 A | Moment of Inertia: 627 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 145 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-22K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR25K14HG-JR25K14, 25kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 25kW | Rated Torque: 239 N·m | Max Torque: 717 N·m | Rated Speed: 1000 r/min | Max Speed: 1500 r/min | Rated Current: 48 A | Moment of Inertia: 764 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 165 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-22K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR30K14HG-JR30K14, 30kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 30kW | Rated Torque: 286 N·m | Max Torque: 858 N·m | Rated Speed: 1000 r/min | Max Speed: 1500 r/min | Rated Current: 60 A | Moment of Inertia: 1377 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 215 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-DU30K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR37K14HG-JR37K14, 37kW, 1000 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 37kW | Rated Torque: 353 N·m | Max Torque: 1059 N·m | Rated Speed: 1000 r/min | Max Speed: 1500 r/min | Rated Current: 76 A | Moment of Inertia: 1637 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 240 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-DU37K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR701M4HG-JR701M4, 7.0kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 7.0kW | Rated Torque: 44.6 N·m | Max Torque: 134 N·m | Rated Speed: 1500 r/min | Max Speed: 3000 r/min | Rated Current: 17 A | Moment of Inertia: 176 x10^-4 kg·m^2 | Protection: IP67 | Mass: 53 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR701M4BHG-JR701M4B, 7.0kW, 1500 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 7.0kW | Rated Torque: 44.6 N·m | Max Torque: 134 N·m | Rated Speed: 1500 r/min | Max Speed: 3000 r/min | Rated Current: 17 A | Moment of Inertia: 176 x10^-4 kg·m^2 | Protection: IP67 | Mass: 65 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-700(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR11K1M4HG-JR11K1M4, 11kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 11kW | Rated Torque: 70.0 N·m | Max Torque: 210 N·m | Rated Speed: 1500 r/min | Max Speed: 3000 r/min | Rated Current: 31 A | Moment of Inertia: 220 x10^-4 kg·m^2 | Protection: IP67 | Mass: 62 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR11K1M4BHG-JR11K1M4B, 11kW, 1500 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 11kW | Rated Torque: 70.0 N·m | Max Torque: 210 N·m | Rated Speed: 1500 r/min | Max Speed: 3000 r/min | Rated Current: 31 A | Moment of Inertia: 220 x10^-4 kg·m^2 | Protection: IP67 | Mass: 74 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-11K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR15K1M4HG-JR15K1M4, 15kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 15kW | Rated Torque: 95.5 N·m | Max Torque: 286 N·m | Rated Speed: 1500 r/min | Max Speed: 3000 r/min | Rated Current: 38 A | Moment of Inertia: 315 x10^-4 kg·m^2 | Protection: IP67 | Mass: 86 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-15K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR15K1M4BHG-JR15K1M4B, 15kW, 1500 r/min, electromagnetic brake, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 15kW | Rated Torque: 95.5 N·m | Max Torque: 286 N·m | Rated Speed: 1500 r/min | Max Speed: 3000 r/min | Rated Current: 38 A | Moment of Inertia: 315 x10^-4 kg·m^2 | Protection: IP67 | Mass: 97 kg | Electromagnetic Brake: Built-in | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-15K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR22K1M4HG-JR22K1M4, 22kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 22kW | Rated Torque: 140 N·m | Max Torque: 420 N·m | Rated Speed: 1500 r/min | Max Speed: 2500 r/min | Rated Current: 50 A | Moment of Inertia: 489 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 120 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-22K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR30K1M4HG-JR30K1M4, 30kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 30kW | Rated Torque: 191 N·m | Max Torque: 573 N·m | Rated Speed: 1500 r/min | Max Speed: 2500 r/min | Rated Current: 68 A | Moment of Inertia: 627 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 145 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-DU30K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR37K1M4HG-JR37K1M4, 37kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 37kW | Rated Torque: 236 N·m | Max Torque: 707 N·m | Rated Speed: 1500 r/min | Max Speed: 2500 r/min | Rated Current: 79 A | Moment of Inertia: 764 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 165 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-DU37K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR45K1M4HG-JR45K1M4, 45kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 45kW | Rated Torque: 286 N·m | Max Torque: 859 N·m | Rated Speed: 1500 r/min | Max Speed: 2500 r/min | Rated Current: 85 A | Moment of Inertia: 1377 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 215 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-DU45K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
HG-JR55K1M4HG-JR55K1M4, 55kW, 1500 r/min, 400V | Series: Low Inertia, Medium-Large Capacity | Rated Output: 55kW | Rated Torque: 350 N·m | Max Torque: 1050 N·m | Rated Speed: 1500 r/min | Max Speed: 2500 r/min | Rated Current: 110 A | Moment of Inertia: 1637 x10^-4 kg·m^2 | Protection: IP44 (forced cooling) | Mass: 240 kg | Electromagnetic Brake: None | Encoder: 22-bit absolute/incremental | Compatible Amplifier: MR-J4-DU55K(4) | Options (RFQ): oil seal (J), keyed shaft (K), D-cut shaft (D), gearhead (G1/G1H/G5/G7), functional safety (W0C)
