• Mitsubishi Electric MS-T/N Series S-2xT12 / SD-2xT12 Reversing Magnetic Contactor (13A AC-3, T12 Frame)
1 1

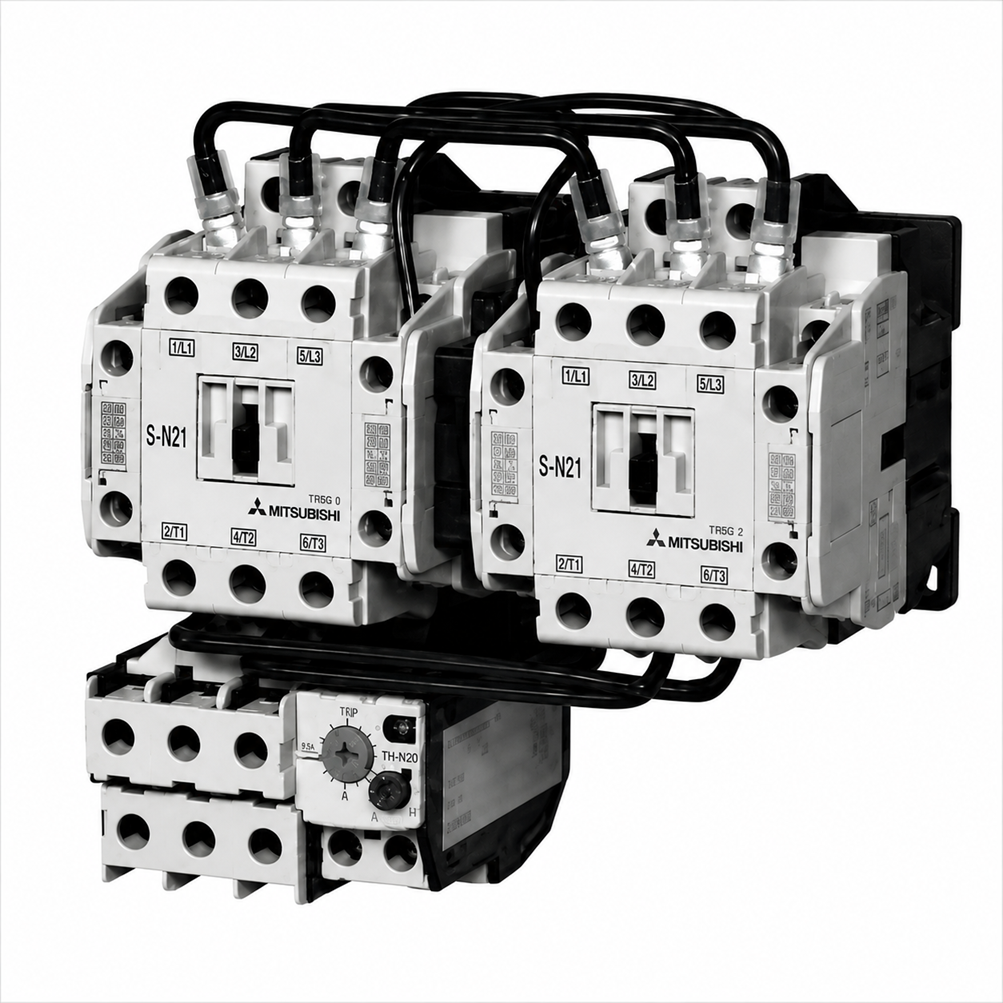

Mitsubishi Electric MS-T/N Series S-2xT12 / SD-2xT12 Reversing Magnetic Contactor (13A AC-3, T12 Frame)

Mitsubishi Electric MS-T/N Series S-2xT12 / SD-2xT12 Reversing Magnetic Contactor (13A AC-3, T12 Frame)

Mitsubishi Electric MS-T/N series T12-frame reversing magnetic contactor S-2xT12 / SD-2xT12, rated 2.7kW / 13A (AC-3) at 200-220V and 4kW / 9A at 380-440V, conventional thermal current Ith 20A.

Key features

  • Compliant with JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4; twin auxiliary contacts for high contact reliability
  • AC operating coils AC24V-AC500V (S type) and DC coils DC12V-DC220V (SD type)
  • Mechanical interlock fitted as standard for forward/reverse motor switching

Specifications

Frame T12
Type Reversing Magnetic Contactor
Poles 3
AC-3 Capacity 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V
AC-3 Current 13A@200-220V / 9A@380-440V / 9A@500-550V
AC-1 Current 20A@200-220V / 13A@380-440V
Thermal Current Ith 20A
Aux Contact 1a1b x2 + 2b (interlock unit b-contact)
Interlock Mechanical, built-in
Standards JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
S-2xT12 AC24V S-2xT12 reversing contactor, T12 frame, AC24V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: AC operated | Coil: AC24V (24V 50/60Hz) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
S-2xT12 AC48V S-2xT12 reversing contactor, T12 frame, AC48V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: AC operated | Coil: AC48V (48-50V 50/60Hz) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
S-2xT12 AC100V S-2xT12 reversing contactor, T12 frame, AC100V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: AC operated | Coil: AC100V (100-127V 50/60Hz) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
S-2xT12 AC200V S-2xT12 reversing contactor, T12 frame, AC200V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: AC operated | Coil: AC200V (200-240V 50/60Hz) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
S-2xT12 AC300V S-2xT12 reversing contactor, T12 frame, AC300V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: AC operated | Coil: AC300V (260-300V 50/60Hz) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
S-2xT12 AC400V S-2xT12 reversing contactor, T12 frame, AC400V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: AC operated | Coil: AC400V (380-440V 50/60Hz) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
S-2xT12 AC500V S-2xT12 reversing contactor, T12 frame, AC500V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: AC operated | Coil: AC500V (460-550V 50/60Hz) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC12V SD-2xT12 reversing contactor, T12 frame, DC12V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC12V (DC12V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC24V SD-2xT12 reversing contactor, T12 frame, DC24V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC24V (DC24V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC48V SD-2xT12 reversing contactor, T12 frame, DC48V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC48V (DC48V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC100V SD-2xT12 reversing contactor, T12 frame, DC100V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC100V (DC100V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC110V SD-2xT12 reversing contactor, T12 frame, DC110V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC110V (DC110V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC125V SD-2xT12 reversing contactor, T12 frame, DC125V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC125V (DC120-125V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC200V SD-2xT12 reversing contactor, T12 frame, DC200V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC200V (DC200V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC220V SD-2xT12 reversing contactor, T12 frame, DC220V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC220V (DC220V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
Magnetic ContactorsMitsubishi Electric
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric MS-T/N Series S-2xT12 / SD-2xT12 Reversing Magnetic Contactor (13A AC-3, T12 Frame)

Brand Mitsubishi Electric·Magnetic Contactors

Available part numbers (15)

S-2xT12 AC24V, S-2xT12 AC48V, S-2xT12 AC100V, S-2xT12 AC200V, S-2xT12 AC300V, S-2xT12 AC400V, S-2xT12 AC500V, SD-2xT12 DC12V, SD-2xT12 DC24V, SD-2xT12 DC48V + 5 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S-2xT12 AC24VS-2xT12 reversing contactor, T12 frame, AC24V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: AC operated | Coil: AC24V (24V 50/60Hz) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
S-2xT12 AC48VS-2xT12 reversing contactor, T12 frame, AC48V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: AC operated | Coil: AC48V (48-50V 50/60Hz) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
S-2xT12 AC100VS-2xT12 reversing contactor, T12 frame, AC100V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: AC operated | Coil: AC100V (100-127V 50/60Hz) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
S-2xT12 AC200VS-2xT12 reversing contactor, T12 frame, AC200V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: AC operated | Coil: AC200V (200-240V 50/60Hz) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
S-2xT12 AC300VS-2xT12 reversing contactor, T12 frame, AC300V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: AC operated | Coil: AC300V (260-300V 50/60Hz) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
S-2xT12 AC400VS-2xT12 reversing contactor, T12 frame, AC400V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: AC operated | Coil: AC400V (380-440V 50/60Hz) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
S-2xT12 AC500VS-2xT12 reversing contactor, T12 frame, AC500V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: AC operated | Coil: AC500V (460-550V 50/60Hz) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC12VSD-2xT12 reversing contactor, T12 frame, DC12V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC12V (DC12V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC24VSD-2xT12 reversing contactor, T12 frame, DC24V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC24V (DC24V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC48VSD-2xT12 reversing contactor, T12 frame, DC48V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC48V (DC48V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC100VSD-2xT12 reversing contactor, T12 frame, DC100V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC100V (DC100V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC110VSD-2xT12 reversing contactor, T12 frame, DC110V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC110V (DC110V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC125VSD-2xT12 reversing contactor, T12 frame, DC125V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC125V (DC120-125V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC200VSD-2xT12 reversing contactor, T12 frame, DC200V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC200V (DC200V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
SD-2xT12 DC220VSD-2xT12 reversing contactor, T12 frame, DC220V coil | Frame: T12 | Type: Reversing Magnetic Contactor | Poles: 3 | Operation: DC operated | Coil: DC220V (DC220V) | AC-3 Capacity: 2.7kW@200-220V / 4kW@380-440V / 5.5kW@500-550V | AC-3 Current: 13A@200-220V / 9A@380-440V / 9A@500-550V | AC-1 Current: 20A@200-220V / 13A@380-440V | Thermal Current Ith: 20A | Aux Contact: 1a1b x2 + 2b (interlock unit b-contact) | Interlock: Mechanical, built-in | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
