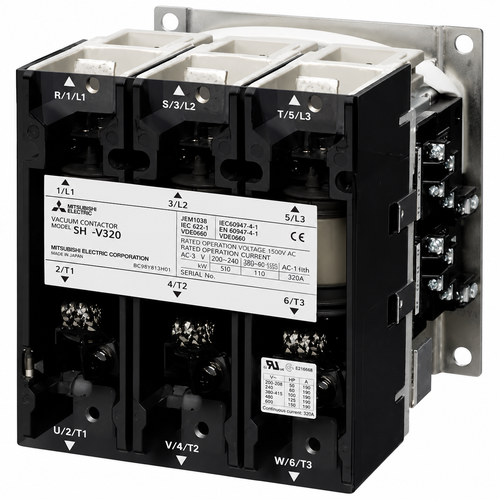

Mitsubishi Electric - SHD-V400 Vacuum Magnetic Contactor (DC operated, 450A Ith, 400A 200kW at AC440V)

Mitsubishi Electric - SHD-V400 Vacuum Magnetic Contactor (DC operated, 450A Ith, 400A 200kW at AC440V)

Mitsubishi Electric MS-T/N series SHD-V400 large capacity vacuum magnetic contactor combining a vacuum switch with an AC operated DC excited electromagnet for high performance, long life and maintenance free operation.

Key features

  • No arc clearance is required so the panel can be made smaller, there is no coil humming or current interruption noise, and there is no arc blowout which keeps the unit safe in harsh ambient conditions
  • Switching frequency 1200 operations per hour
  • Electrical 500,000 operations on three phase motor AC-3 class, 100,000 operations on three phase capacitor, mechanical 2,500,000 operations
  • Standard auxiliary contacts 2a2b, with a 4a4b configuration available on request
  • Compliant with JIS C8201-4-1, JEM 1038, IEC 60947-4-1
  • A surge absorber is not required for motor loads of 7.5kW and above but should be fitted for loads of 5.5kW and below

Specifications

Type Vacuum magnetic contactor
Frame V400
Operation DC operated
Rated Insulation Voltage 1500V three phase 50/60Hz
Rated Current and Capacity AC-3 Class 400A 95kW at AC220V, 400A 200kW at AC440V, 400A 250kW at AC550V, 400A 500kW at AC1000V, 400A 750kW at AC1500V
Three Phase Capacitor Rating 300A 100kVA at AC220V, 300A 200kVA at AC440V, 300A 250kVA at AC550V
Open Thermal Current Ith 450A
Switching Frequency 1200 operations/h
Operating Voltage Pick up at 85 percent or less of rated voltage at 40 degrees C ambient, drop out at 10 percent or more at 20 degrees C
Characteristics Main contact ON 40ms, main contact OFF 130ms, coil input inrush 480VA and sealed 40VA
Standards JIS C8201-4-1, JEM 1038, IEC 60947-4-1
SHD-V400 DC100V SHD-V400 vacuum contactor, DC100V coil | Type: Vacuum magnetic contactor | Frame: V400 | Operation: DC operated | Coil Designation: DC100V | Coil Rating: DC100-110V | Rated Insulation Voltage: 1500V three phase 50/60Hz | Rated Current and Capacity AC-3 Class: 400A 95kW at AC220V, 400A 200kW at AC440V, 400A 250kW at AC550V, 400A 500kW at AC1000V, 400A 750kW at AC1500V | Three Phase Capacitor Rating: 300A 100kVA at AC220V, 300A 200kVA at AC440V, 300A 250kVA at AC550V | Open Thermal Current Ith: 450A | Switching Frequency: 1200 operations/h | Durability: Electrical 500,000 operations on three phase motor AC-3 class, 100,000 operations on three phase capacitor, mechanical 2,500,000 operations | Operating Voltage: Pick up at 85 percent or less of rated voltage at 40 degrees C ambient, drop out at 10 percent or more at 20 degrees C | Characteristics: Main contact ON 40ms, main contact OFF 130ms, coil input inrush 480VA and sealed 40VA | Aux Contact: 2a2b standard, rated operational current AC-15 class 5A at AC220V and 3A at AC440V, DC-13 class 0.6A at DC110V and 0.2A at DC220V, conforming to JIS C4531 (1994) | Standards: JIS C8201-4-1, JEM 1038, IEC 60947-4-1
SHD-V400 DC200V SHD-V400 vacuum contactor, DC200V coil | Type: Vacuum magnetic contactor | Frame: V400 | Operation: DC operated | Coil Designation: DC200V | Coil Rating: DC200-220V | Rated Insulation Voltage: 1500V three phase 50/60Hz | Rated Current and Capacity AC-3 Class: 400A 95kW at AC220V, 400A 200kW at AC440V, 400A 250kW at AC550V, 400A 500kW at AC1000V, 400A 750kW at AC1500V | Three Phase Capacitor Rating: 300A 100kVA at AC220V, 300A 200kVA at AC440V, 300A 250kVA at AC550V | Open Thermal Current Ith: 450A | Switching Frequency: 1200 operations/h | Durability: Electrical 500,000 operations on three phase motor AC-3 class, 100,000 operations on three phase capacitor, mechanical 2,500,000 operations | Operating Voltage: Pick up at 85 percent or less of rated voltage at 40 degrees C ambient, drop out at 10 percent or more at 20 degrees C | Characteristics: Main contact ON 40ms, main contact OFF 130ms, coil input inrush 480VA and sealed 40VA | Aux Contact: 2a2b standard, rated operational current AC-15 class 5A at AC220V and 3A at AC440V, DC-13 class 0.6A at DC110V and 0.2A at DC220V, conforming to JIS C4531 (1994) | Standards: JIS C8201-4-1, JEM 1038, IEC 60947-4-1
