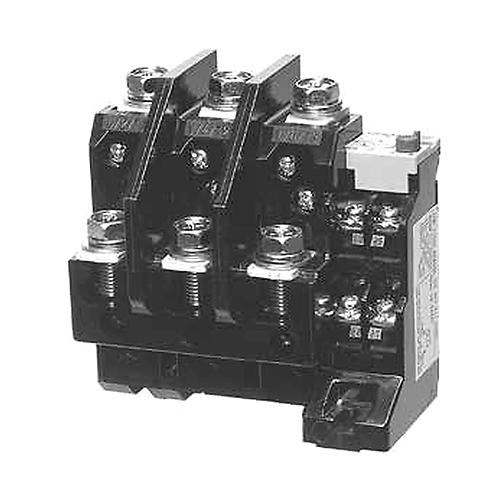

Mitsubishi Electric TH-T50 / TH-T50KP Thermal Overload Relay (29-42A, T50 Frame)

Mitsubishi Electric TH-T50 / TH-T50KP Thermal Overload Relay (29-42A, T50 Frame)

Mitsubishi Electric TH-T50 / TH-T50KP thermal overload relay for MS-T/N series magnetic contactors and starters, t50 frame, heater designations 29-42A. 2-element type for overload protection, KP 3-element (2E) type for combined overload and open-phase protection.

Key features

  • Manual reset standard (auto-reset AR type available to order); auxiliary contact 1a1b
  • Compliant with JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4

Specifications

Frame T50
Type Thermal Overload Relay
Mounting For magnetic starter combination
Reset Manual (standard)
Aux Contact 1a1b
Standards JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50 29A TH-T50 thermal relay, 29A heater, 2-element | Frame: T50 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 29A (adjustable 24-34A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50 35A TH-T50 thermal relay, 35A heater, 2-element | Frame: T50 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 35A (adjustable 30-40A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50 42A TH-T50 thermal relay, 42A heater, 2-element | Frame: T50 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50KP 29A TH-T50KP thermal relay, 29A heater, 3-element 2E | Frame: T50 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 29A (adjustable 24-34A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50KP 35A TH-T50KP thermal relay, 35A heater, 3-element 2E | Frame: T50 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 35A (adjustable 30-40A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50KP 42A TH-T50KP thermal relay, 42A heater, 3-element 2E | Frame: T50 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
Thermal Overload RelaysMitsubishi Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric TH-T50 / TH-T50KP Thermal Overload Relay (29-42A, T50 Frame)

Brand Mitsubishi Electric·Thermal Overload Relays

Available part numbers (6)

TH-T50 29A, TH-T50 35A, TH-T50 42A, TH-T50KP 29A, TH-T50KP 35A, TH-T50KP 42A

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TH-T50 29ATH-T50 thermal relay, 29A heater, 2-element | Frame: T50 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 29A (adjustable 24-34A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50 35ATH-T50 thermal relay, 35A heater, 2-element | Frame: T50 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 35A (adjustable 30-40A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50 42ATH-T50 thermal relay, 42A heater, 2-element | Frame: T50 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50KP 29ATH-T50KP thermal relay, 29A heater, 3-element 2E | Frame: T50 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 29A (adjustable 24-34A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50KP 35ATH-T50KP thermal relay, 35A heater, 3-element 2E | Frame: T50 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 35A (adjustable 30-40A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50KP 42ATH-T50KP thermal relay, 42A heater, 3-element 2E | Frame: T50 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
