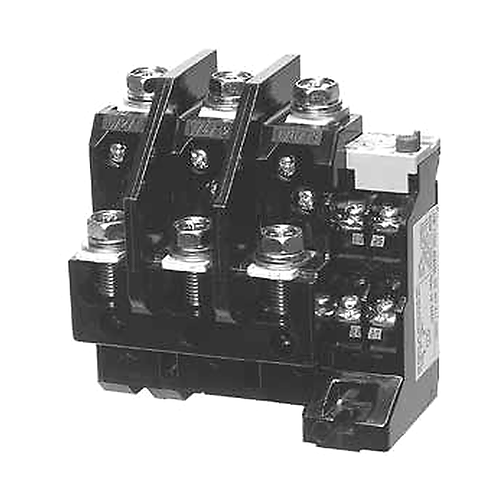

Mitsubishi Electric TH-T50FS / TH-T50FSKP Quick-Response Thermal Overload Relay (29-42A, T50 Frame)

Mitsubishi Electric TH-T50FS / TH-T50FSKP Quick-Response Thermal Overload Relay (29-42A, T50 Frame)

Mitsubishi Electric TH-T50FS / TH-T50FSKP quick-response thermal overload relay, t50 frame, heater designations 29-42A, trip class 5.

Key features

  • Faster operating time than standard TH types for motors with short locked-rotor withstand time such as submersible motors; usable from DC to 400Hz. 2-element type for overload protection, FSKP 3-element (2E) type for combined overload and open-phase protection
  • Manual reset standard; auxiliary contact 1a1b
  • Compliant with JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4

Specifications

Frame T50
Type Quick-Response Thermal Overload Relay
Trip Class 5
Mounting For magnetic starter combination
Reset Manual (standard)
Aux Contact 1a1b
Frequency DC to 400Hz
Standards JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50FS 29A TH-T50FS quick-response thermal relay, 29A heater, 2-element | Frame: T50 | Type: Quick-Response Thermal Overload Relay | Elements: 2-element | Protection: Overload | Trip Class: 5 | Heater: 29A (adjustable 24-34A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50FS 35A TH-T50FS quick-response thermal relay, 35A heater, 2-element | Frame: T50 | Type: Quick-Response Thermal Overload Relay | Elements: 2-element | Protection: Overload | Trip Class: 5 | Heater: 35A (adjustable 30-40A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50FS 42A TH-T50FS quick-response thermal relay, 42A heater, 2-element | Frame: T50 | Type: Quick-Response Thermal Overload Relay | Elements: 2-element | Protection: Overload | Trip Class: 5 | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50FSKP 29A TH-T50FSKP quick-response thermal relay, 29A heater, 3-element 2E | Frame: T50 | Type: Quick-Response Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Trip Class: 5 | Heater: 29A (adjustable 24-34A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50FSKP 35A TH-T50FSKP quick-response thermal relay, 35A heater, 3-element 2E | Frame: T50 | Type: Quick-Response Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Trip Class: 5 | Heater: 35A (adjustable 30-40A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50FSKP 42A TH-T50FSKP quick-response thermal relay, 42A heater, 3-element 2E | Frame: T50 | Type: Quick-Response Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Trip Class: 5 | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
Thermal Overload RelaysMitsubishi Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric TH-T50FS / TH-T50FSKP Quick-Response Thermal Overload Relay (29-42A, T50 Frame)

Brand Mitsubishi Electric·Thermal Overload Relays

Available part numbers (6)

TH-T50FS 29A, TH-T50FS 35A, TH-T50FS 42A, TH-T50FSKP 29A, TH-T50FSKP 35A, TH-T50FSKP 42A

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TH-T50FS 29ATH-T50FS quick-response thermal relay, 29A heater, 2-element | Frame: T50 | Type: Quick-Response Thermal Overload Relay | Elements: 2-element | Protection: Overload | Trip Class: 5 | Heater: 29A (adjustable 24-34A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50FS 35ATH-T50FS quick-response thermal relay, 35A heater, 2-element | Frame: T50 | Type: Quick-Response Thermal Overload Relay | Elements: 2-element | Protection: Overload | Trip Class: 5 | Heater: 35A (adjustable 30-40A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50FS 42ATH-T50FS quick-response thermal relay, 42A heater, 2-element | Frame: T50 | Type: Quick-Response Thermal Overload Relay | Elements: 2-element | Protection: Overload | Trip Class: 5 | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50FSKP 29ATH-T50FSKP quick-response thermal relay, 29A heater, 3-element 2E | Frame: T50 | Type: Quick-Response Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Trip Class: 5 | Heater: 29A (adjustable 24-34A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50FSKP 35ATH-T50FSKP quick-response thermal relay, 35A heater, 3-element 2E | Frame: T50 | Type: Quick-Response Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Trip Class: 5 | Heater: 35A (adjustable 30-40A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T50FSKP 42ATH-T50FSKP quick-response thermal relay, 42A heater, 3-element 2E | Frame: T50 | Type: Quick-Response Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Trip Class: 5 | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
